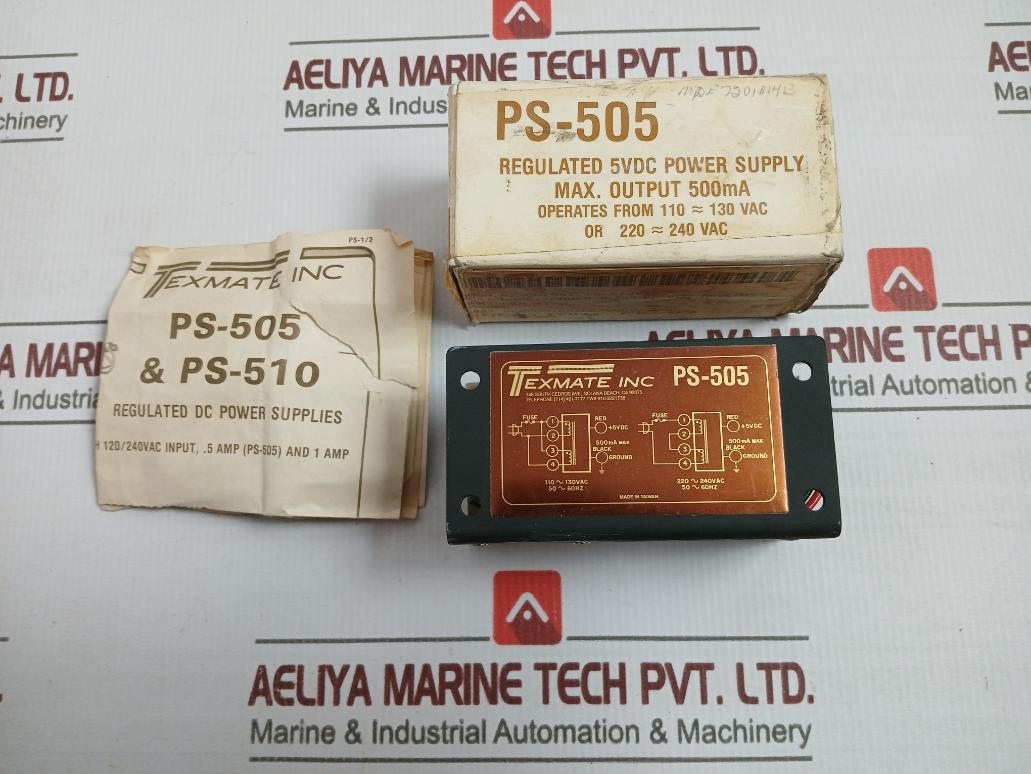

Texmate Ps-505 Regulated Dc Power Supply 240v

Texmate Inc
Part Name: Regulated Dc Power Supplies
Low Cost Regulated +5vdc Power Supplies With 120/240vac Input, .5 Amp
Part No: Ps-505
Max. Output: 500ma
Operates From: 110~130vac Or 220~240vac
50~60hz
Specifications:
Output Voltage: +5vdc ±4%
Output Current: 500ma Max. (Ps-505)
Line Regulation: 50mv Or 60db
Load Regulation: 50mv
Ripple Rejection: 60db (Or Ripple 10mv Max.)
Output Resistance: 8mΩ Typical
Protection: Short Circuit Current Limit 2 Amps Thermal Overload Protection Current Fold Back On 3-Terminal Regulator
Temperature Coefficient: Output Voltage Drift At 0.6mv/°C
Input Power Requirement: 110v Or 220v ±5% At 50hz 117v Or 230v ±5% At 60hz To 400hz
Operating Temperature: -10°C To +50°C
Isolation: 500v Between A.C. Input, D.C. Output And The Case
Amos #: En. 641. 75. 01. 016
Made In Taiwan
Weight : 430 Gm
Ref No : 192125
