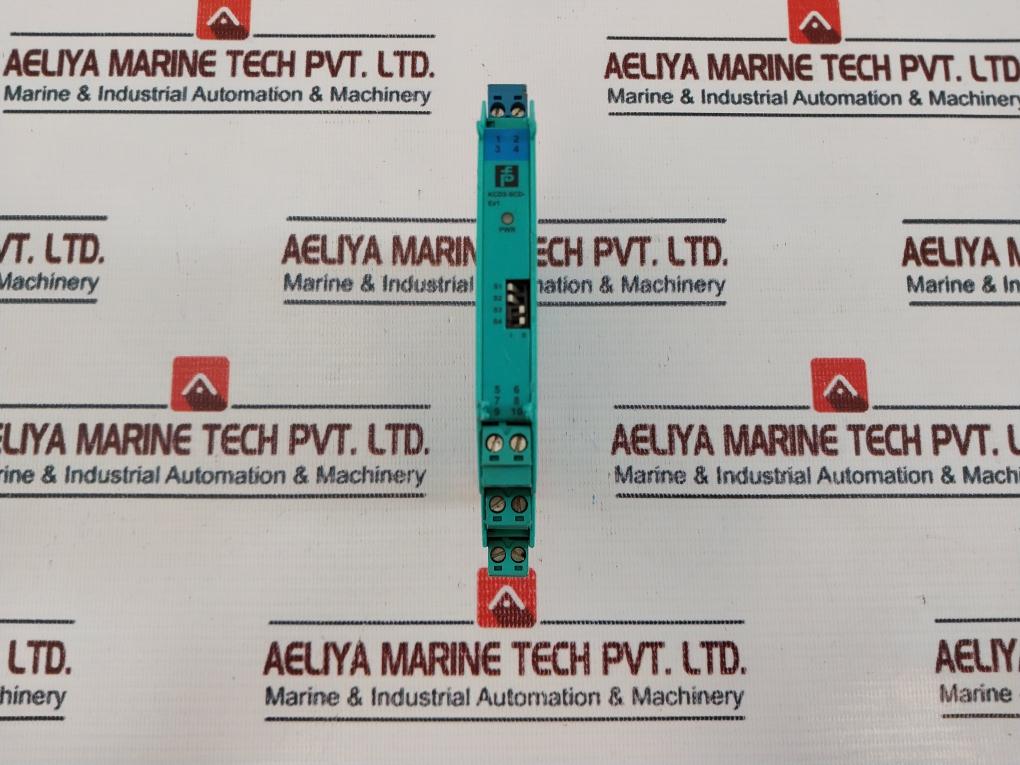

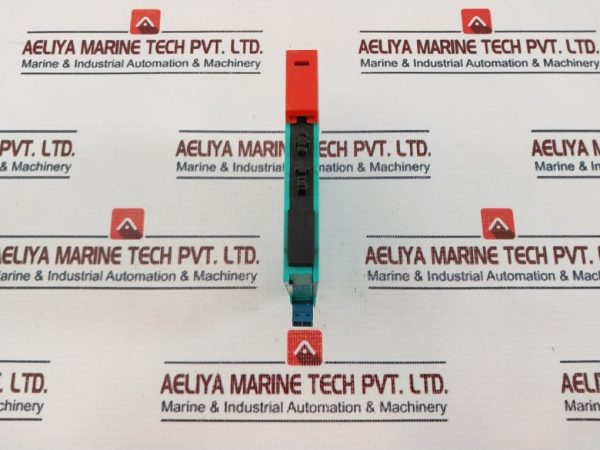

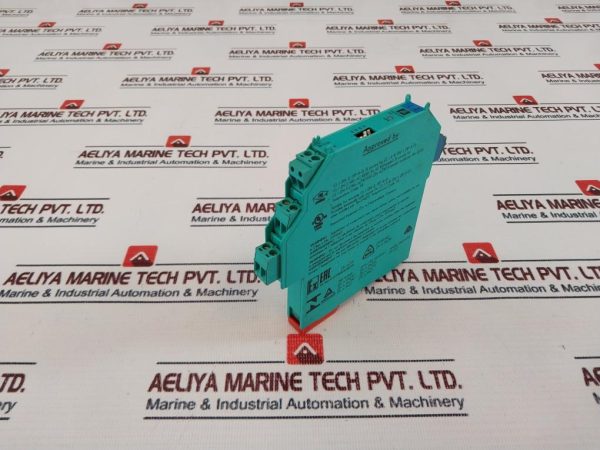

Pepperl+fuchs Kcd2-scd-ex1 Signal Isolator Safety Barrier 250v

Pepperl+fuchs Kcd2-scd-ex1 Signal Isolator Safety Barrier 250v
Pepperl+fuchs
K-system
Kcd2-scd-ex1
Part No: 232717
Ii (1) G [ex Ia Ga] Iic
Ii (1) D [ex Ia Da] Iiic
I (M1) [ex Ia Ma] I
Cesi 06 Atex 021
Ii 3 G Ex Na Iic T4 Gc Pf06cert0973 X
Output: I=4-20ma
Maximum Values:
Uo=25.2v
Io= 100ma
Po= 630mw
Supply: Dc 19-30v/35-25ma
Um=250v
Ambient Temp.: -20°c Ta 60°c
Cl I, Div 2, Gp A-d;
Cl I, Ii, Iii; Div 1, Gp A-g
Temperature Code T4
Made In Singapore
Weight : 90 Gm
Ref No : 133683
