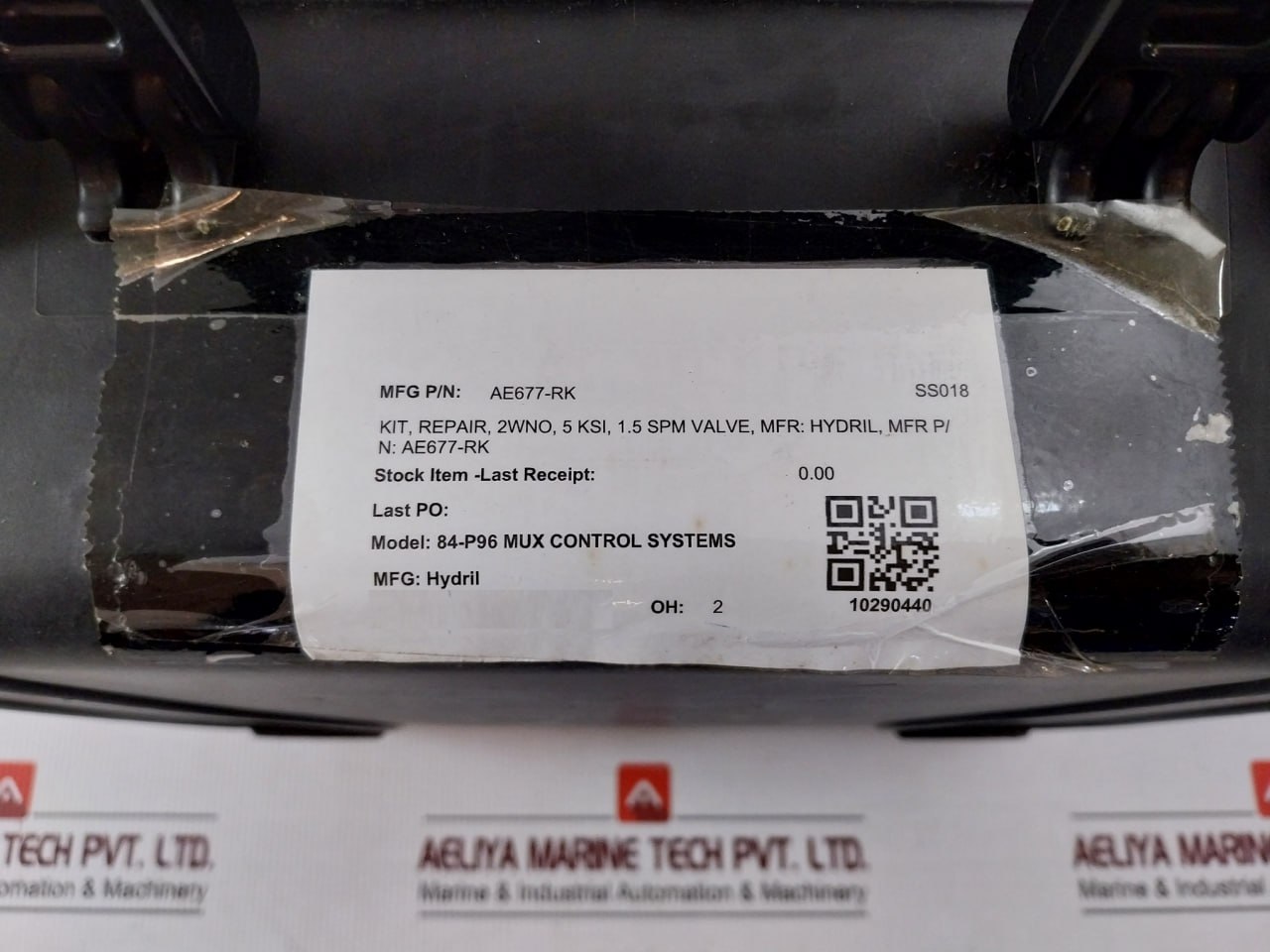

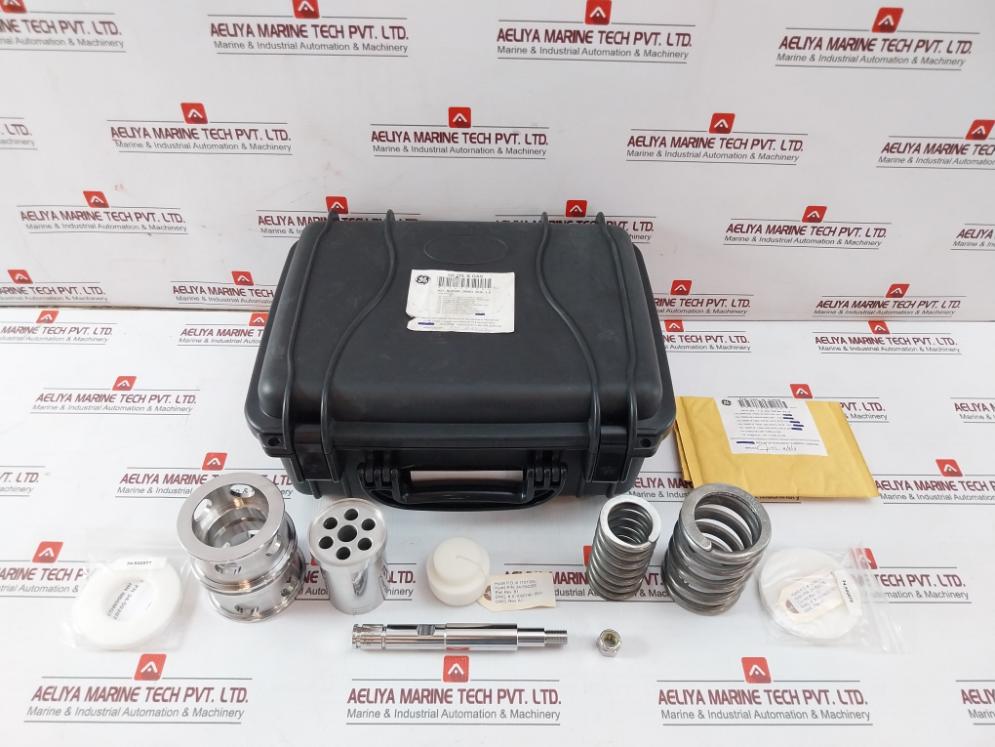

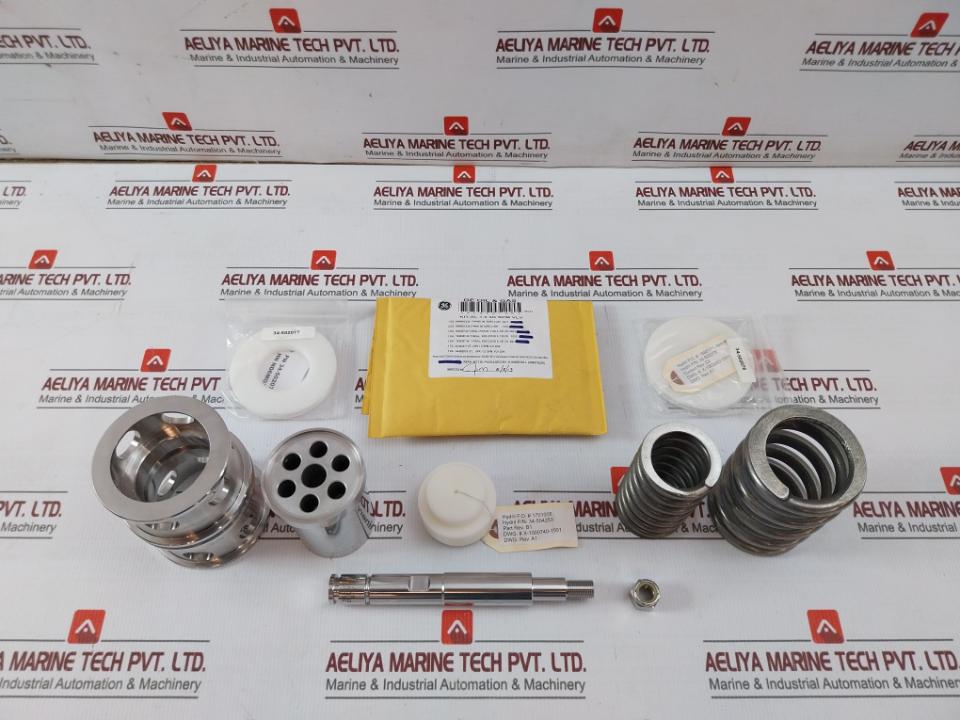

Hydril Ae677-Rk Valve Repair Kit

Mfg/Mfr: Hydril
Ge Oil & Gas
General Electric

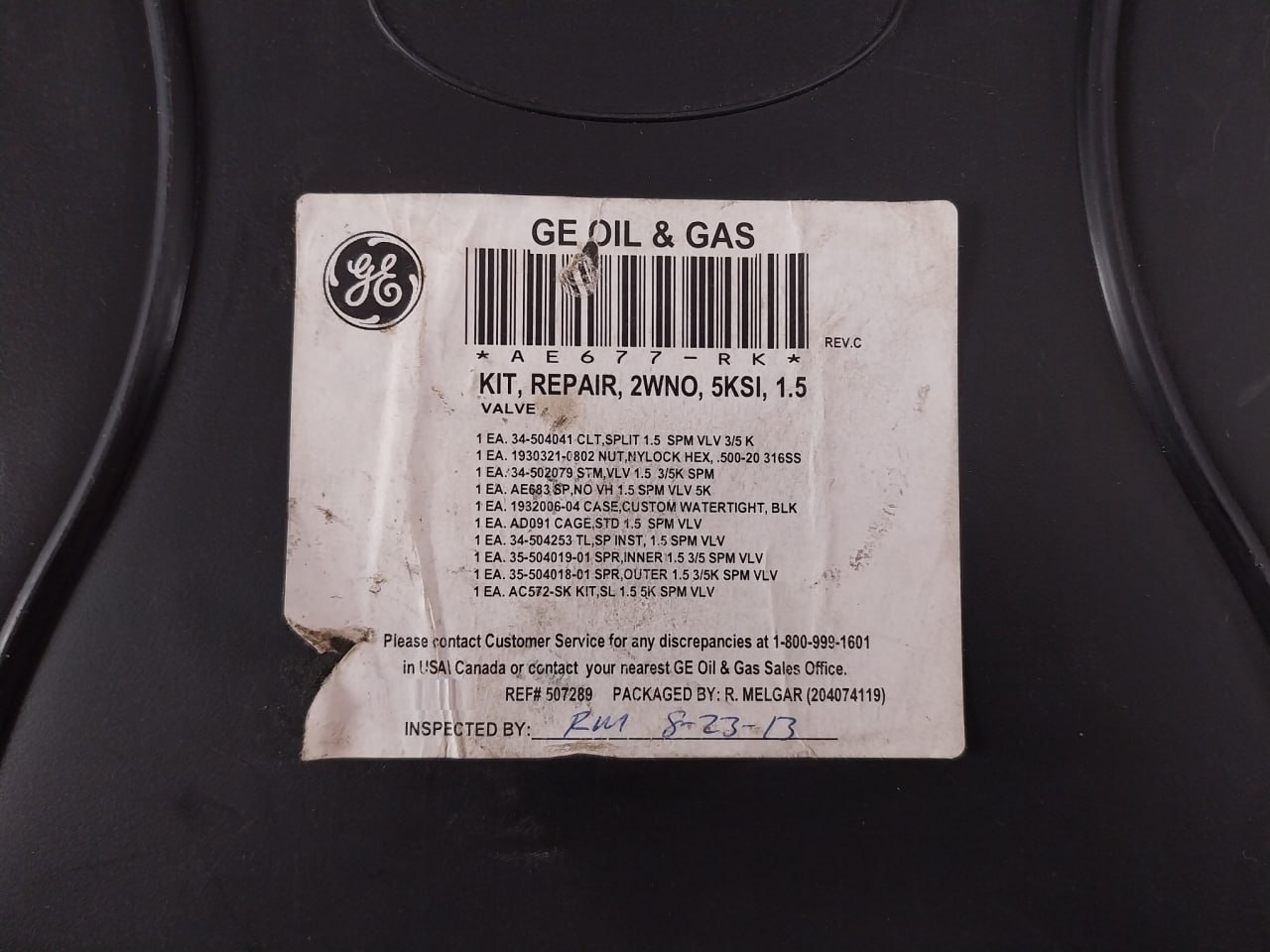

Kit, Repair, 2wno, 5 Ksi, 1.5 Spm Valve
Mfg P/N/Mfr P/N: Ae677-Rk
Rev: C
Model: 84-P96 Mux Control Systems
Ss018
10290440
Nut, Nylock Hex, .500-20 316ss
1930321-0802
316
St, Lwr 1.5 Spm Vlv 3/5k
Pn: 34-502077 D2
Hn Nd6mg3x301
St, Upr 1.5 Spm Vlv 3/5k
P/N: 34-502078
Current Rev: D2
Dwg. #: X-1002880-1501
Dwg. Rev: A1
Tl, Sp Inst, 1.5 Spm Vlv
P/N: 34-504253
Part Rev: B1
Dwg. #: X-1000740-1501
Stm Vlv 1.5 3/5k Spm
34-502079
Sb0299-Dx2
Rev: C3
Sp, Normally Closed Vented 5k 1.5 Spm Vlv
Ae683 A2
Ht-A12092
Cage, Std, 1.5 Spm Vlv
Ad091
C
52637 10b
Dmw
Spr, Outer 1.5 3/5k Spm Vlv
P/N: 35-504018-01-B
H/N: M1686
Spr, Inner 1.5 3/5k Spm Vlv
P/N: 35-504019-01-B
H/N: 601941
Clt, Split 1.5 Spm Vlv 3/5k
34-504041

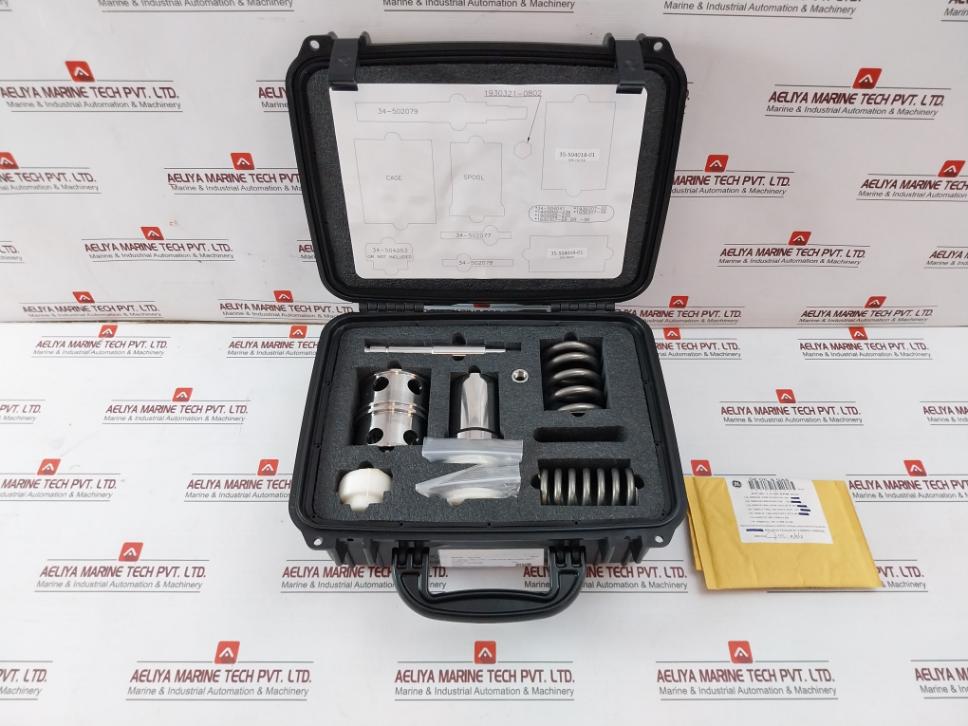

Case, Custom, Watertight, Blk
1932006-04

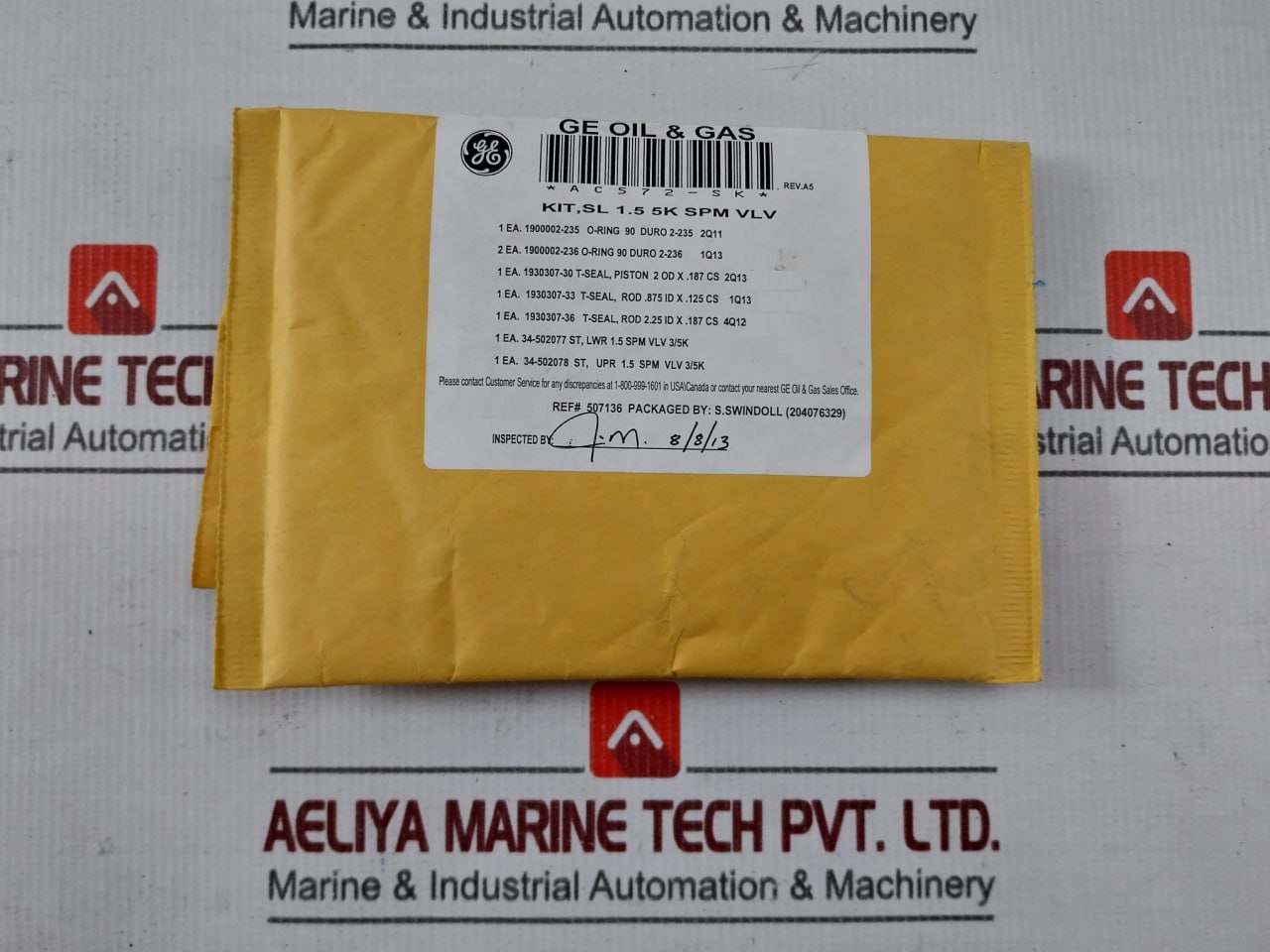

Kit, Sl 1.5 5k Spm Vlv
Ac572-Sk
Rev: A5
O-Ring 90 Duro 2-235
1900002-235
O-Ring 90 Duro 2-236
1900002-236
T-Seal, Piston 2 Od X .187 Cs
1930307-30
T-Seal, Rod .875 Id X .125 Cs
1930307-33
T-Seal, Rod 2.25 Id X .187 Cs
1930307-36
Weight : 6.700 Kg
Ref No : 191460
