Abb Ach580-Bcr-077a-4+B056+F267 Hvac Drives 480 V

Abb Ach580-Bcr-077a-4+B056+F267 Hvac Drives 480 V
Abb Inc.
Abb Oy
Abb Drives
Hvac
Product Name/Model Number: Ach580
Product Type: Vfd
Ach580-Bcr-077a-4+B056+F267

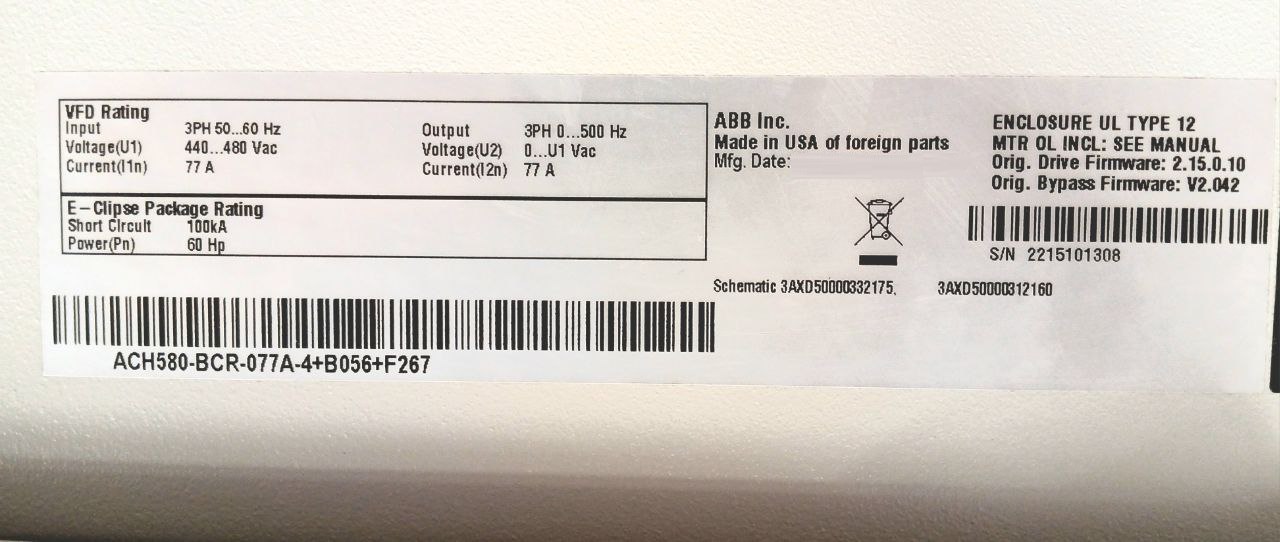

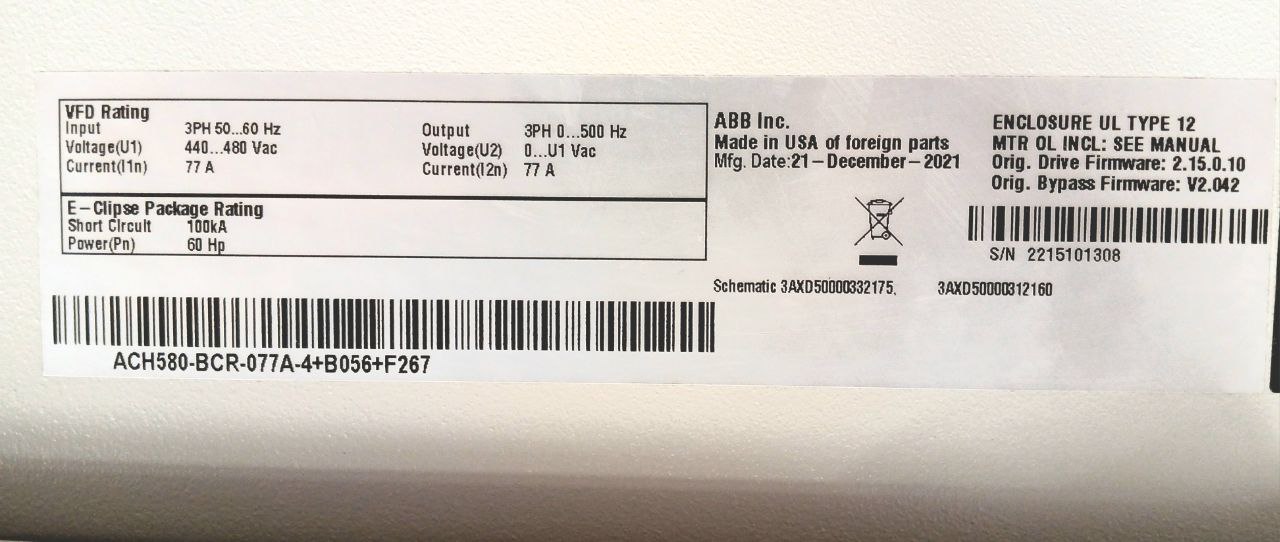

Vfd Rating:
Input: 3ph 50…60 Hz
Output: 3ph 0…500 Hz
Voltage (U1): 440…480 Vac
Voltage (U2): 0…U1 Vac
Current (I1n)/(I2n): 77 A
E-Clipse Package Rating
Short Circuit: 100ka
Power (Pn): 60 Hp
Enclosure Ul Type 12
Orig.Drive Firmware/Sw: 2.15.0.10
Orig.Bypass Firmware: V2.042
Schematic 3axd50000332175,
3axd50000312160

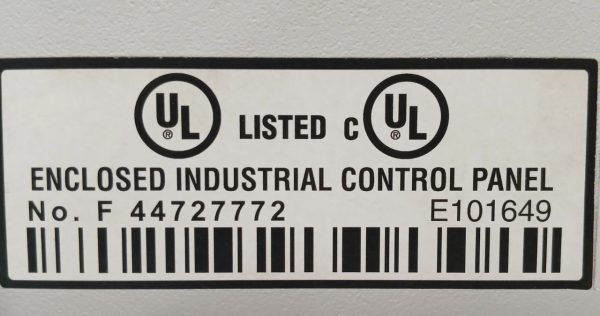

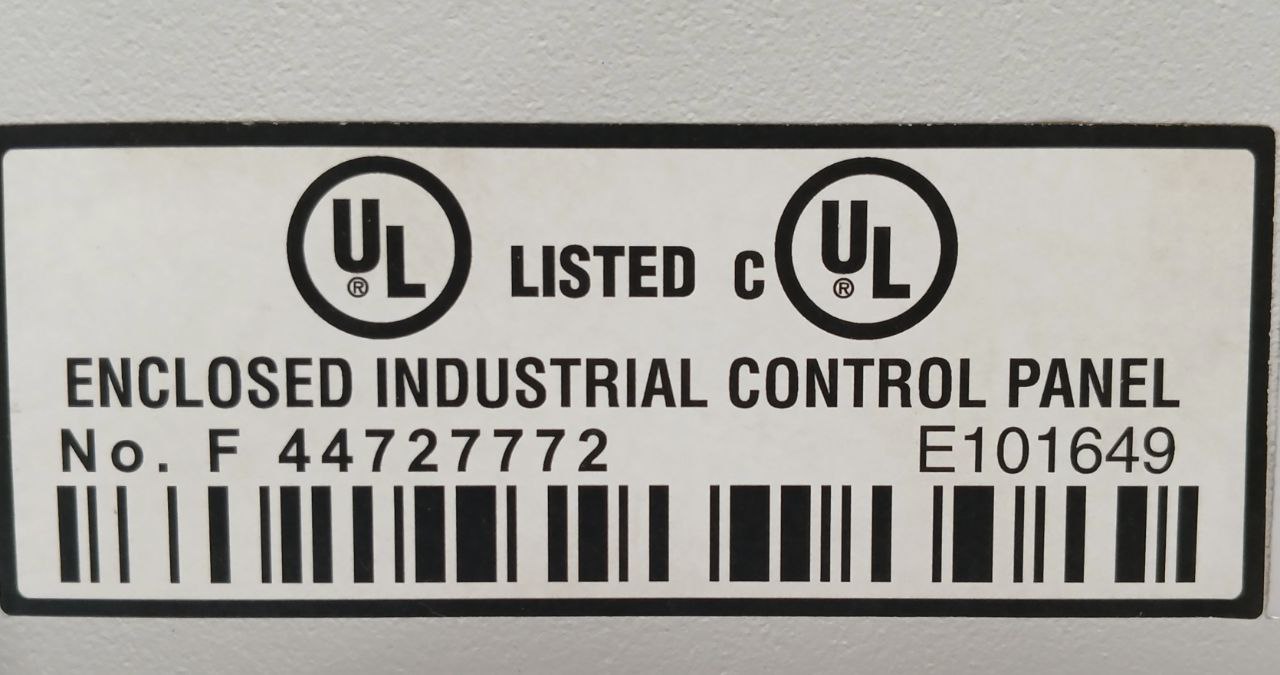

Enclosed Industrial Control Panel
No: F 44727772
E101649
M/N: Ach-Ap-H
Code: 3aua0000064886
3aua0000064886d1387997sb
Sw: V5.95
E-Clipse Bypass Control
580 Drive
3axd50000146406
Rev: B
3axd50000223015
3axd50000243624f21390429sb
Type: Rbcu
Rev: F
Svi
V2
E136774
Hcsa-4-1
Code: 3axd50000218653
3axd50000218653b1260588tg
Code: 3aua0000118614
3aua0000118614c1170569ws
Copi-01
3aua0000118152h1162030ws
E243951
Cp 5
94v-0
Cti 3
10000007806 D 2/2
221160029928(R6990)
Ach580-01-077a-4
Ach580-Bcr(1…350 Hp, 0.75…250 Kw)
Made In Usa
Made In Thailand
Made In China
Weight : 86 Kg
Ref No : 171008
