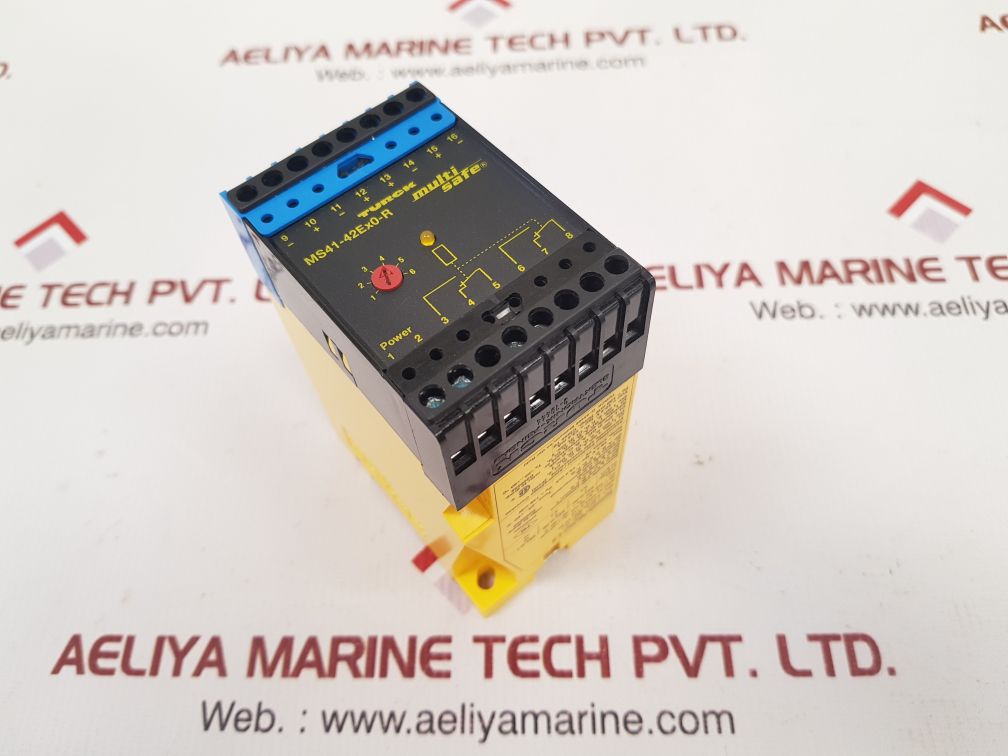

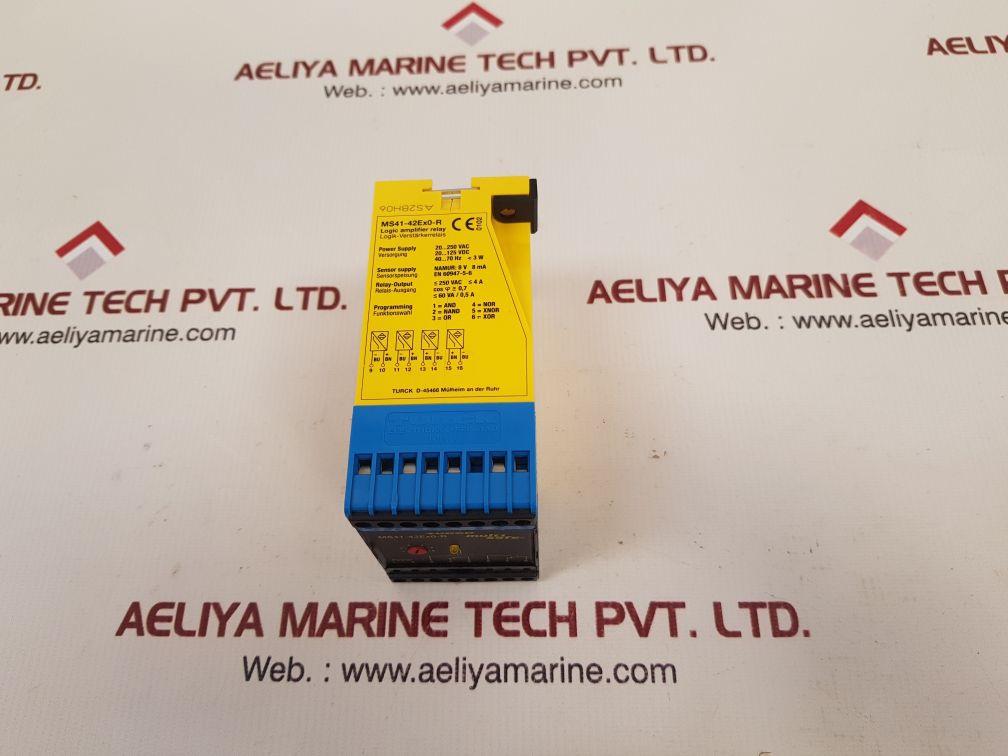

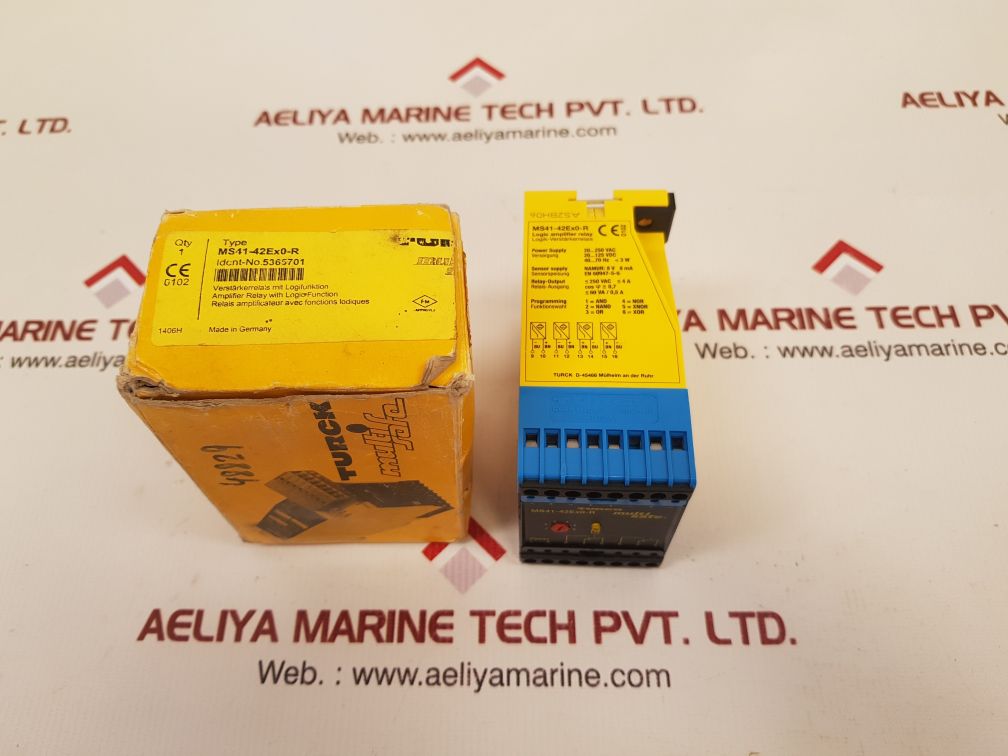

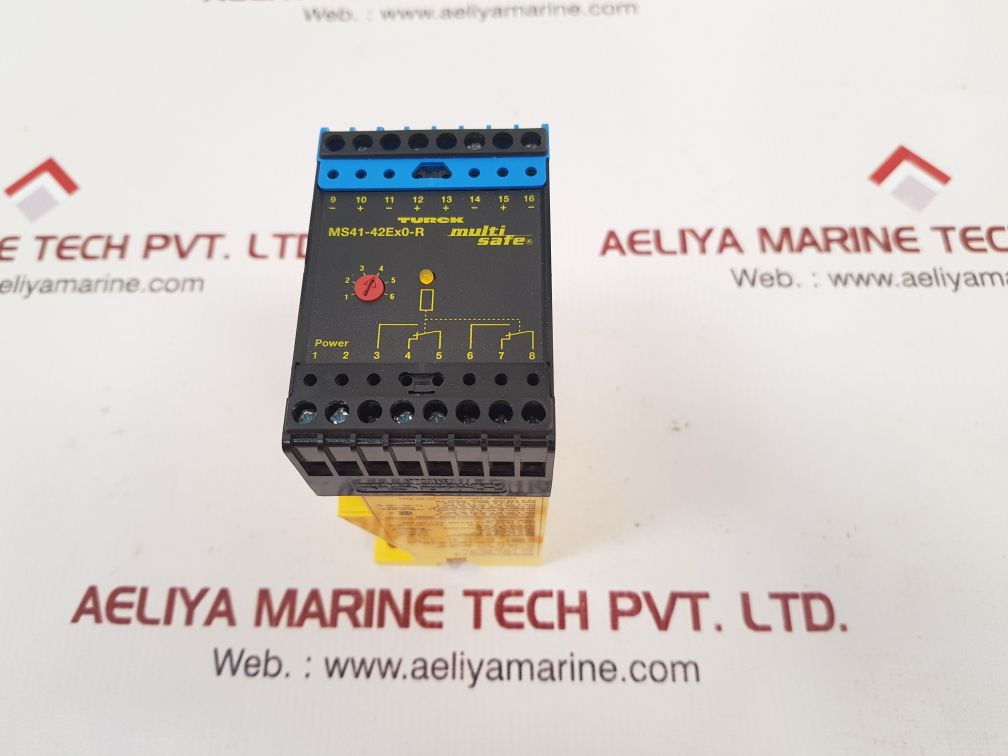

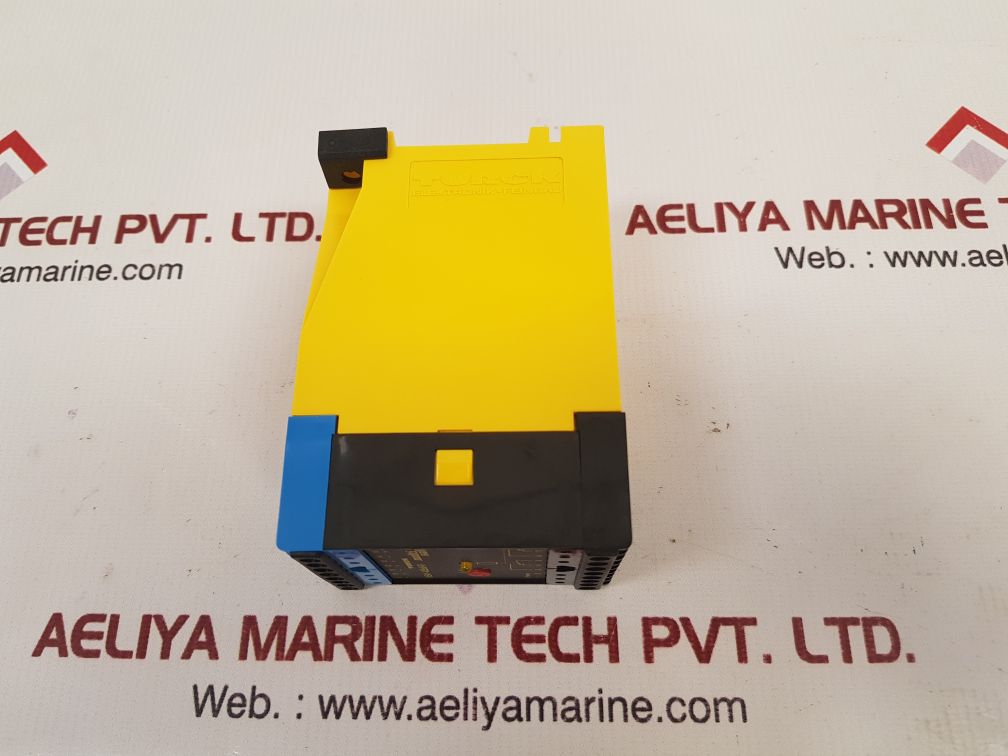

TURCK MS41-42EX0-R LOGIC AMPLIFIER RELAY
TURCK ELEKTRONIK-FENBAU
LOGIC AMPLIFIER RELAY
MULTI SAFE
MS41-42EX0-R
IDENT-NO. 5365701
AMPLIFIER RELAY WITH LOGIC FUNCTION
POWER SUPPLY/VERSORGUNG:
20…250VAC
20…125VDC
40…70HZ 3W
SENSOR SUPPLY/SENSORSPEISUNG:
NAMUR: 8V 8MA
EN60947-5-6
RELAY-OUTPUT/RALAIS-AUSGUNG:
250VAC 4A
COS ϕ 0,7
60 VA/0,5A
AS2BH06
INTRINSICALLY SAFE INPUTS 9-16/
EIGENSICHERE EINGANGE 9-16
I (M1) [EEX IA] I
II (1) GD [EEX IA] IIC
DMT 01 ATEX E 119
UO 11V IO 55MA PO 150 MW
UM 250 VEFF TA= -25…+60°C
CL. I, DIV. 1 GP. A,B,C,D, CL. II,
DIV. 1 GP. E,F,G, CL. III, DIV. 1
CL. I, DIV.2; GP. A,B,C,D
VOC= 10.4V ISC= 13.4MA
PO/P0= 139 MW TEMP. CLASS T6
TA= -25…+60°C
0102
1406H
MADE IN GERMANY
WEIGHT : 260 GM
CONDITION : NEW 1 PCS
REF NO : 30909
TURCK MS41-42EX0-R LOGIC AMPLIFIER RELAY
