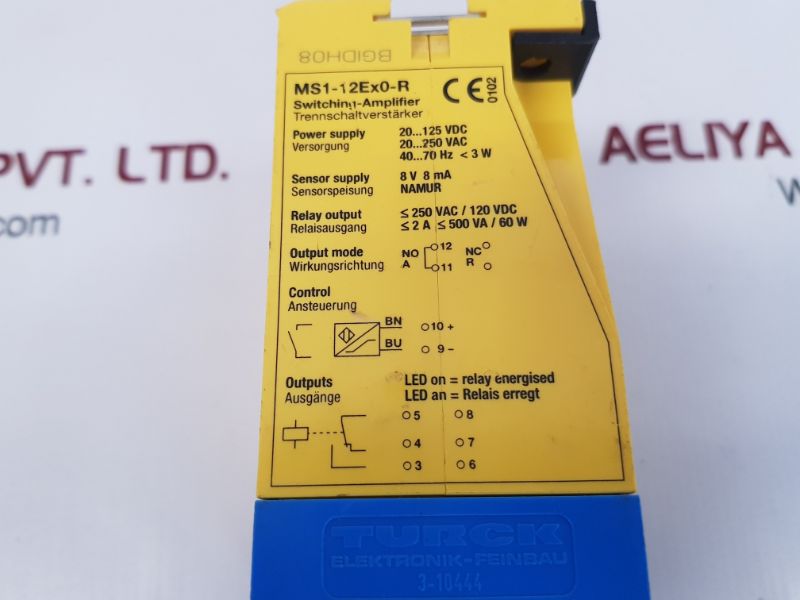

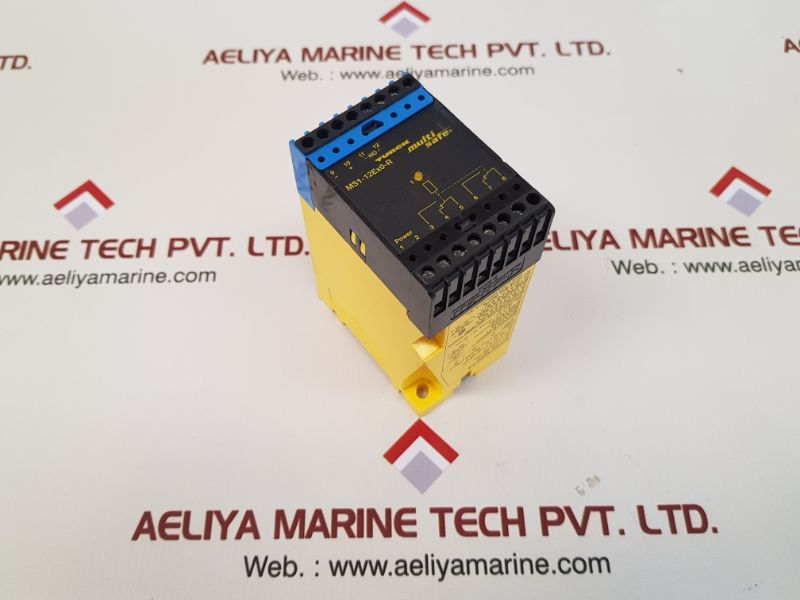

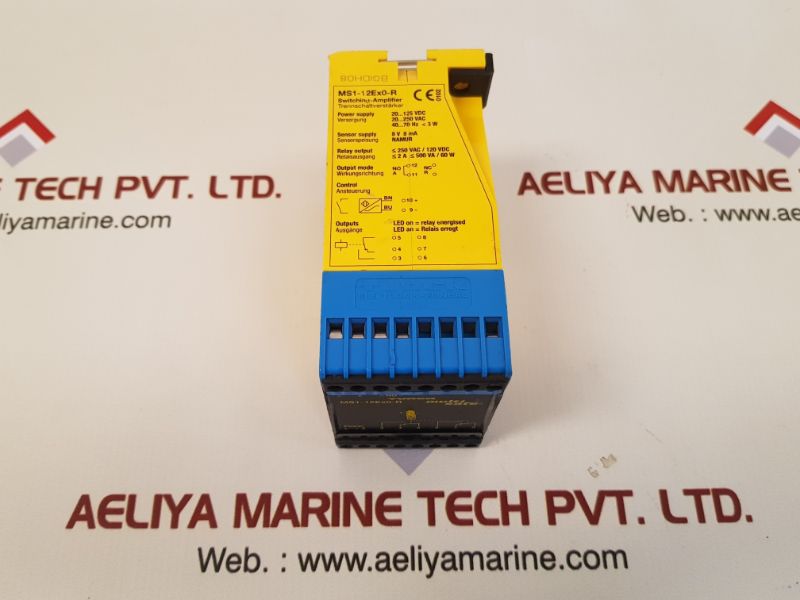

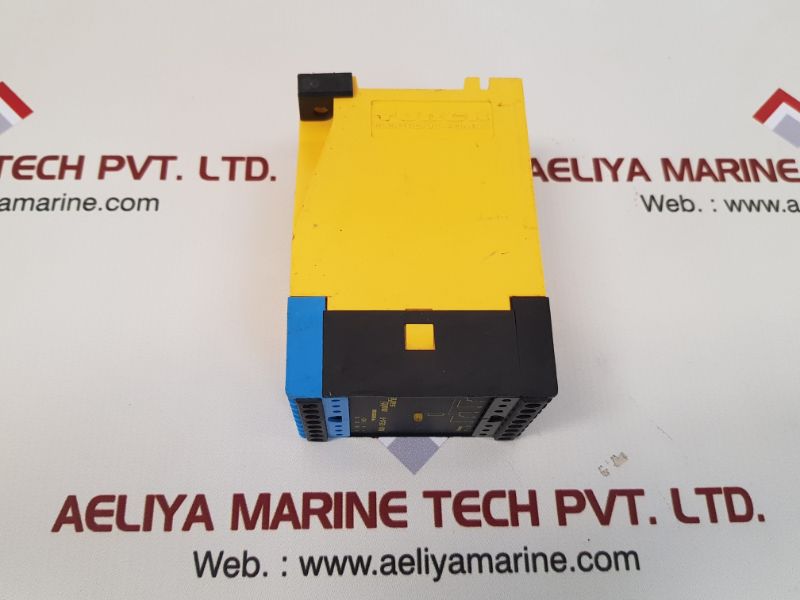

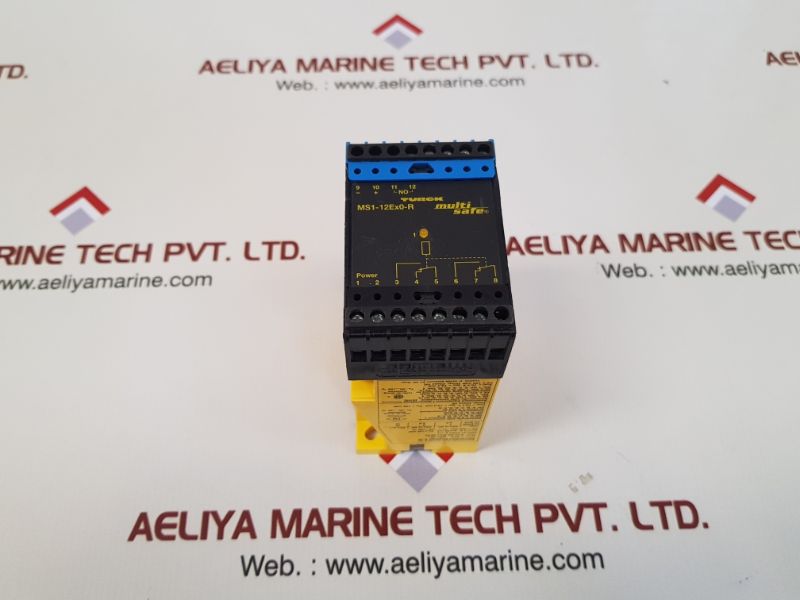

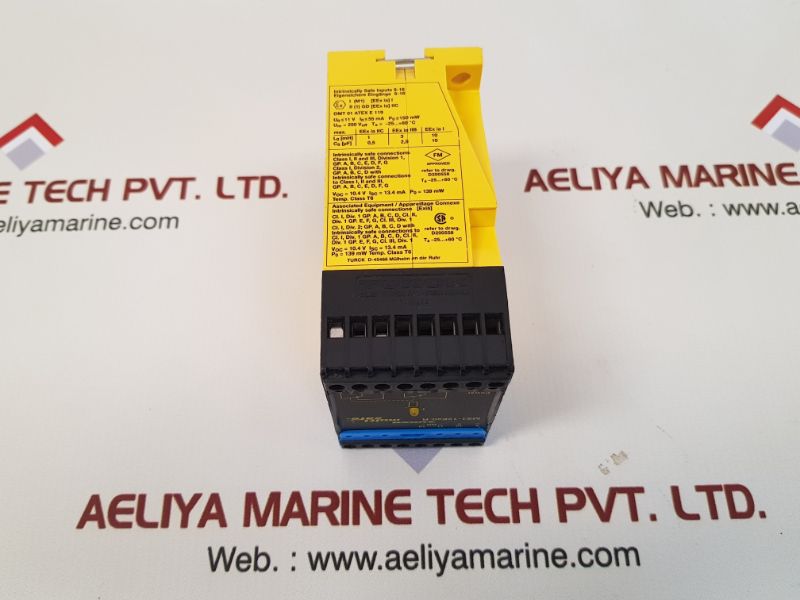

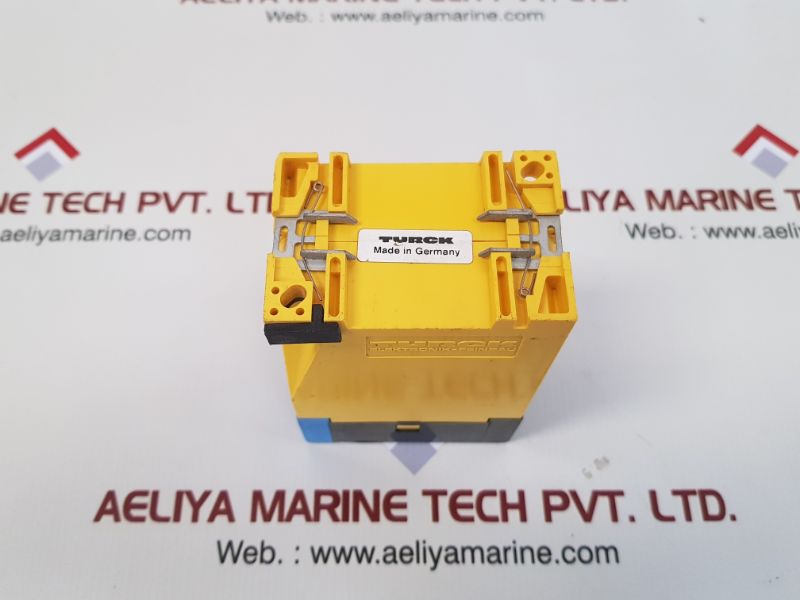

TURCK ELEKTRONIK MS1-12EX0-R MULTI SAFE SWITCHING-AMPLIFIER
TURCK ELEKTRONIK MS1-12EX0-R
TURCK ELEKTRONIK-FEINBAU
MULTI SAFE
MS1-12EX0-R
SWITCHING-AMPLIFIER
TRENNSCHALTVERSTÄRKER
POWER SUPPLY: 20…125 VDC
VERSORGUNG: 20…250VAC
40…70 HZ LESS THAN 3W
SENSOR SUPPLY: 8V 8 MA
SENSORSPEISUNG: NAMUR
RELAY OUTPUT: 250 VAC/120 VDC
RELAISAUSGANG 2 A 500 VA 60 W
OUTPUTS: LED ON= RELAY ENERGISED
AUSGÄNGE: LED AN= RELAIS ERREGT
BGIDH08
0102
3-10444

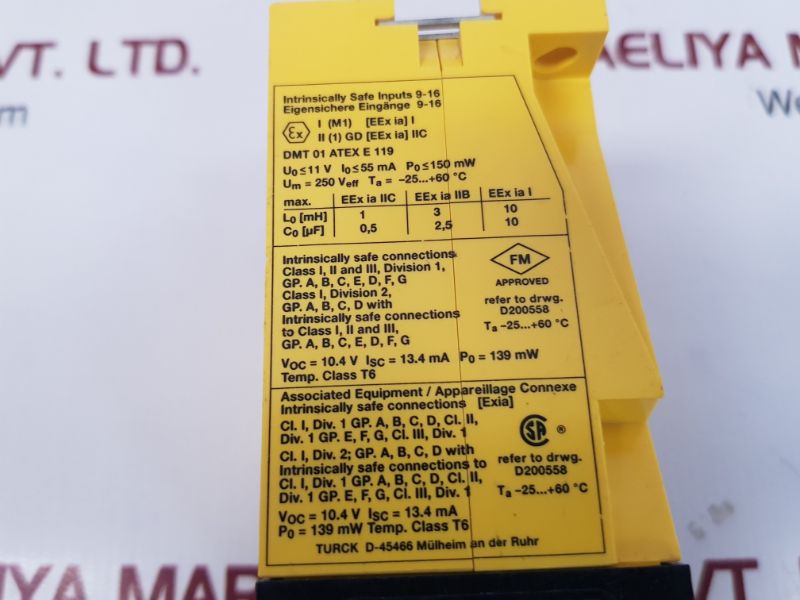

INSTRINSICALLY SAFE INPUTS 9-16
EIGENSICHERE EINGÄNGE 9-16
I (M1) [EEX IA] I
II (1) GD [EEX IA] IIC
DMT 01 ATEX E 119
U0 11 V I0 55 MA P0 150 MW
UM=250 VEFF TA= -25…+60°C
CL.I, DIV. 1 GP. A,B,C,D, CL.II,
DIV. 1 GP.E,F,G, CL.III, DIV. 1
VOC = 10.4 V ISC= 13.4 MA
P0= 139 MW TEMP. CLASS T6
TA -25…+60 °C
MADE IN GERMANY
WEIGHT : 220 GM
CONDITION : USED 1 PCS
REF NO : 21998
