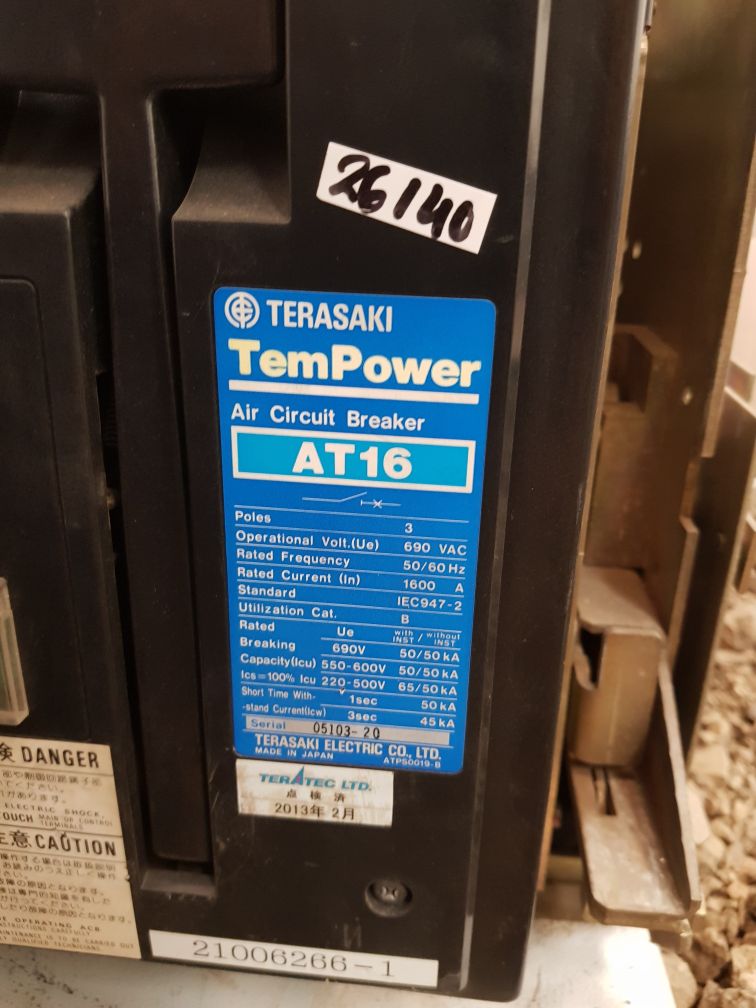

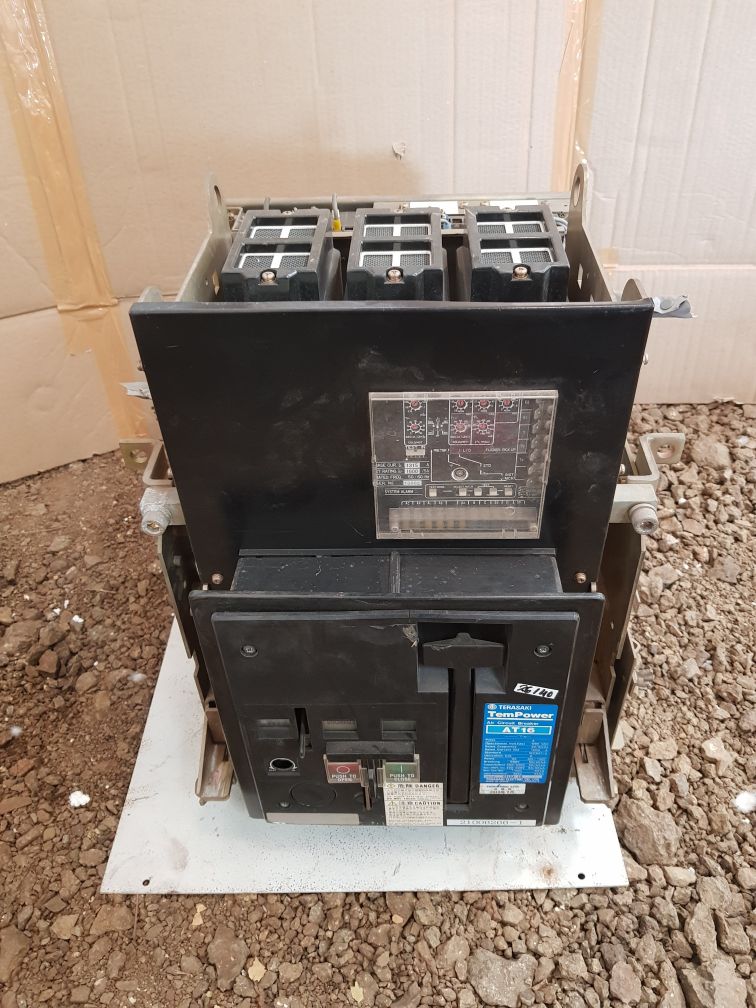

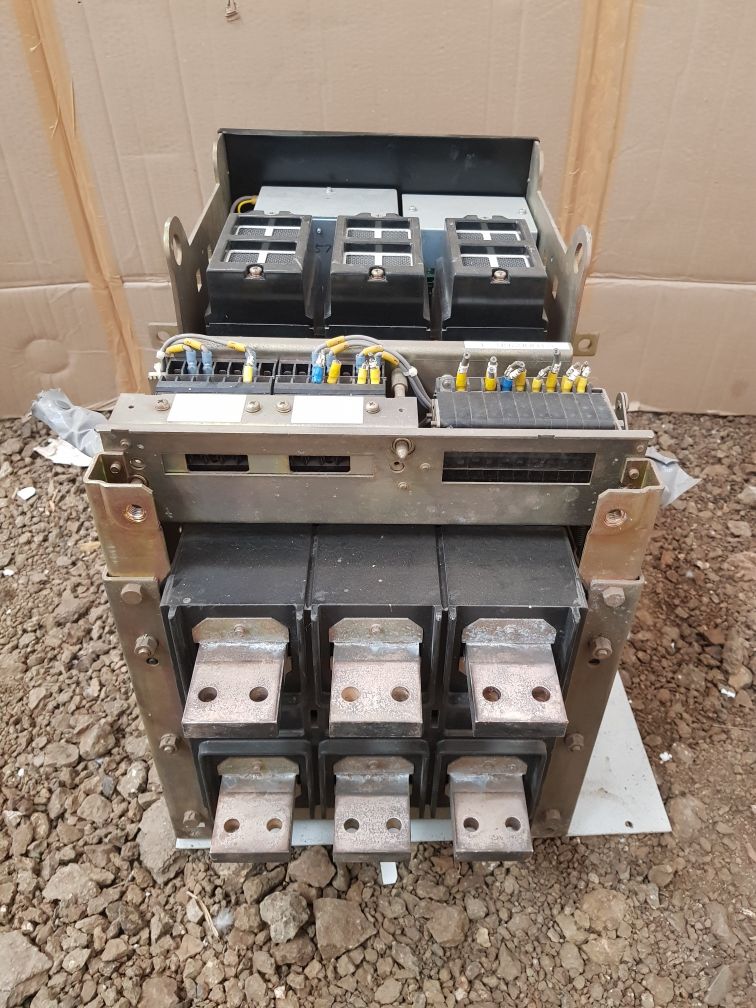

TERASAKI AT16 3 POLE AIR CIRCUIT BREAKER 1600A
TERASAKI ELECTRIC CO., LTD.
TERATEC LTD.
TEMPOWER
AIR CIRCUIT BREAKER
AT16
POLES: 3
OPERATIONAL VOLT.(UE): 690 VAC
RATED FREQUENCY: 50/60HZ
RATED CURRENT (IN): 1600 A
STANDARD: IEC947-2
UTILIZATION CAT.: B
RATED UE WITH/WITHOUT
INST INST
BREAKING 690V 50/50KA
CAPACITY
(ICU) 550-600V 50/50KA
ICS=100%
ICU 220-500V 65/50KA
SHORT TIME WITH- 1 SEC 50KA
-STAND CURRENT (ICW)3SEC 45KA
ATPS0019-B
21006266-1

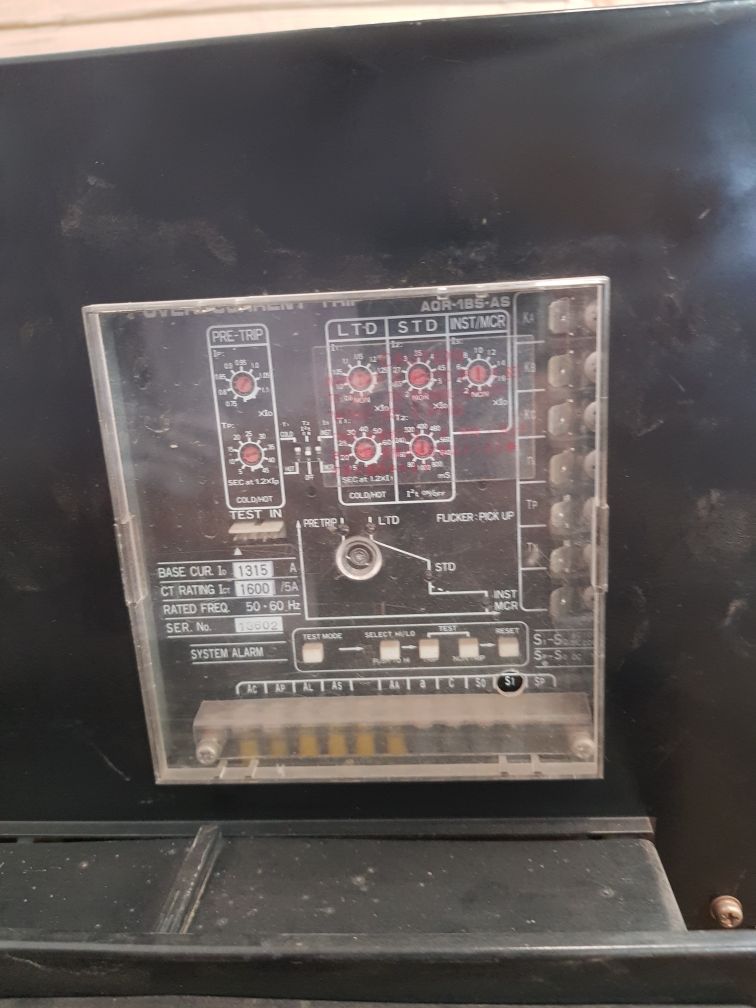

OVER CURRENT TRIP
AOR-1BS-AS
BASE CUR. IO: 1315 A
CT RATING ICT: 1600/5A
RATED FREQ.: 50-60 HZ
MADE IN JAPAN
REF NO (S): 26140
