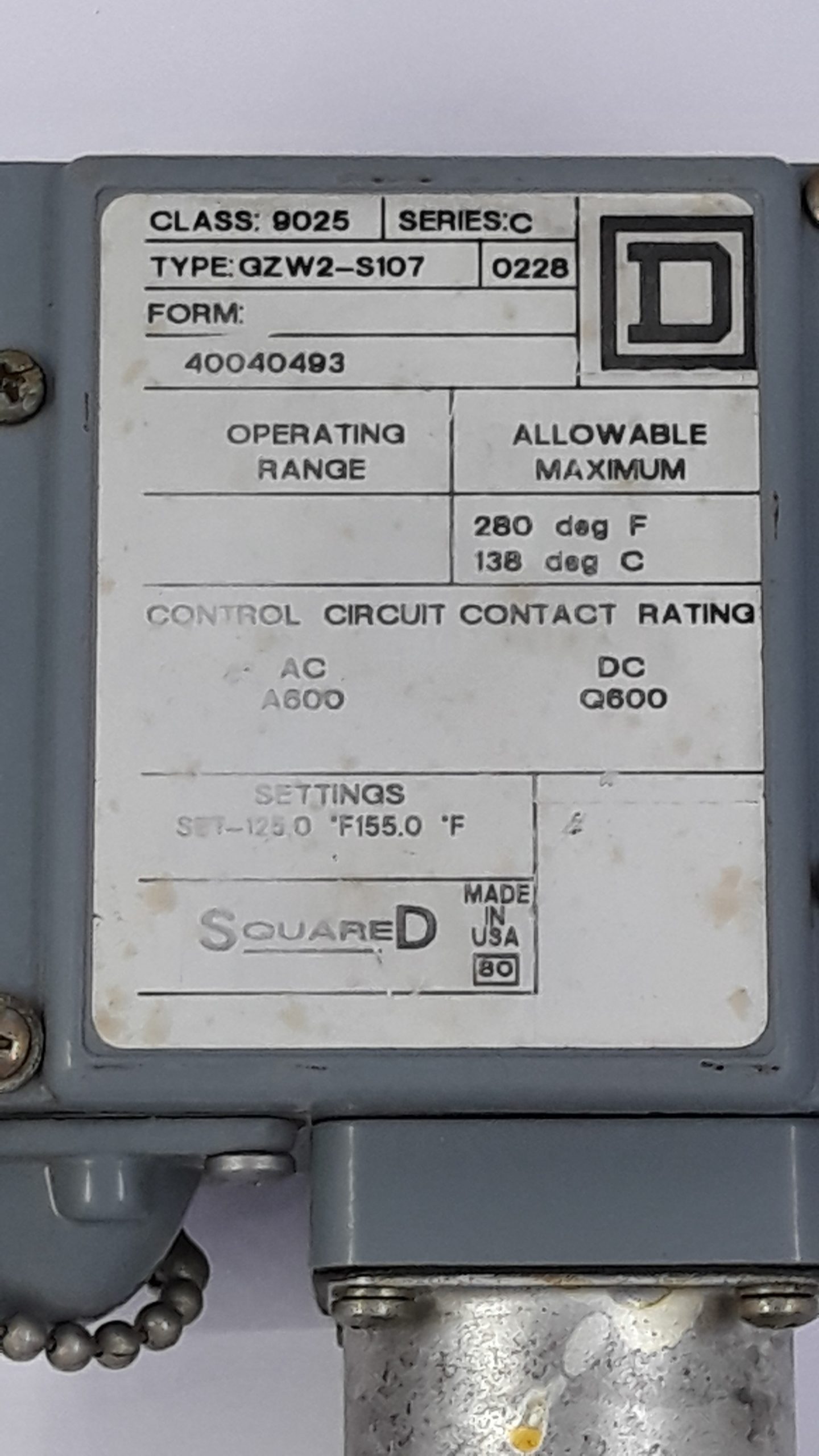

SQUARE-D GZW2-S107 PRESSURE SWITCH
SQUARE-D
TYPE : GZW2-S107
CLASS : 9025
SERIES : C
FORM : 40040493
CONTROL CIRCUIT : AC A600
CONTACT RATING : DC Q600
MADE IN USA
REF NO(S) : 0292
What is it?
A Square D GZW2-S107 Pressure Switch is a device that turns something on or off based on changes in pressure. Imagine a water tank with a pump. The pressure switch makes sure the pump turns on when the water level (and pressure) is low, and turns off when the tank is full.
How does it work?
Inside the switch, there’s a sensitive part that responds to pressure changes. When the pressure reaches a certain point, it triggers a switch to open or close, which controls the connected equipment.
Where is it used?
These switches are commonly found in:
- Water systems: Controlling pumps, filling tanks, or activating alarms.
- Air compressors: Regulating pressure and turning the compressor on/off.
- Industrial processes: Monitoring pressure in various systems and equipment.
Additional Considerations
- Pressure Range: The GZW2-S107 Series C likely has a specific pressure range within which it operates accurately.
- Electrical Ratings: The switch will have voltage and current limits for safe operation.
- Mounting Orientation: The switch may have specific installation requirements to ensure correct function.
- Environmental Conditions: The operating temperature and humidity range should be considered for proper performance and longevity.
- Calibration: Regular calibration may be necessary to maintain accuracy.
