SCHMERSAL PROTECT SRB 301MC SAFETY RELAY CONTROLLER
SCHMERSAL PROTECT SRB 301MC
SCHMERSAL PROTECT
ELAN SCHALTELEMENTE GMBH & CO. KG
SRB 301MC

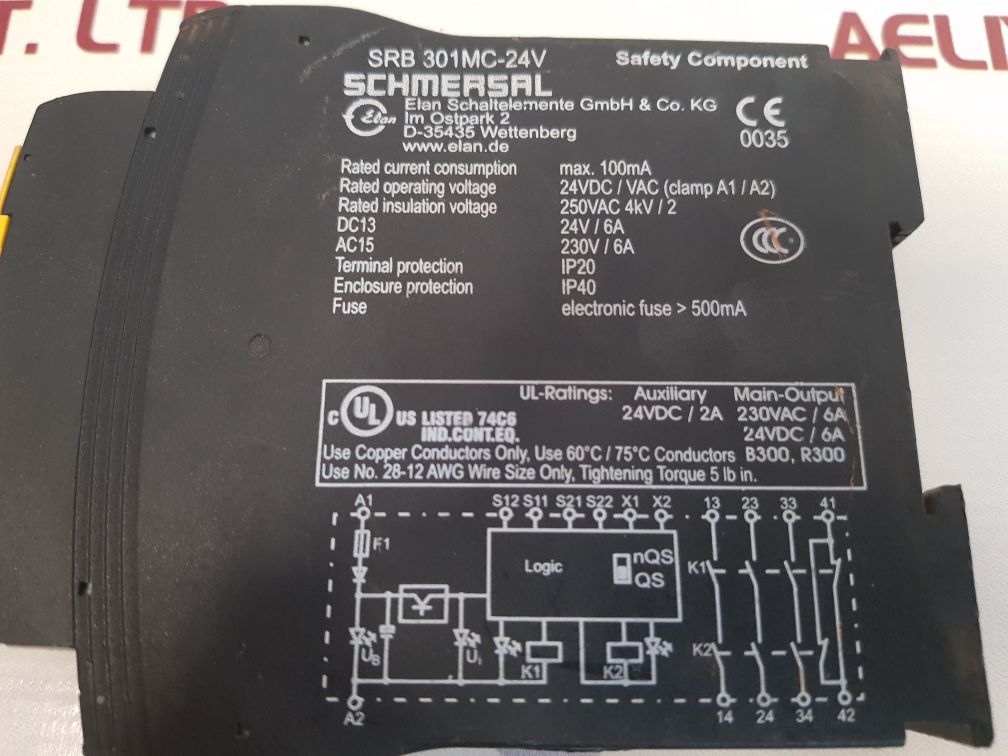

SRB 301MC-24V
RATED CURRENT CONSUMPTION: MAX. 100MA
RATED OPERATING VOLTAGE: 24VDC / VAC (CLAMP A1/A2)
RATED INSULATION VOLTAGE: 250VAC 4KV/2
DC13: 24V/6A
AC15: 230V /6A
TERMINAL PROTECTION: IP20
ENCLOSURE PROTECTION: IP40
FUSE: ELECTRONIC FUSE GREATER THAN 500MA
UL RATINGS: AUXILIARY 24VDC/2A
MAIN-OUTPUT: 230VAC/6A
24VDC/6A
B300, R300
USE COPPER CONDUCTORS ONLY, USE 60°C/75°C CONDUCTORS
TIGHTENING TORQUE 5 LB IN.
SAFETY COMPONENT
WEIGHT : 215 GM
REF NO(S) : 21482
