PARKER PVA-F102BX..

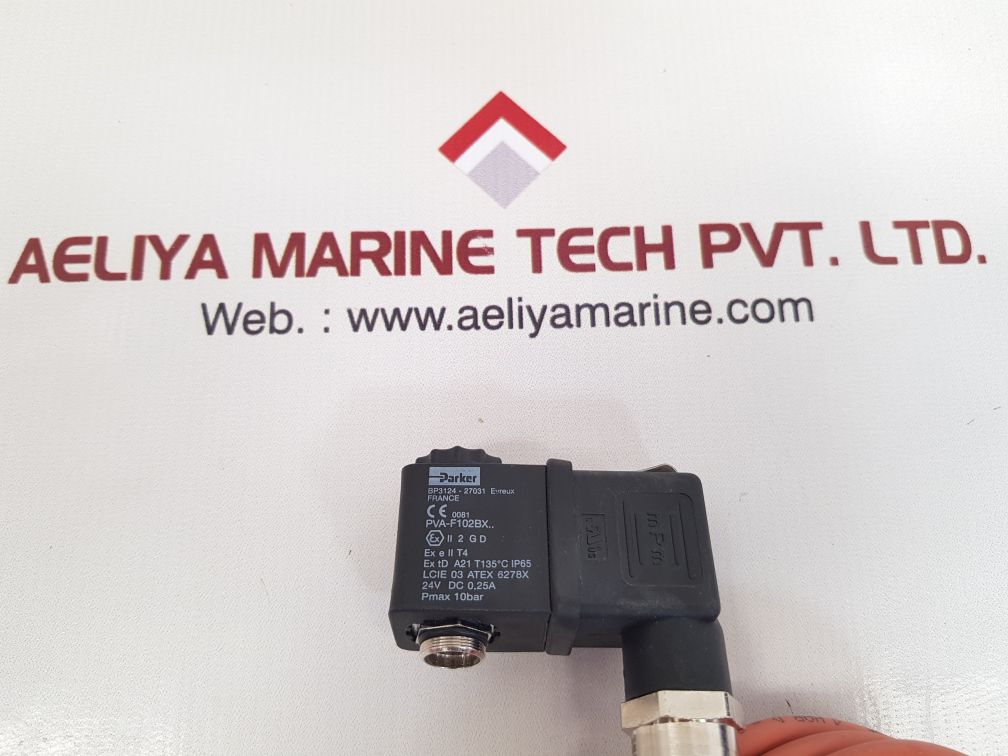

PARKER
MPM
TYPE: PVA-F102BX..
II 2 G D
EX E II T4
EX TD A21 T135°C IP65
LCIE 03 ATEX 6278X
24V DC 0,25A
PMAX 10BAR
PILOT-OPERATOR

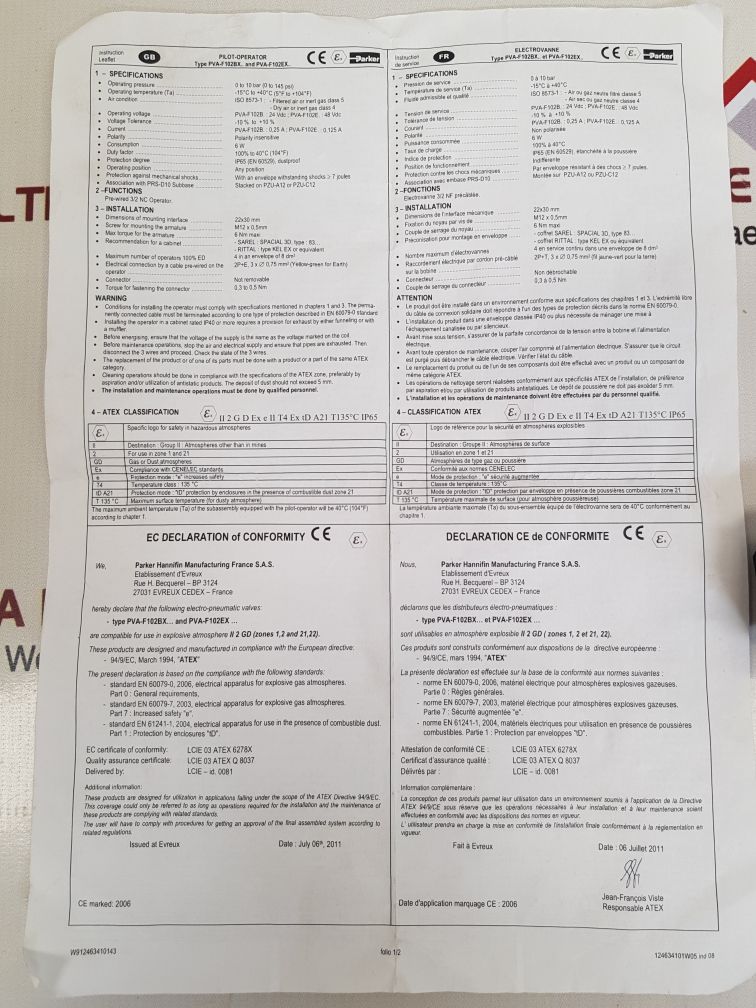

SPECIFICATIONS:
OPERATING PRESSURE: 0 TO 10 BAR (0 TO 145 PSI)
OPERATING TEMPERATURE (TA): -15°C TO +40°C (5°F TO +104°F)
AIR CONDITION: ISO 8573-1:
-FILTERED AIR OR INERT GAS CLASS 5
-DRY AIR OR INERT GAS CLASS 4
OPERATING VOLTAGE: PVA-F102B.: 24VDC
VOLTAGE TOLERANCE: -10% TO +10%
CURRENT: PVA-F102B.: 0,25A
POLARITY: POLARITY INSENSITIVE
CONSUMPTION: 6W
DUTY FACTOR: 100% TO 40°C(104°F)
PROTECTION DEGREE: IP65(EN60529), DUSTPROOF
OPERATING POSITION: ANY POSITION
PROTECTION AGAINST MECHANICAL SHOCKS: WITH AN ENVELOPE WITHSTANDING SHOCKS 7 JOULES
ASSOCIATION WITH PRS-D10 SUBBASE: STACKED ON PZU-A12 OR PZU-C12
FRANCE
WEIGHT : 250 GM
REF NO(S) : 24180
