MTL INSTRUMENTS MTL 3013 2-CHANNEL SWITCH/PROXIMITY DETECTOR RELAY
MTL INSTRUMENTS MTL3013
A PRODUCT FROM MTL
MADE BY MTL INSTRUMENTS LTD, INDIA
MTL3000 SERIES
MTL3013

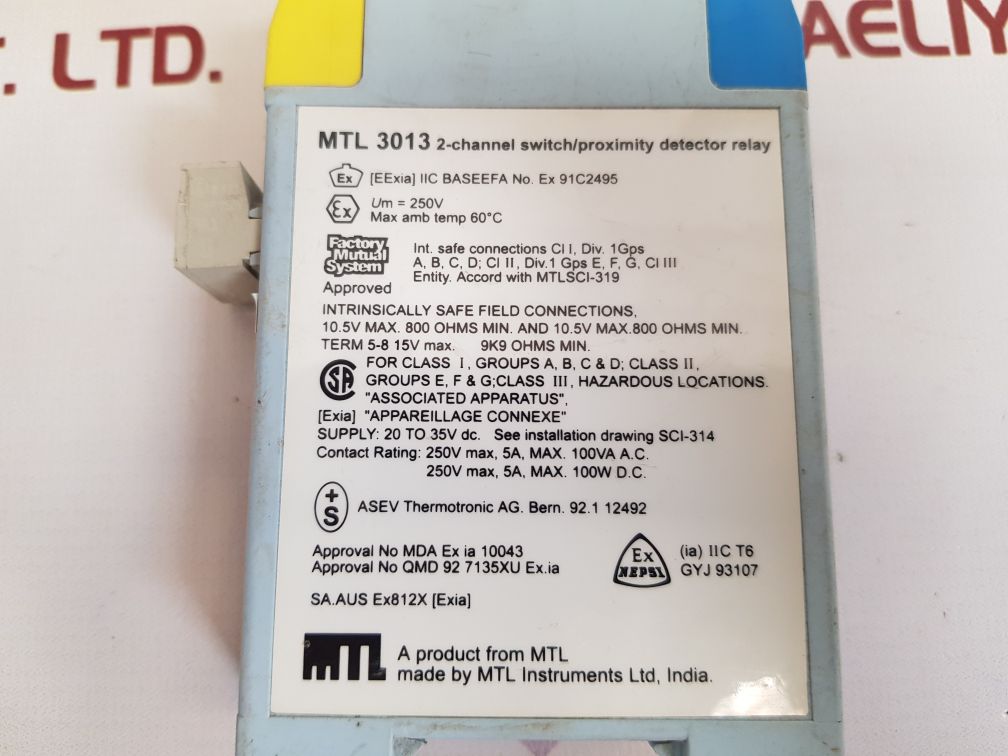

2-CHANNEL SWITCH/PROXIMITY DETECTOR RELAY
[EEXIA]IIC BASEEFA NO. EX 91C2495
UM= 250V
MAX AMB TEMP 60°C
CL I, DIV. 1 GPS A,B,C,D;
CL II, DIV. 1 GPS E,F,G,
CL. III
INTRINSICALLY SAFE FIELD CONNECTIONS,
10.5V MAX. 800 OHMS MIN.
TERM 5-8 15V MAX. 9K9 OHMS MIN.
SUPPLY: 20 TO 35V DC.
CONTACT RATING: 250V MAX, 5A, MAX. 100VA A.C.
250V MAX, 5A, MAX. 100W D.C.
WEIGHT : 185 GM
CONDITION : USED 7 PCS
REF NO : 23984
