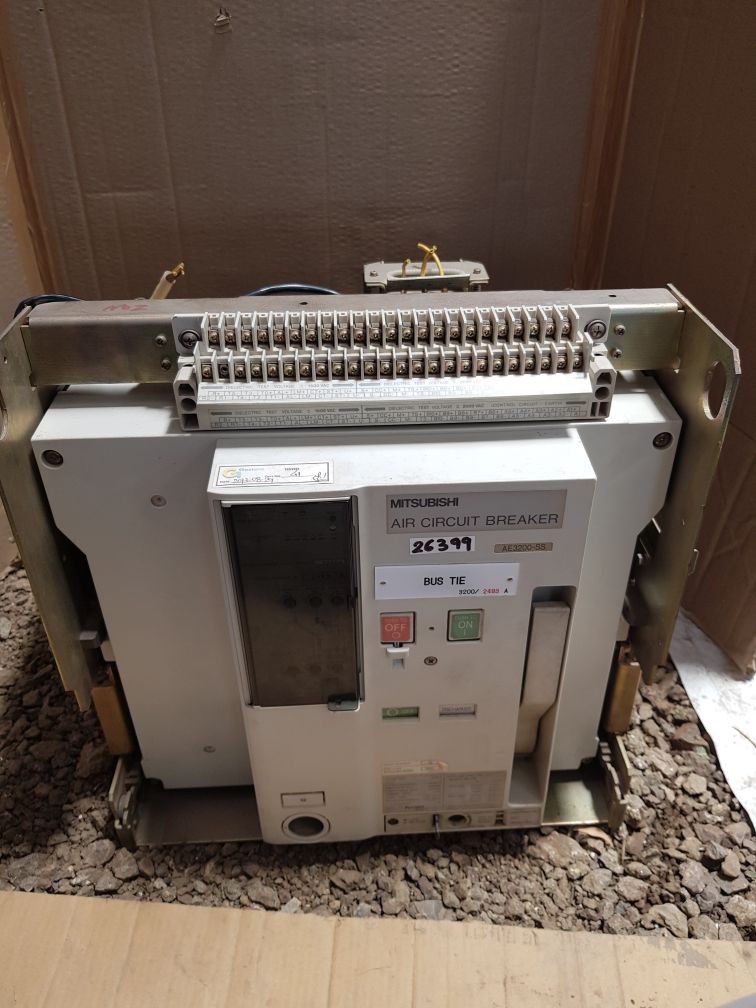

MITSUBISHI AE3200-SS AIR CIRCUIT BREAKER MT-1
MITSUBISHI ELECTRIC CORPORATION

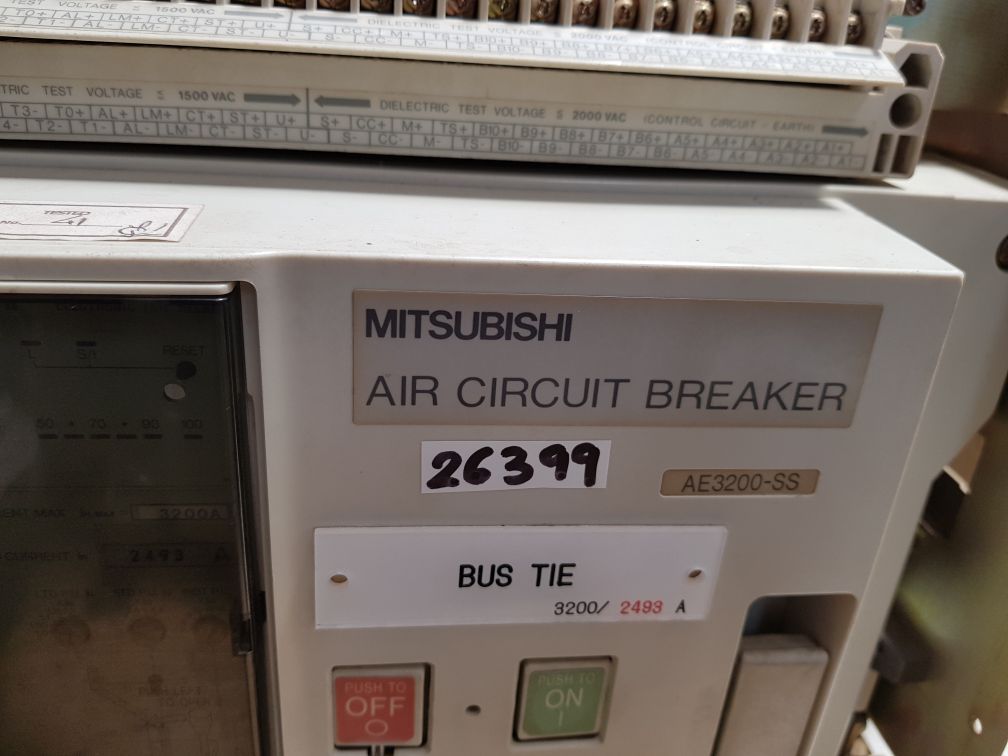

AIR CIRCUIT BREAKER
AE3200-SS
BUS TIE
3200/2493 A

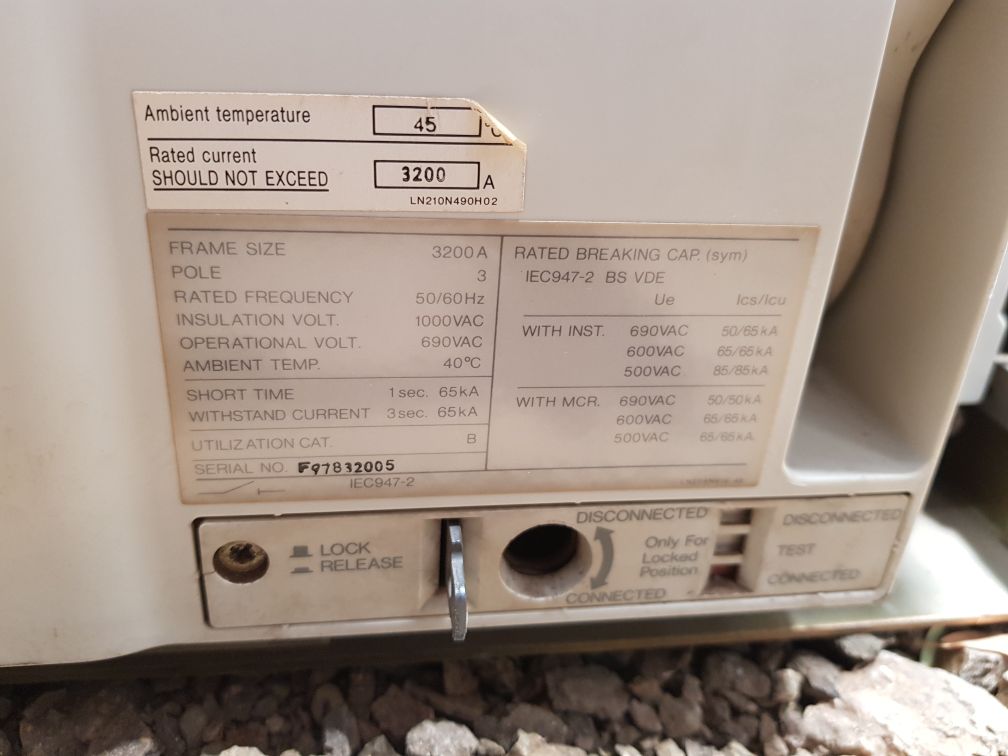

AMBIENT TEMPERATURE: 45°C
RATED CURRENT: 3200 A
LN210N490H02
FRAME SIZE: 3200A
POLE: 3
RATED FREQUENCY: 50/60HZ
INSULATION VOLT.: 1000VAC
OPERATIONAL VOLT.: 690VAC
AMBIENT TEMP.: 40°C
SHORT TIME: 1 SEC. 65KA
WITHSTAND CURRENT: 3 SEC. 65KA
UTILIZATION CAT.: B
STANDARD: IEC947-2
RATED BREAKING CAP. (SYM)
IEC947-2 BS VDE

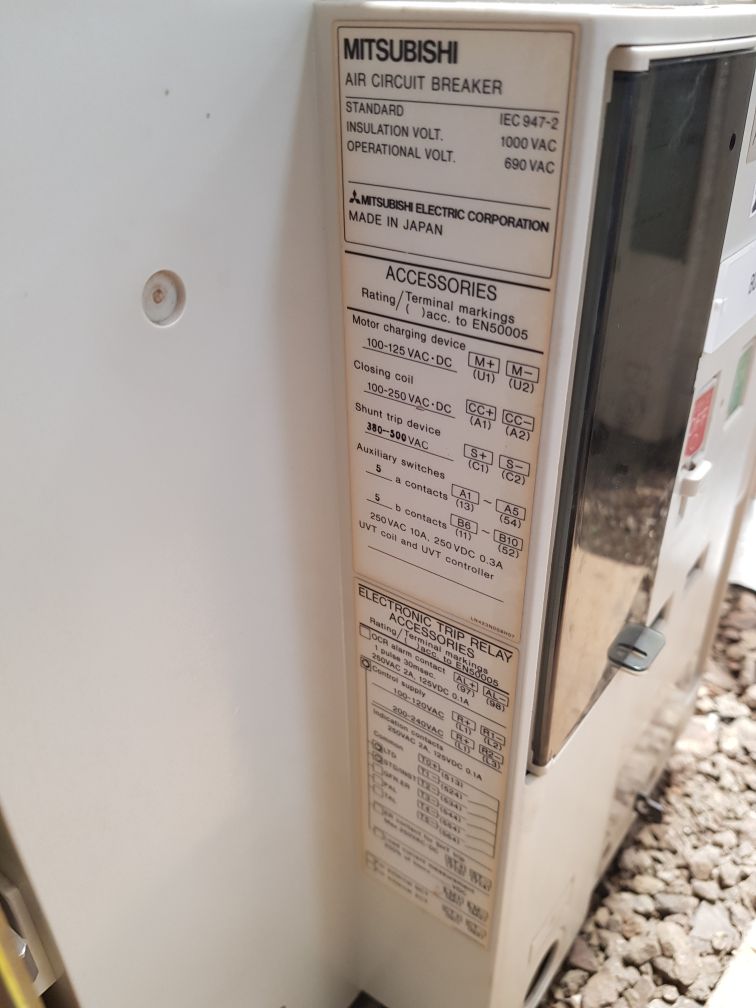

MOTOR CHARGING DEVICE:
100-125 VAC.DC
CLOSING COIL:
100-250VAC. DC
SHUNT TRIP DEVICE:
380-500 VAC
250 VAC 10A, 250VDC 0.3A
UVT COIL AND UVT CONTROLLER
CONTROL SUPPLY:
100-120VAC
200-240VAC
INDICATION CONTACTS:
250VAC 2A, 125VDC 0.1A

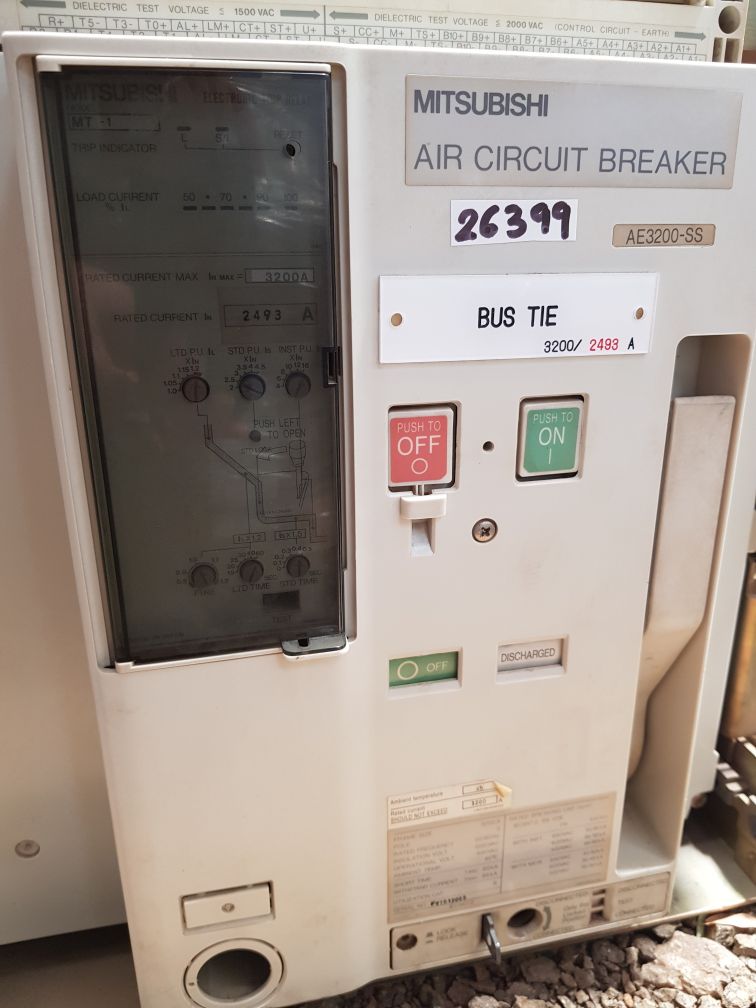

ELECTRONIC TRIP RELAY
MODEL: MT-1
RATED CURRENT MAX IN MAX= 3200A
RATED CURRENT IN: 2493 A
MADE IN JAPAN
WEIGHT: 99.500 KG
CONDITION : USED 1 PCS
REF NO : 26399
