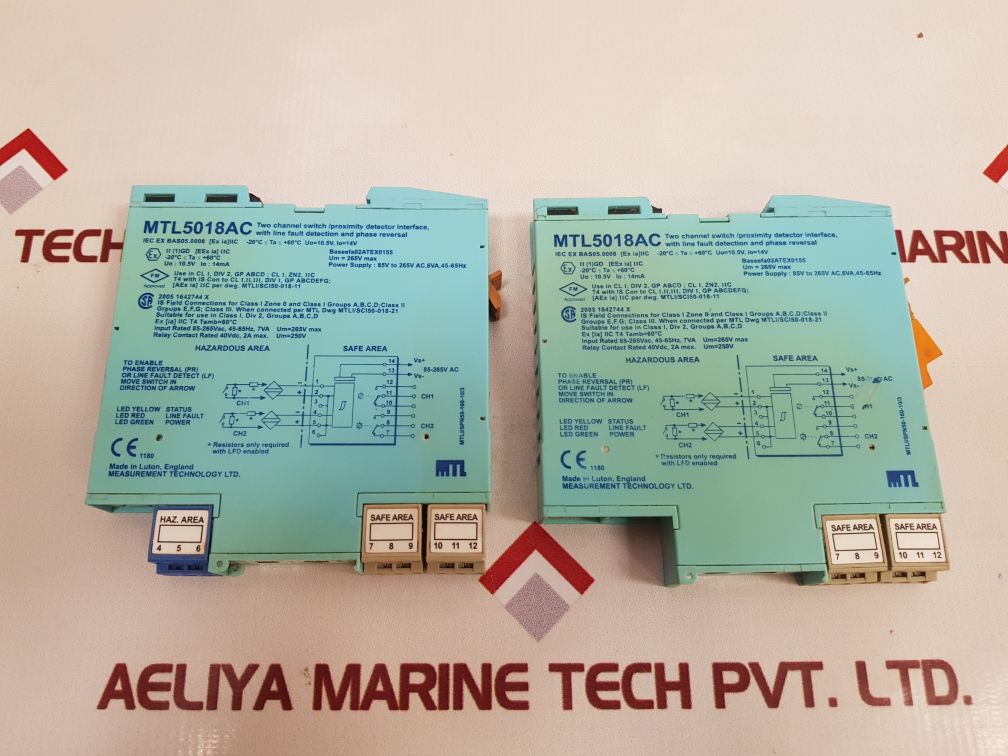

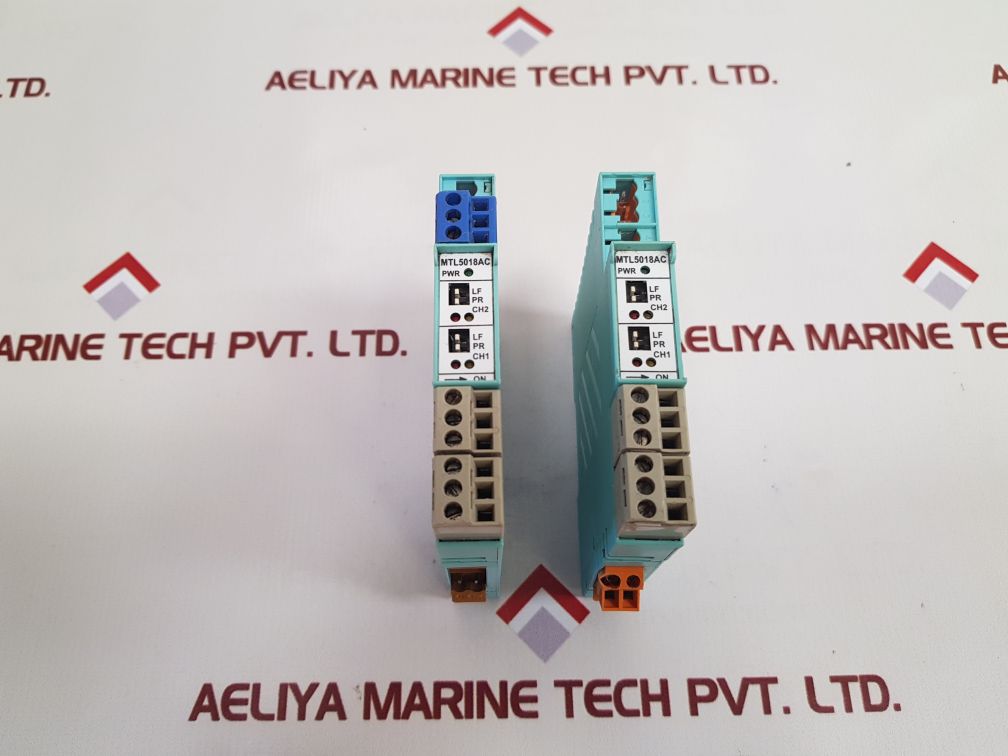

MEASUREMENT TECHNOLOGY MTL 5018AC PROXIMITY DETECTOR INTERFACE
MEASUREMENT TECHNOLOGY LTD.
MTL 5018AC

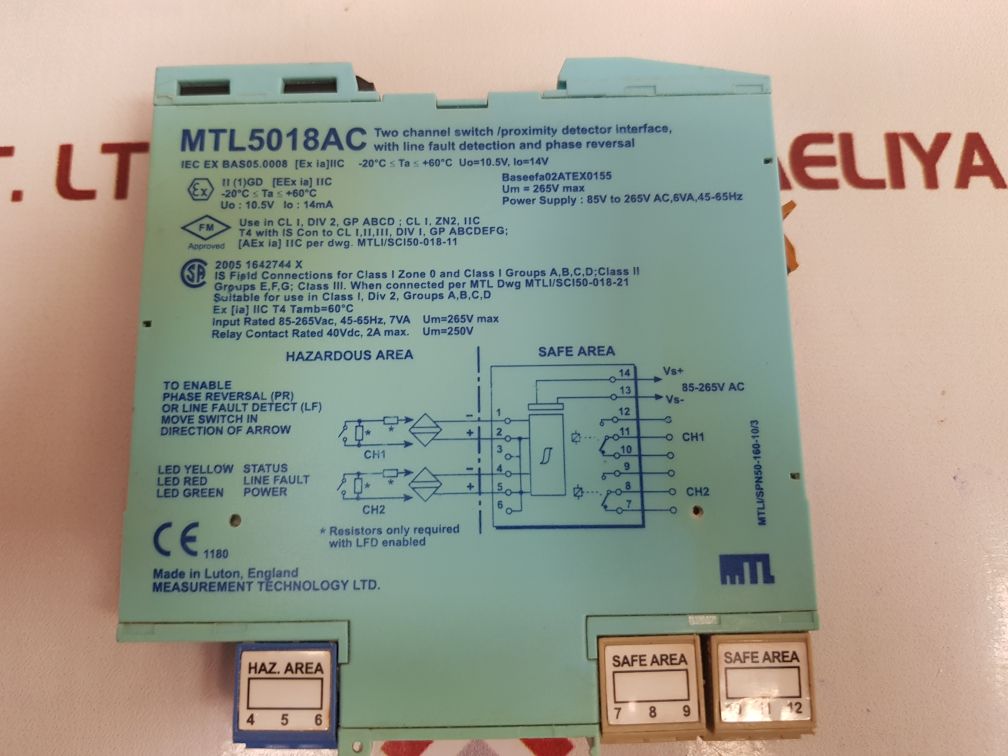

TWO-CHANNEL SWITCH/PROXIMITY DETECTOR INTERFACE, WITH LINE FAULT DETECTION AND PHASE REVERSAL.
IEC EX BAS05.0008 [EX IA] IIC
-20°C TA +60°C
UO=10.5V, IO = 14MA
II (1)GD [EEX IA] IIC
BASEEFA02ATEX0155
UM = 265V MAX
POWER SUPPLY: 85V TO 265V AC, 6VA, 45-65HZ
CLASS I ZONE 0 AND CLASS I GROUPS A,B,C,D; CLASS II
GROUPS E,F,G; CLASS III.
EX [IA] IIC T4 TAMB=60°C
INPUT RATED 85-265VAC, 45-65HZ, 7VA
RELAY CONTACT RATED 40VDC, 2A MAX.
UM=250V
I/SPN50-160-10/3
MADE IN LUTON, ENGLAND
WEIGHT : 130 GM
REF NO(S) : 32866
