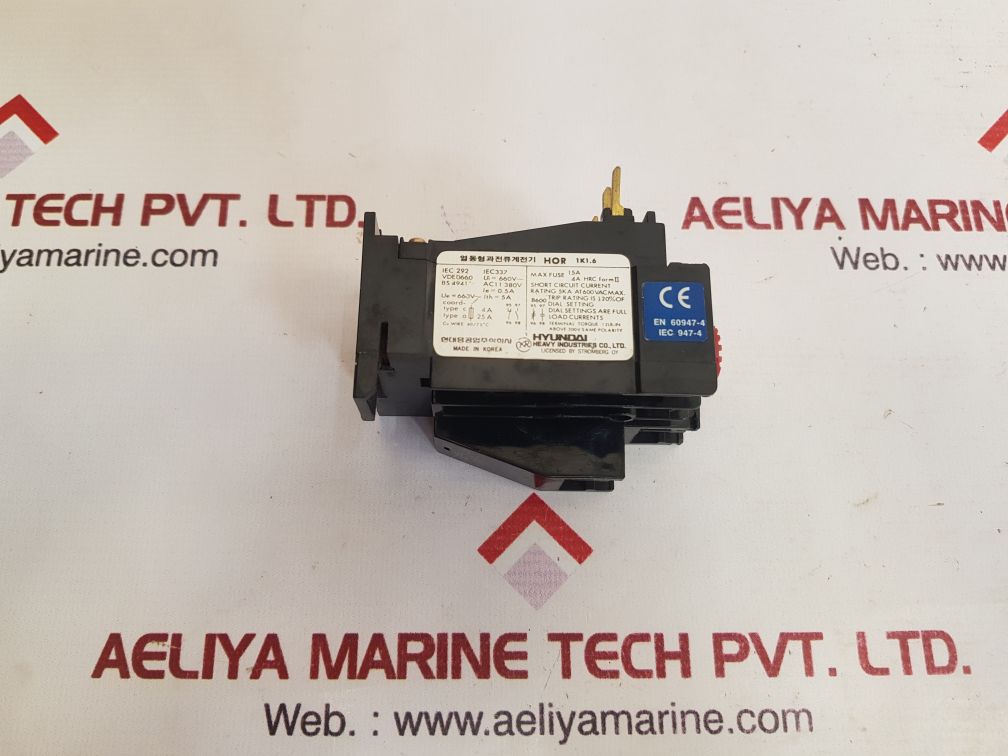

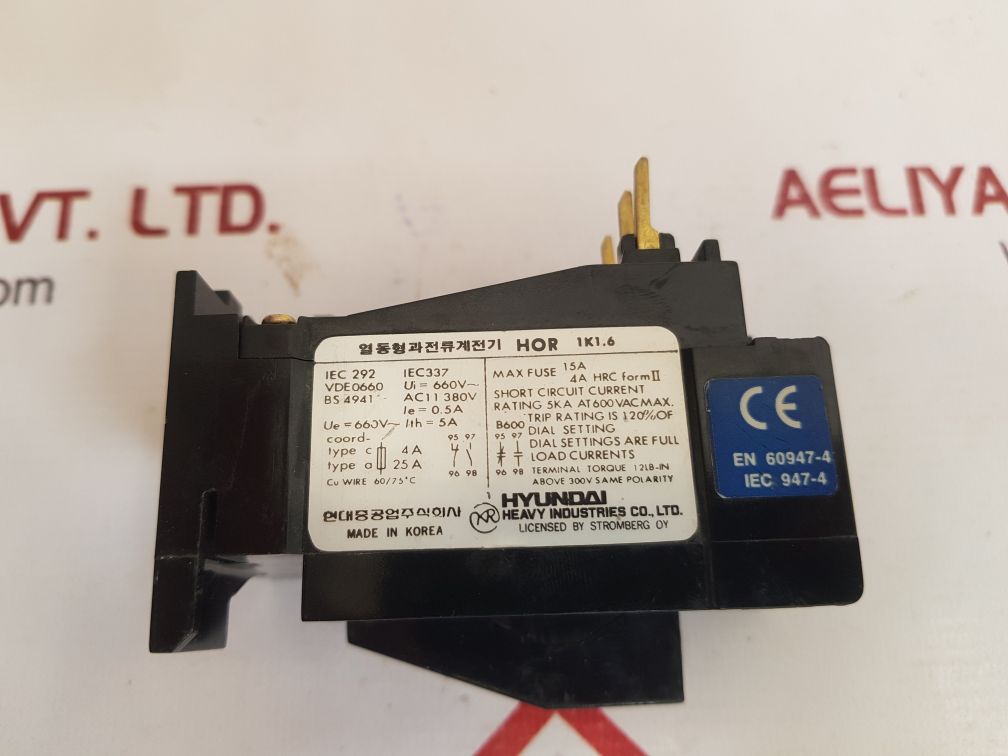

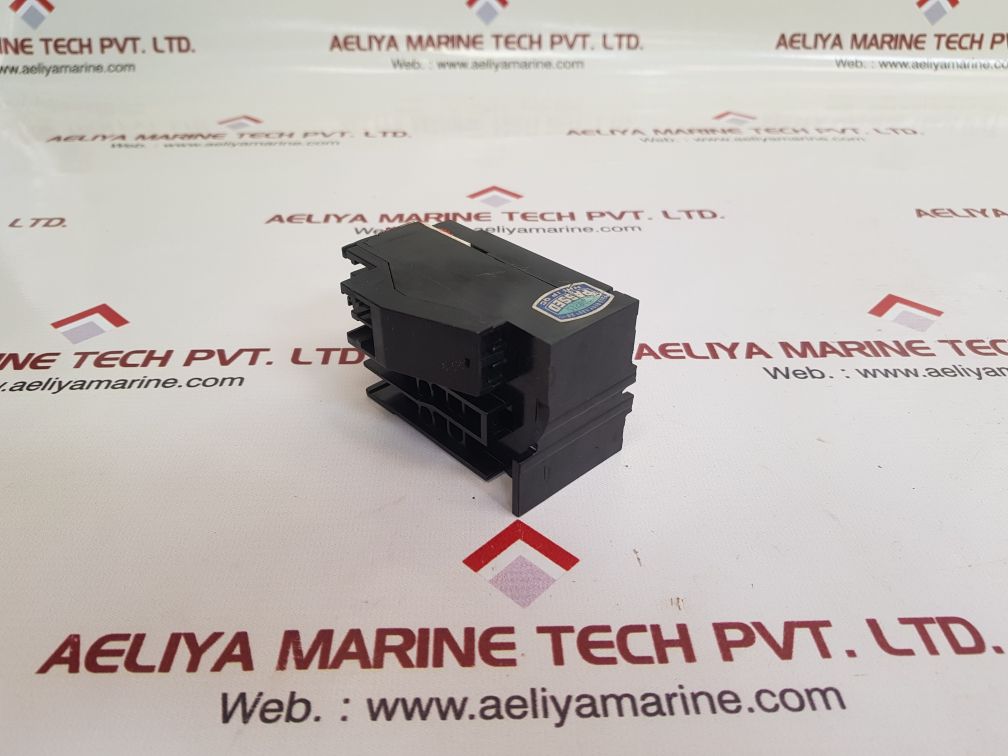

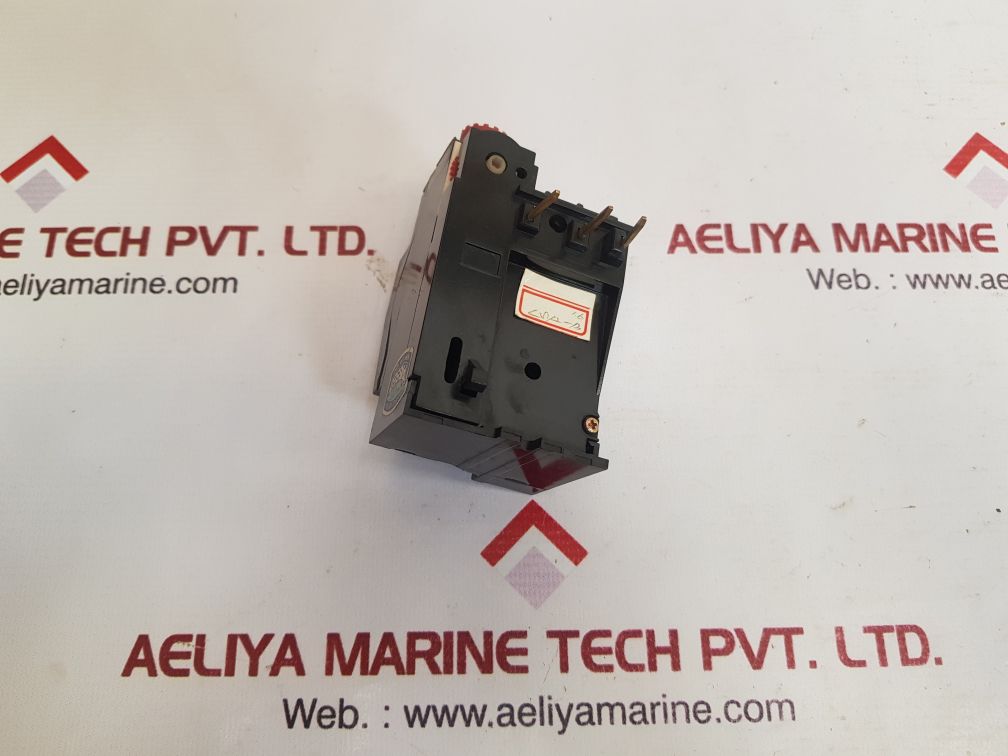

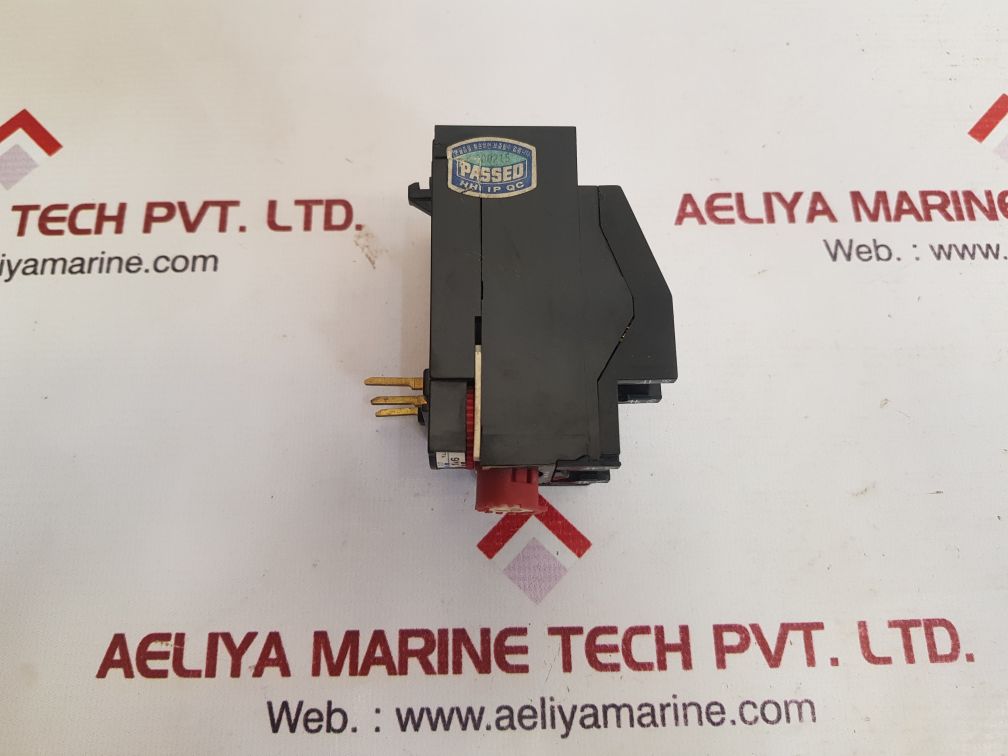

HYUNDAI HOR 1K 1.6 TERMINAL OVERLOAD RELAY HOR1K,2E,4-6A
HYUNDAI HEAVY INDUSTRIES CO.LTD
LICENSED BY STROMBERG OY
HOR 1K 1.6
HOR1K,6,,
TERMINAL OVERLOAD RELAY
IEC 292
VDE 0660
BS 4941
IEC337
UI=660V~
AC11 380V
IE= 0.5A
ITH=5A
COORD- TYPE C 4A
TYPE A 25A
CU WIRE 60/75⁰C
MAX FUSE 15A
4A HRC FORM II
B600
EN 60947-4
IEC 947-4
TERMINAL TORQUE 12LB-IN
ABOVE 300V SAME POLARITY

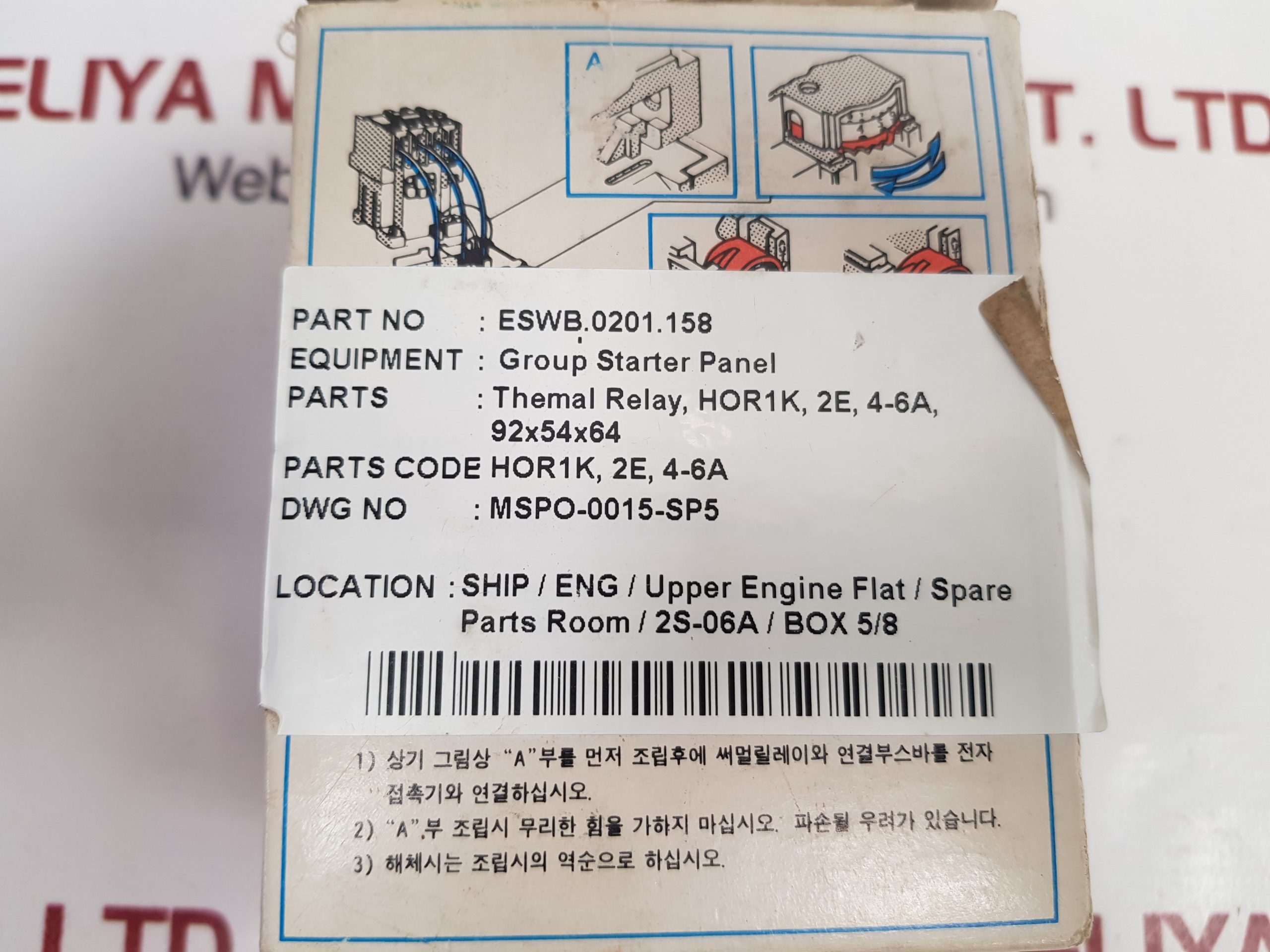

PART NO: ESWB.0201.158
EQUIPMENT: GROUP STARTER PANEL
PARTS: THEMAL RELAY, HOR1K,2E, 4-6A,
92x54x64
PARTS CODE: HOR1K, 2E, 4-6A
MADE IN KOREA
WEIGHT : 190 GM
CONDITION : USED 1 PCS
REF NO : 30957
