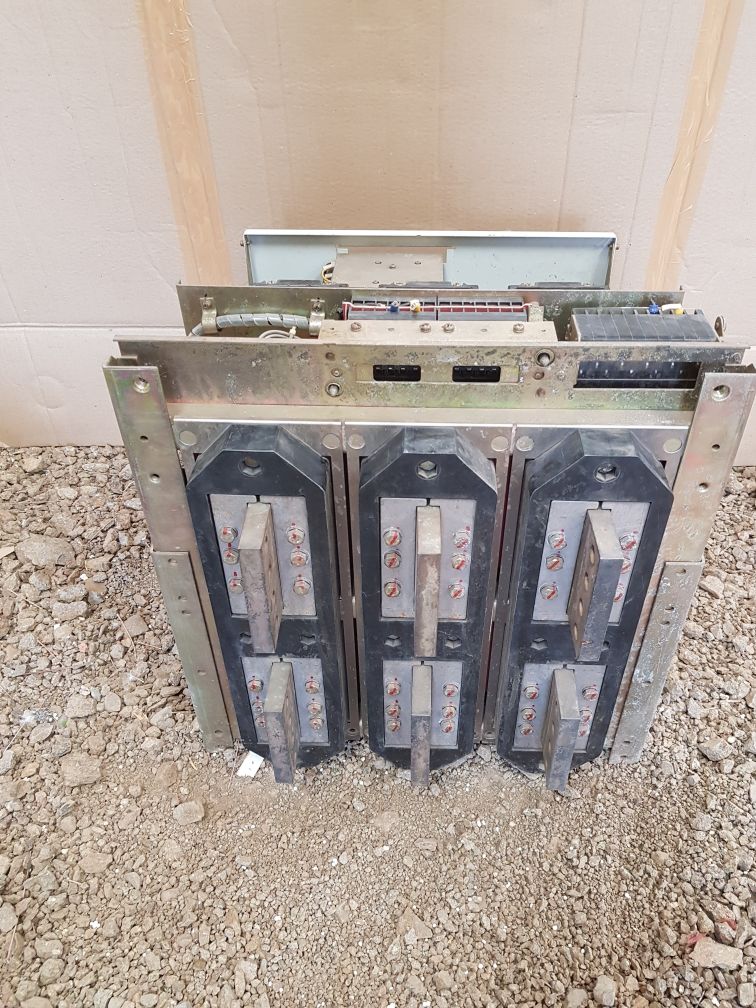

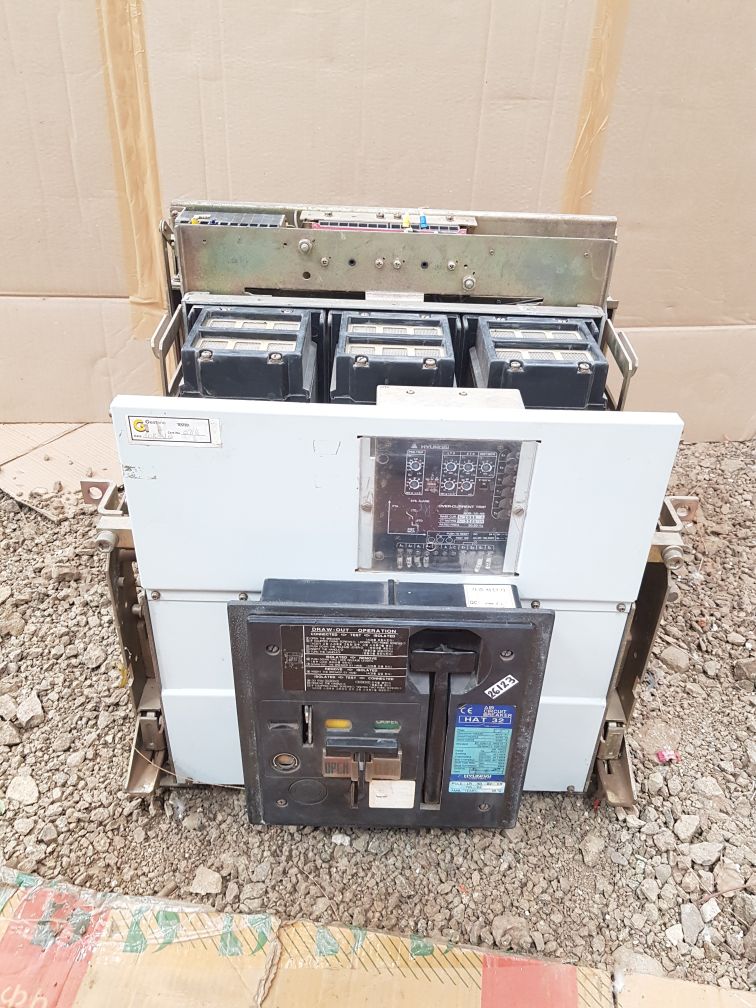

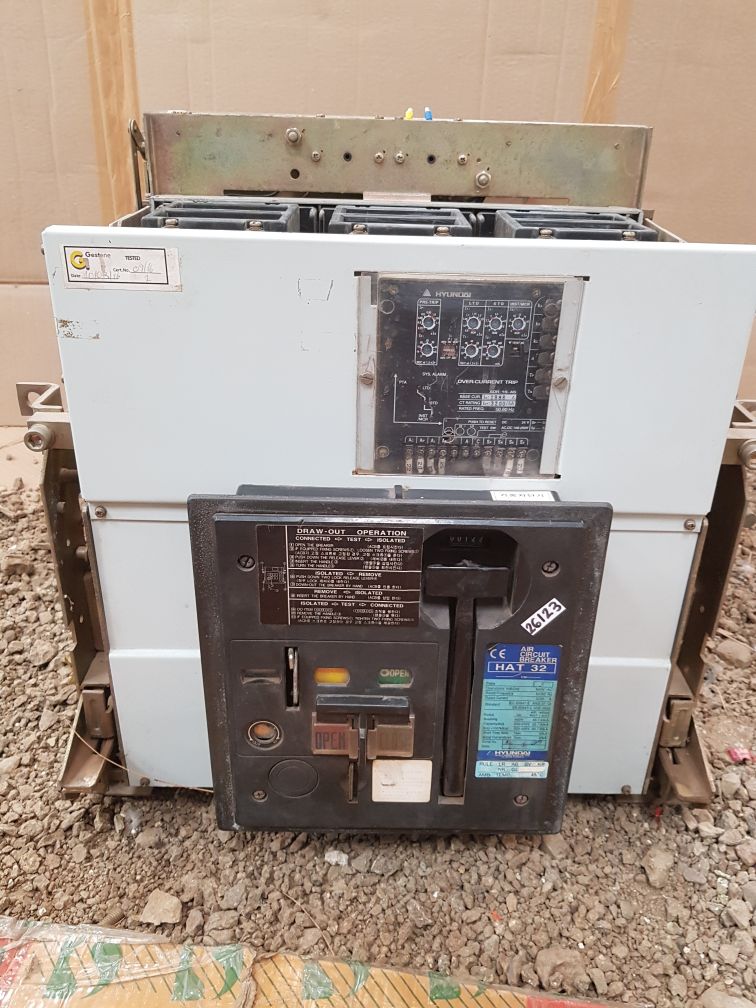

HYUNDAI HAT 32 AIR CIRCUIT BREAKER AOR-1S-AS
HYUNDAI HEAVY INDUSTRIES CO., LTD.

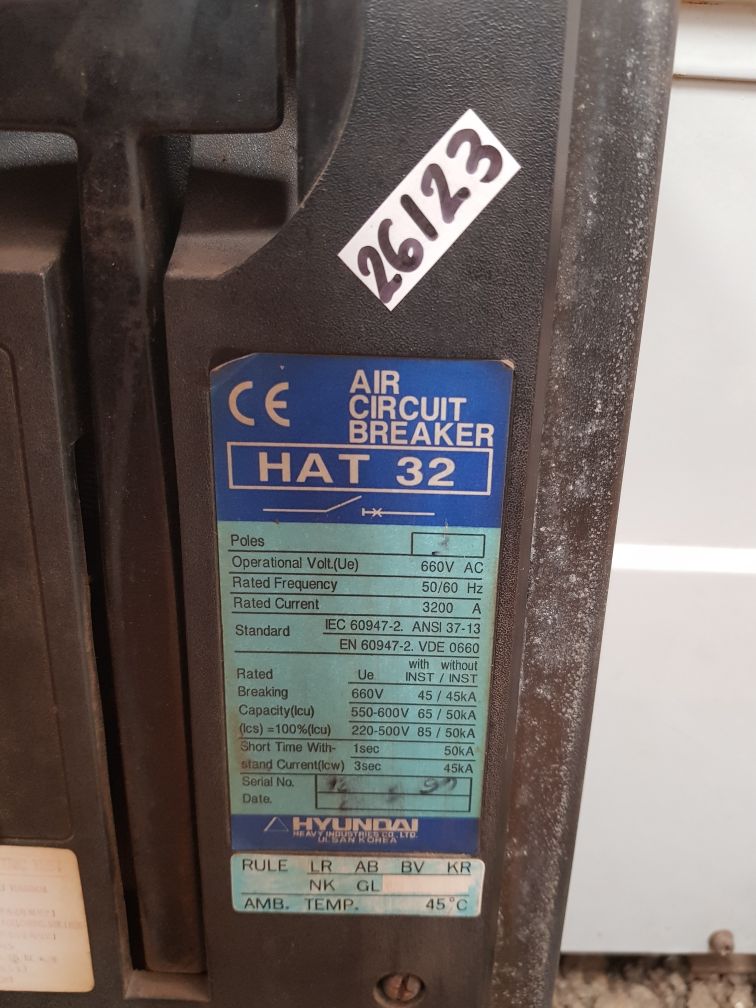

AIR CIRCUIT BREAKER
HAT 32
OPERATIONAL VOLT. (UE) 660V AC
RATED FREQUENCY: 50/60 HZ
RATED CURRENT: 3200A
STANDARD IEC 60947-2. ANSI 37-13
EN 60947-2. VDE 0660
RATED BREAKING:
UE: 660V
WITH INST 45KA
WITHOUT INST 45KA
CAPACITY (ICU):
UE: 550-600V
WITH INST. 65 KA
WITHOUT INST. 50 KA
(ICS)= 100% (ICU):
UE: 220-500V
WITH INST 85 KA
WITHOUT INST 50 KA
SHORT TIME WITH- 1SEC 50KA
STAND CURRENT (ICW) 3 SEC 45KA
AMB. TEMP. 45°C

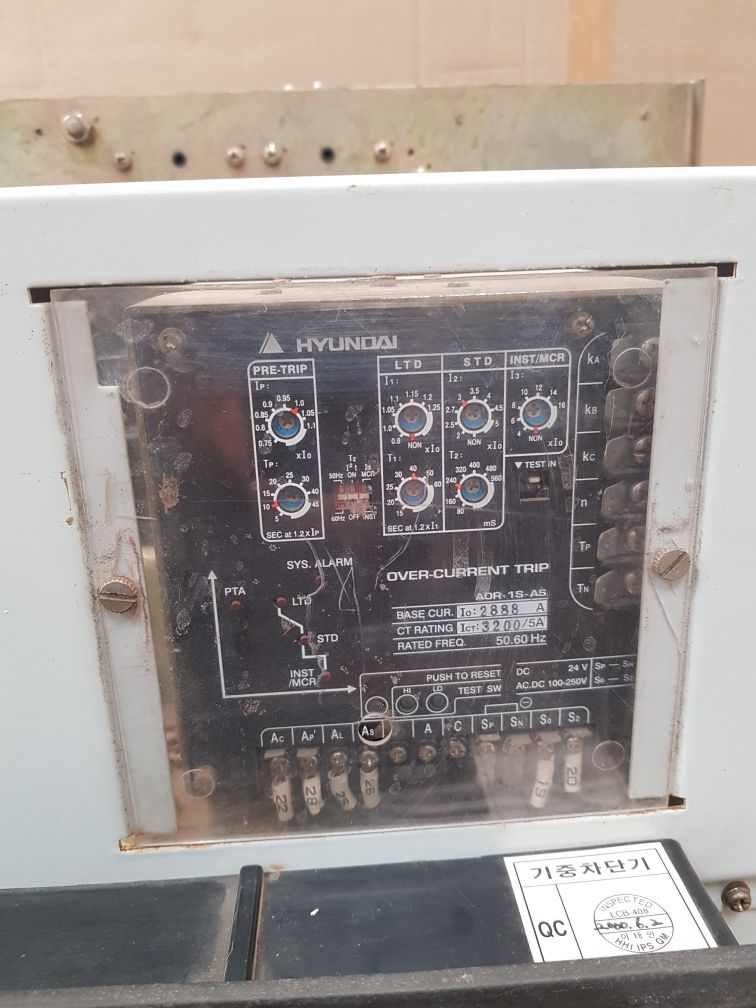

OVER CURRENT TRIP
AOR-1S-AS
BASE CUR. IO: 2888 A
CT RATING ICT: 3200/5A
RATED FREQ. 50.60HZ
DC 24V
AC.DC 100-250V
KOREA
CONDITION : USED 1 PCS
REF NO : 26123
