GIC SM301 VOLTAGE MONITORING MA51BC
GIC
CAT.ID: MA51BC
SUPPLY MONITORING: SERIES-SM301
TYPE: PHASE AND VOLTAGE CONTROL
SUPPLY: 3PH-3WM, 415VAC, 50-60 HZ
REV: R017/V014
O/P: 5A (RES.) @ 250 VAC/30VDC, 1C/O
IEC AC-15: 3/1.5 A @ 120/240VAC
60947 DC-13: 2/0.22/0.1A @ 24/125/250VDC
WIRING: AWG 24 TO 12, CU 60/75°C
DRIVE: PH1/ø 3.5MM, TORQUE 0.54NM (5 LB.IN)

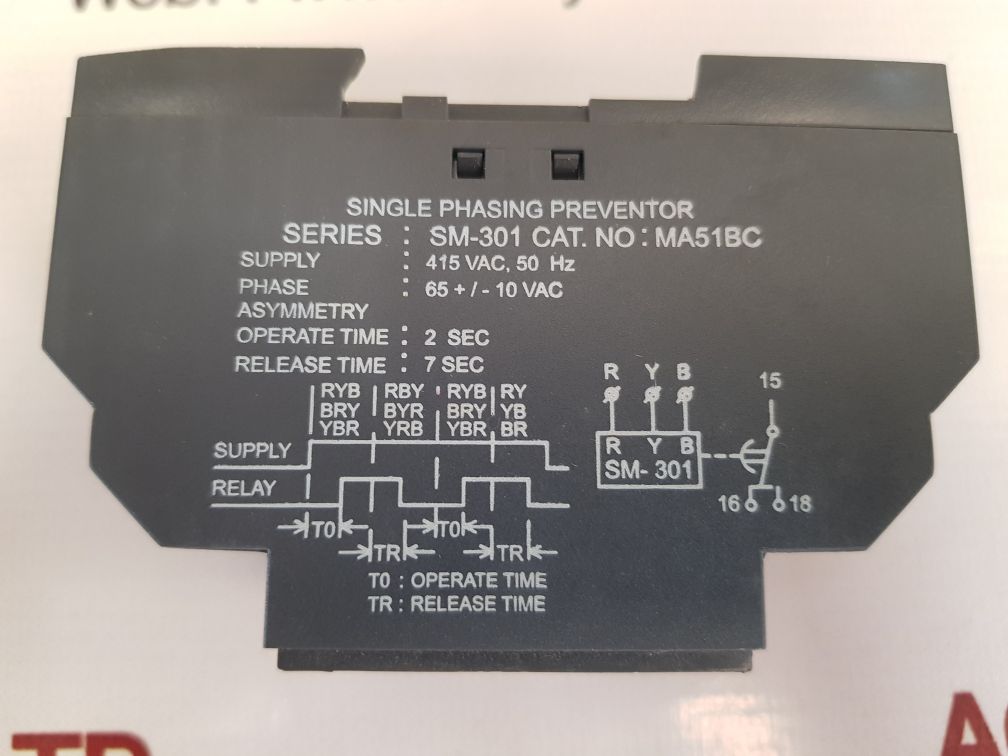

SINGLE PHASING PREVENTOR
PHASE: 65 +/-10 VAC
OPERATE TIME: 2 SEC
RELEASE TIME: 7 SEC
MANUFACTURED & PACKED BY: GENERAL INDUSTRIAL CONTROLS PVT.LTD.
MARKETED BY: LARSEN & TOUBRO LTD.
MADE IN INDIA
WEIGHT : 120 GM
CONDITION : NEW 1 PCS
REF NO : 24983
GIC SM301 VOLTAGE MONITORING MA51BC
