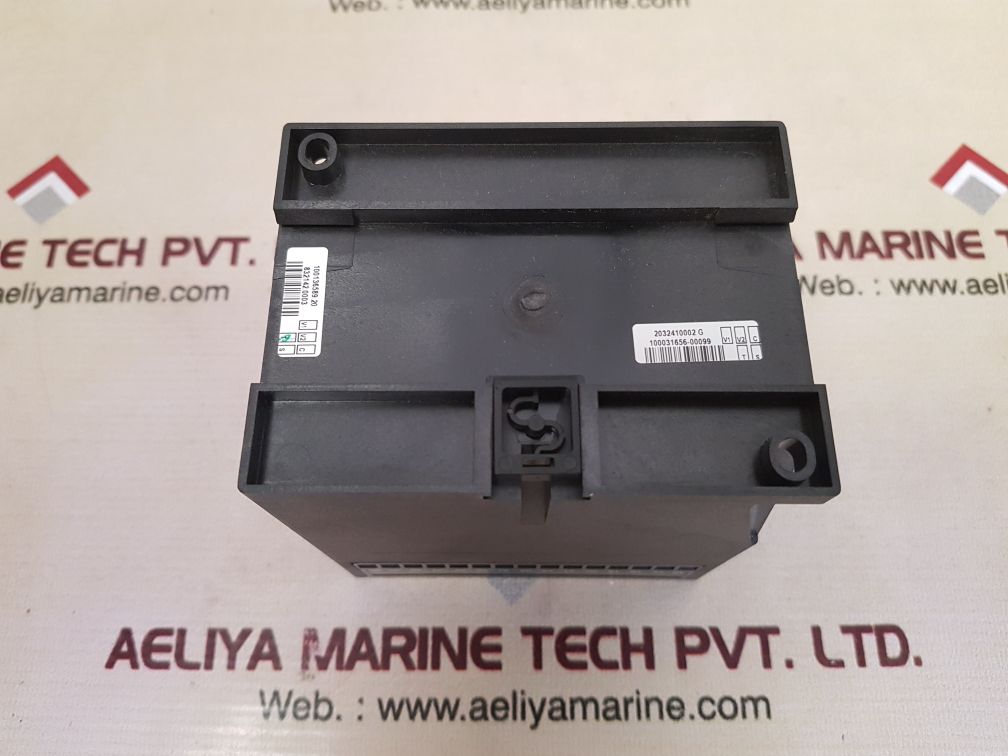

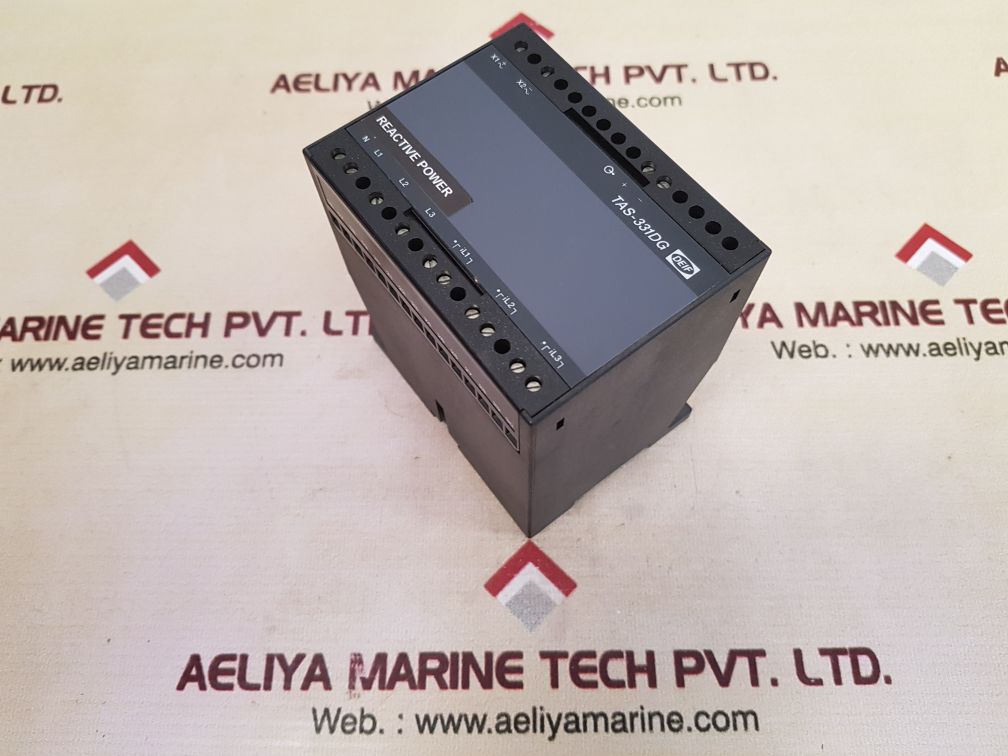

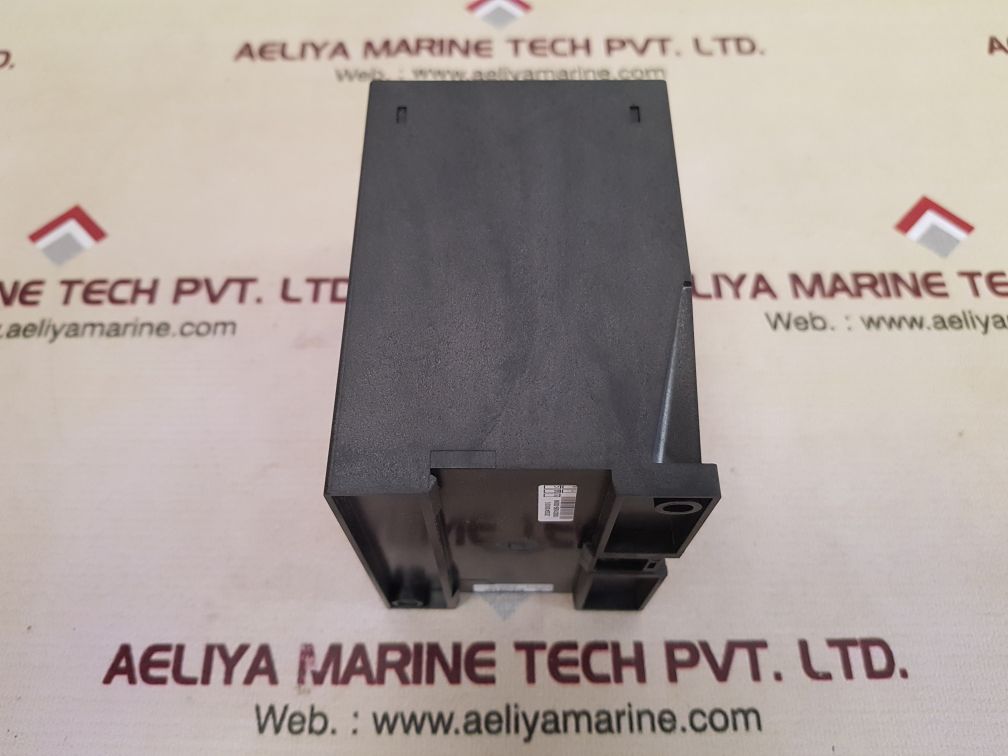

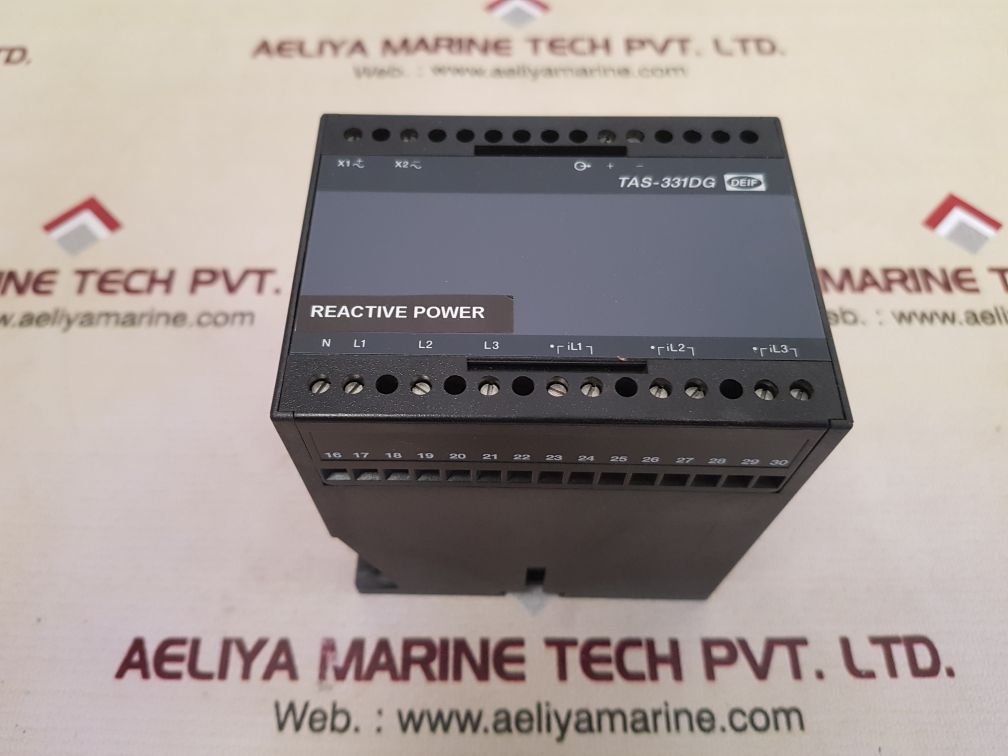

DEIF TAS-331DG POWER TRANSDUCER
DEIF TAS-331DG
DEIF

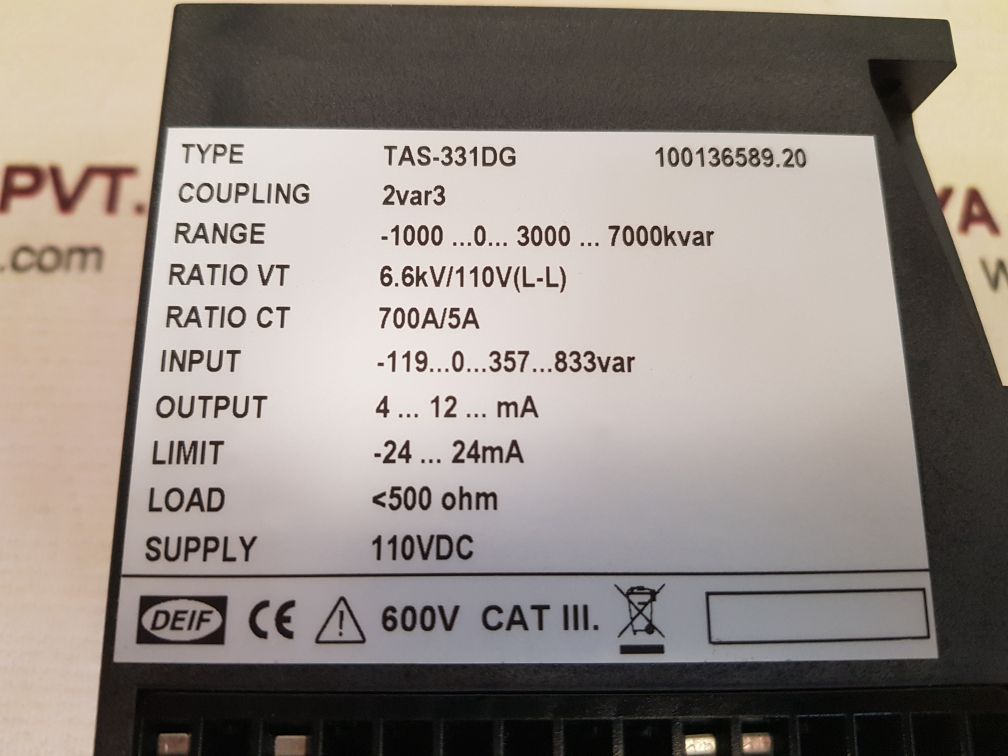

TYPE: TAS-331DG
REACTIVE POWER
100136589.20
COUPLING: 2VAR3
MEASURING RANGE: -1000…0…3000…7000KVAR
RATIO VT: 6.6KV / 110V (L-L)
RATIO CT: 700A/5A
INPUT:
-119…0…357…833 VAR
OUTPUT: 4…12…MA
LIMIT -24…24MA
LOAD: LESS THAN 500 OHM
SUPPLY/AUXILIARY VOLTAGE: 110VDC
600V CAT III.

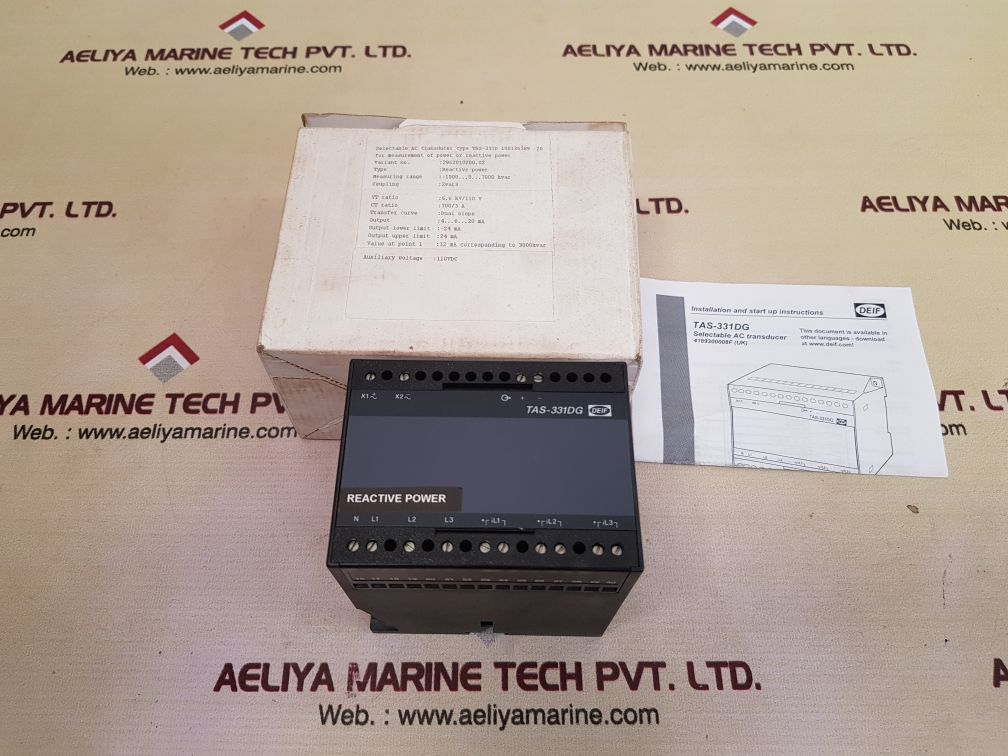

SELECTABLE AC TRANSDUCER TYPE TAS-331D 100136589 20
FOR MEASUREMENT OF POWER OR REACTIVE POWER
VARIANT NO: 2962010200.02
TYPE: REACTIVE POWER
TRANSFER CURVE: DUAL SLOPE
OUTPUT: 4…6…20 MA
OUTPUT LOWER LIMIT: -24 MA
OUTPUT UPPER LIMIT: 24 MA
VALUE AT POINT 1: 12 MA CORRESPONDING TO 3000KVAR
832142.0003
2032410002 G
100031656-00099
4189300008F
UK
WEIGHT : 600 GM
CONDITION : NEW 1 PCS
REF NO : 20687
