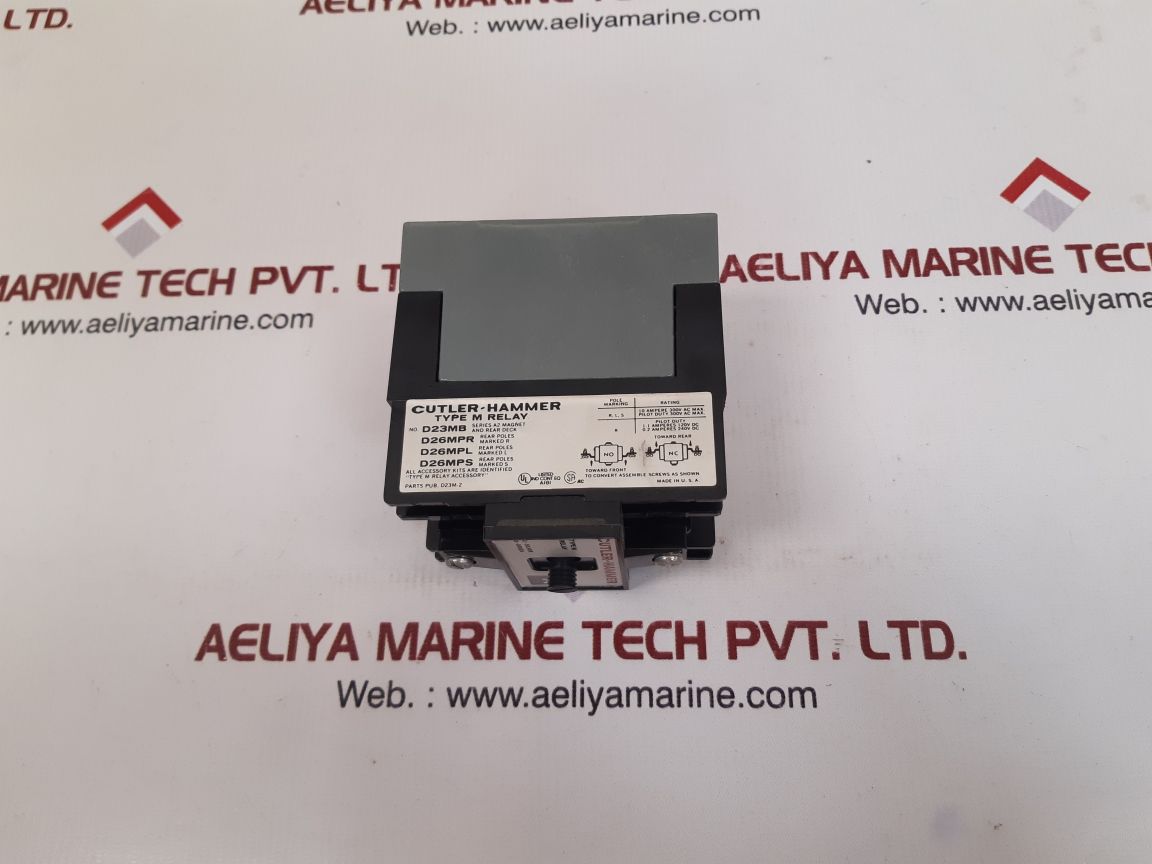

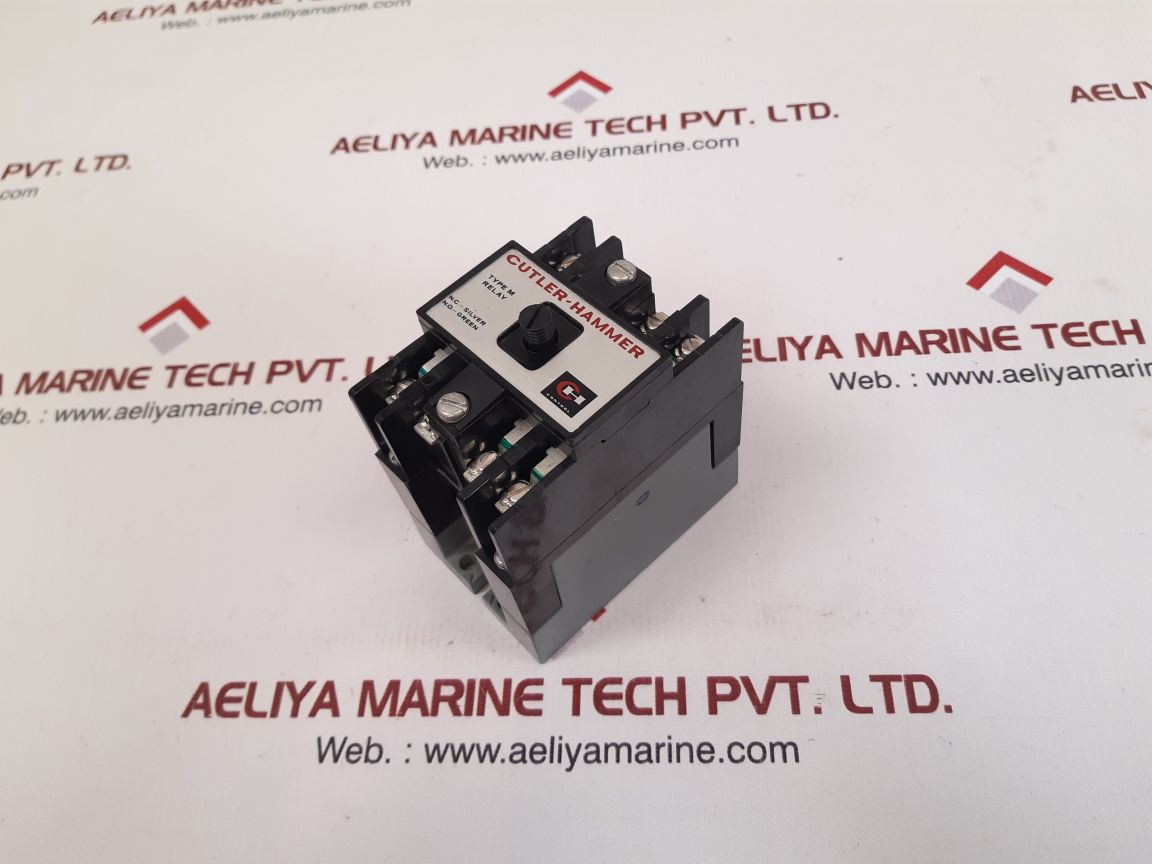

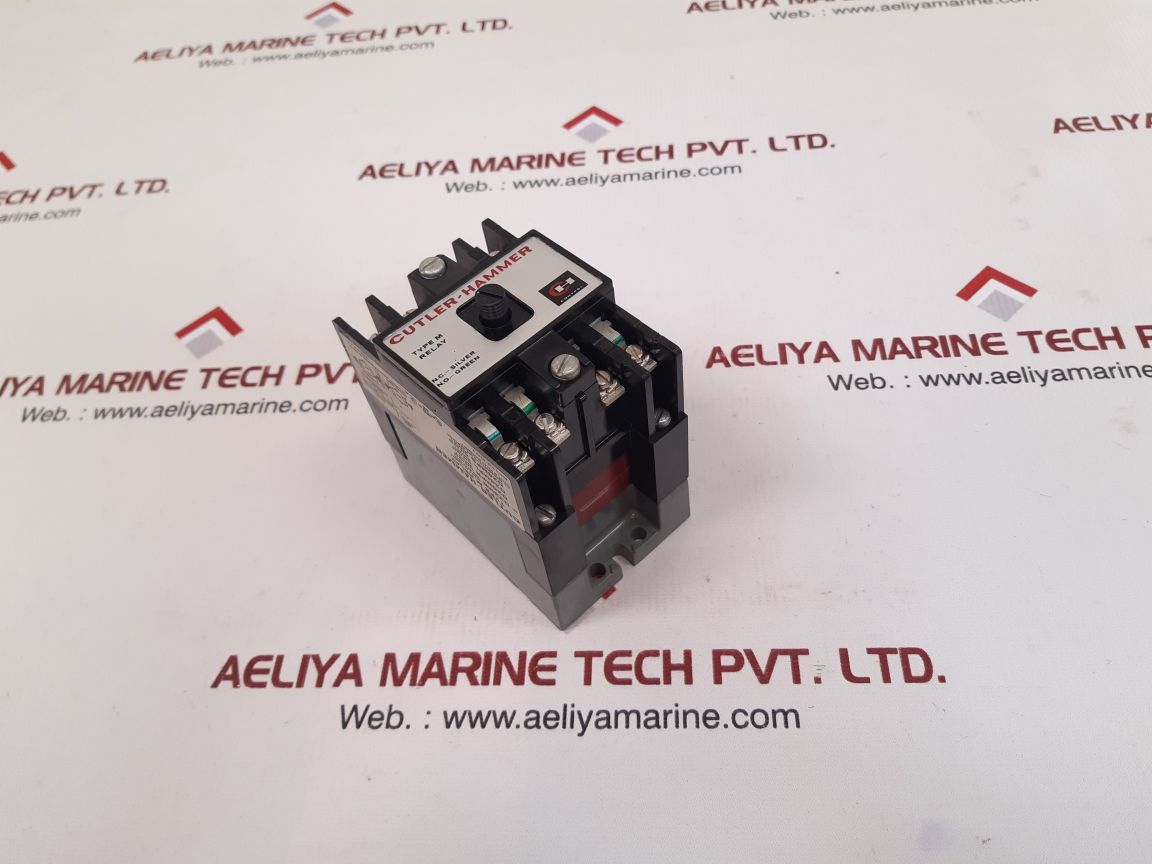

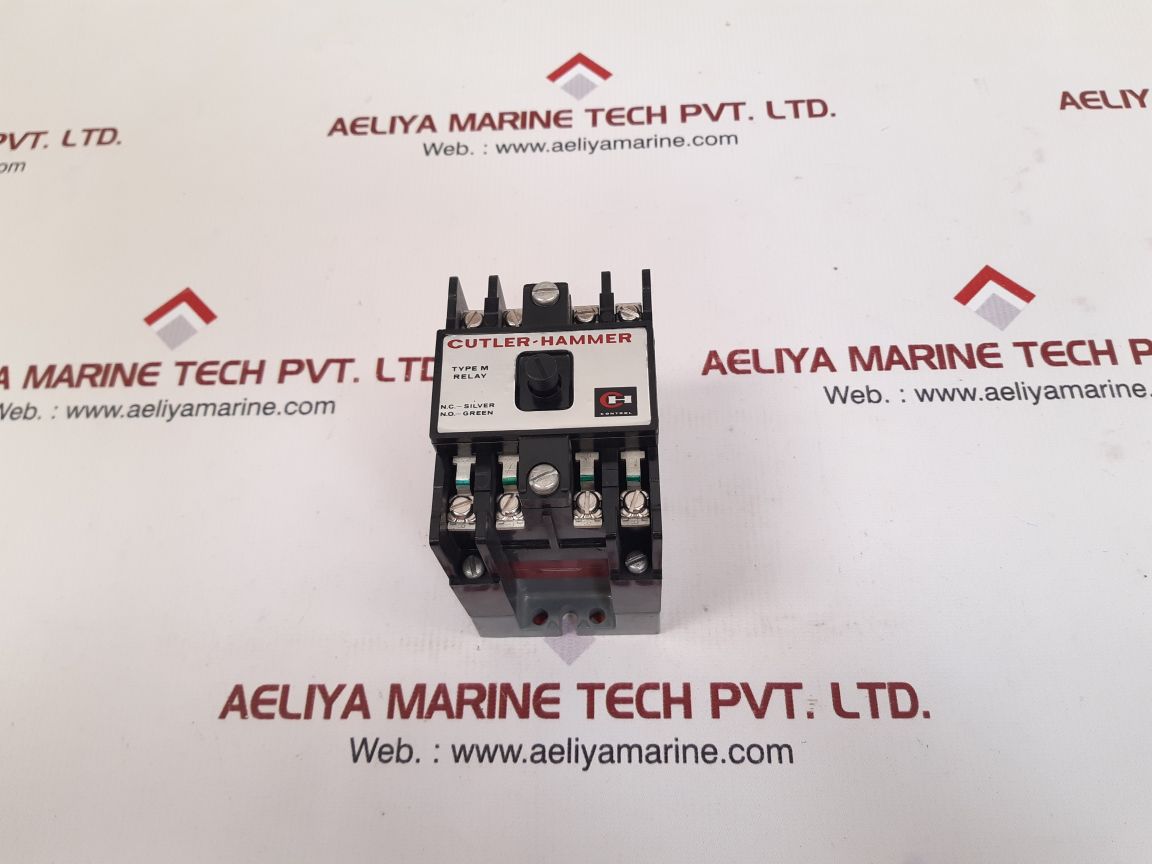

CUTLER-HAMMER D23M-2 TYPE M RELAY

CUTLER-HAMMER D23M-2 TYPE M RELAY
CUTLER-HAMMER D23M-2
CUTLER-HAMMER
CH CONTROL

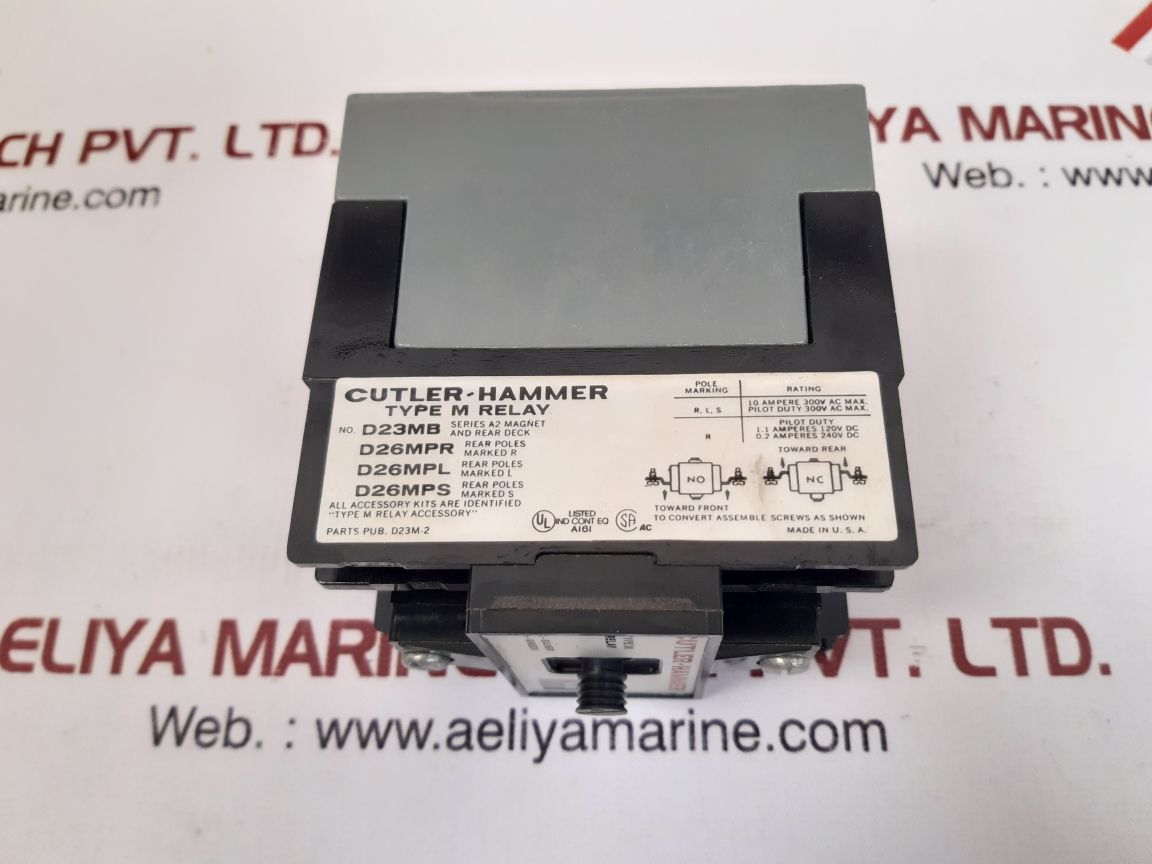

TYPE M RELAY
NO. D23MB
SERIES A2 MAGNET AND REAR DECK
D26MPR
REAR POLES MARKED R
D26MPL
REAR POLES MARKED L
D26MPS
REAR POLES MARKED S
PARTS PUB. D23M-2

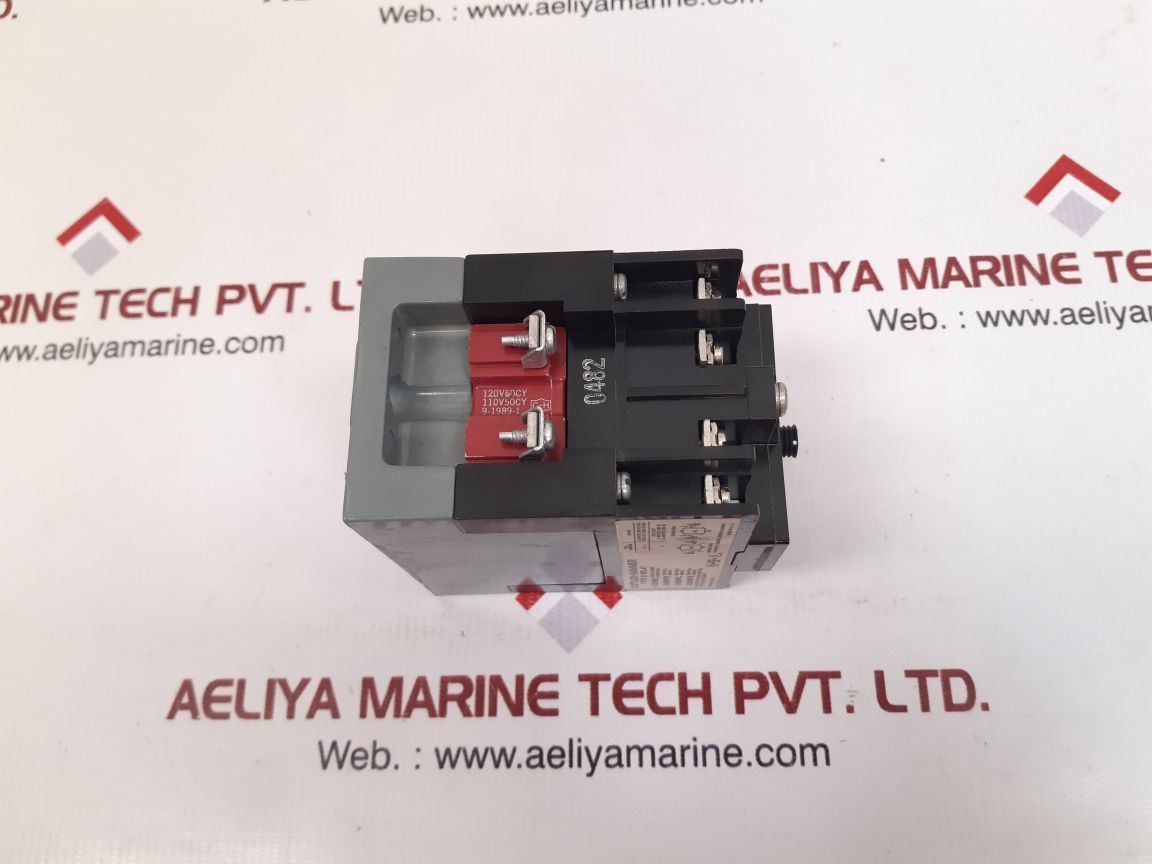

120V 60 CY
110V 50CY
9-1989-1
POLE MARKING: R, L, S
RATING: 10 AMPERE 300V AC MAX.
PILOT DUTY 300V AC MAX.
POLE MAKING: R
PILOT DUTY
1-1 AMPERES 120V DC
0-2 AMPERES 240V DC
EQUIP. ID. 315.301.0139

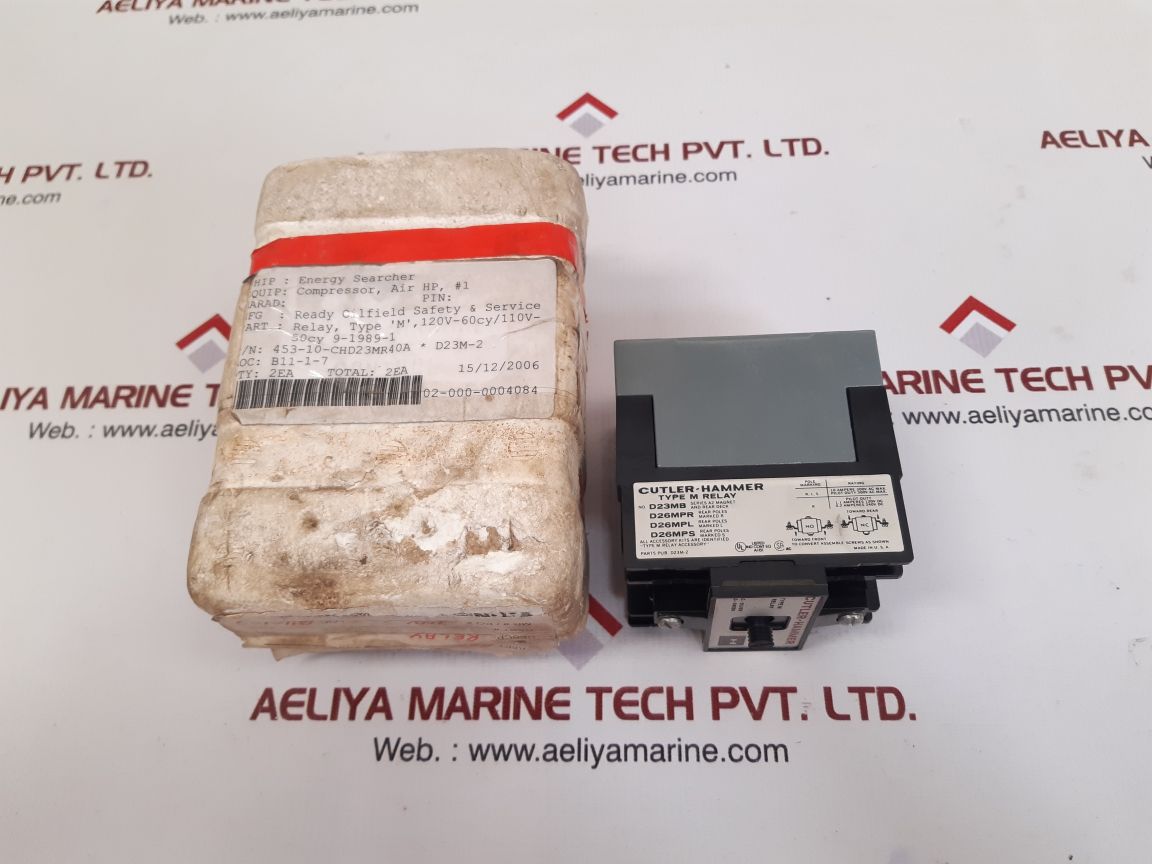

DESCRIP: RELAY, TYPE ‘ M’, 120V-60CY/110V-50CY 9-1989-1 -ACC#: 708312
MAKER: CUTLER-HAMMER
PART NO: D23M-2
MADE IN U.S.A.
WEIGHT : 1.090 KG
REF NO(S) : 24149
