BOPP & REUTHER ZIVS FSU-/EX-Y 10 360 CONTROLLER
BOPP & REUTHER ZIVS FSU- /EX-Y 10 360
BOPP & REUTHER
ZIVS
P+F TYP: FSU- /EX-Y 10 360
STEUERKREIS/CONTROL CIRCUIT [EEX IB] IIC
PTB NR. EX-80/2122
BETRIEBSWERTE/OPERATING VALUES:
UO CA. 8V
JK CA. 8 MA
NAMUR
DIN 19234
HOCHSWERTE/MAXIMUM VALUES:
UO 13V
JK 16,95MA
CO 750NF
LI 85MH
JMPULSAUSGANG/ IMPULSE OUTPUT:
U 30V
J 10MA
ANALOGAUSGANG: BURDE MAX. 1000Ω/
ANALOG OUTPUT: LOAD MAX. 1000Ω
NETZ/SUPPLY: UNENN -10% +15%/45-65HZ

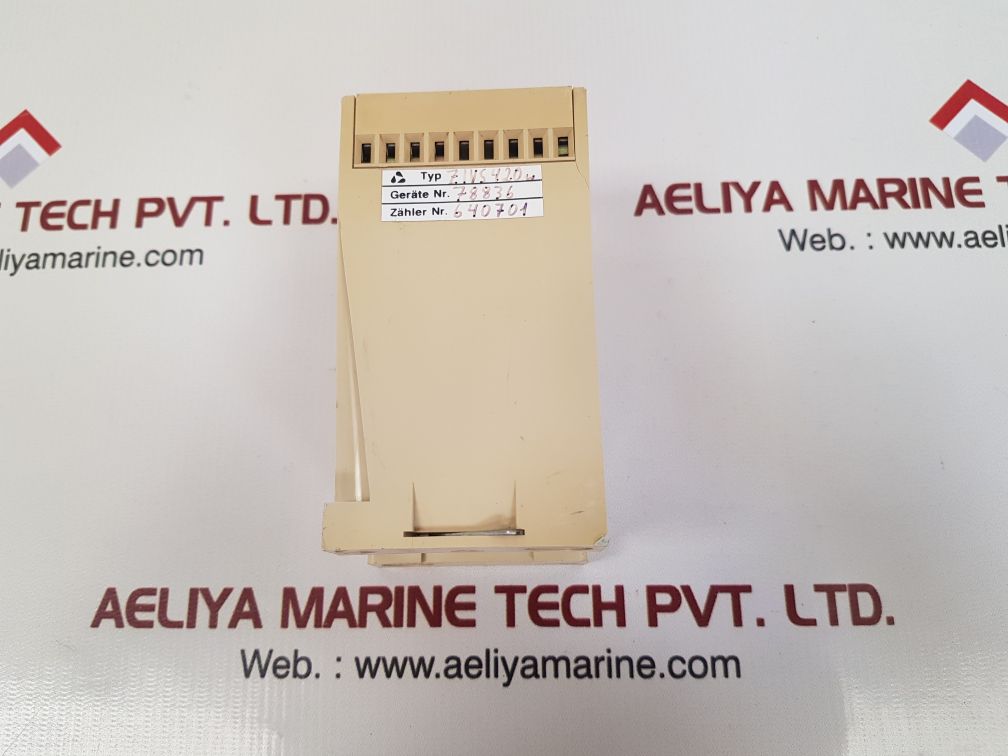

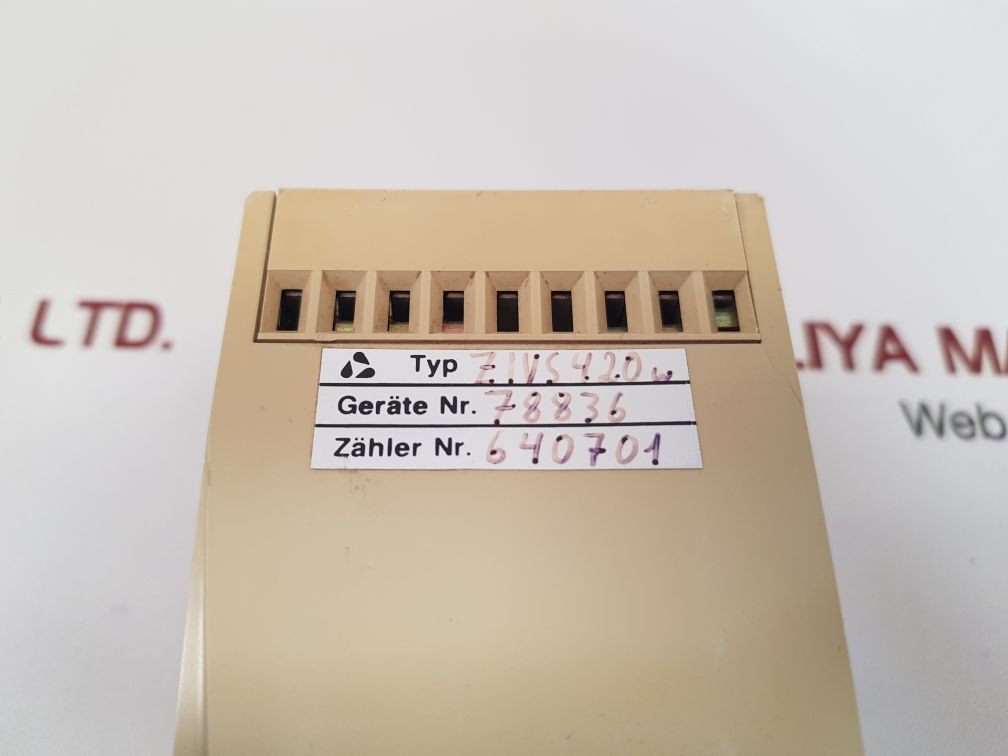

TYP: ZIVS420W
GERATE NR./DEVICE NO.: 78836

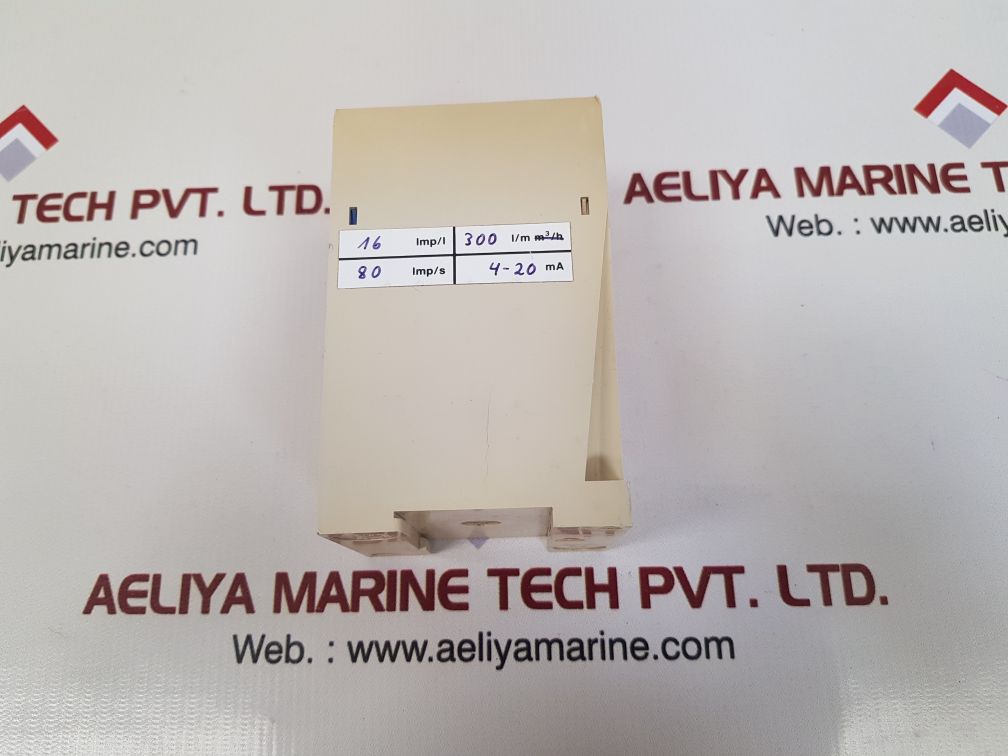

16 IMP/I / 76 IMP/I
300 I/M
80 IMP/S
4-20 MA
MADE IN W. GERMANY
WEIGHT : 420 GM
CONDITION : USED 1 PCS
REF NO : 22450
