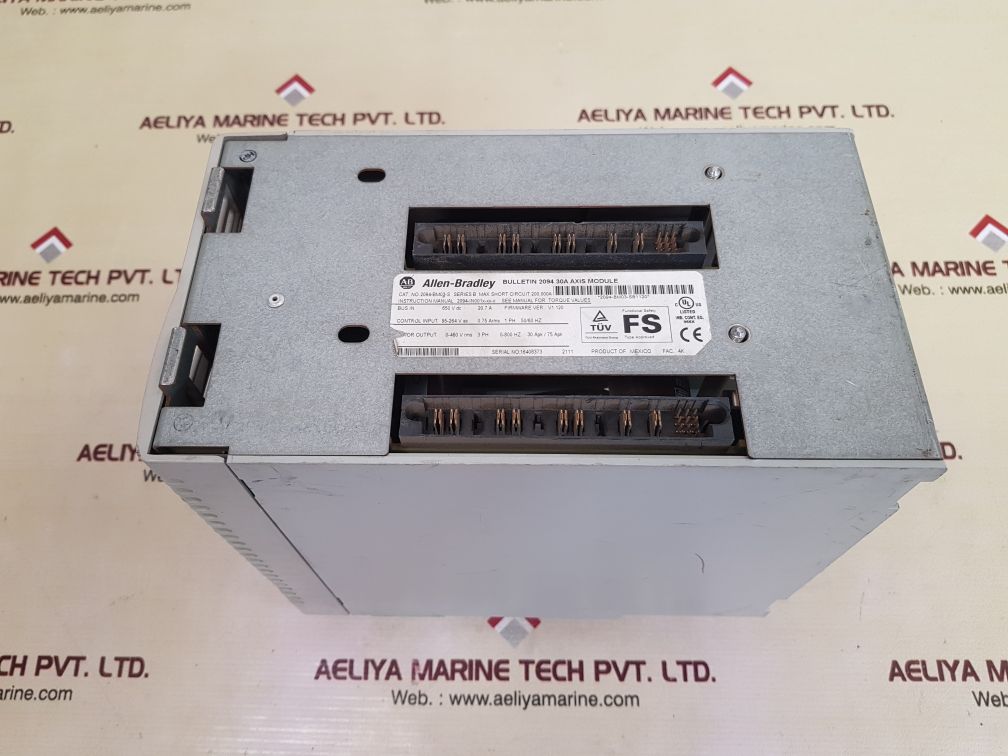

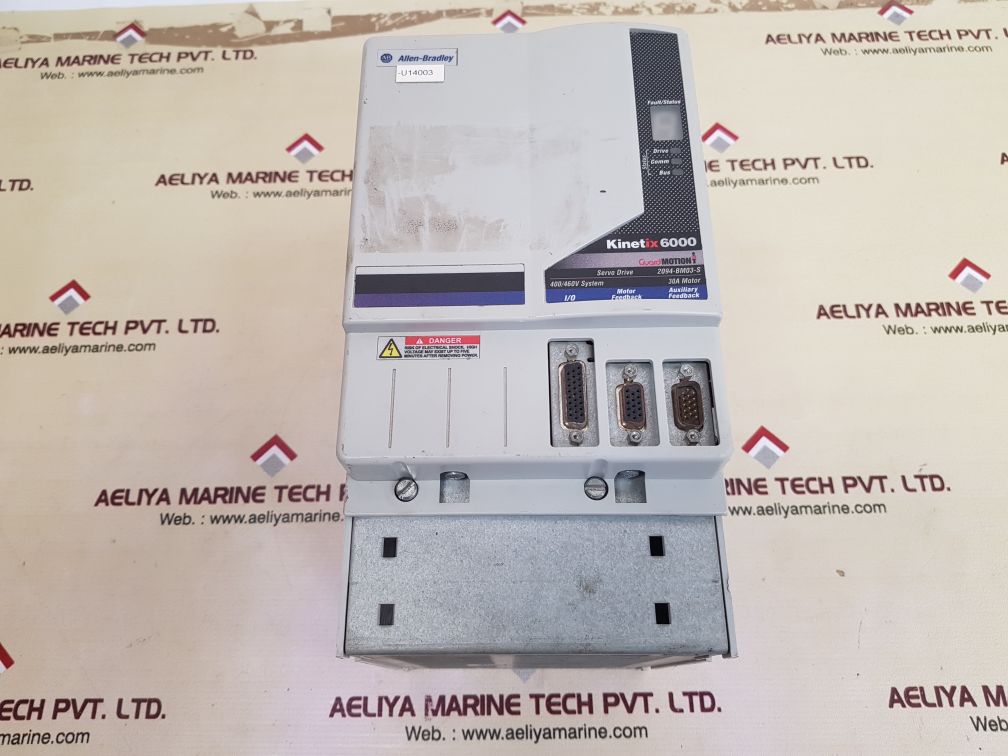

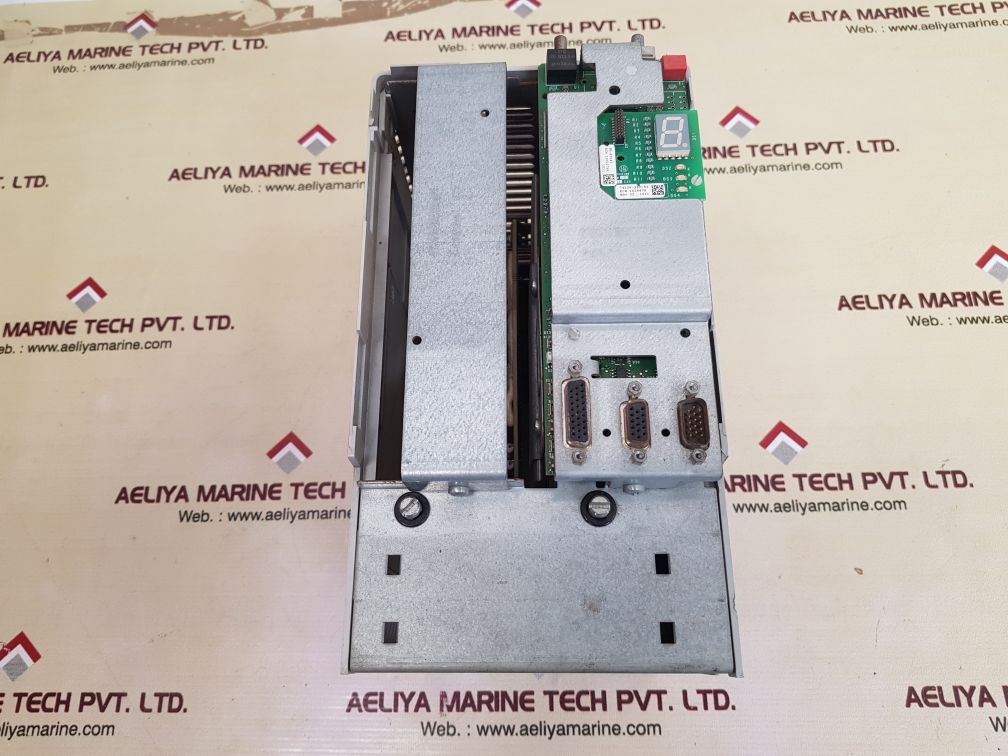

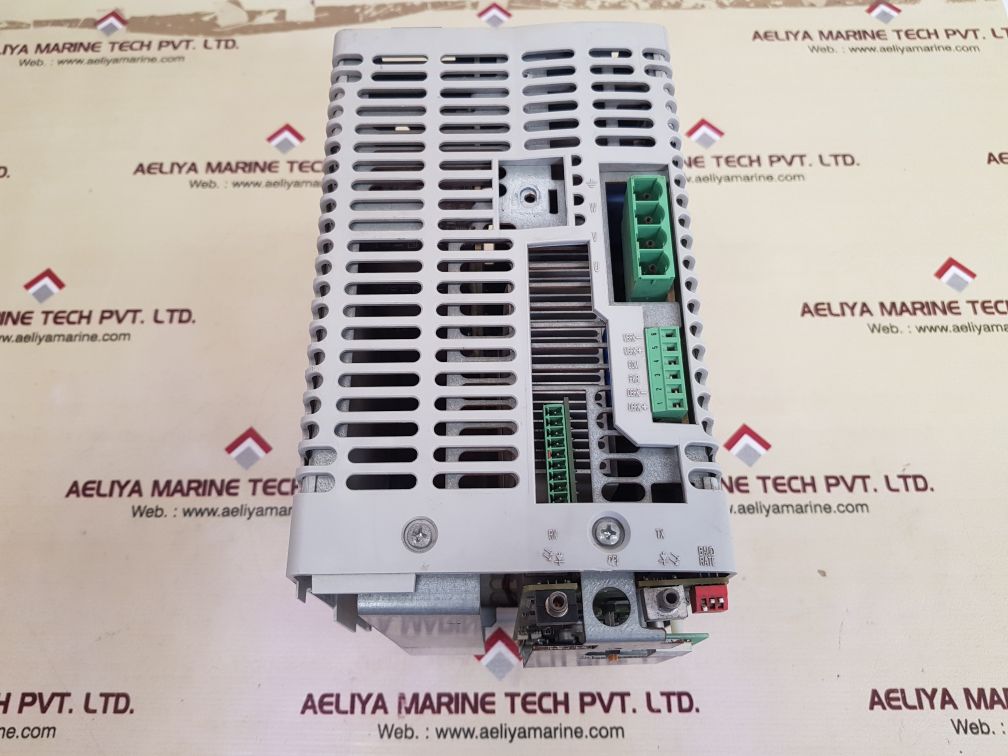

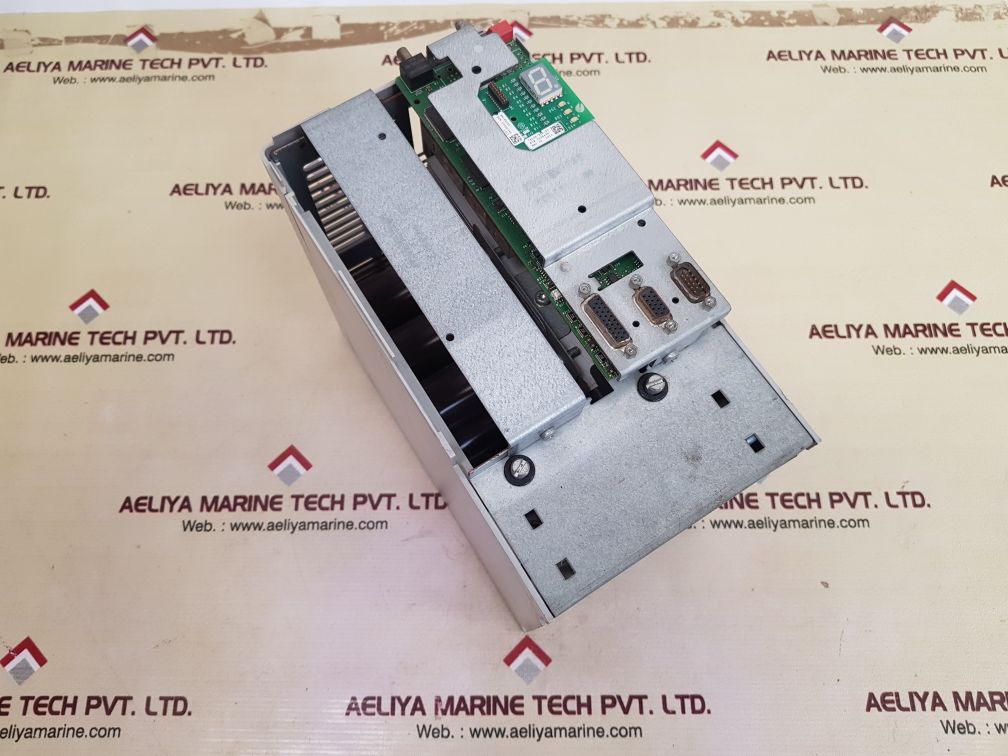

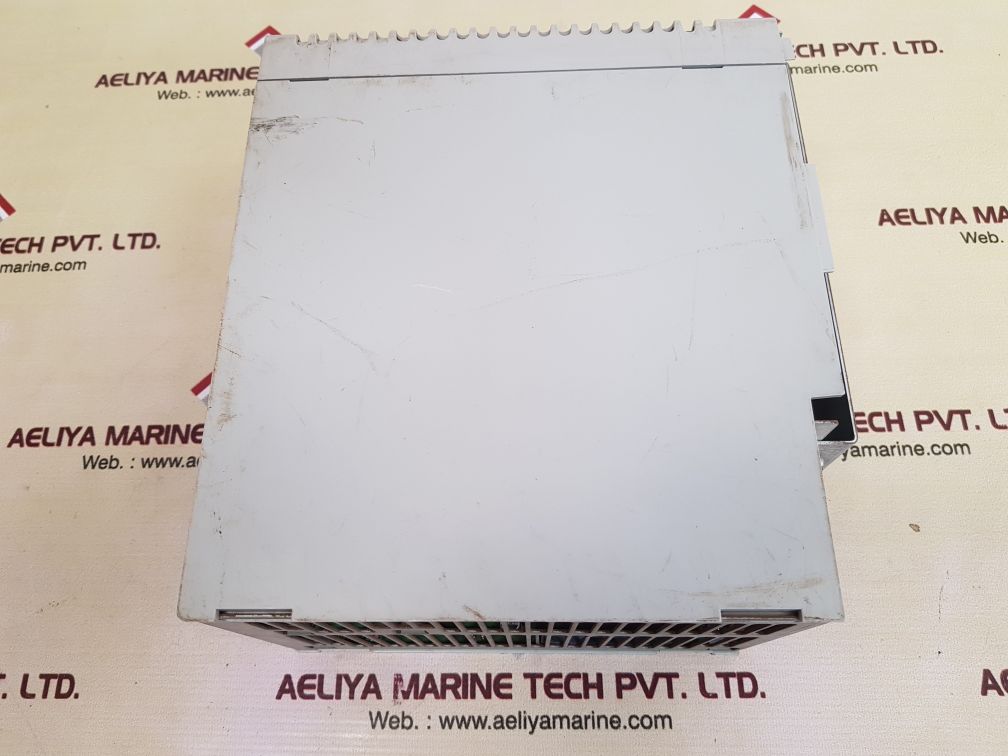

ALLEN-BRADLEY KINETIX 6000 AXIS MODULE 2094-BM03-S
(DISPLAY NOT WORKING)
ALLEN-BRADLEY
A-B QUALITY
-U14003
KINETIX 6000
GUARD MOTION
SERVO DRIVE 2094-BM03-S
400/460V SYSTEM 30A MOTOR

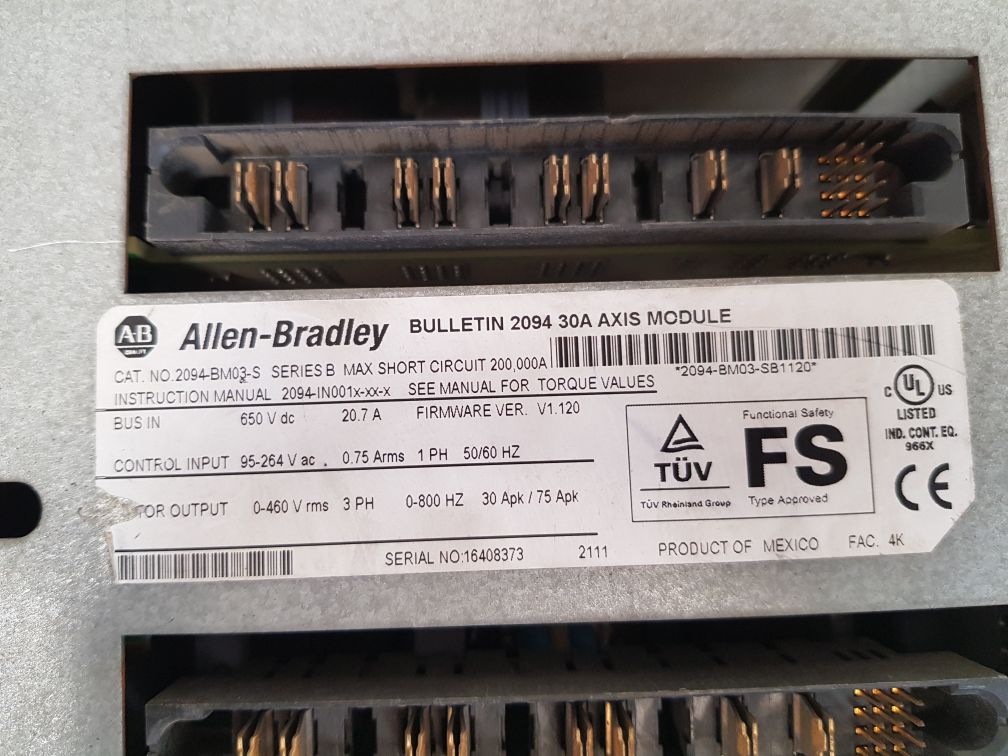

BULLETIN 2094 30A AXIS MODULE
CAT.NO. 2094-BM03-S
SERIES B
BUS IN 650 V DC 20.7A FIRMWARE VER. V1.120
CONTROL INPUT: 95-264 V AC, 0.75 ARMS 1 PH 50/60 HZ
MOTOR OUTPUT: 0-460 V RMS 3 PH 0-800 HZ 30 APK/75 APK
2111
*2094-BM03-SB1120*
FAC. 4K
PRODUCT OF MEXICO
WEIGHT : 4.670 KG
CONDITION : FOR PART 1 PCS
REF NO : 20663
Understanding the Heart of Your Motion Control System
The Allen-Bradley Kinetix 6000 Axis Module 2094-BM03-S is a critical component in the realm of industrial automation, specifically in motion control applications.
What is an Axis Module?
The 2094-BM03-S, let’s clarify what an axis module is. Think of it as the brain controlling a single joint or axis of a robotic arm, a conveyor belt, or any machinery requiring precise movement. It’s the intermediary between the control system and the physical motor, ensuring smooth, accurate, and controlled motion.
The Role of the 2094-BM03-S
The Allen-Bradley 2094-BM03-S axis module is a powerhouse designed for demanding applications. It’s equipped to handle:
- High Power: With a continuous current of 21.2 amps and a peak current of 53 amps, it can drive hefty loads.
- Precision: Its SERCOS interface ensures precise synchronization with other axis modules and the control system.
- Safety: The integrated Safe Torque-Off feature is a crucial safety mechanism, preventing accidents.
- Efficiency: A high efficiency rating of 98% means less energy consumption and lower operating costs.
Key Features and Benefits
- High Performance: Delivers exceptional speed, acceleration, and torque for optimal productivity.
- Robust Design: Built to withstand harsh industrial environments, ensuring reliability.
- Flexibility: Compatible with a wide range of motors and feedback devices.
- Easy Integration: Seamlessly integrates into existing Allen-Bradley control systems.
- Advanced Diagnostics: Provides valuable insights into system health and performance.
Applications
The 2094-BM03-S finds its application in a variety of industries:
- Automotive: Assembly lines, painting, welding
- Packaging: Conveyor systems, labeling, packaging machines
- Material Handling: Robotics, warehousing, logistics
- Machine Tools: CNC machines, cutting, grinding
