ALLEN-BRADLEY 193-EC2EE PLUS OVERLOAD RELAY SER.B
ALLEN-BRADLEY

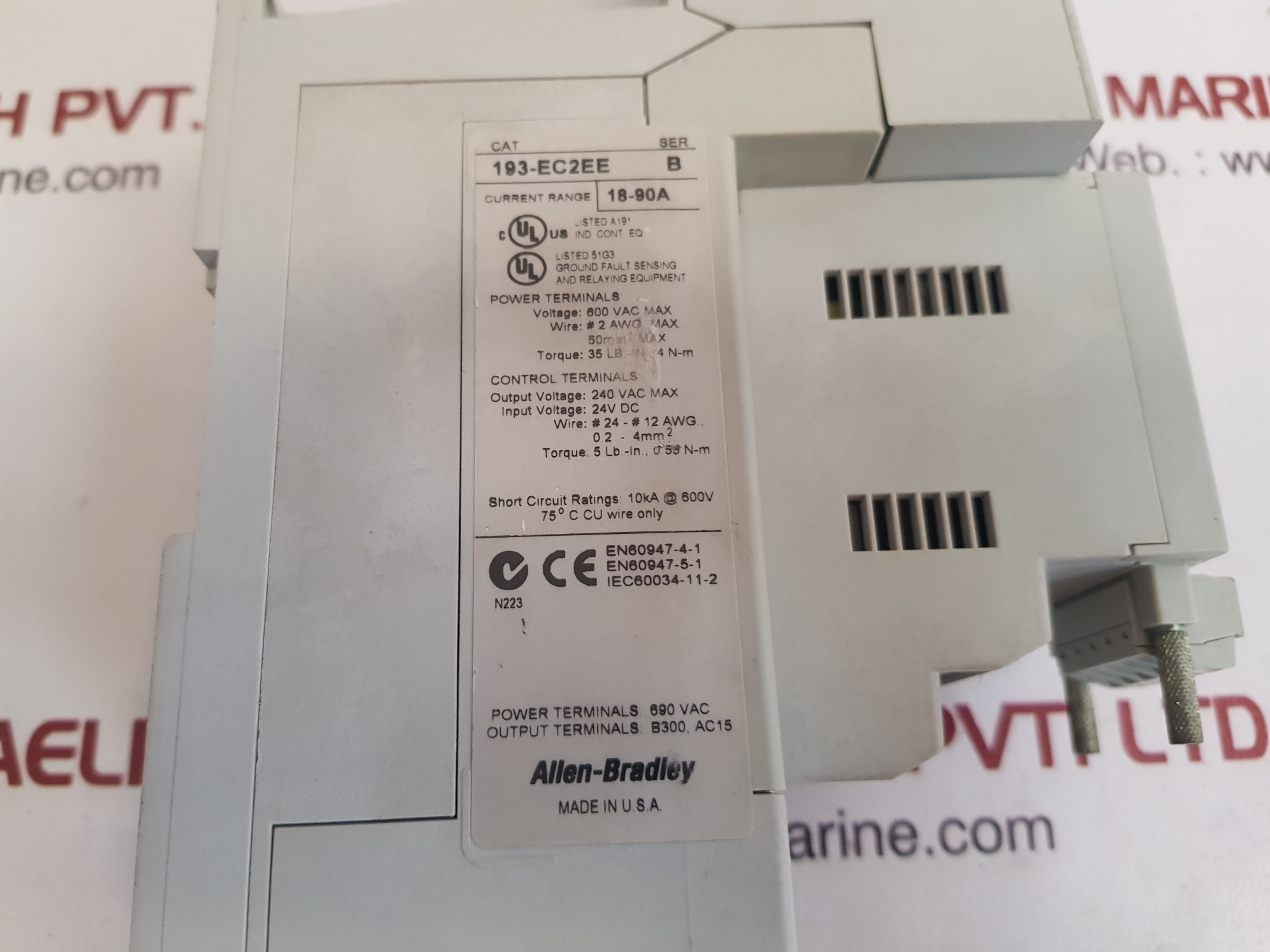

CAT: 193-EC2EE
SER: B

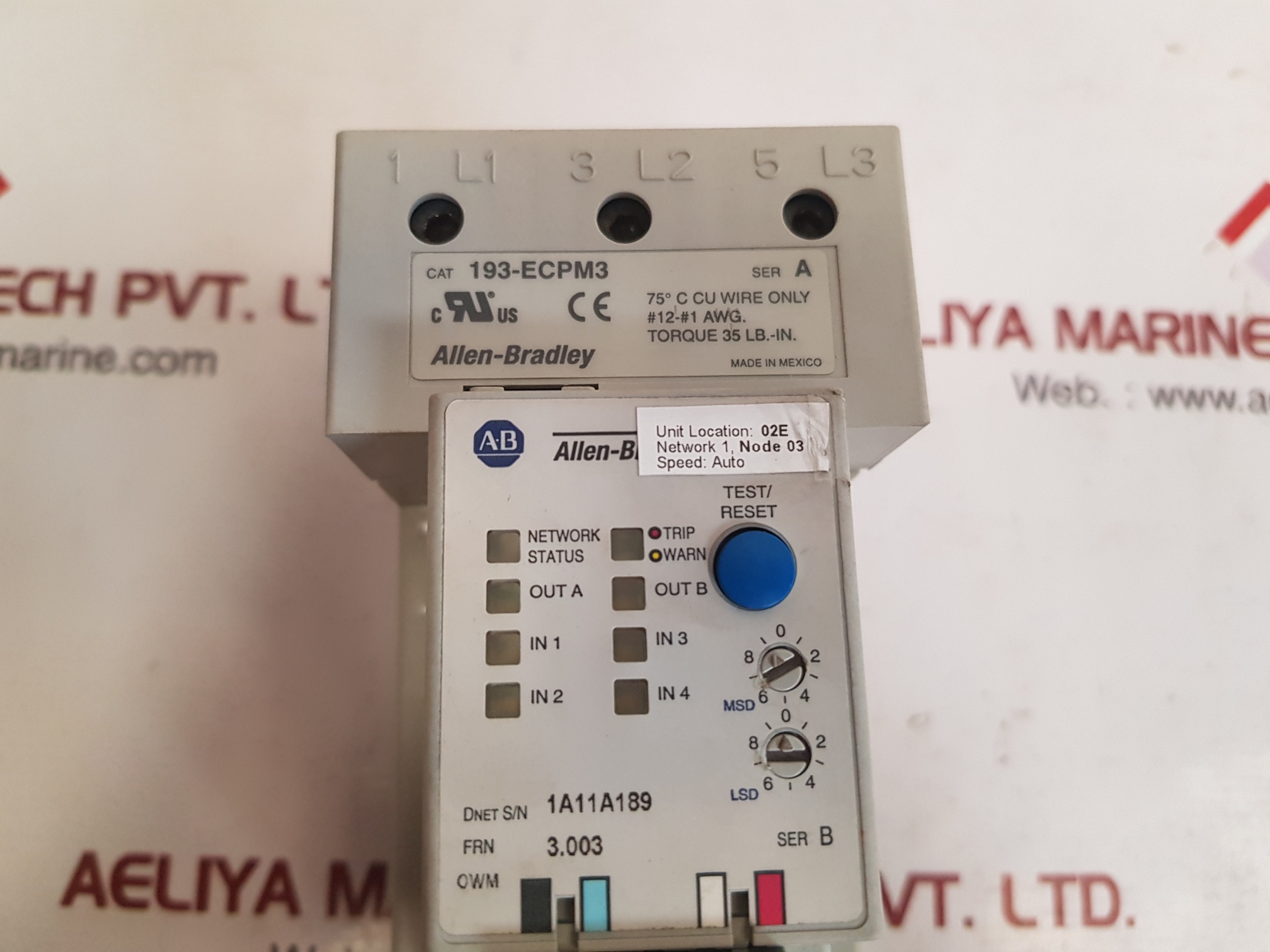

CAT 193-ECPM3
SER: A
CURRENT RANGE: 18-90A
POWER TERMINALS:
VOLTAGE: 600 VAC MAX
WIRE: # 2 AWG MAX.
50MM2 MAX.
TORQUE: 35 LB-IN 4 N-M
CONTROL TERMINALS
OUTPUT VOLTAGE: 240 VAC MAX
INPUT VOLTAGE: 24V DC
WIRE: #24-#12 AWG/#12-#1 AWG.
0.2-4 MM2
TORQUE: 5LB-IN., 0.55 N-M/35 LB.-IN.
SHORT CIRCUIT RATINGS: 10 KA @ 600V
75°C CU WIRE ONLY
POWER TERMINALS 690 VAC
OUTPUT TERMINALS: B300, AC15
FRN 3.003

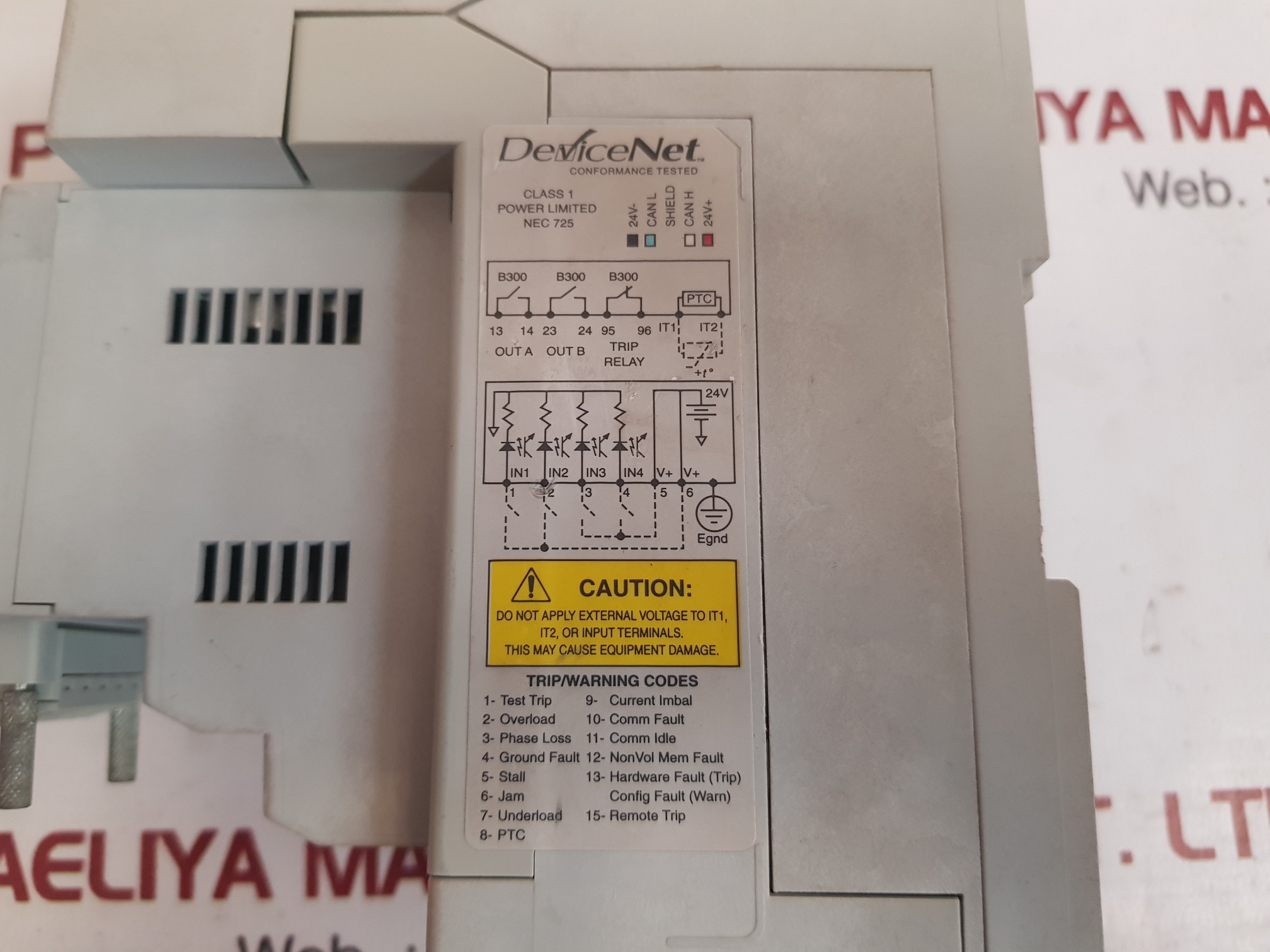

CLASS 1 POWER LIMITED NEC 725
MADE IN U.S.A.
MADE IN MEXICO
WEIGHT : 960 GM
CONDITION : USED 1 PCS
REF NO : 15465
ALLEN-BRADLEY 193-EC2EE PLUS OVERLOAD RELAY SER.B
