ABB ASFC-01C SWITCH FUSE CONTROLLER
ABB ASFC-01C
ABB

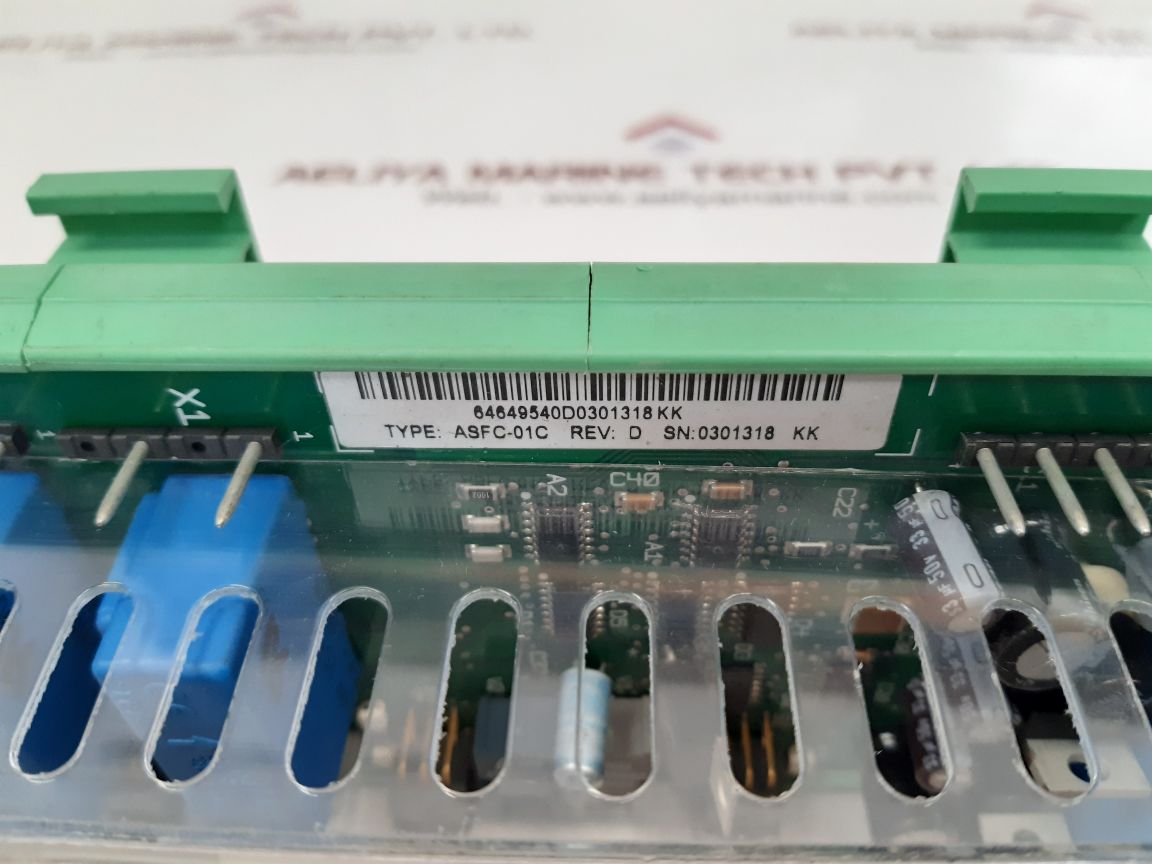

TYPE: ASFC-01C
REV: D
64649540D0301318KK
SWITCH FUSE CONTROLLER
6473 9611 C

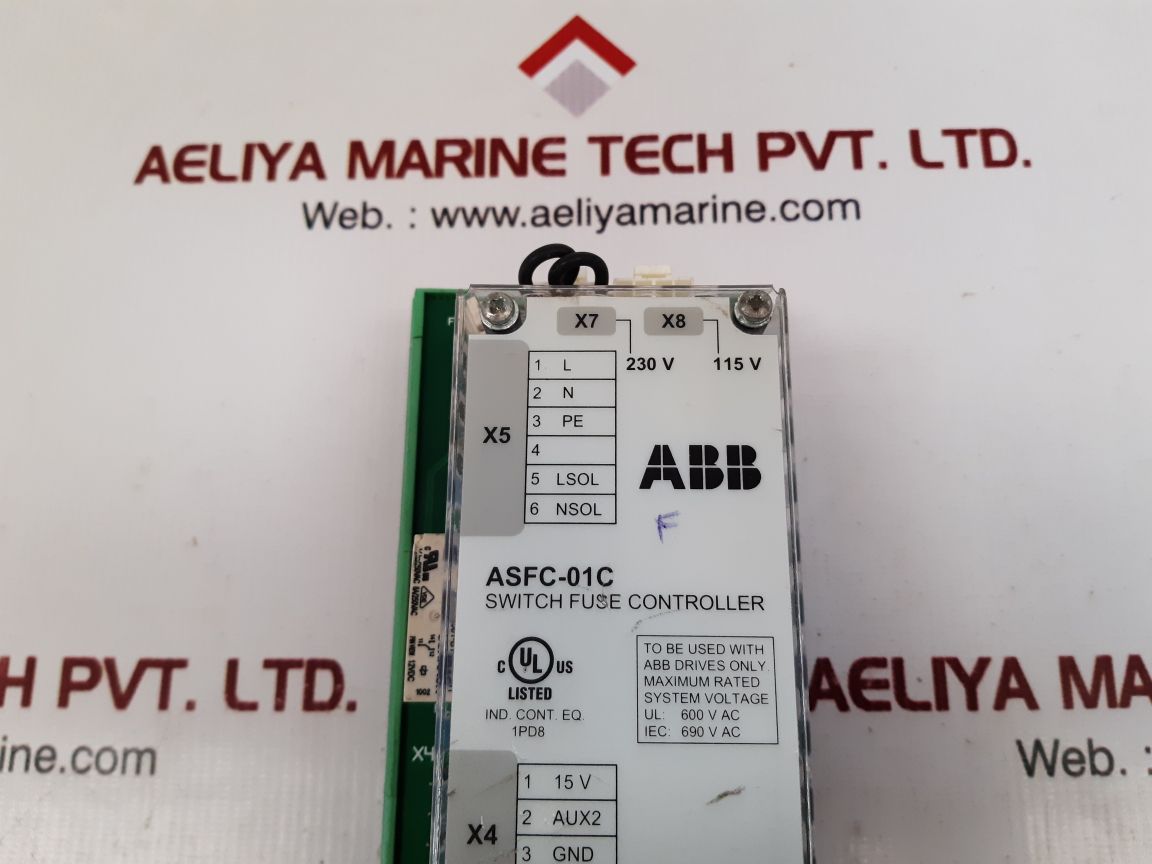

ABB DRIVES ONLY MAXIMUM RATED SYSTEM VOLTAGE
UL: 600V AC
IEC: 690V AC
RATINGS
SUPPLY VOLTAGE (X5)
230V, 50/60HZ. 40 MA
115V, 50/60 HZ 80MA
SOLENOID CONTROL
OUTPUT(X5) 115/230
VAC, MAX 2A/3,5 S
EXCITATION VOLTAGE OUTPUT (X4)
15V DC, MAX 10 MA
CHARGING CURRENT MONITORING INPUTS
(X1-X3) MAX 16 A DC
OPER. TEMPERATURE MAX +70°C
WEIGHT : 600 GM
REF NO(S) : 24402
