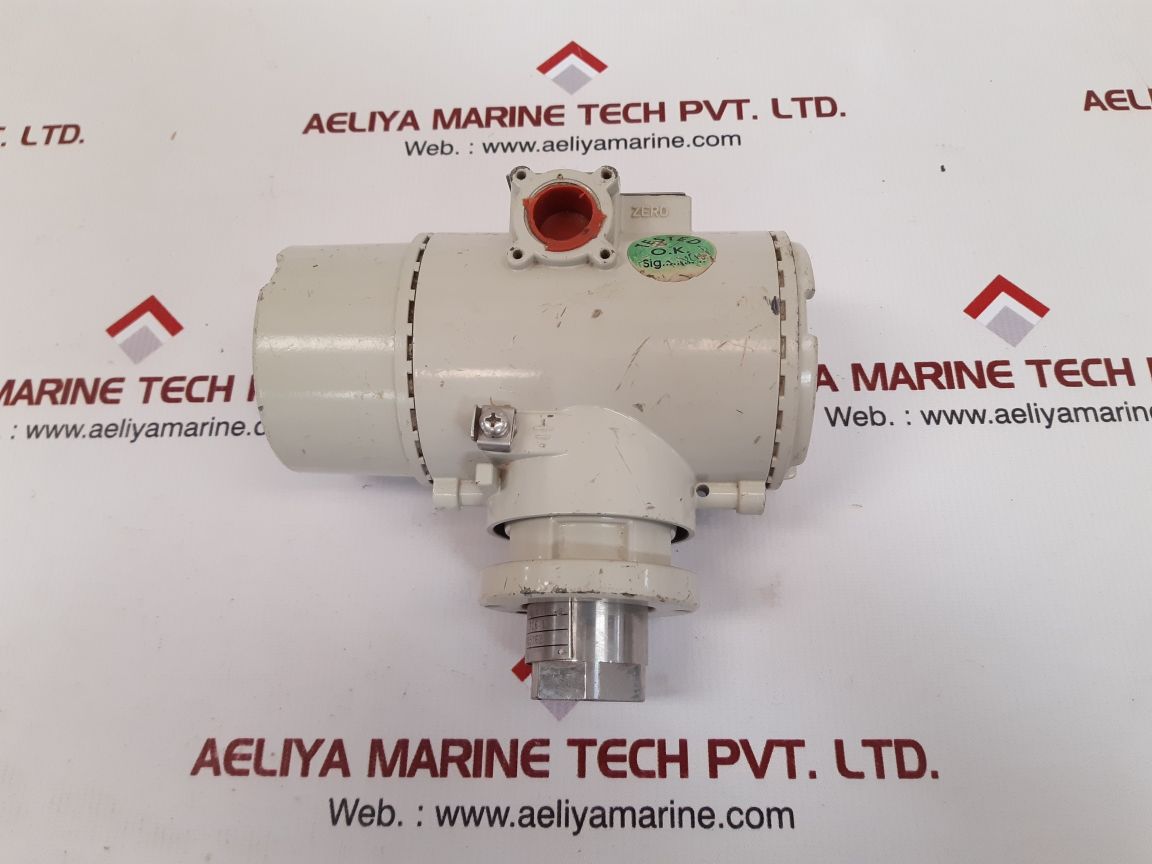

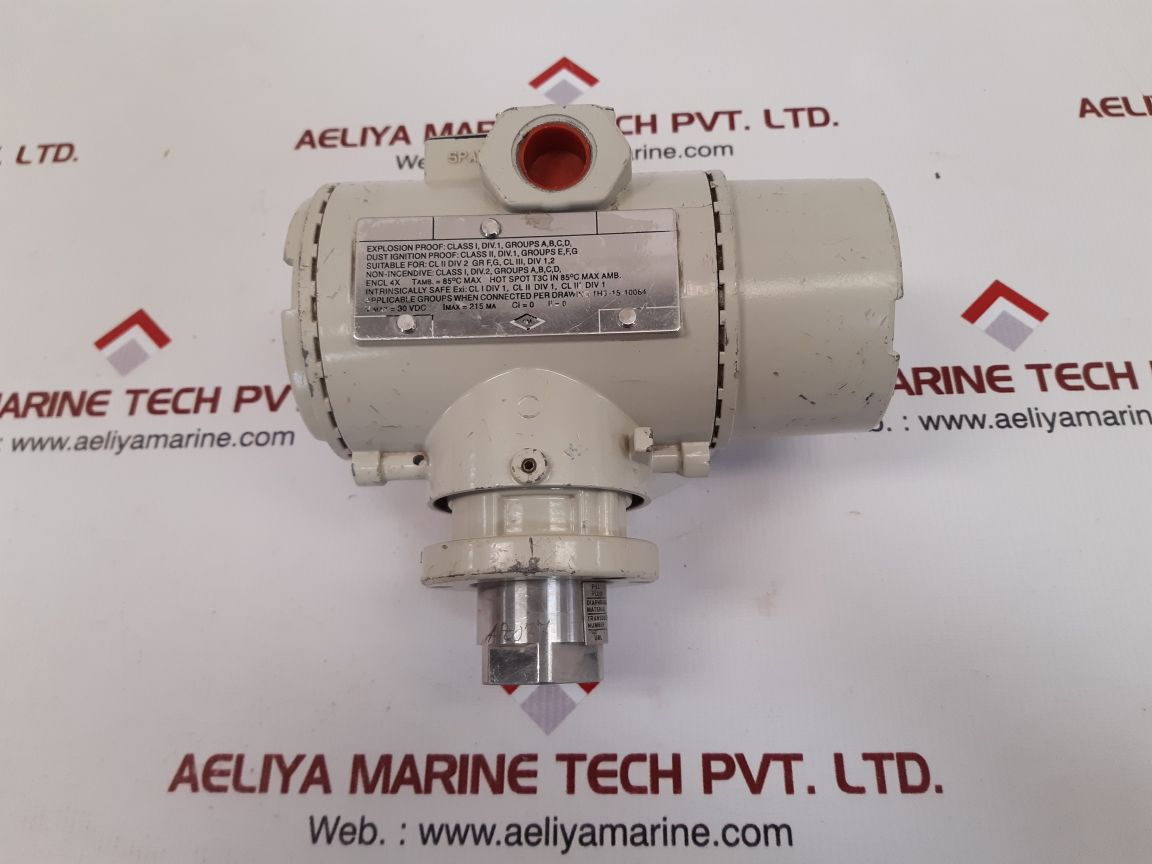

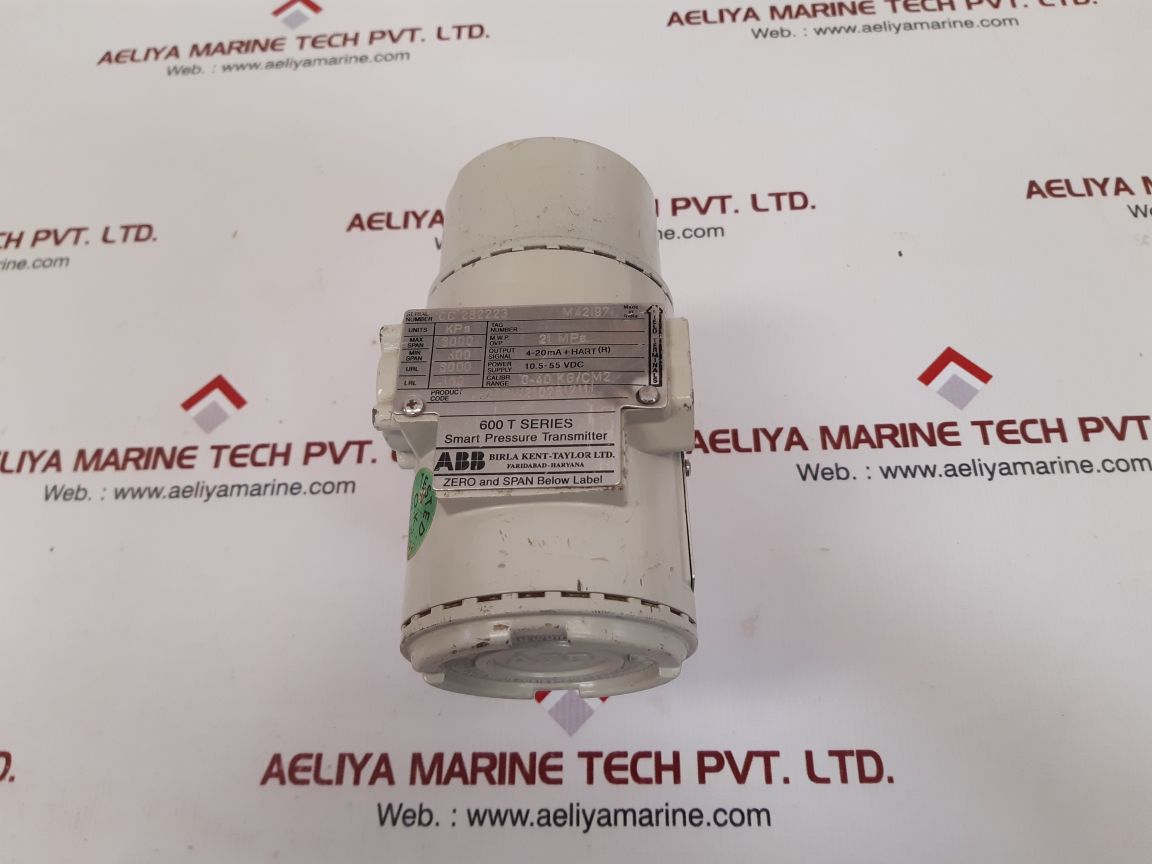

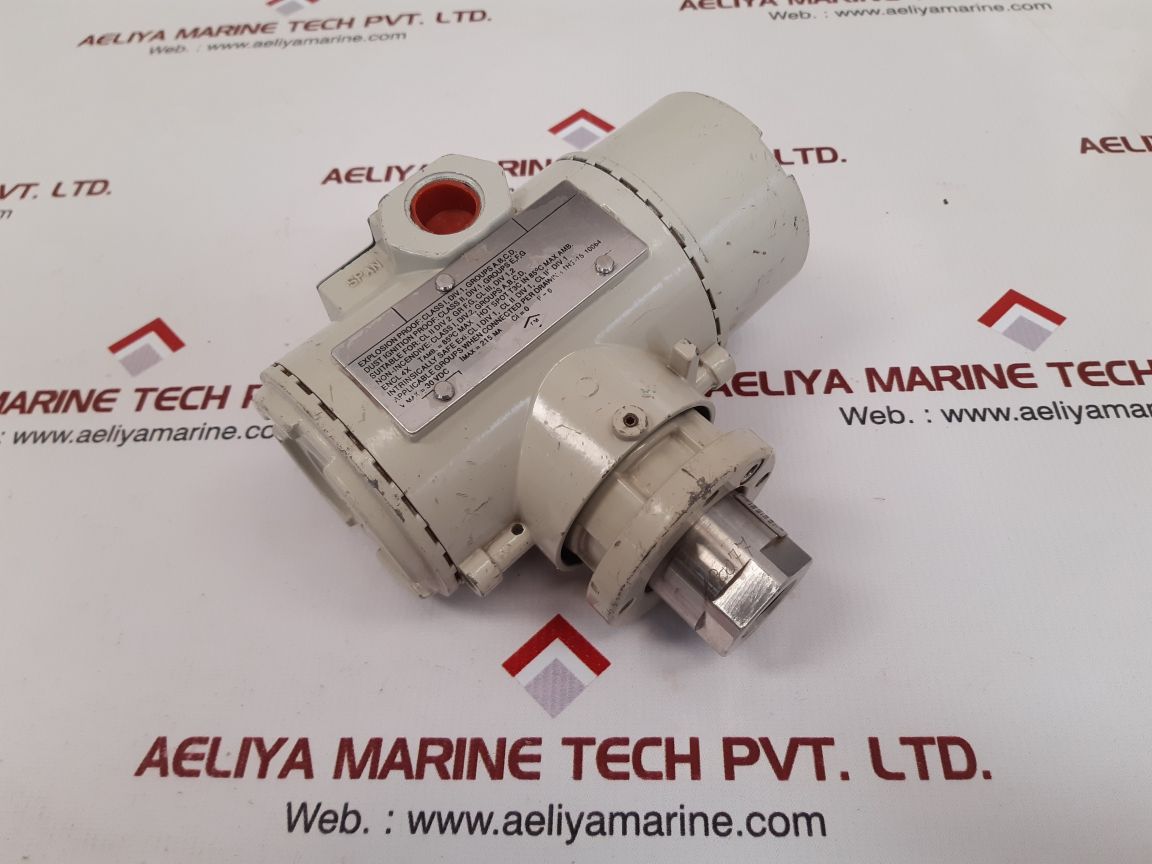

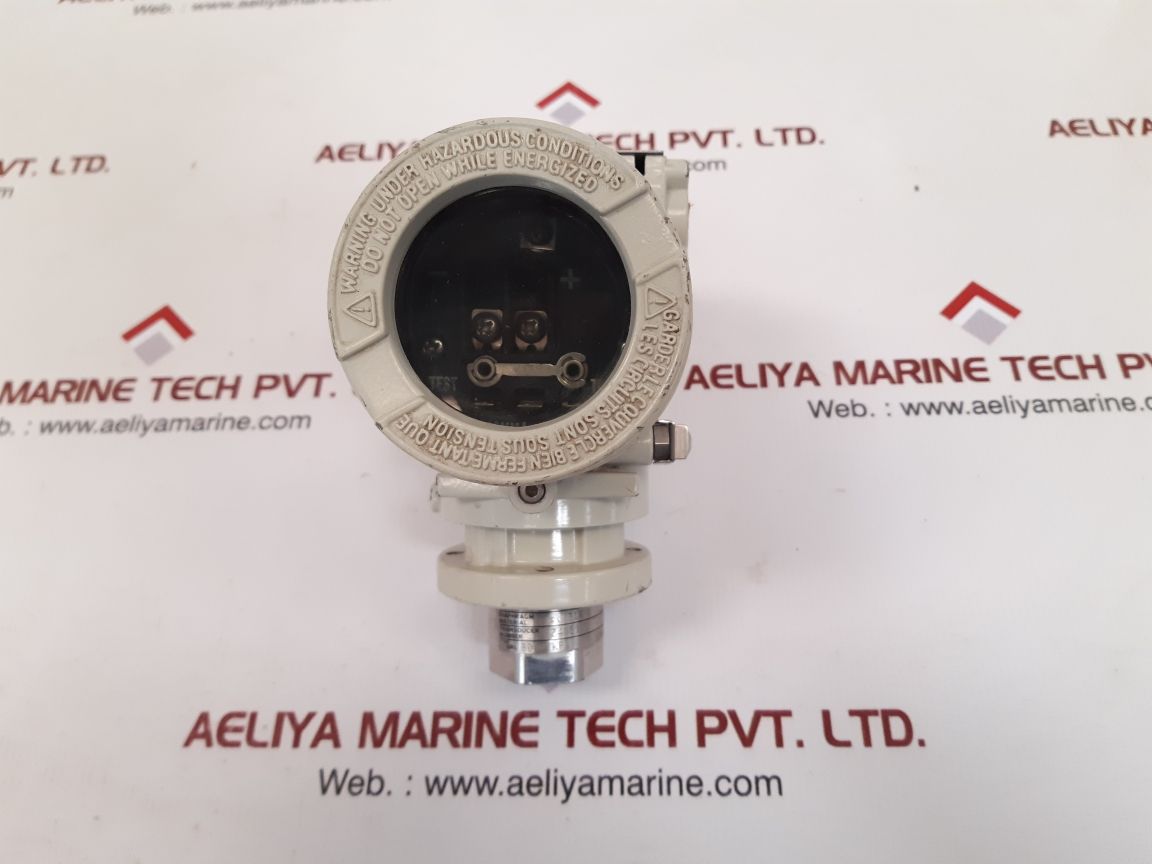

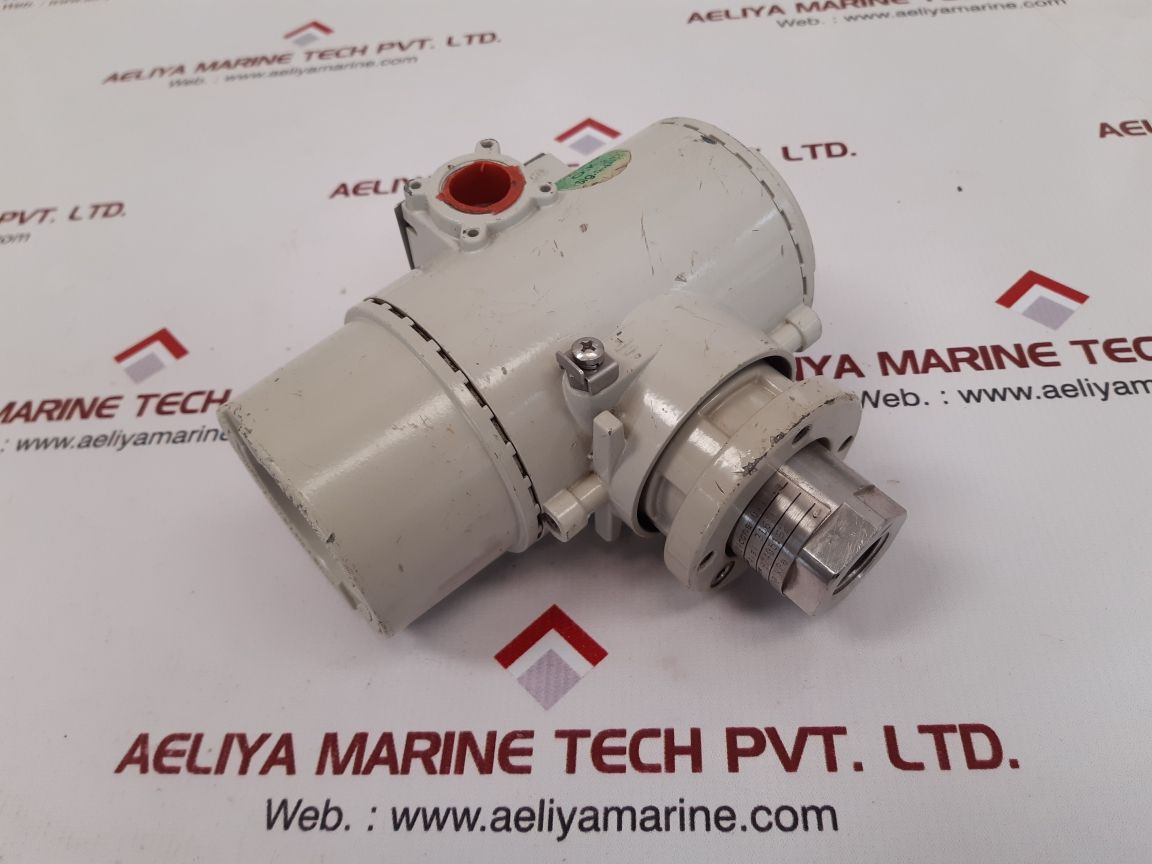

ABB 600 T SERIES SMART PRESSURE TRANSMITTER
ABB 624GW2102817111
ABB
BIRLA KENT-TAYLOR LTD.
PRODUCT CODE: 624GW2102817111
600 T SERIES
SMART PRESSURE TRANSMITTER
M42197
UNITS: KPA
MAX SPAN: 8000
MIN SPAN : 400
URL: 8000 KPA
LRL: -100
M.W.P. OVP: 21 MPA
OUTPUT SIGNAL: 4-20MA +HART(R)
POWER SUPPLY: 10.5-55 VDC
CALIBR.RANGE: 0-40 KG/CM2
EXPLOSION PROOF: CLASS I,DIV.1,GROUPS A,B,C,D
DUST IGNITION PROOF: CLASS II,DIV.1, GROUPS E,F,G
SUITABLE FOR: CL II DIV 2 GR F,G, CL III,DIV 1,2
NON-INCENDIVE: CLASS I,DIV.2,GROUPS A,B,C,D
ENCL 4X TAMB.=85’C MAX
HOT SPOT T3C IN 85’C MAX AMB
VMAX=30 VDC IMAX=215 MA CI=0 II-0

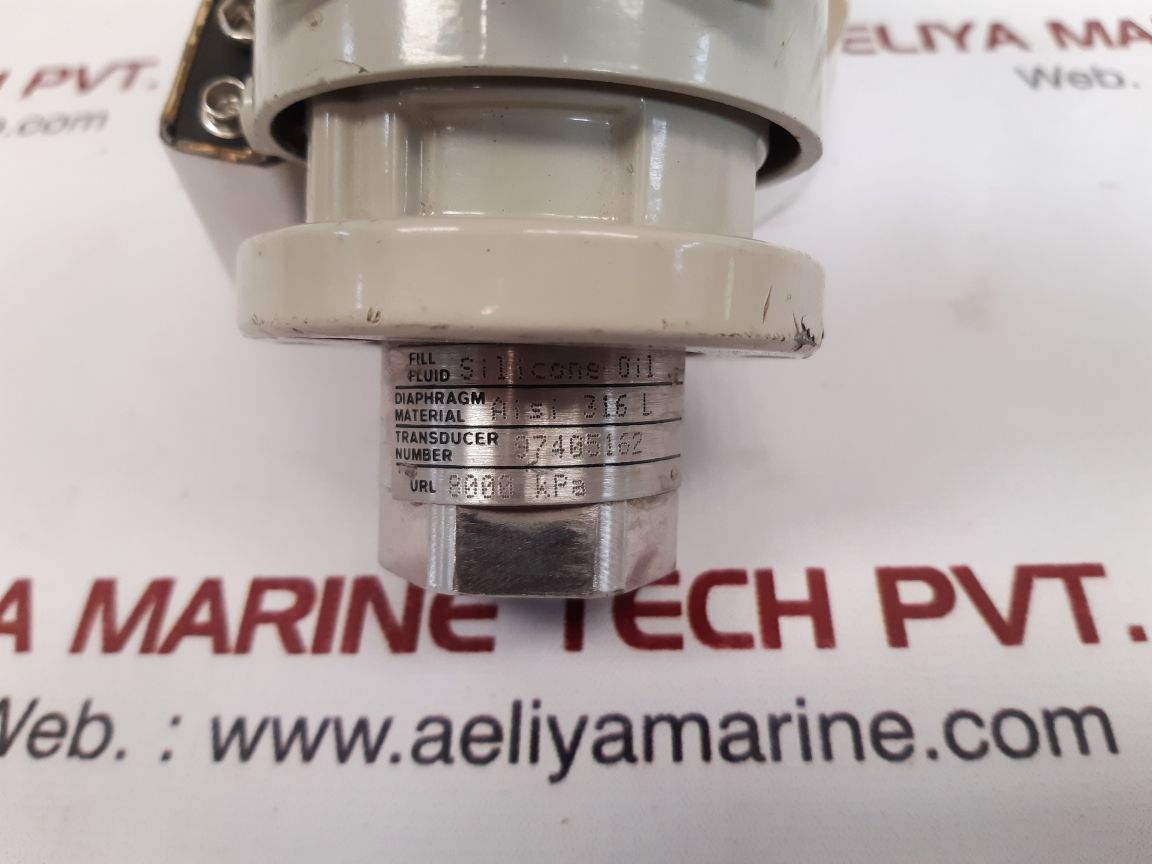

FILL FLUID: SILICONS OIL
DIAPHRAGM MATERIAL: AISI 316 L
TRANSDUCER NUMBER: 97405162
MADE IN INDIA
WEIGHT : 1.800 KG
REF NO(S) : 24549
ABB 600 T SERIES SMART PRESSURE TRANSMITTER
