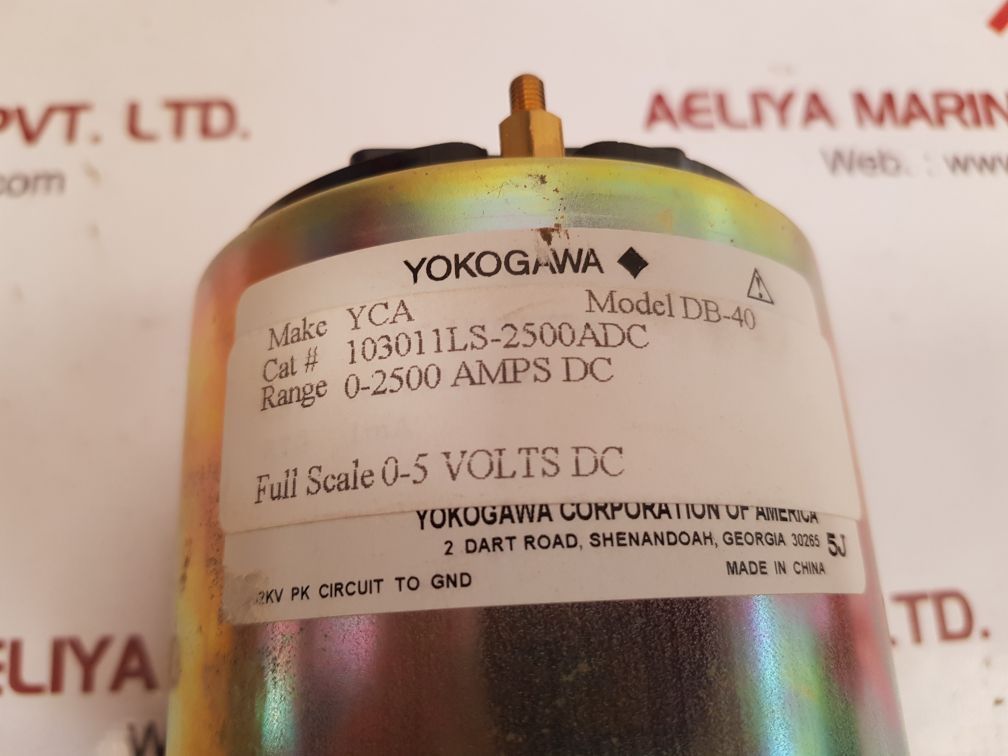

| Attribute | Value |
|---|---|
| Model | DB-40 |
| Make | YCA (Yokogawa Corporation of America) |
| Catalog Number | 103011LS-2500ADC |
| Range | 0-2500 Amps DC |
| Full Scale | 0-5 Volts DC |

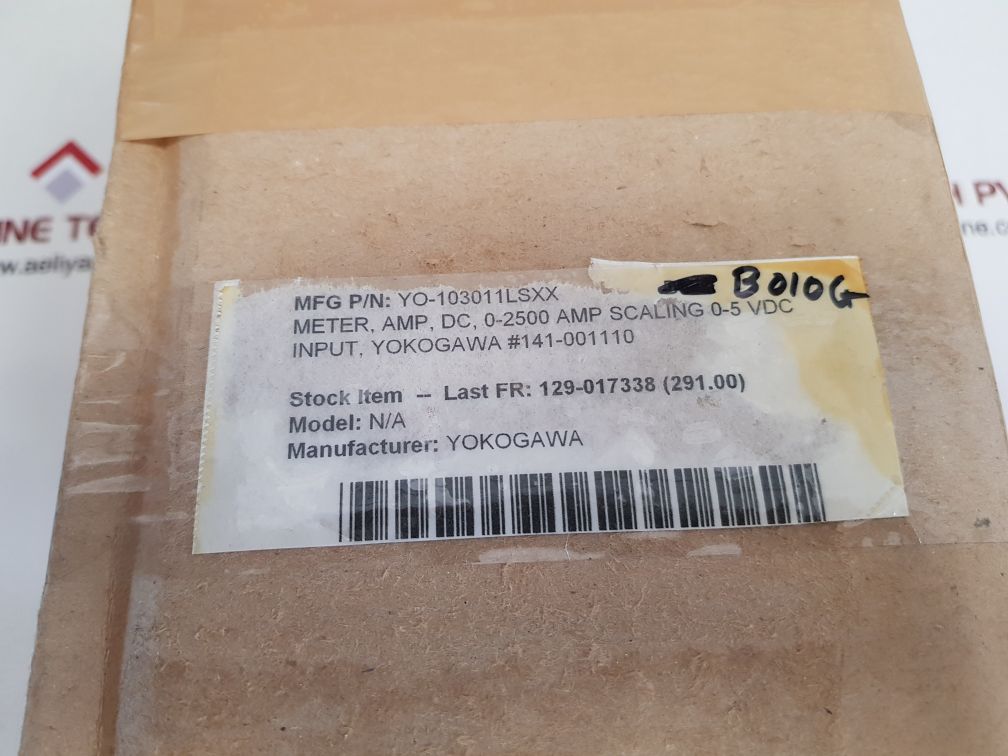

| Manufacturer Part Number | YO-103011LSXX |
| Additional Number | #141-001110 |
| Manufacturer | Yokogawa |
| Manufacturing Code | CZ5 044049 |
| Country of Origin | Made in China |
| Weight | 960 GM |
What is the Yokogawa DB-40 Panel Meter?
The Yokogawa DB-40 Panel Meter is an analog high-precision instrument designed for current monitoring in the range of up to 2500 Amps. It is renowned for being strong, readable, and having consistent performance and is typically employed in industrial control panels, marine automation panels, and electrical distribution boards.
Designed to offer instantaneous current measurement, this panel meter ensures operators and technicians can monitor load behavior in real-time. Whether it’s onboard a vessel or inside a factory control room, the DB-40 delivers reliable visual feedback on current flow through large power systems.
Key Features of Yokogawa DB-40 Panel Meter 0-2500A
Wide Current Range (0-2500 Amps):
Capable of handling high current measurements suitable for large-scale power systems.
Highly Accurate Analog Display:
Built for fast, real-time measurement with minimal variation, perfect for mission-critical applications.
Harsh Environment, Industrial-Grade Build:
Housed in a rugged protective casing, the DB-40 is constructed to resist vibration, temperature fluctuations, and corrosive environments—marine- and industrial-grade.
Large, Graduated Dial for Easy Reading:
Guarantees clear visibility from a distance, even in low-light conditions or engine compartments.
Flush Panel Mount Construction:
Mounts smoothly into panels and control boards, increasing system appearance and usability.
Long Life of Operation:
Manufactured with quality parts with minimal maintenance needs and long years of continuous service.
Applications of Yokogawa DB-40 Panel Meter
Marine Power Distribution Panels:
Used in ship engine rooms, electrical distribution boards, and generator control panels where current monitoring at high currents is needed.
Industrial Power Systems:
Typically found in factory automation systems, electrical control cabinets, and large transformer substations.
Renewable Energy Systems:
Ideal for measuring high current in solar, wind, or energy storage systems where conventional digital displays are not effective.
Testing and Calibration Tools:
Used in testing or maintenance workshops where analog visual indication of current is required for testing and adjustments.
Why Yokogawa DB-40 Panel Meter 0-2500A?
Reputation & Reliability:
Yokogawa is a worldwide recognized brand in industrial and marine instrumentation. The DB-40 is a testament to the brand’s history of accuracy and ruggedness.
User-Friendly Design:
Its analog design means it can be interpreted visually in real time—no lag or programming necessary.
Low Maintenance & Long-Lasting:
Since there is no complicated circuitry, fewer components fail, which translates into a much longer life with less total cost of ownership.
Customizable for Specific Applications:
Present in various current ranges and mounting types to accommodate a variety of panel arrangements.
