Woodward Egcp-2 Digital Generator Control Panel 250v

Woodward Egcp-2 Digital Generator Control Panel 250v
Woodward
Avr Electronics Private Ltd.
Digital Control
Egcp-2
Part No: 8406-120
Rev: G
Type 4 Enclosure
Maximum Ambient 70°C

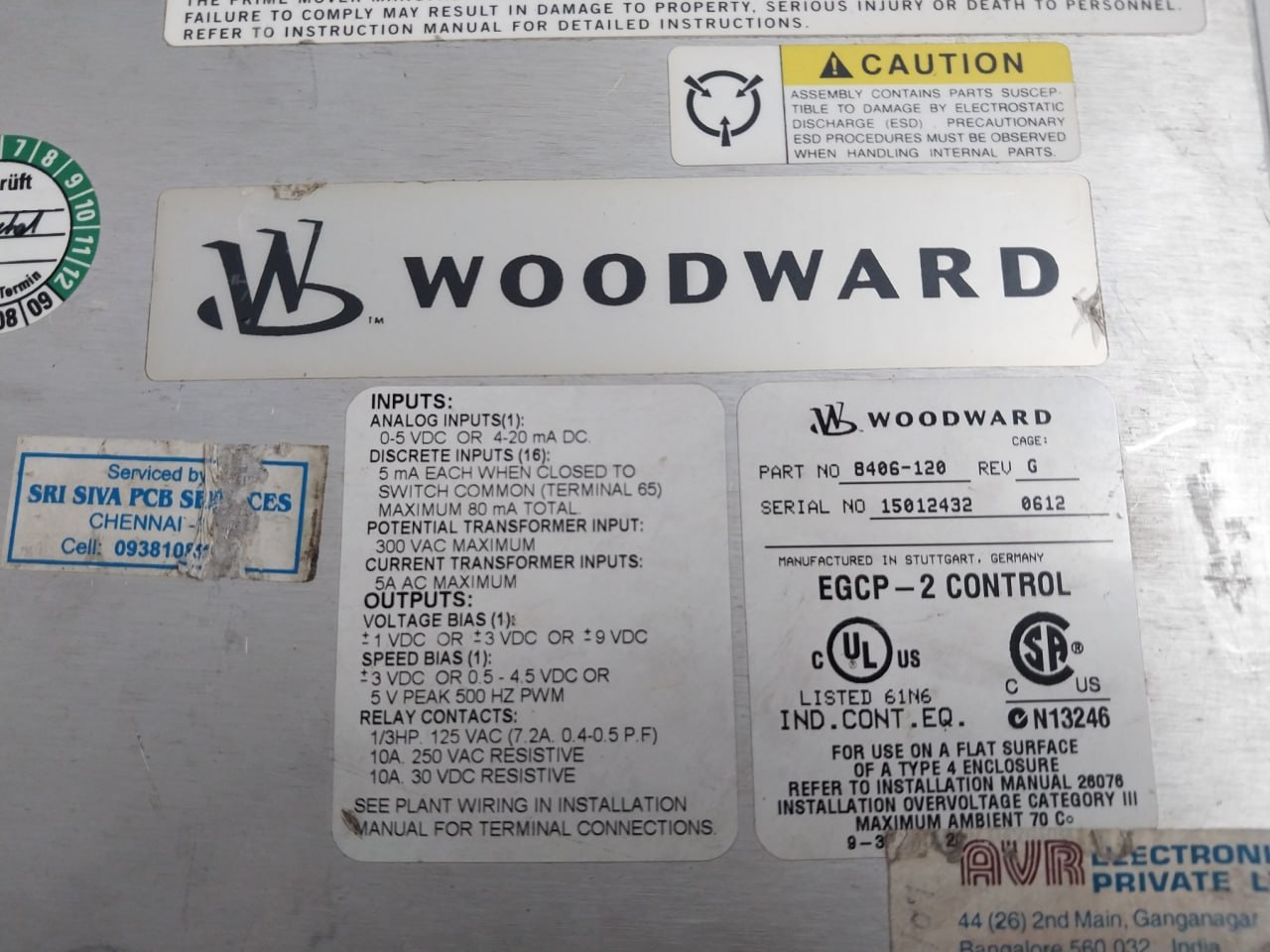

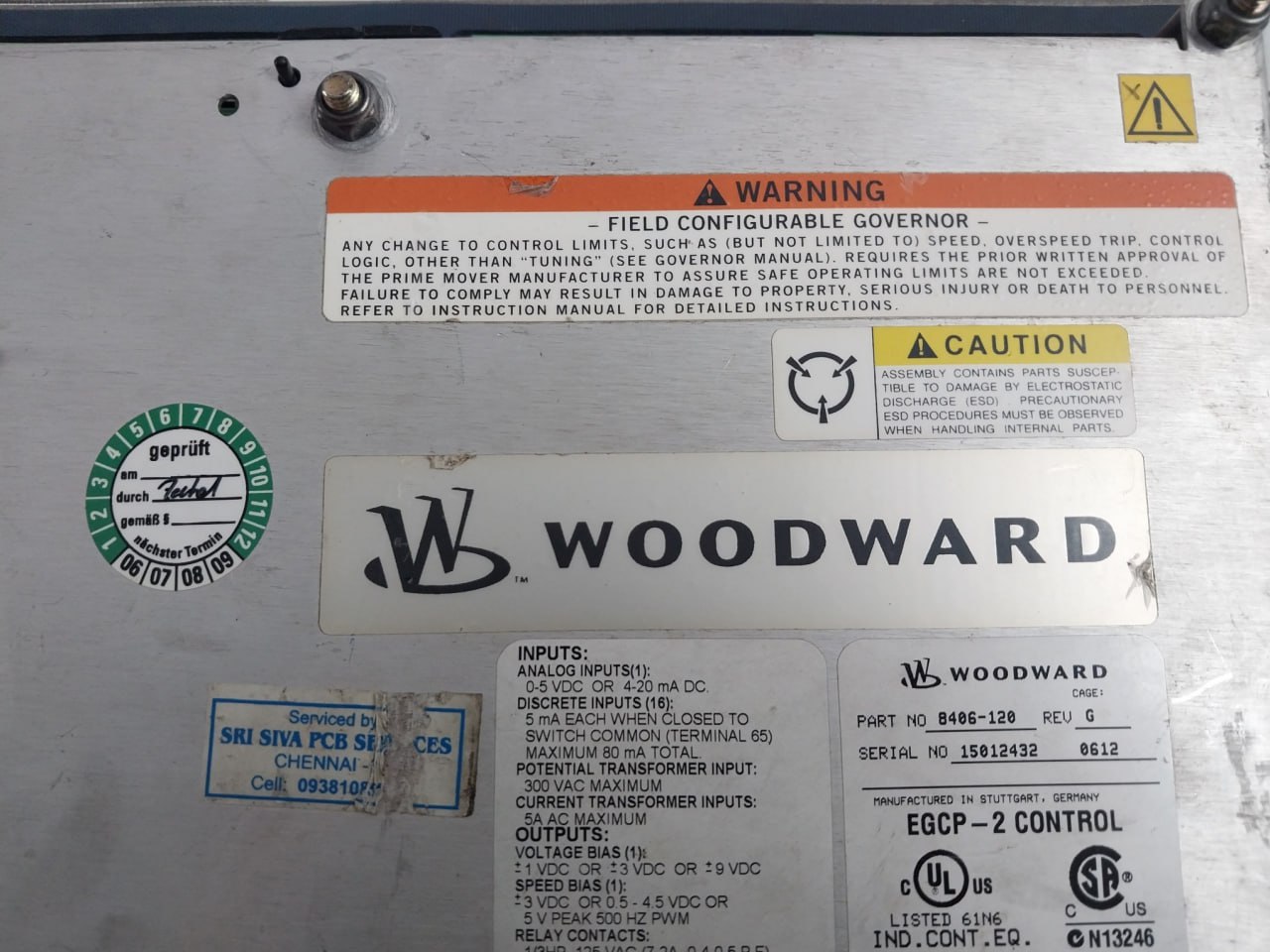

Inputs:
Analog Inputs (1): 0-5 Vdc Or 4-20ma Dc
Discrete Inputs (16): 5 Ma Each When Closed To Switch Common (Terminal 65)
Maximum 80 Ma Total
Potential Transformer Input: 300 Vac Maximum
Current Transformer Inputs: 5a Ac Maximum
Outputs:
Voltage Bias (1): ± 1 Vdc Or ± 3 Vdc Or ± 9 Vdc
Speed Bias (1): ± 3 Vdc Or 0.5-4.5 Vdc Or 5v Peak 500 Hz Pwm
Relay Contacts:
1/3hp, 125 Vac (7.2a, 0.4-0.5 P.F)
10a, 250vac Resistive
10a, 30vdc Resistive
Manufactured In Germany
Weight : 3.030 Kg
Ref No : 179755
