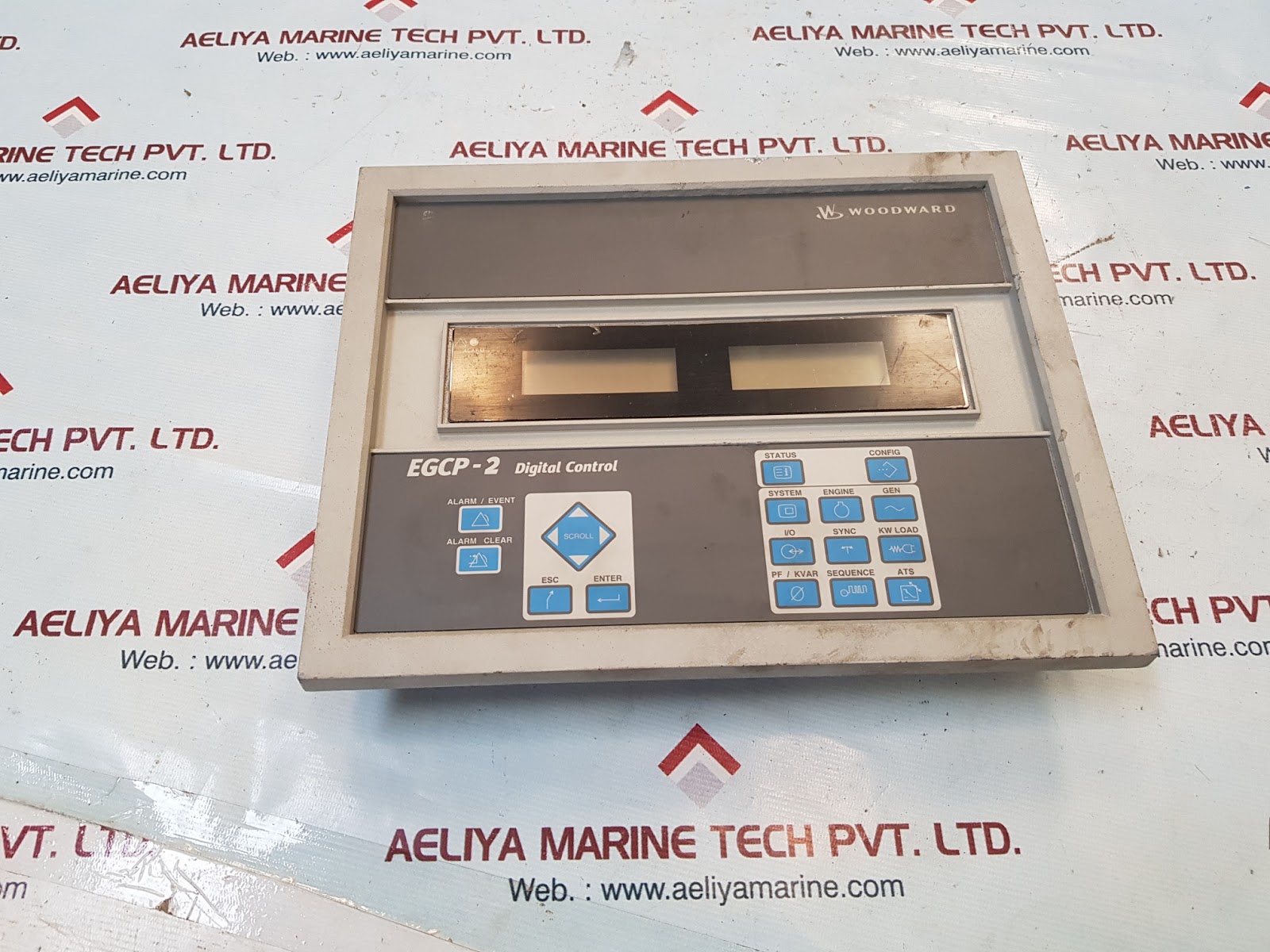

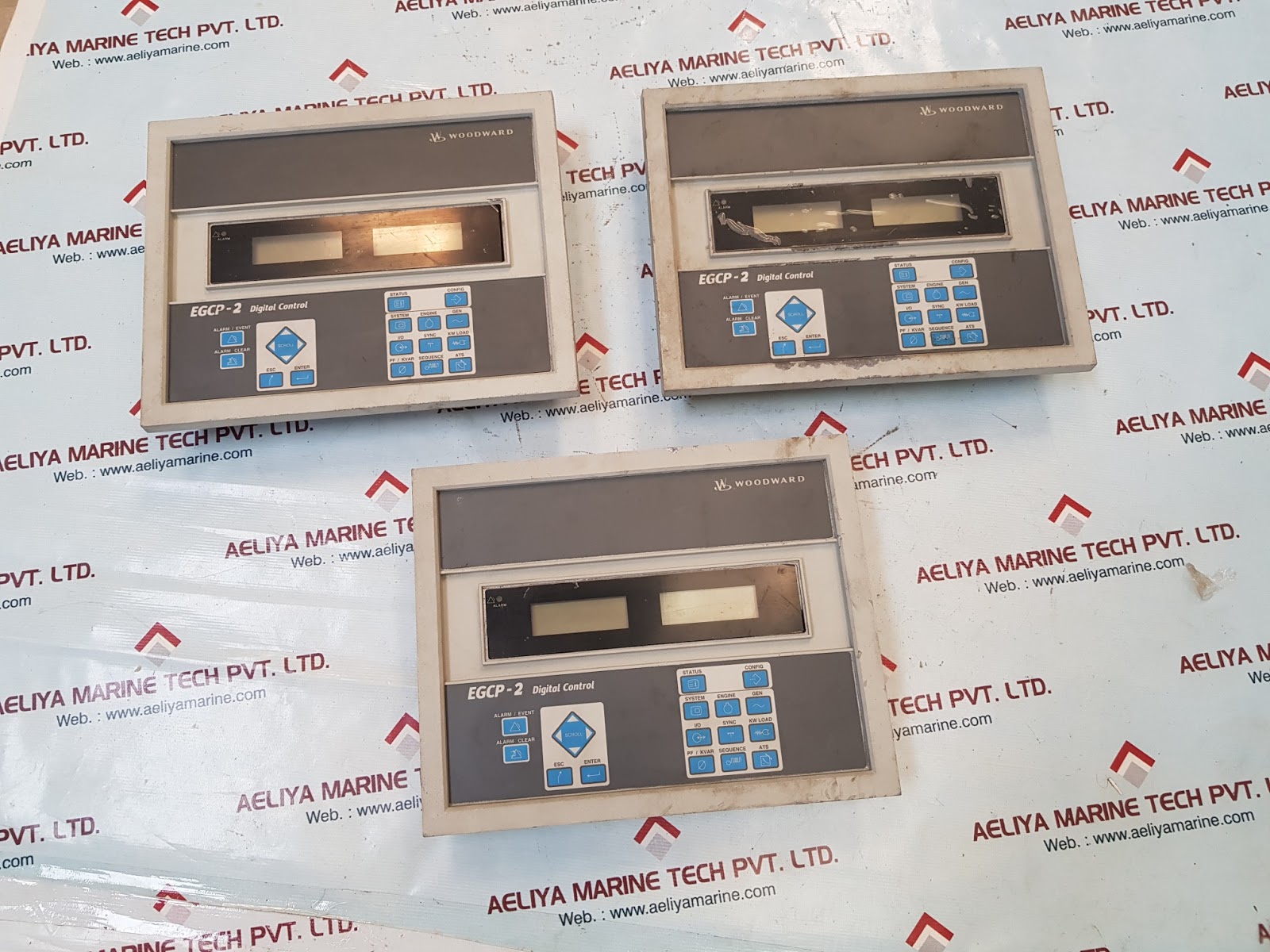

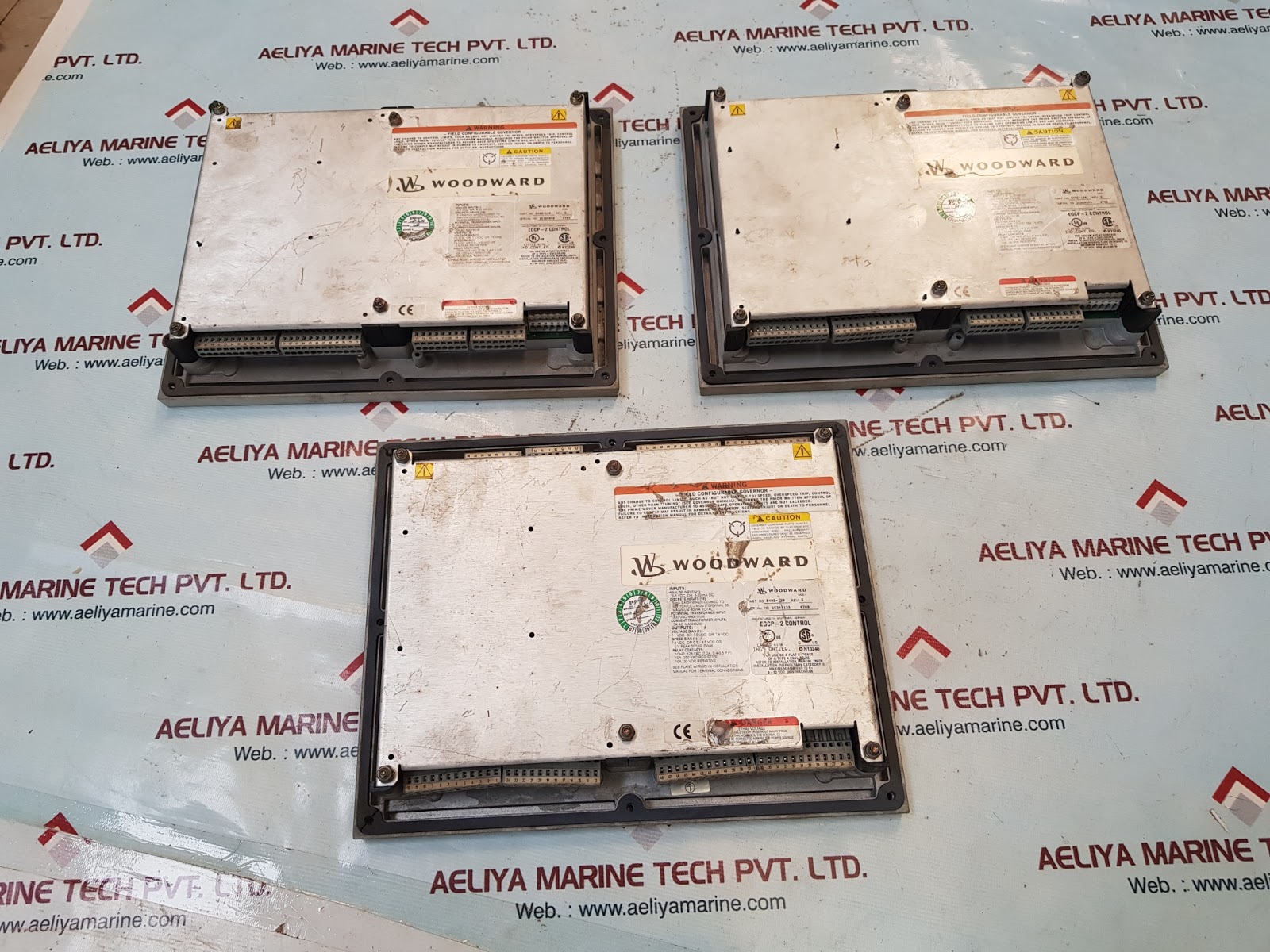

WOODWARD EGCP-2 DIGITAL CONTROL SYSTEM 8406-120 REV G

Woodward 8406-120 egcp-2 digital control rev g
woodward
egcp-2
digital control
part no. 8406-120 rev g
egcp-2 control
inputs:
analog inputs (1):
0-5 vdc or 4-20 ma dc
discrete inputs (16):
5ma each when closed to
switch common (terminal 65)
maximum 80 ma total
potential transformer input:
300 vac maximum
current transformer inputs:
5a ac maximum
outputs:
voltage bias (1):
± 1 vdc or ± 3 vdc or ± 9 vdc
speed bias (1):
± 3 vdc or 0.5 -4.5 vdc or
5 v peak 500 hz pwm
relay contacts:
1/ 3hp. 125 vac (7.2a 0.4-0.5 p.f.)
10a. 250 vac resistive
10a. 30 vdc resistive
maximum ambient 70 c
9-32 vdc, 20w maximum
manufactured in stuttgart, germany
weight: 3.030 kg
