WIELAND NMI 1001 MEASURING AND MONITORING RELAY

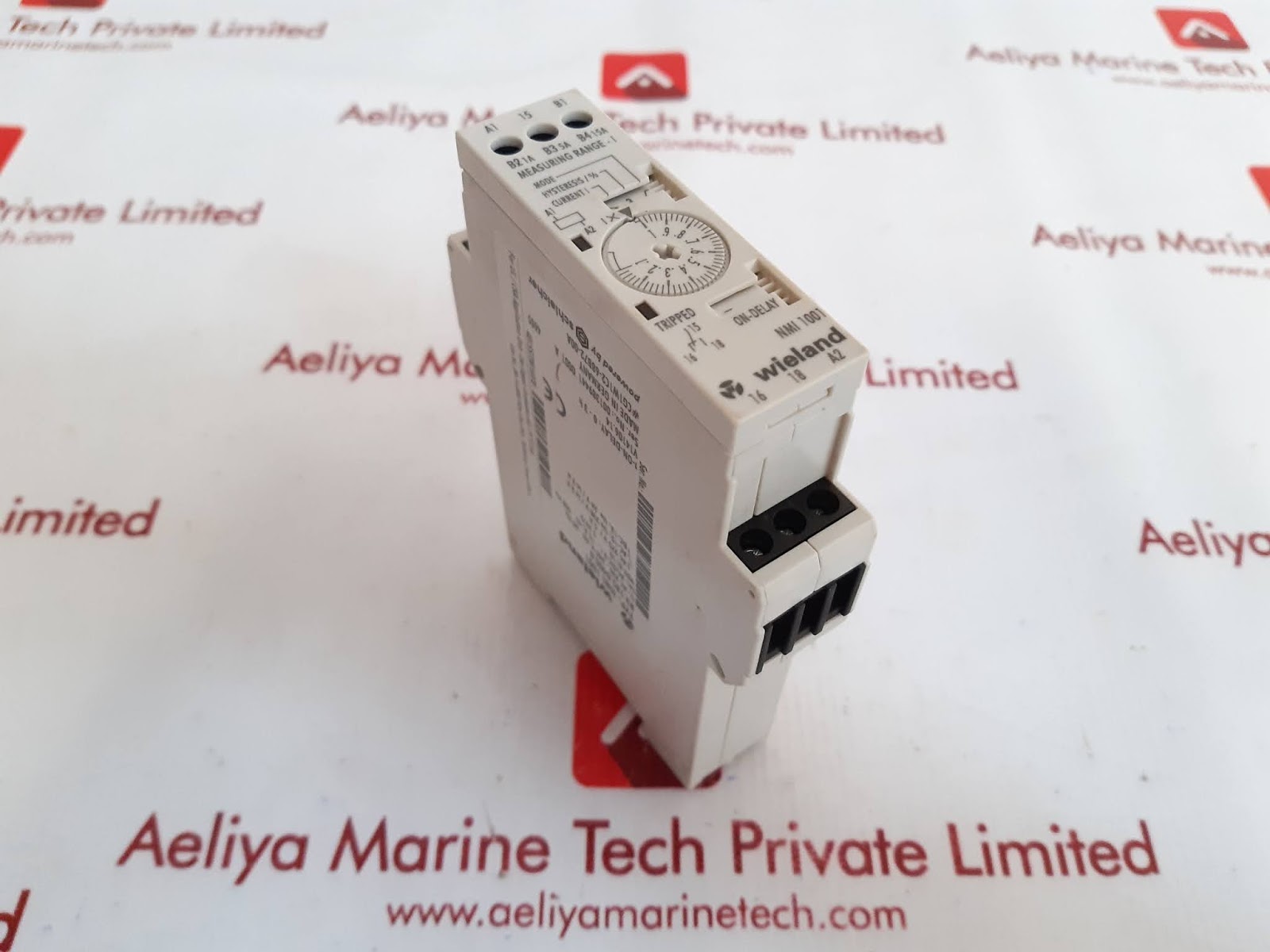

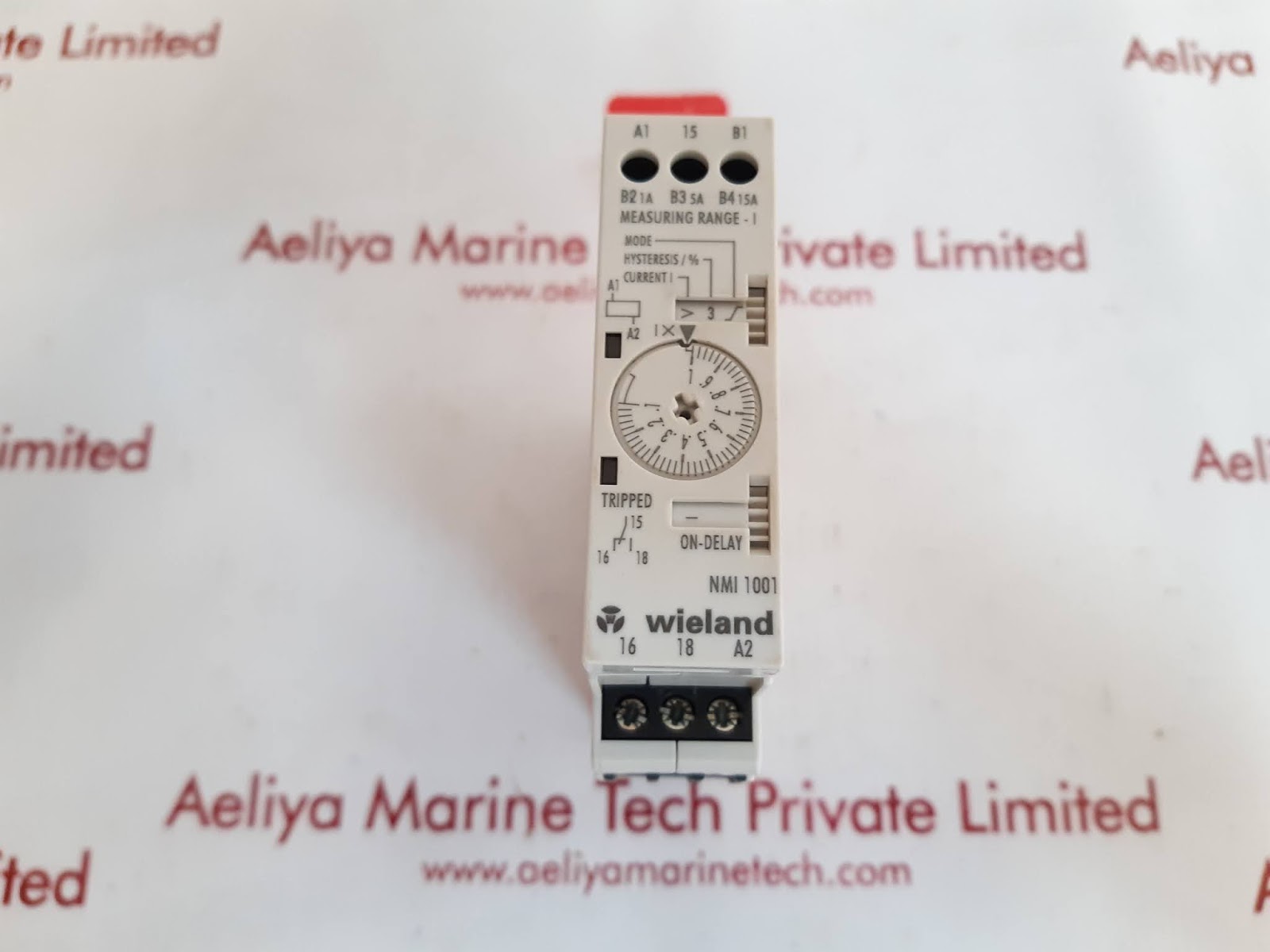

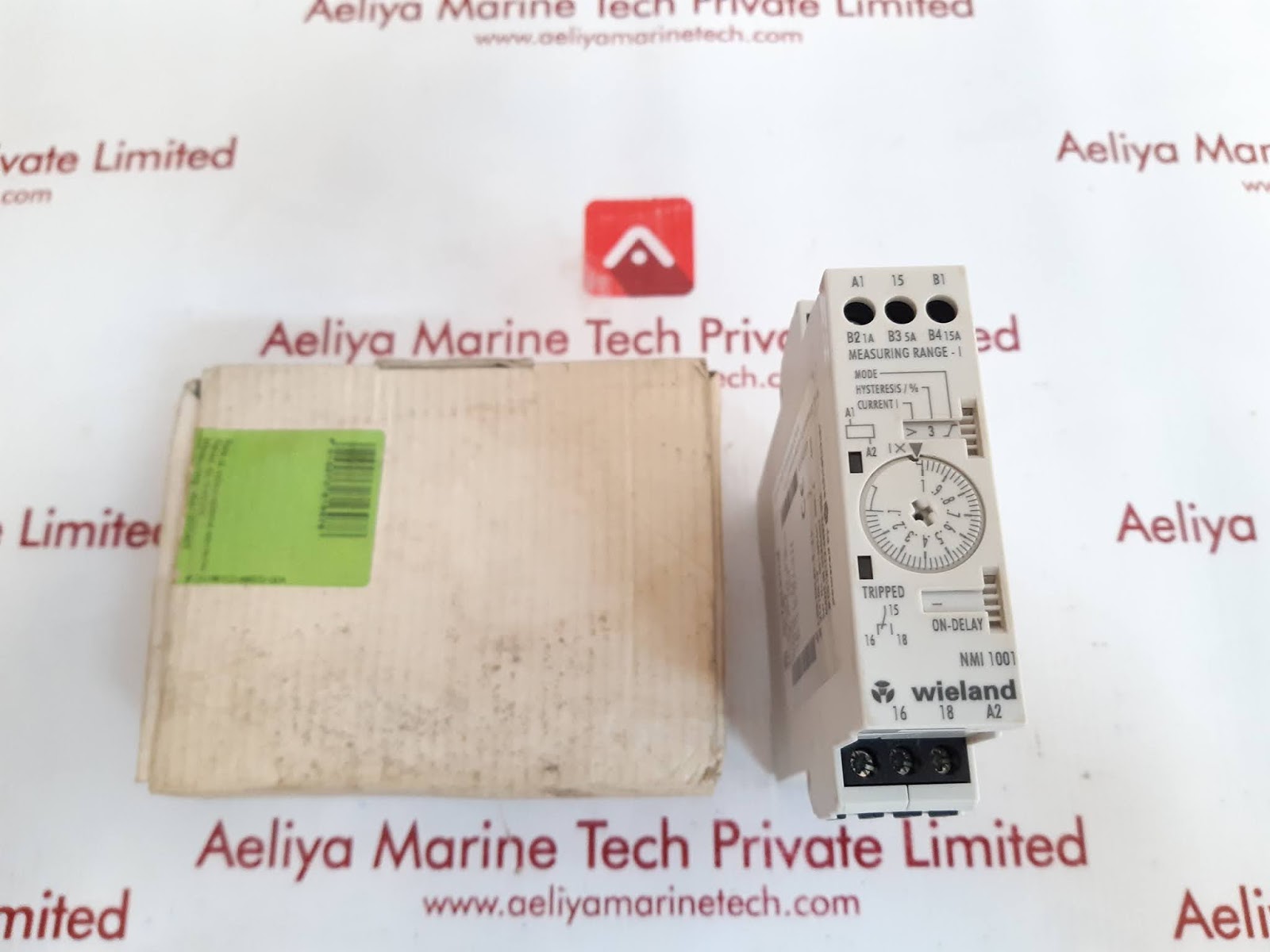

Wieland Nmi 1001 R3.185.0400.0 Current Monitoring Relay
wieland
typ: nmi 1001
r3.185.0400.0
u: ac 230-240v, 50-60hz
im: ac/dc 0,1-15a, 45-400 hz
vde 0110 5kv/3
ac 275v/5a
ac-15; ue 230v/ ie 3a
dc-13; ue 24v / ie 2a
t-on-delay: 0-3 h
v14106.14
4015573816978
for ul/csa application only use copper conductors
60/75⁰c only
use no. 28-14 awg wire size only;
tightening torque 8 lbs in
powered by schleicher
measuring range – i
made in germany
weight: 215 gm
