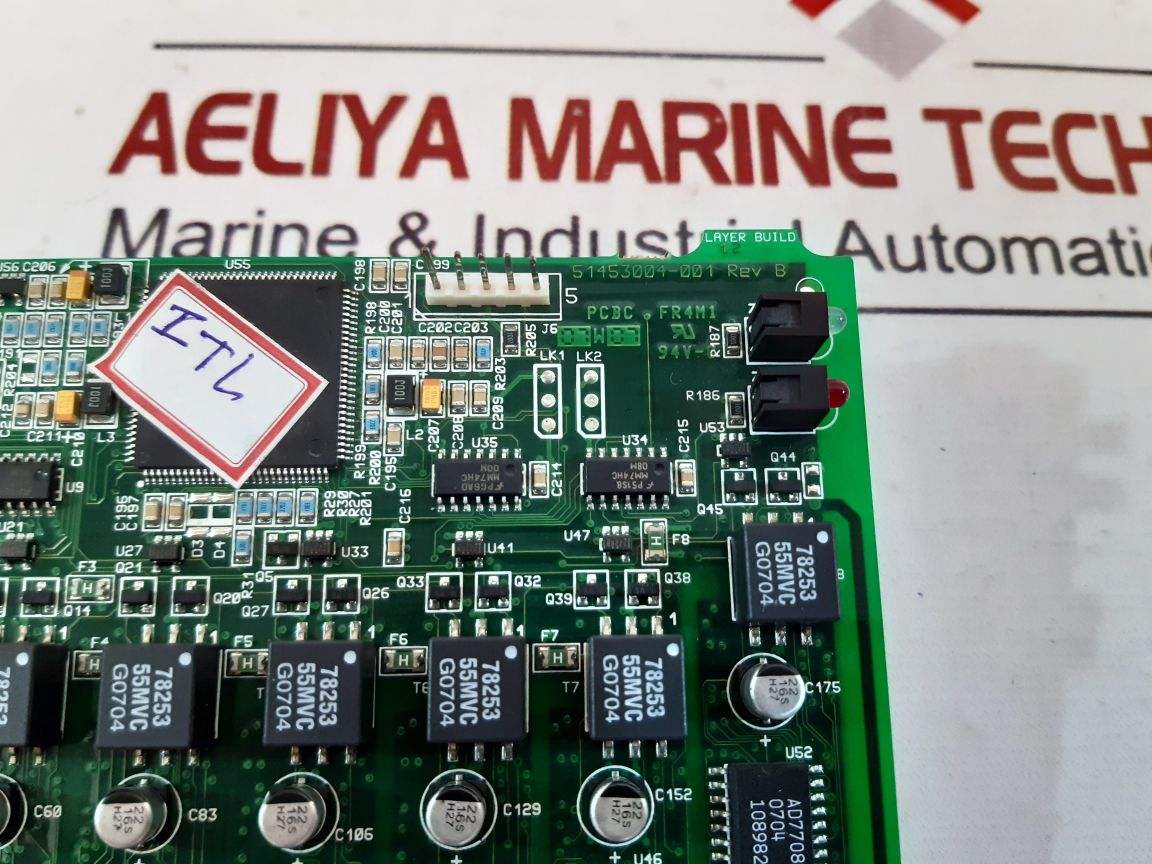

HONEYWELL V6 ANALOGUE IN CARD 51453004-001
HONEYWELL
51453004-001
REV B
V6 ANALOGUE IN CARD
51453006-51453006-003
BP07W20-D1085
PCBC FR4M1
94V-0
WEIGHT: 110 GM
REF NO(S) : 42449
What is Honeywell V6 Analogue?
The Honeywell V6 Analogue specifically model 51453004-001 is a specialized electronic component designed to be installed within a Honeywell V6 system. Its primary function is to convert real-world physical measurements, such as temperature, pressure, or flow rate, into electrical signals that can be understood and processed by the V6 system. This process is often referred to as analog-to-digital conversion (ADC).
How Does it Work?
- Analog Signals: The card receives analog signals from various sensors or instruments.
These signals are continuously varying electrical voltages or currents that represent the physical measurements being monitored.
- Input Channels: The card typically has multiple input channels, each capable of accepting an analog signal. These channels are designed to handle specific types of sensors and measurement ranges.
- Analog-to-Digital Conversion: The heart of the card is the ADC circuitry. It transforms the incoming analog signals into digital values, which are essentially numbers that can be easily processed by computers and control systems.
- Data Output: The digitized data is then transmitted to the V6 system’s central processing unit (CPU) or other connected devices. This information can be used for monitoring, control, data logging, or other applications.
Components and Features
While exact specifications may vary, a typical analog input card like this might include:
- Input connectors: Physical terminals or ports for connecting sensor wires.
- Signal conditioning circuitry: Components that prepare the analog signals for ADC, such as amplifiers, filters, and voltage references.
- ADC circuitry: The core component responsible for converting analog signals to digital values.
- Isolation circuitry: In some cases, isolation may be included to protect the card and system from electrical noise and ground loops.
- Digital output circuitry: Interfaces for communicating with the V6 system, such as serial or parallel communication ports.
Applications
Honeywell V6 systems are often used in industrial automation, building control, and process control applications. Analog input cards are essential for acquiring data from various sensors and instruments used in these environments.
- Temperature sensors (thermocouples, RTDs)
- Pressure sensors
- Flow meters
- Level sensors
- Strain gauges
- pH sensors
