Turck ms1-12ex0-r switching-amplifier Used

Turck ms1-12ex0-r switching-amplifier Used
turck elektronik-feinbau
multi safe
ms1-12ex0-r
switching-amplifier
trennschaltverstärker

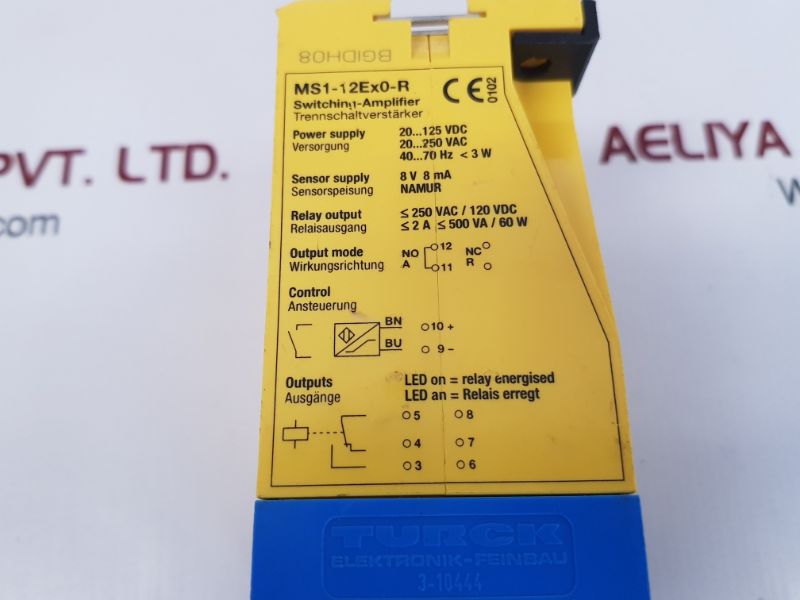

power supply: 20…125 vdc
versorgung: 20…250vac
40…70 hz less than 3w
sensor supply: 8v 8 ma
sensorspeisung: namur
relay output: 250 vac/120 vdc
relaisausgang 2 a 500 va 60 w
outputs: led on= relay energised
ausgänge: led an= relais erregt
bgidh08
0102
3-10444

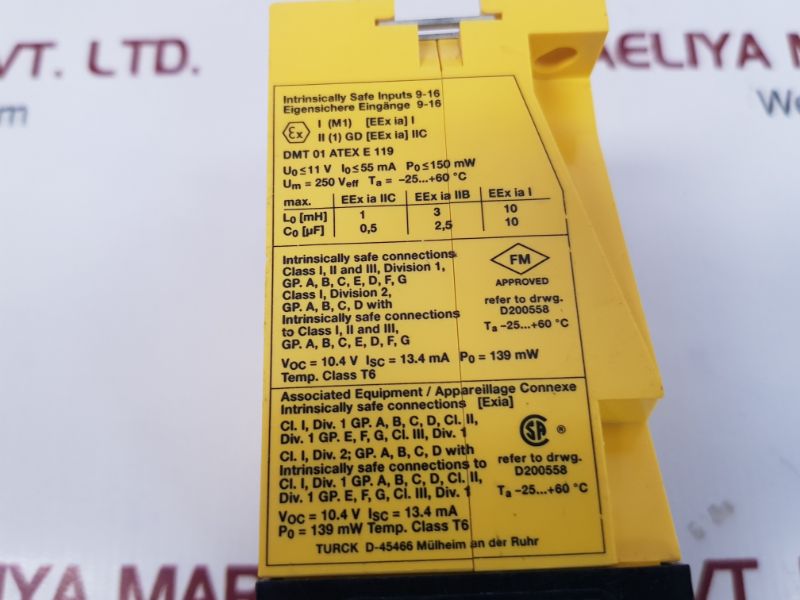

instrinsically safe inputs 9-16
eigensichere eingänge 9-16
i (m1) [eex ia] i
ii (1) gd [eex ia] iic
dmt 01 atex e 119
u0 11 v i0 55 ma p0 150 mw
um=250 veff ta= -25…+60°c
cl.i, div. 1 gp. a,b,c,d, cl.ii,
div. 1 gp.e,f,g, cl.iii, div. 1
voc = 10.4 v isc= 13.4 ma
p0= 139 mw temp. class t6
ta -25…+60 °c
made in germany
weight: 220 gm
