| Attribute | Value |
|---|---|
| Brand | Turck |
| Model | FDP20-16S |
| Fieldbus Type | PROFIBUS |
| Bus Type | Process Field Bus |
| Bus Stop | CSBOH |
| Supply (V+/V-) | 18–30 VDC, 75 mA |
| Inputs/Input | 18–30 VDC (from auxiliary power) |
| Certification | Nonincendive for Class I, Division 2; Groups A, B, C, D |
| Temperature Rating | T3C, Ta = 40 °C |
| Weight | 220 gm |

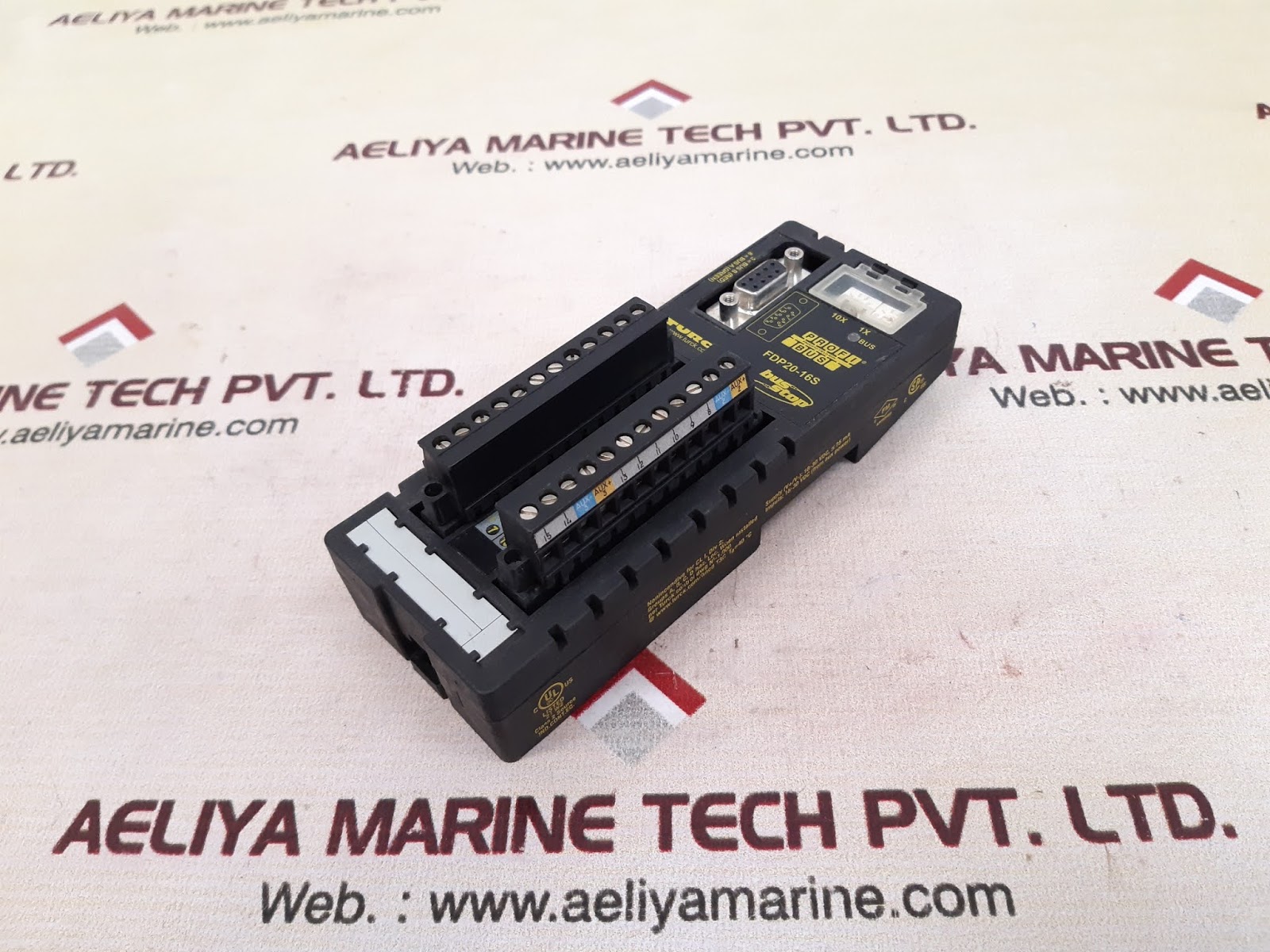

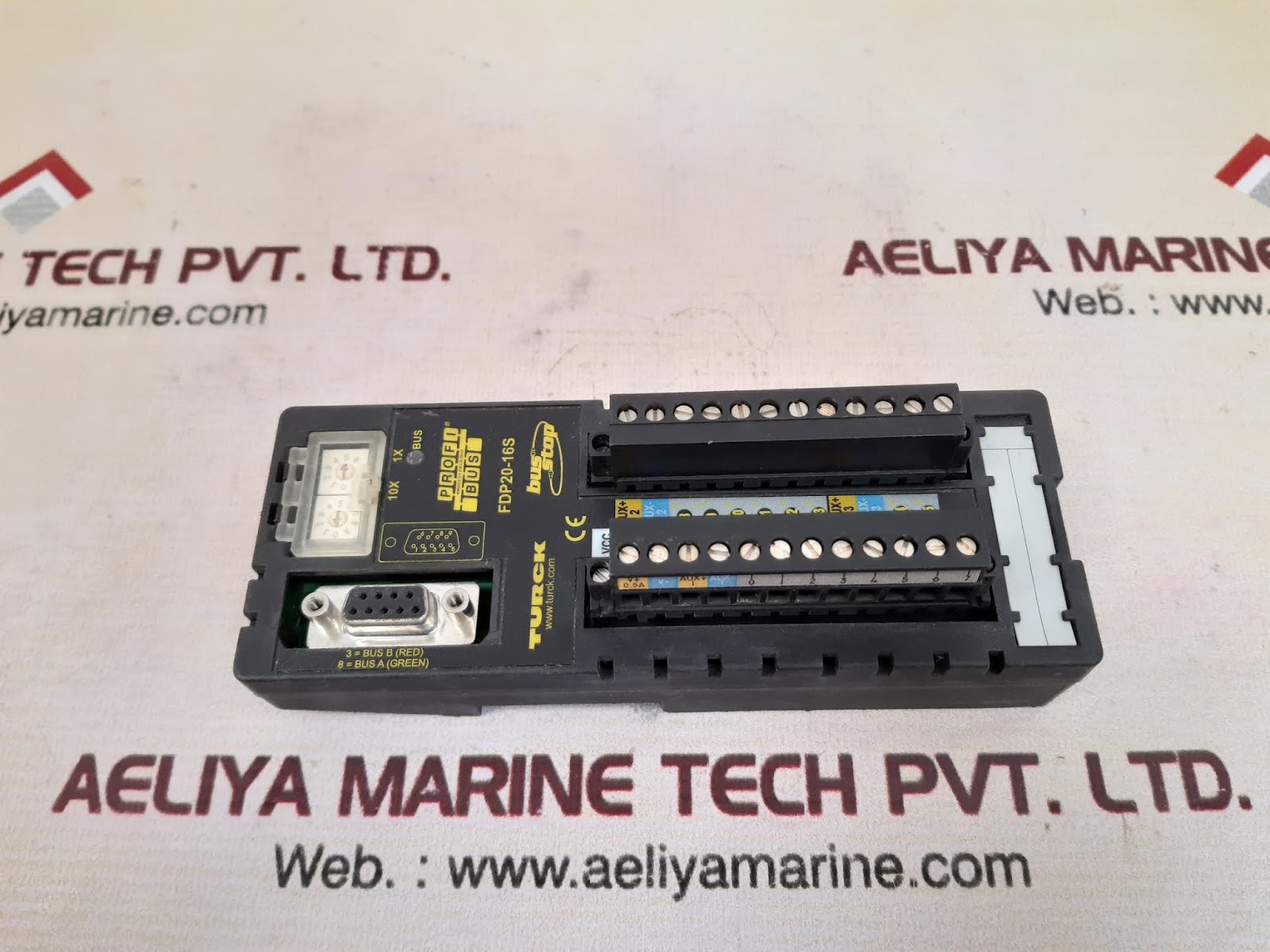

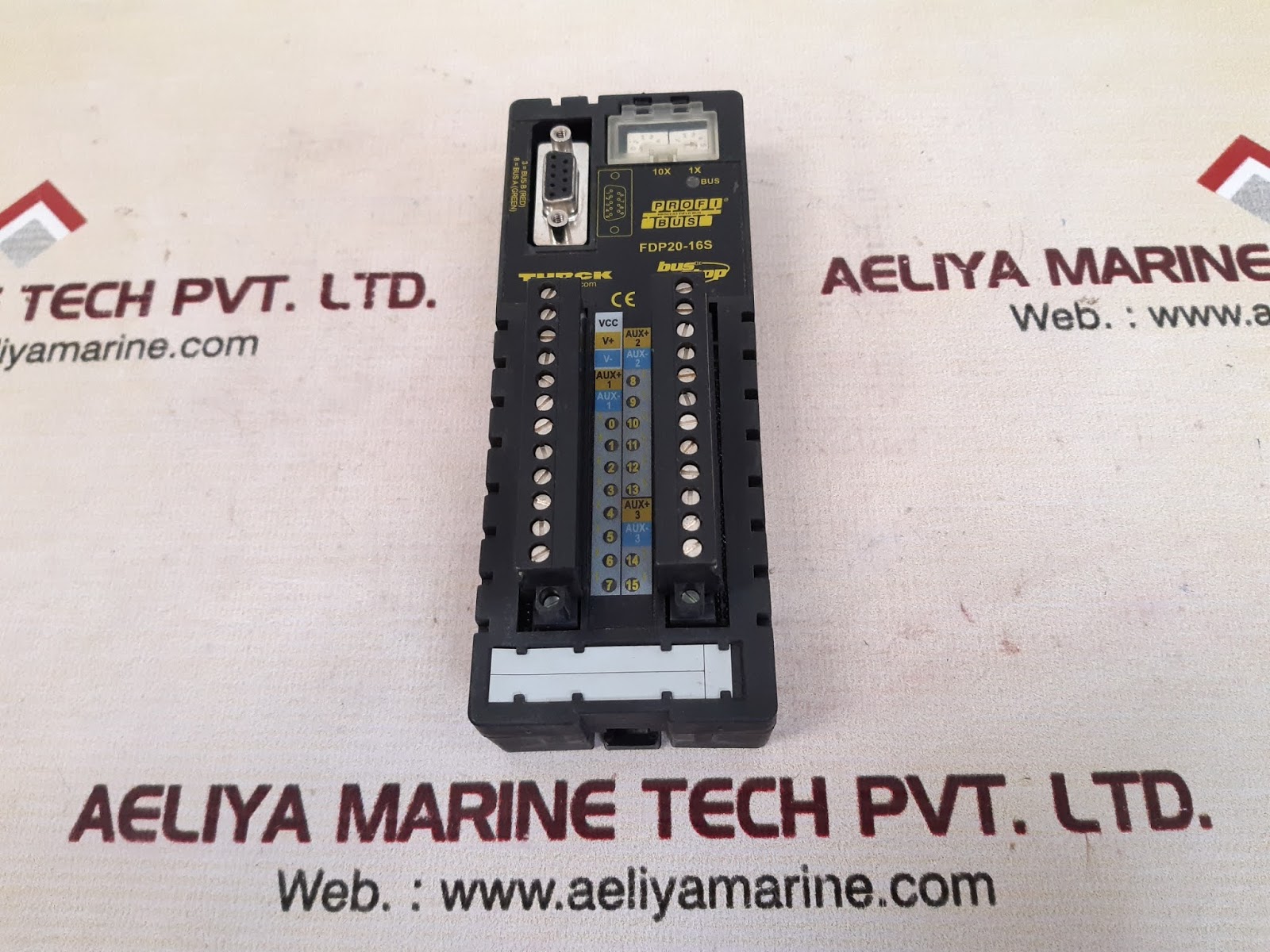

What is the TURCK FDP20-16S Process Field Bus Module?
The TURCK FDP20-16S is a robust fieldbus I/O module designed to seamlessly integrate in decentralized automation systems. The module is specifically built to handle PROFIBUS-DP and provides distributed signal acquisition and control in sophisticated industrial processes. Its strong design, diagnostic features, and convenience of connectivity make it a reliable element for demanding field applications.
Whether you’re expanding an existing PROFIBUS-DP network or building a new automation system, the FDP20-16S simplifies the interface between control systems and field devices.
Key Features
Here are the standout features that make this module a high-performance asset:
16 Digital Input Channels
Allows monitoring of multiple field devices simultaneously.
PROFIBUS-DP Compatible
Enables fast and reliable data transmission over long distances.
Rugged IP67 Housing
Designed to resist dust, moisture, and vibration for outdoor or factory floor mounting.
LED Status Indicators
Streamlines diagnostics with visual indication of power, bus status, and channel activity.
M12 Plug-and-Play Connectors
Provides fast, tool-free mounting and minimal downtime.
Short-Circuit and Overload Protection
Protects connected equipment and extends the life of the module.
Galvanic Isolation
Improves electrical safety and reduces interference.
These attributes enable engineers to have quicker installation, less maintenance, and lower lifecycle cost in harsh conditions.
Applications of the FDP20-16S Field Bus Module
Due to its compatibility and rugged construction, the TURCK FDP20-16S is well suited for various industrial automation applications:
Automated Assembly Lines
Use it to link sensors, actuators, and safety devices along a production line.
Marine Automation Systems
Its IP67-rated construction makes it ideal for onboard equipment and monitoring inside ship engine rooms.
Process Control Plants
Perfect for integrating multiple process instrumentation in water treatment, oil & gas, or food processing.
Material Handling Systems
Combines sensors on conveyors, robotic arms, and sorting equipment for intelligent control.
Heavy Machinery and Mining Equipment
Functions with ease under tough operating conditions such as dust, vibration, and humidity.
Why Choose TURCK FDP20-16S for Your Automation Needs?
Selecting the FDP20-16S isn’t merely a matter of selecting a dependable product—it’s about maximizing performance, minimizing the complexity of field wiring, and adapting to open system design.
Here’s why it’s a better choice:
Reliable Brand: TURCK is globally recognized as a reliable supplier of industrial automation solutions.
Robustness: Its industrial-grade construction guarantees longevity despite harsh environments.
Plug-and-Play: Completely compatible with PROFIBUS-DP and current fieldbus networks.
Better Troubleshooting: LED indicators provide immediate diagnostics, cutting service time.
Space Savings: Small form factor means easy installation in narrow or modular enclosures.
Should you want to upgrade or extend your distributed control system, this module is a strong, cost-effective solution that assists in enhancing signal distribution, reliability, and data acquisition—all essential to any high-performance configuration.
