TRAFAG 940.2372.900 PRESSURE SWITCH 10 BAR

TRAFAG 940.2372.900 PRESSURE SWITCH 10 BAR
MAKER: TRAFAG
SENSORS + CONTROLS
MPA: -0.05 TO 0.15
BAR: -0.5 TO 1.5
MAX. 10 BAR/ 1 MPA

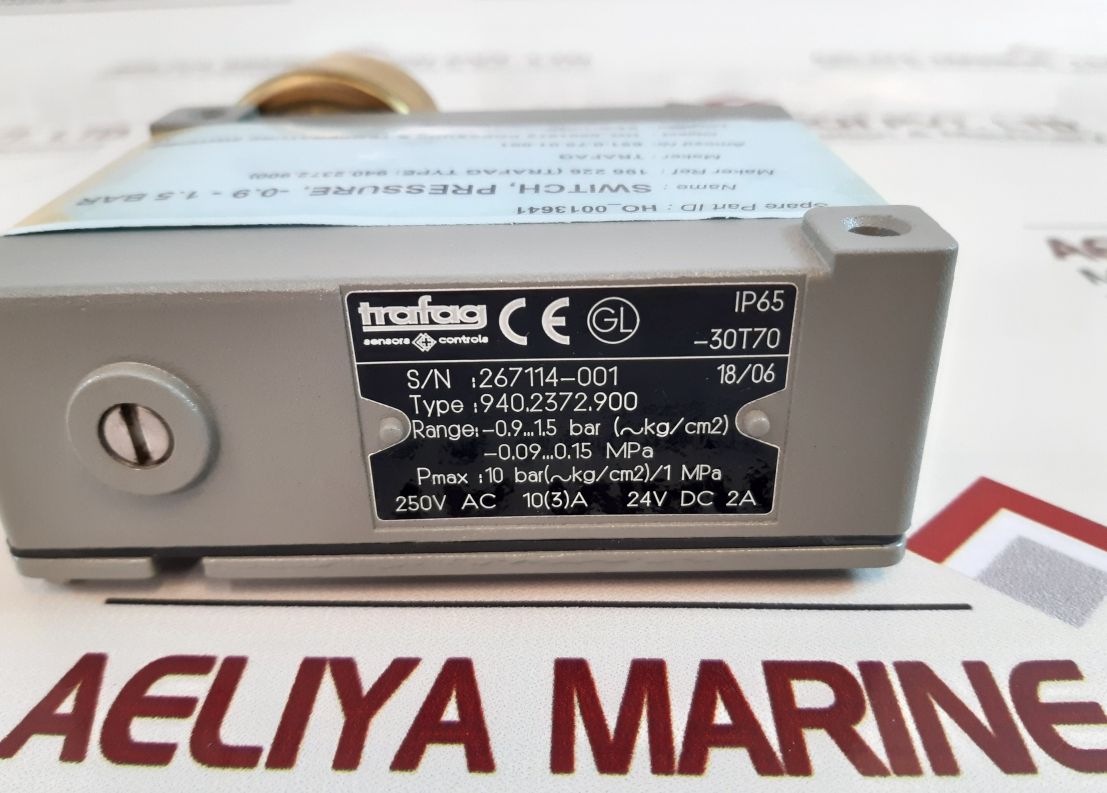

TYPE: 940.2372.900
RANGE:
-0.9…1.5 BAR (~KG/CM2)
-0.09…0.15 MPA
PMAX: 10 BAR (~KG/CM2)/1 MPA
250V AC 10(3)A 24V DC 2A
IP-PROTECTION: IP65
-30T70
TORQUE MOMENT PRESSURE CONNECTION: MAX.25NM
SPARE PART ID: HO_0013641
NAME: SWITCH, PRESSURE, -0.9 -1.5 BAR
MAKER REF: 196 226 (TRAFAG TYPE: 940.2372.900)
AMOSD NR: 651.0.75.01.001
OBJECT: HO_0001873 PRESSURE & TEMPERATURE SWITCHES

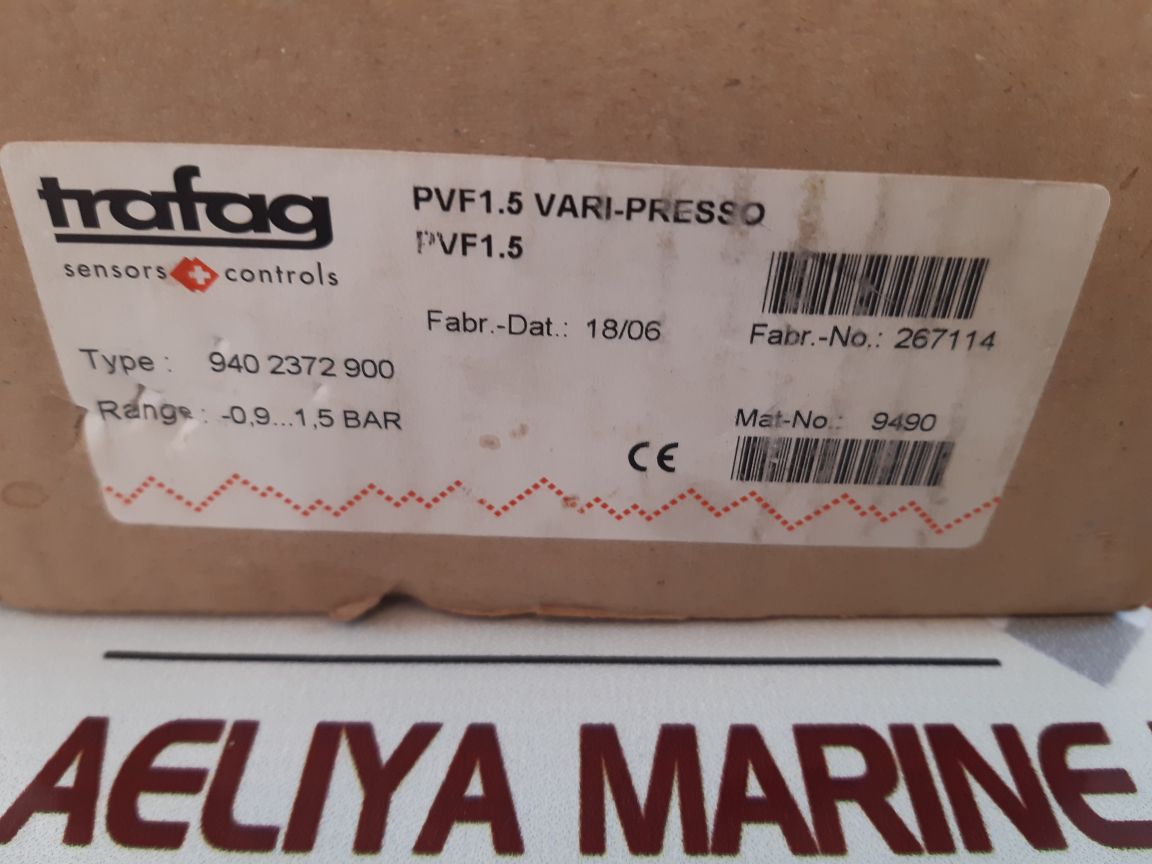

PVF1.5 VARI-PRESSO
FABR.-NO.: 267114
MAT-NO: 9490
WEIGHT : 920 GM
CONDITION : NEW 1 PCS
REF NO : 46694
