| Attribute | Value |
|---|---|

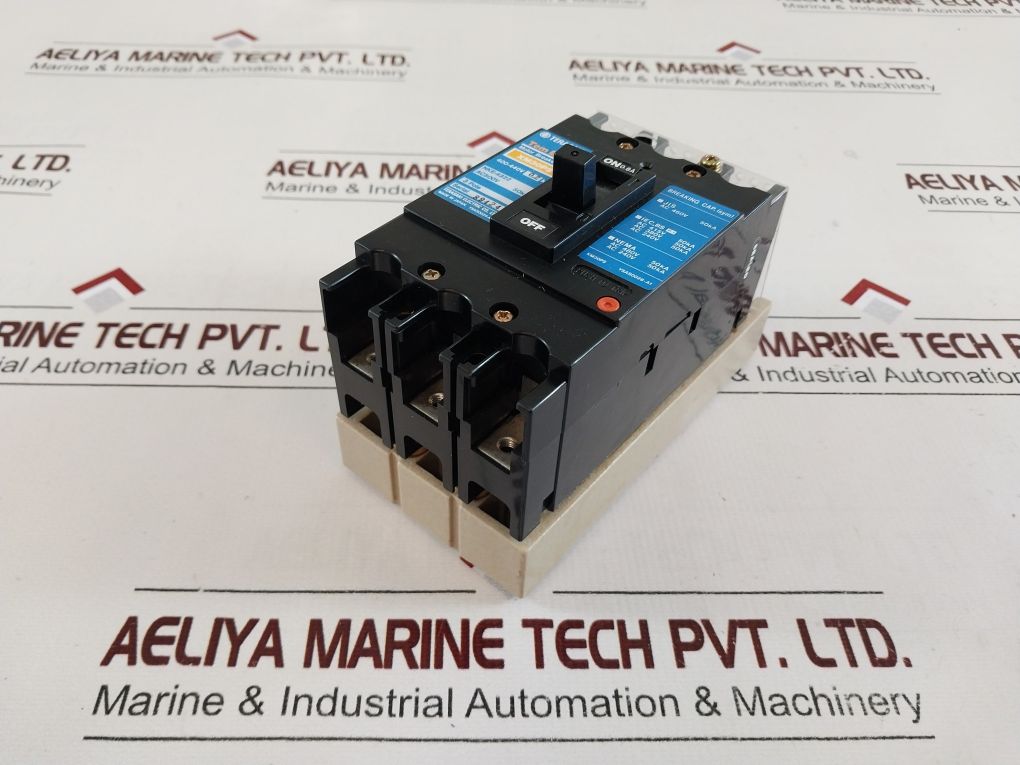

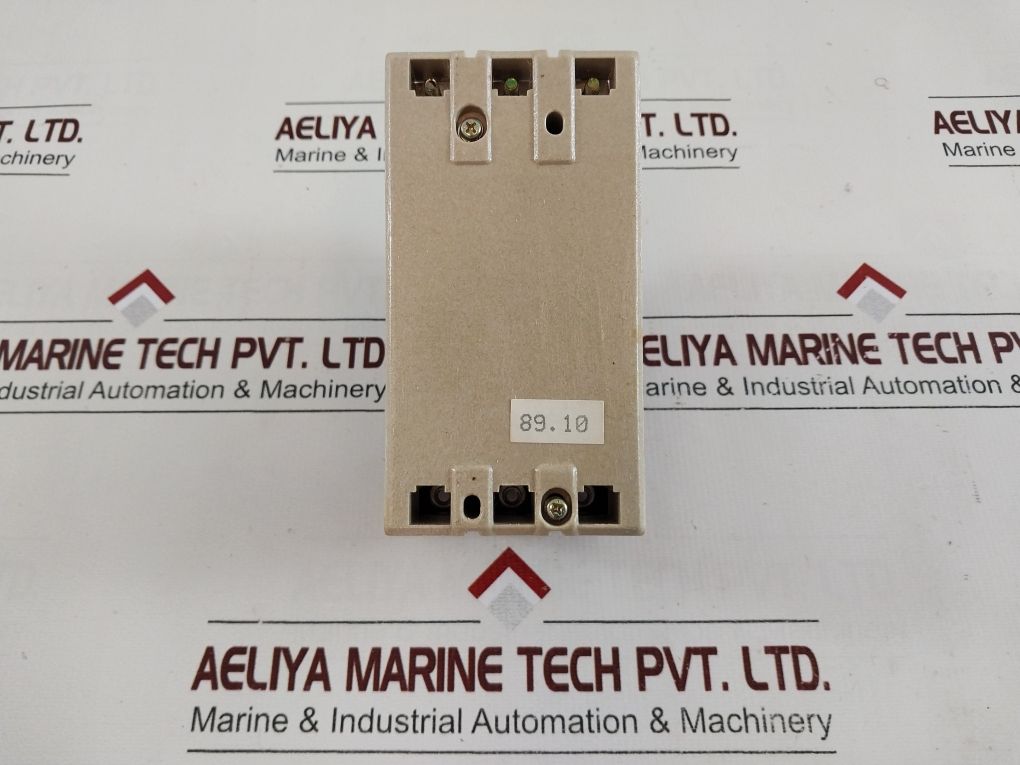

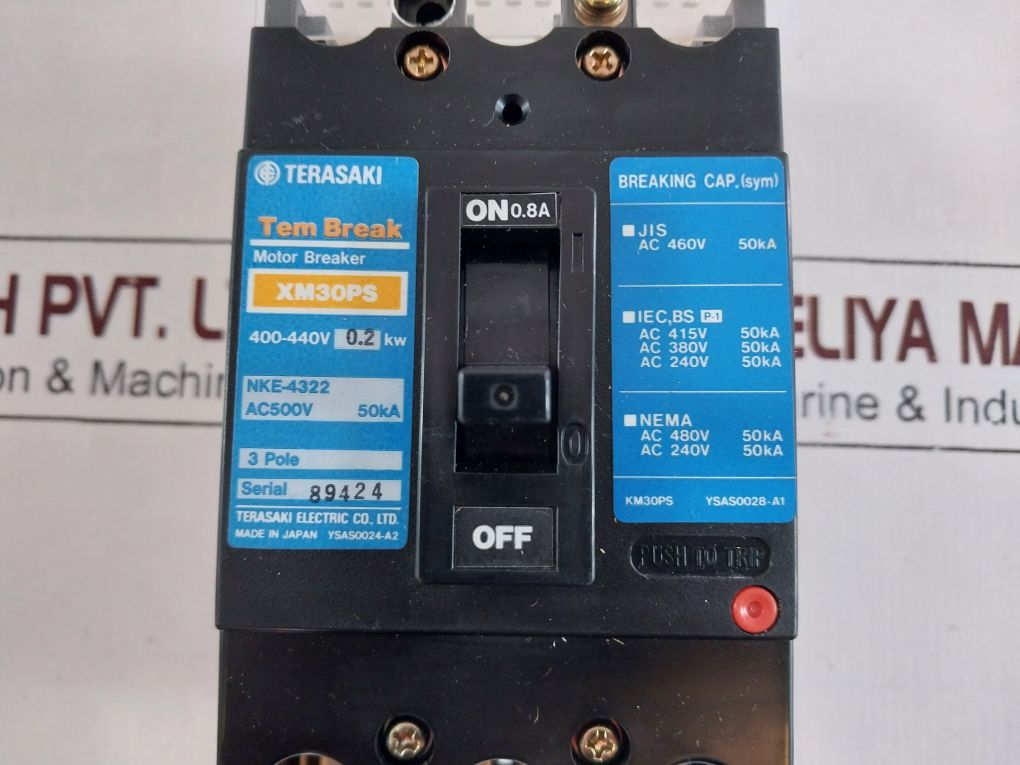

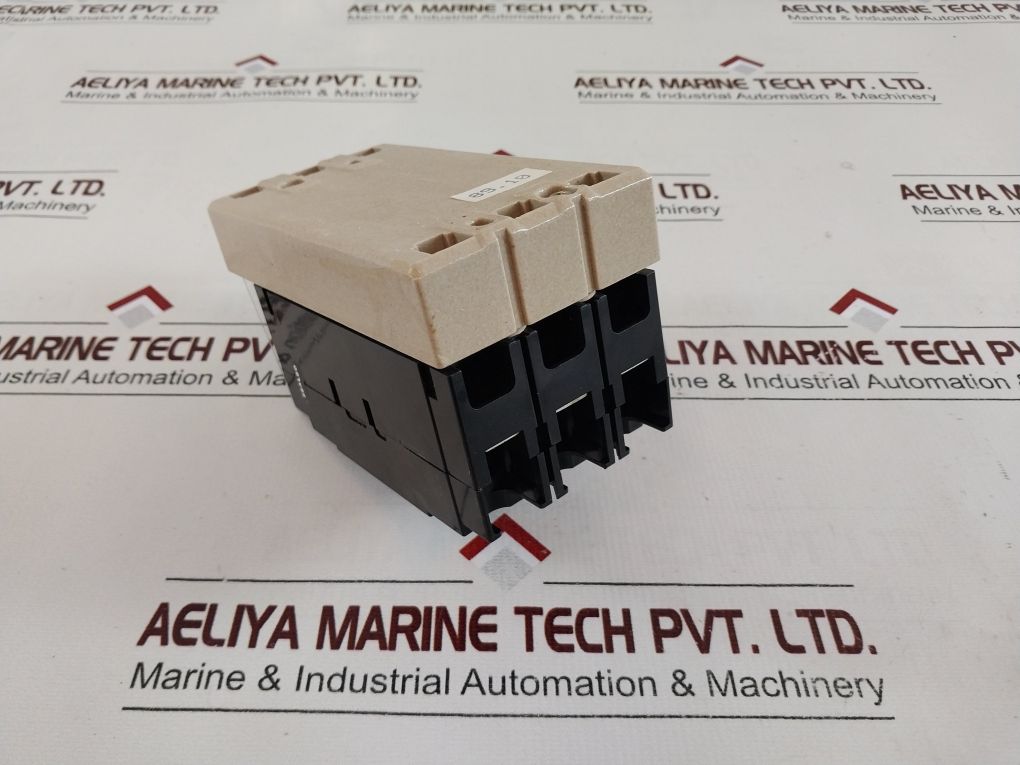

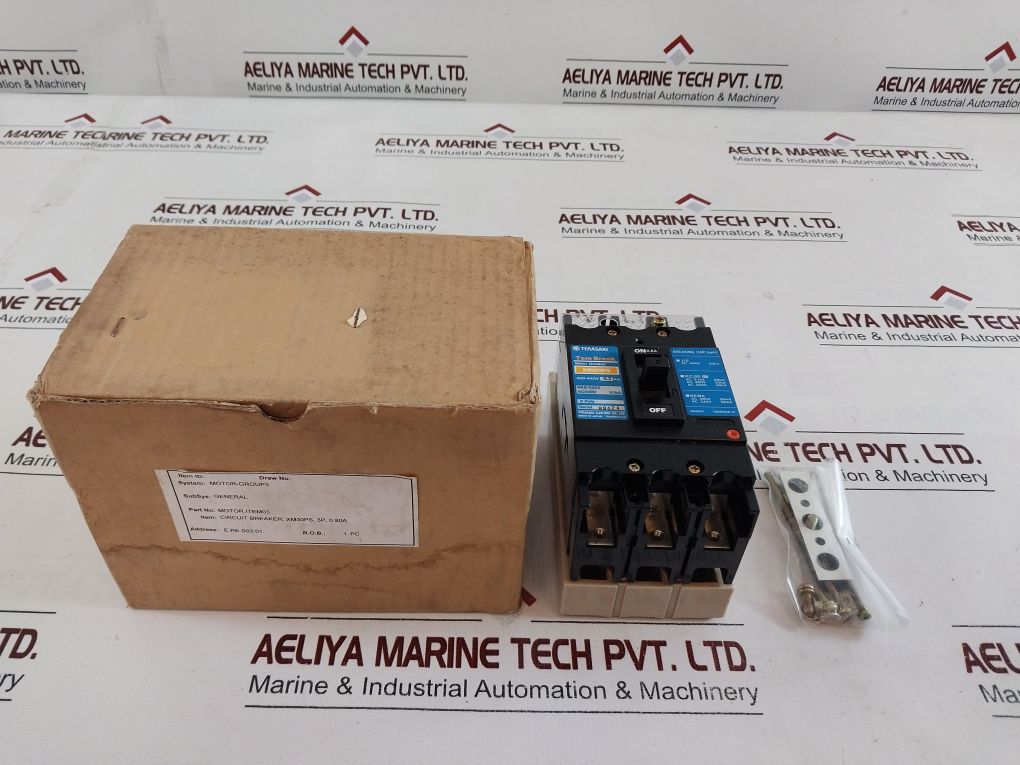

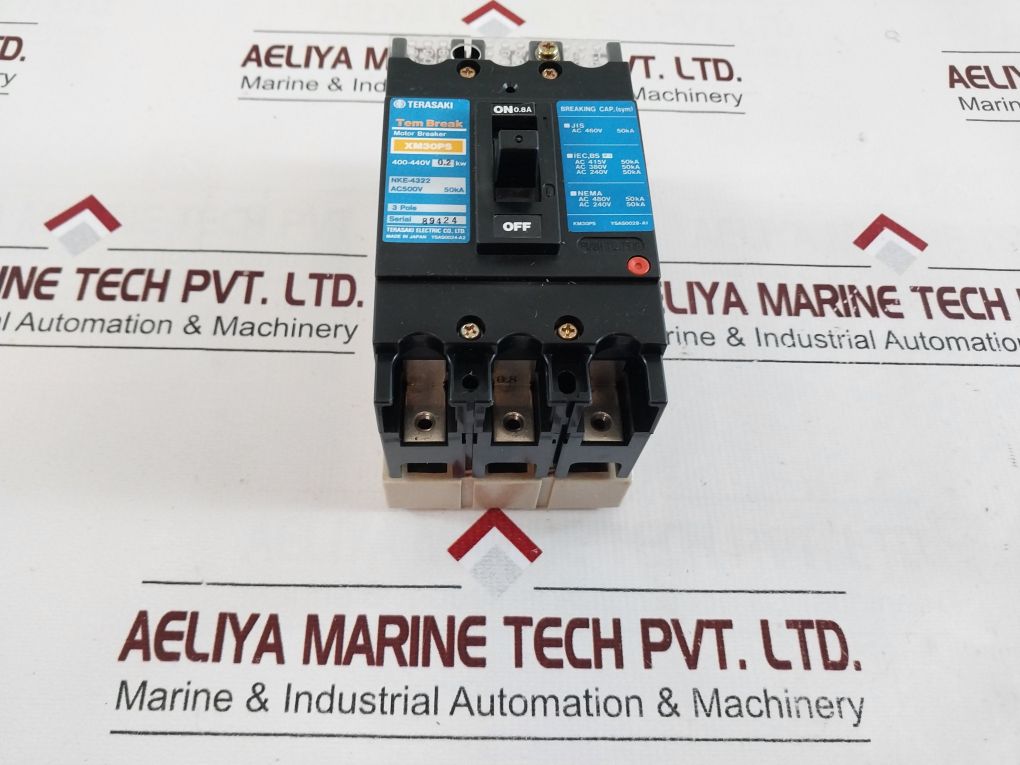

| Product Name | Terasaki Xm30ps Motor Circuit Breaker 440V |
| Manufacturer | Terasaki Electric Co., Ltd |
| Series | Tem Break |
| Type | Motor Breaker |
| Model | Xm30ps |
| Voltage | 400-440V |
| Power Rating | 0.2 kW |
| Model No. | NKE-4322 |
| AC Voltage Rating | AC 500V |
| Breaking Capacity | 50 kA |
| Poles | 3 Pole |
| Alternate Model | KM30PS |
| Part Reference | YSAS0024-A2 / YSAS0028-A1 |

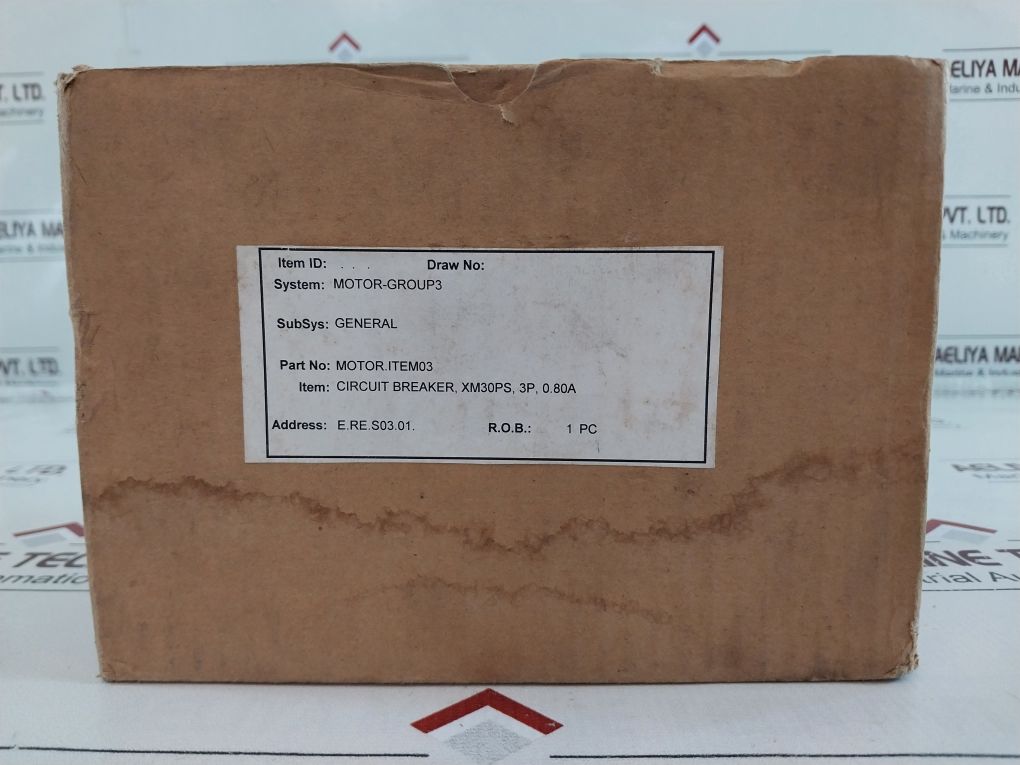

| System | Motor-Group3 |
| Subsystem | General |
| Part Number | Motor.item03 |

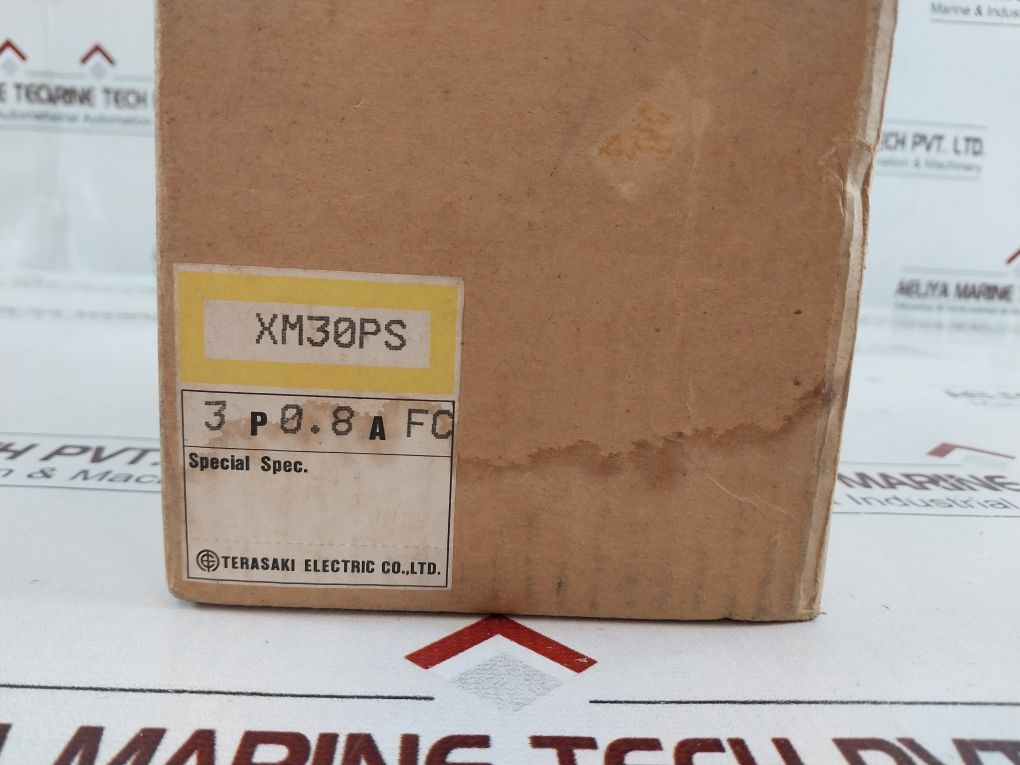

| Item Description | Circuit Breaker, XM30PS, 3P, 0.80A |
| Country of Origin | Made in Japan |
| Weight | 1.420 Kg |
| Reference Number | 67877 |
What is the Terasaki XM30PS Motor Circuit Breaker?
The Terasaki XM30PS is a motor protector circuit breaker used manually mainly for protecting motors against short circuits, phase loss, and overload. It is used at 440V and is a favorite in industrial settings where safety, ruggedness, and performance are required.
Terasaki, a global leader in circuit protection and power distribution with its base in Japan, has designed the XM30PS to accommodate both international and domestic standards—hence making it an acceptable choice in industries around the globe.
Features of Terasaki XM30PS
Voltage Capability: 440V
Designed to operate in higher voltage systems typical in industry and marine applications.
High Short Circuit Breaking Capacity
Provides endurable disruption of high fault currents, guaranteeing security and equipment lifespan.
Thermal-Magnetic Protection
Offers reliable protection from overload as well as short circuits.
Trip-Free Mechanism
Guards against manual override in fault conditions for automatic interruption.
Compact Design
Conserves panel space and facilitates modular installation in control cabinets.
DIN Rail Mountable
Quick and simple to install without the need for intricate tools or custom adaptation.
Broad Range of Current Ratings
Flexible settings to accommodate various motor sizes and load demands.
Technical Details
Model: XM30PS
Voltage Rating: 440V AC
Rated Current: Varies with configuration (commonly 0.1A to 32A)
Breaking Capacity: Up to 50kA based on the model
Mounting Type: DIN rail
Operating Temperature: -20°C to +60°C
Standards Compliance: IEC 60947-2 / IEC 60947-4-1
Applications
The Terasaki XM30PS is mostly utilized in all sorts of industrial and commercial environments where machinery powered by motors is essential. Some real-world application areas are:
- Industrial Automation Panels
- HVAC Systems
- Pumping Stations
- Conveyor Systems
- Marine Control Panels
- Textile and Manufacturing Equipment
- Water Treatment Plants
This Terasaki motor circuit breaker is particularly suitable in applications where compact size, high reliability, and simplicity of maintenance are required.
Advantages of Terasaki XM30PS Application
- Safeguards costly motor equipment from damage due to faulty conditions
- Enhances system reliability and availability
- Less risk of fire or electrical shock
- Cost saving on maintenance and replacement
- Compliant with global electrical standards
- Reliable brand with documented quality
