| Attribute | Value |
|---|---|
| Manufacturer | Terasaki Electric Co., Ltd. |
| Series | Tembreak |
| Type | Circuit Breaker |
| Model | XH100NS |

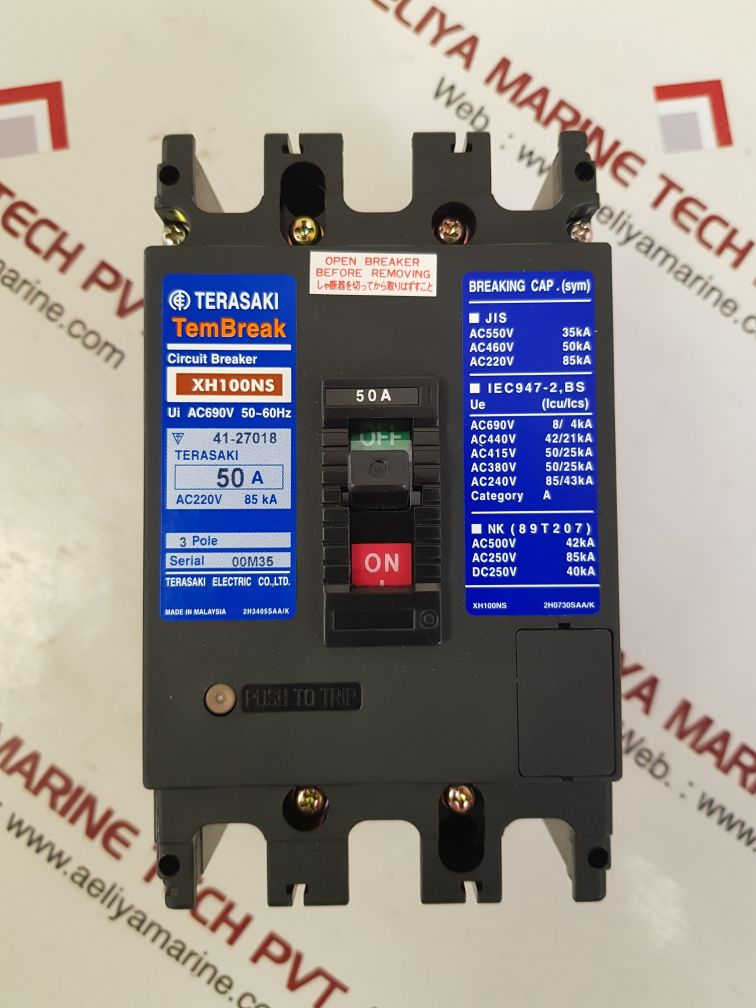

| Rated Insulation Voltage (Ui) | AC690V 50~60Hz |
| Code | 41-27018 |
| Current Rating | 50A |
| Breaking Capacity | AC220V 85 kA |
| Poles | 3 Pole |
| Spec Code 1 | 2H3405SAA/K |
| Spec Code 2 | NK(89T207) |
| Spec Code 3 | 2H0730SAA/K |

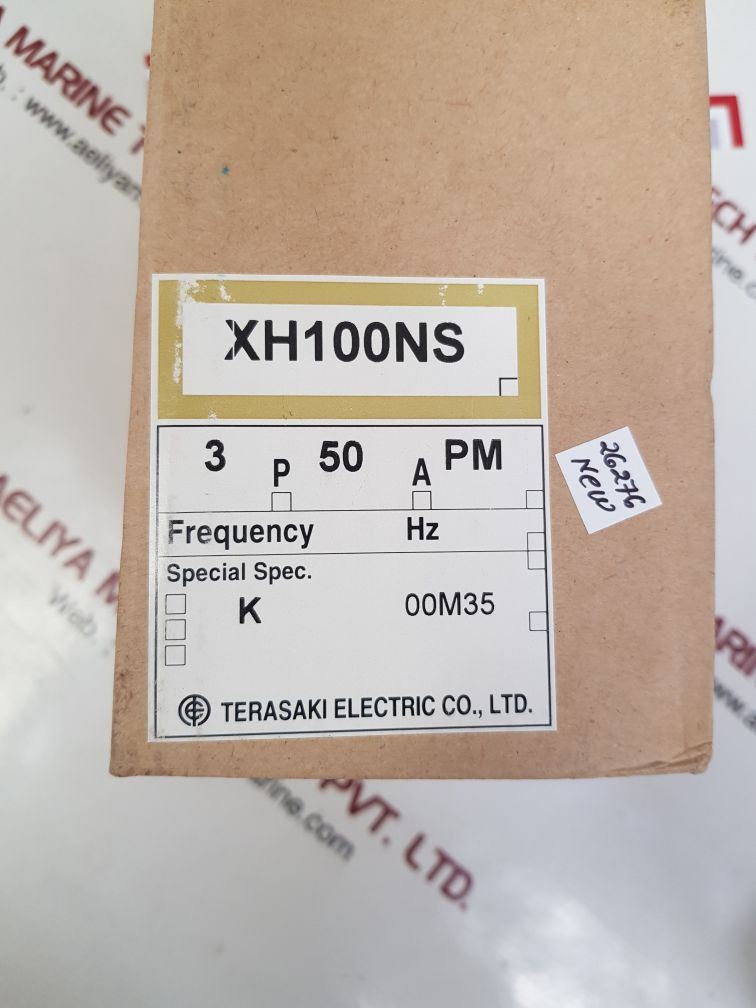

| Special Specification | K |
| Production Code | 00M35 |

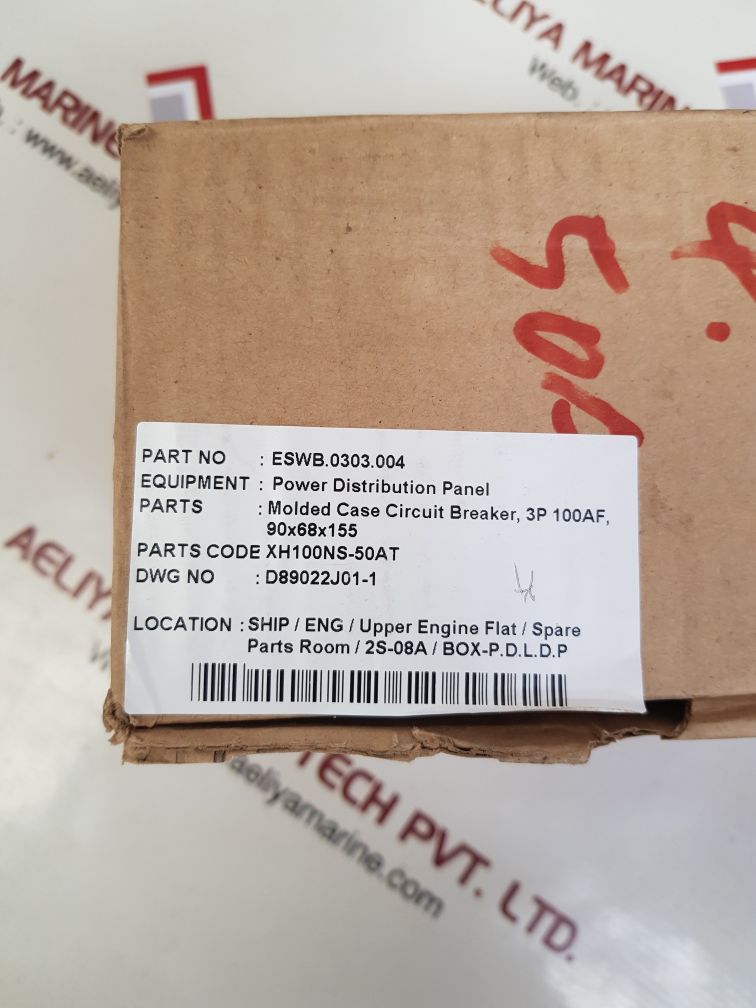

| Parts No | ESWB.0303.004 |
| Equipment | Power Distribution Panel |
| Parts | Molded Case Circuit Breaker, 3P 100AF, 90x68x155 |
| Parts Code | XH100NS-50AT |

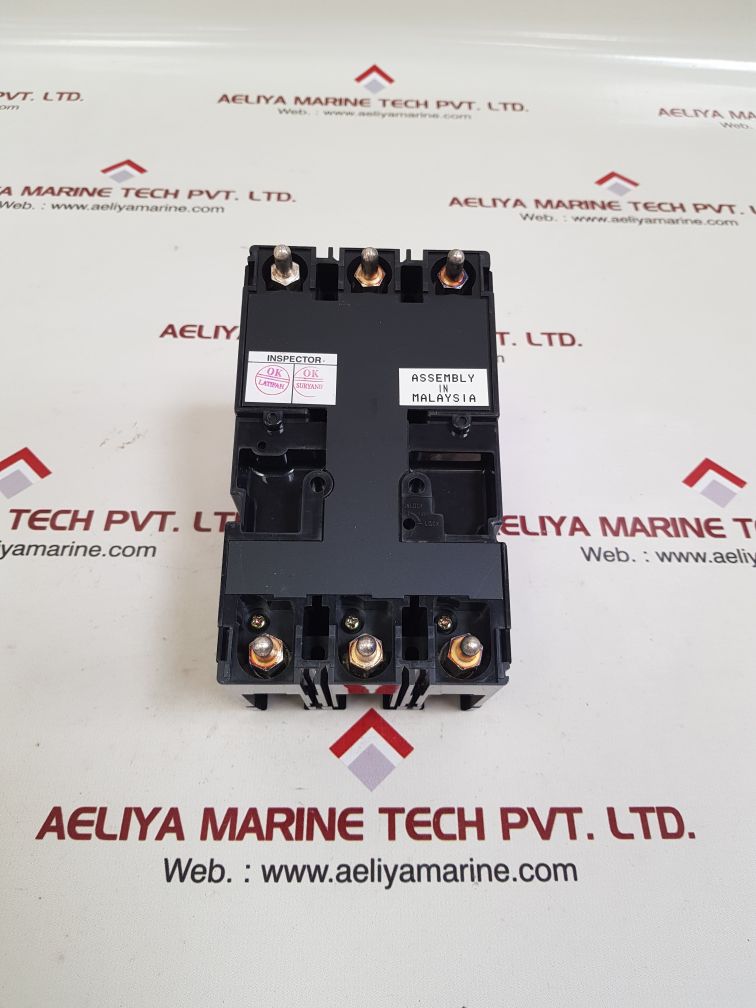

| Assembly | In Malaysia |
| Country of Origin | Made in Malaysia |
| Weight | 1.500 kg |

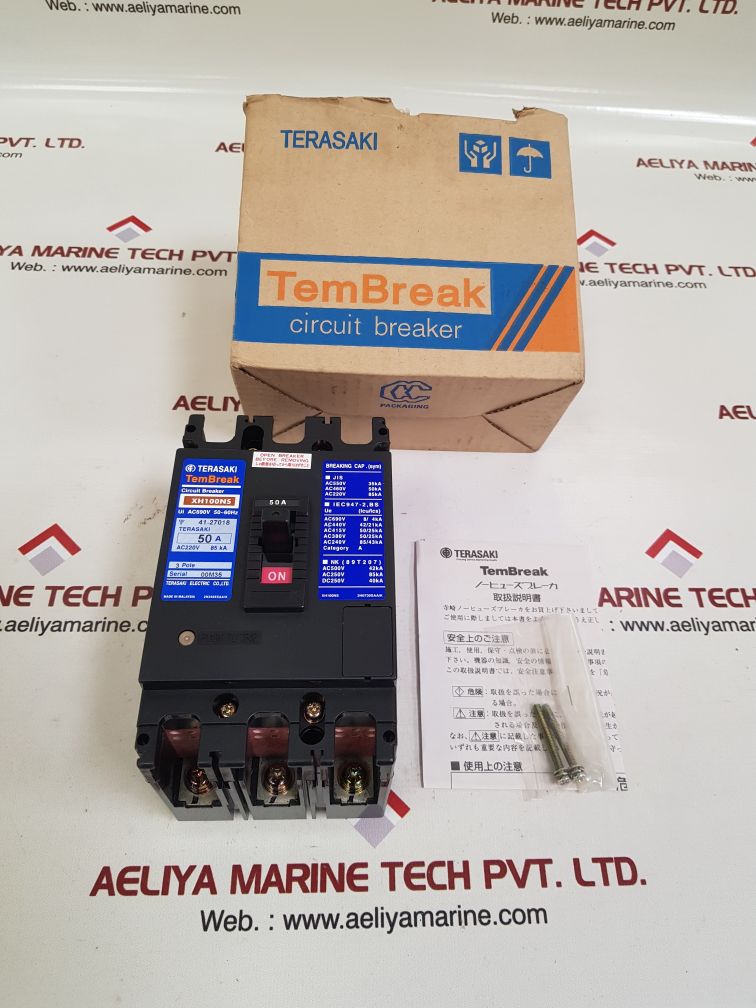

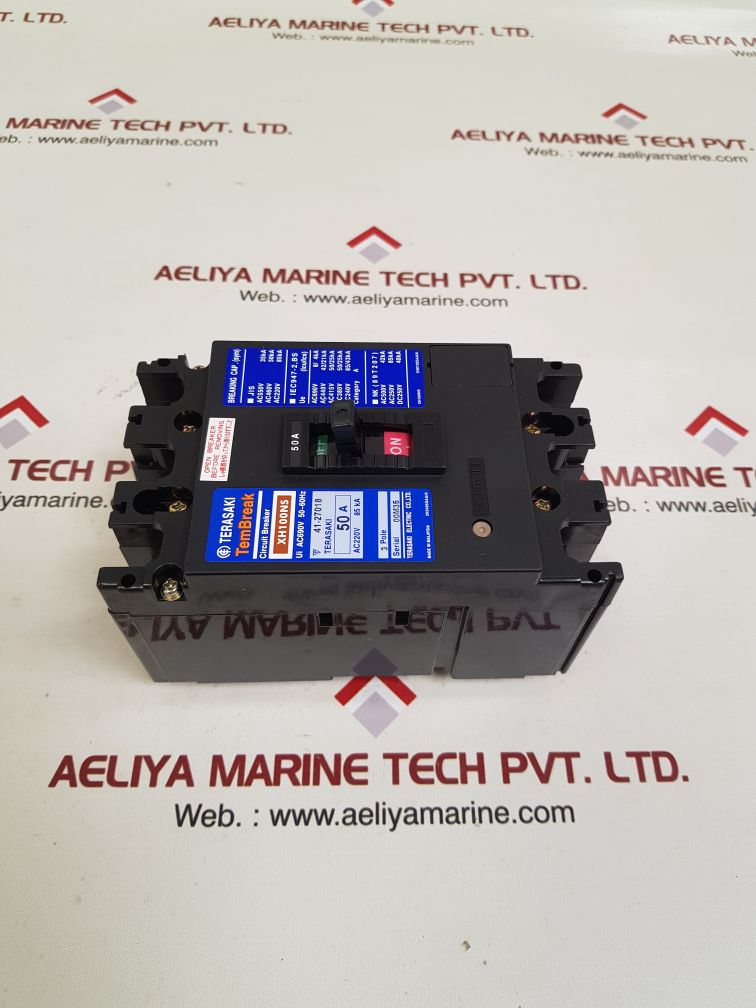

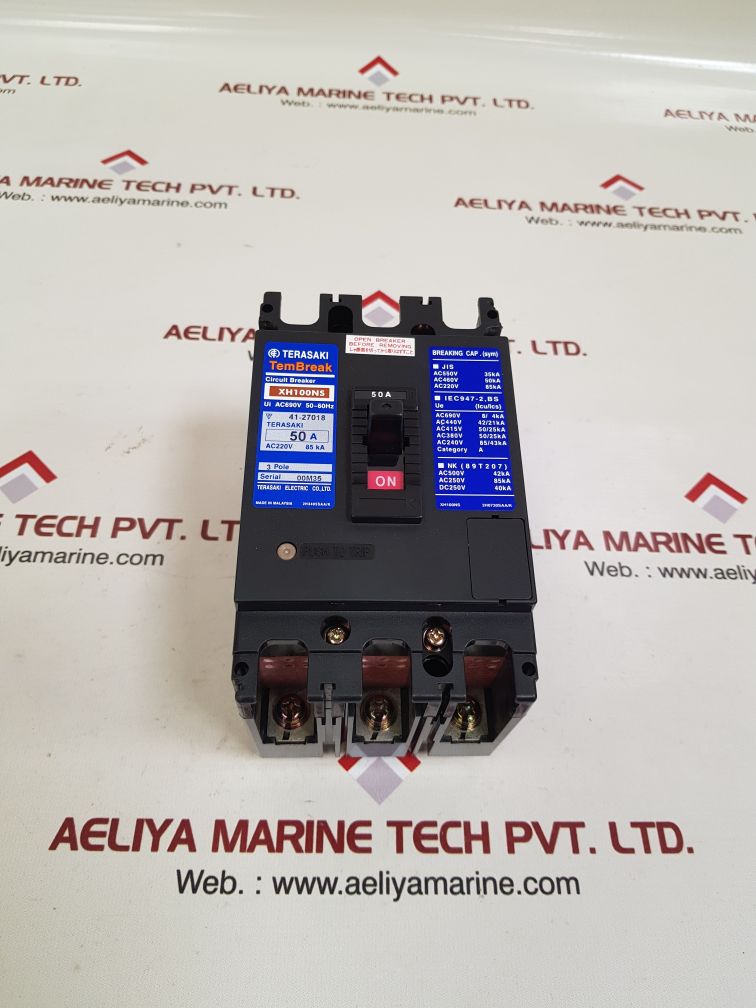

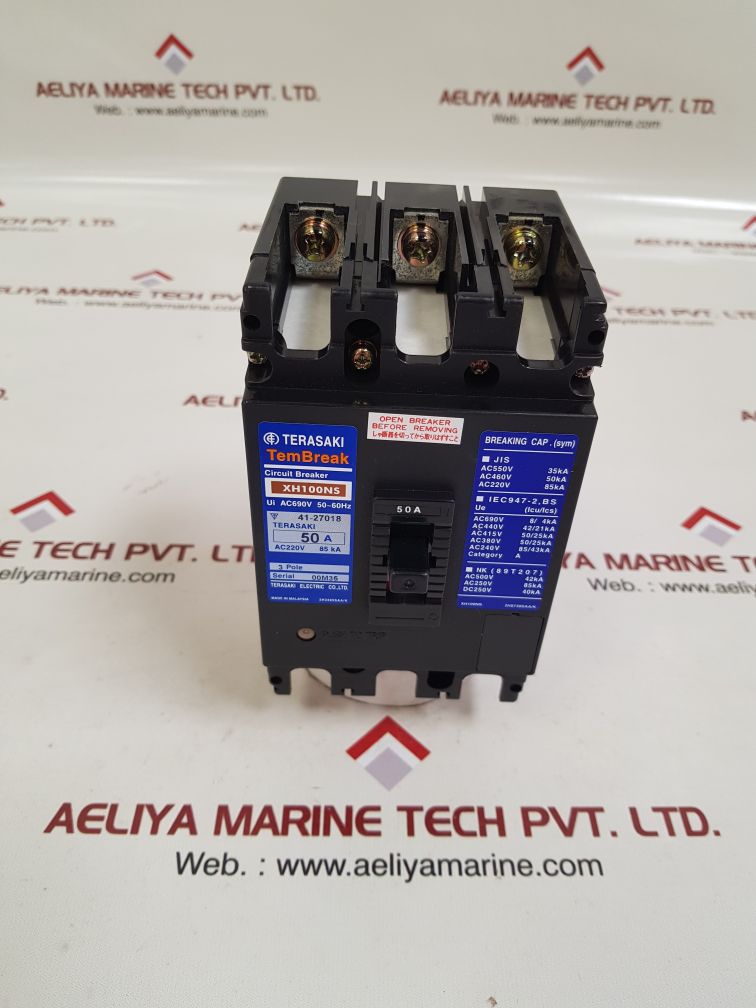

Overview of the Terasaki XH100NS Tembreak MCCB
Terasaki Electric is a seasoned Japanese company famed for its research in electrical security devices. Their XH100NS is in their Tembreak range, dedicated to providing unmatched protection with limited maintenance and enhanced operating efficiency.
Key Specifications
Model: XH100NS
Rated Current: 50 Amps
Breaking Capacity: High-performance short-circuit breaking capacity
Poles: Coming in 2P or 3P
Trip Type: Thermal-magnetic
Compliance: IEC standards
Mounting: Panel or DIN rail mount
Operating Voltage: Usually rated at 690V AC
Key Features of the Terasaki XH100NS MCCB
1. Space-Saving Design:
Though powerful, the XH100NS is small and space-saving, making it suitable for applications where there is limited panel space.
2. High Breaking Capacity:
Capable of safely interrupting high fault currents, the MCCB ensures the circuit is rapidly broken in fault conditions, limiting potential damage.
3. Thermal-Magnetic Trip Unit
It employs a double trip principle—thermal for overload and magnetic for short circuits—to provide quick and reliable response.
4. Safety and Reliability:
Constructed of rugged material, it provides long life even under stressful load conditions. It also has arc extinguishing chambers for added safety.
5. Convenient Installation and Maintenance:
The breaker is easy to use, with straightforward installation methods and low maintenance requirements, both time- and cost-saving.
Applications
The Terasaki XH100NS MCCB is extensively applied across different industries, owing to its versatility and dependability. Some of its widespread applications are:
Industrial Panels: Shields motors, control systems, and power distribution boards.
Commercial Buildings: Facilitates safe power distribution in shopping centers, offices, and skyscrapers.
Marine Applications: Owing to its marine standard compliance, it’s employed in shipboard electrical systems.
Renewable Energy Systems: Ideal for solar and wind systems where continuous protection is paramount.
Why Select Terasaki?
Terasaki has a reputation for delivering high-quality products and being at the forefront of innovation. The XH100NS model is representative of the company’s mission to deliver safe and efficient power solutions. Upgrading an existing system or installing a new one, employing a reliable MCCB like this can save you from expensive downtime and system safety improvement.
