| Attribute | Value |
|---|---|

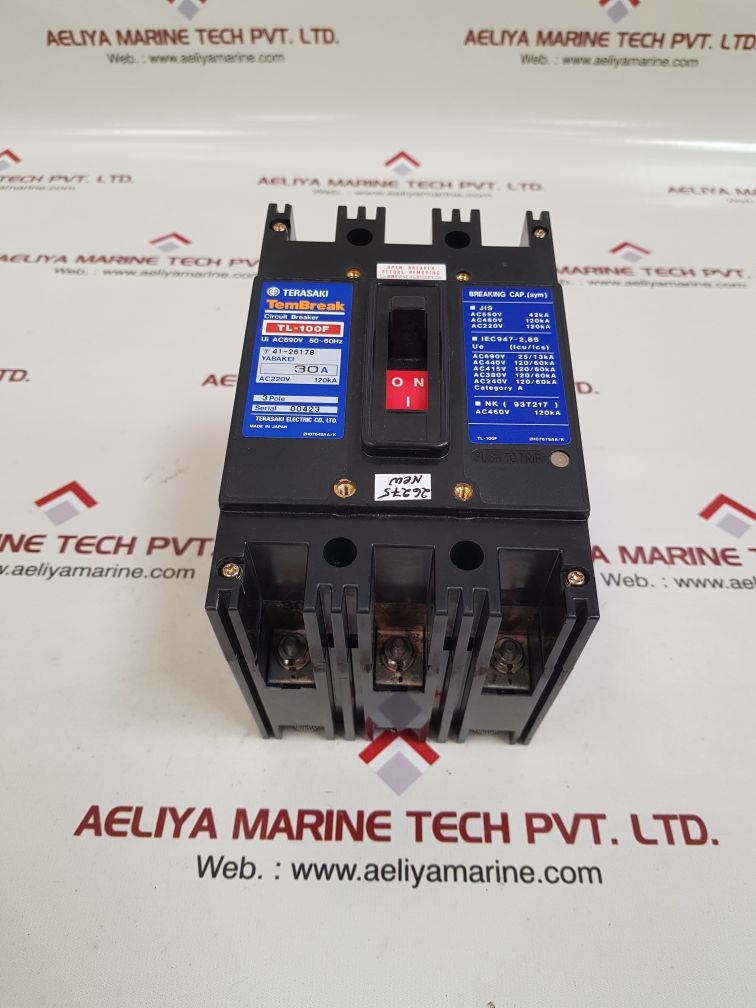

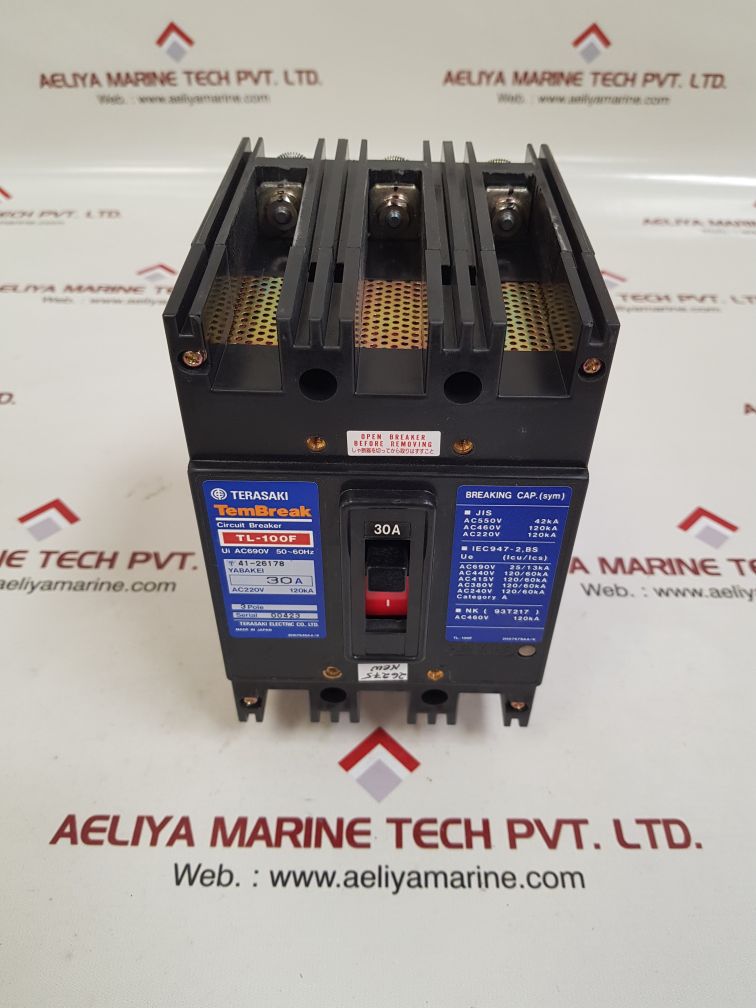

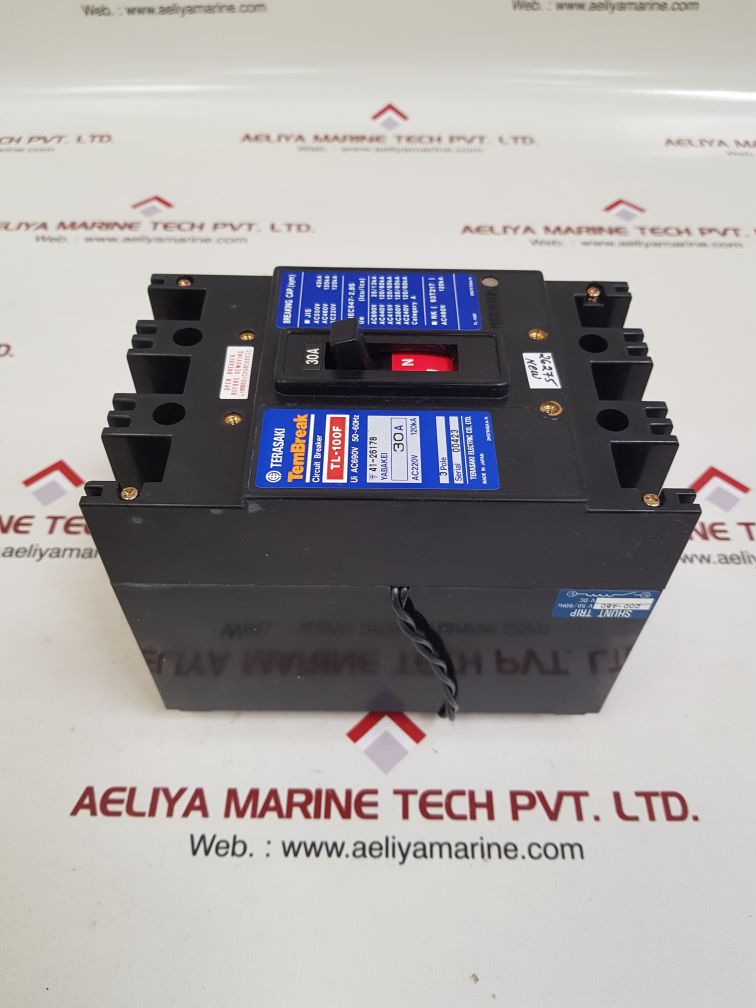

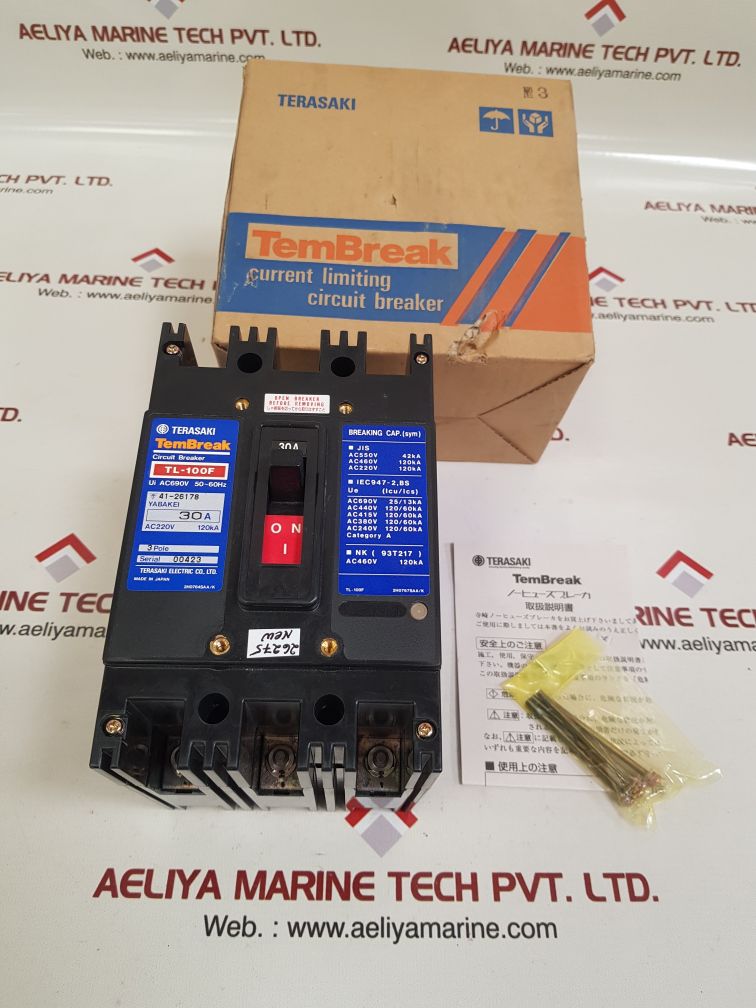

| Product Name | Terasaki TL-100F Tembreak Circuit Breaker 30A AC690V 50~60Hz |
| Manufacturer | Terasaki Electric Co., Ltd. |
| Series | Tembreak |
| Type | Current Limiting Circuit Breaker |
| Model | TL-100F |
| Rated Insulation Voltage (Ui) | AC690V 50~60Hz |
| Reference Number | 41-26178 |
| Rated Current | 30A |
| Rated Voltage and Breaking Capacity | AC220V 120kA |
| Poles | 3 Pole |
| Code Numbers | 2H0764SAA/K, 2H0767SAA/K |

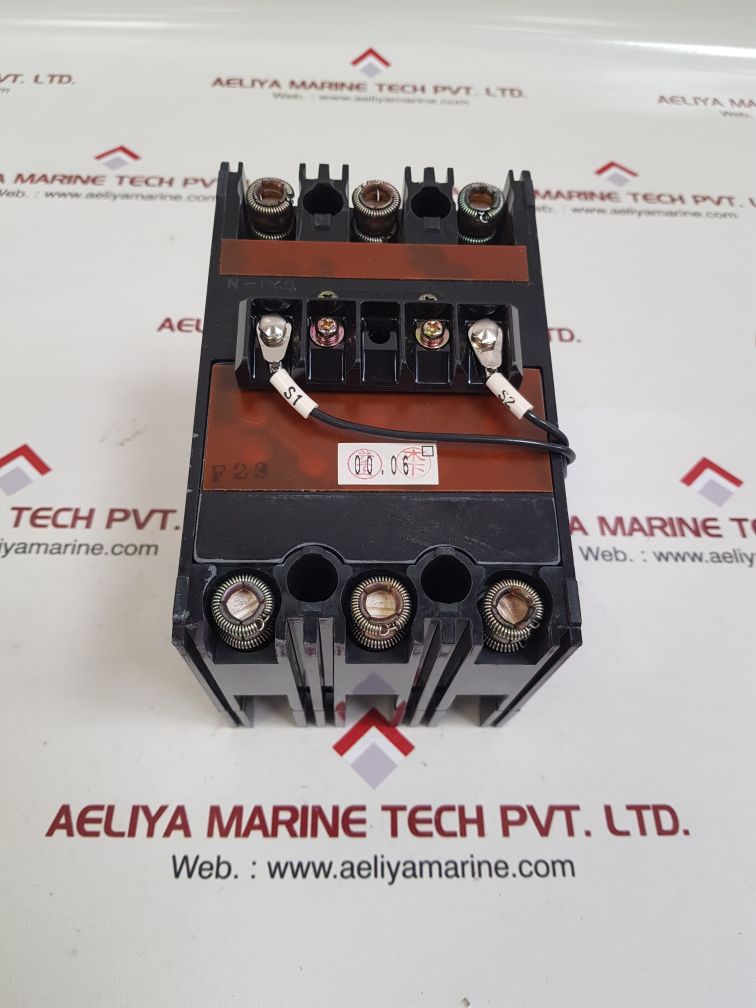

| Shunt Trip Voltage | 200-480V 50/60Hz |
| Standards | IEC 947 |
| Part Number | ESWB.0101.003 |
| Equipment | Main Switchboard |
| Parts Description | Molded Case Circuit Breaker, TL-100F, 3P, 30A, AC200-480V |
| Parts Code | TL-100F, 3P, 30A |
| Country of Origin | Made in Japan |
| Weight | 3.300 kg |
Key Features of Terasaki TL-100F
High Voltage Capability: Compatible with systems up to AC690V, appropriate for heavy industrial use.
Strong Current Capacity: Capable of 30 Amperes, perfect for medium-load protection.
Frequency Compatibility: Compatible with 50Hz and 60Hz, hence ideal for global installations.
Current Limiting Feature: Minimizes the impact of short-circuit currents, preventing equipment damage and downtime.
Compact and Rugged: Constructed to withstand harsh conditions in industrial plants, ships, and energy industries.
Compliant with Standards: Conforms to IEC 947 and other global safety and performance standards.
Easy Installation: Specifically designed for easy mounting inside distribution panels and control boards.
Applications of Terasaki TL-100F Circuit Breaker
The adaptability of the TL-100F makes it suitable for a variety of demanding applications:
Marine Vessels: Ideal for electrical distribution on commercial vessels and offshore platforms.
Industrial Plants: Critical in manufacturing facilities for motor protection, feeder protection, and automation panels.
Energy Sector: Used in power generation and distribution networks to protect transformers, switchgears, and generators.
Heavy Machinery: Used to protect the power supply in cranes, mining machinery, and construction equipment.
Building Automation: Protects electrical panels in big commercial buildings and infrastructure projects.
Why Choose Terasaki TL-100F?
Selecting the correct circuit breaker is not merely a matter of ensuring voltage and current compatibility—it’s about providing long-term reliability and reducing the potential risks of system failures. The Terasaki TL-100F provides:
Uncompromised Protection: Robust protection against overloads and short circuits.
Long Service Life: Constructed for durability even with high electrical and mechanical stress.
Efficient Performance: Minimizes electrical losses and downtime with rapid interruption capabilities.
Global Trust: Used by industries around the world, thanks to Terasaki’s stellar reputation and strict quality control.
