| Attribute | Value |
|---|---|

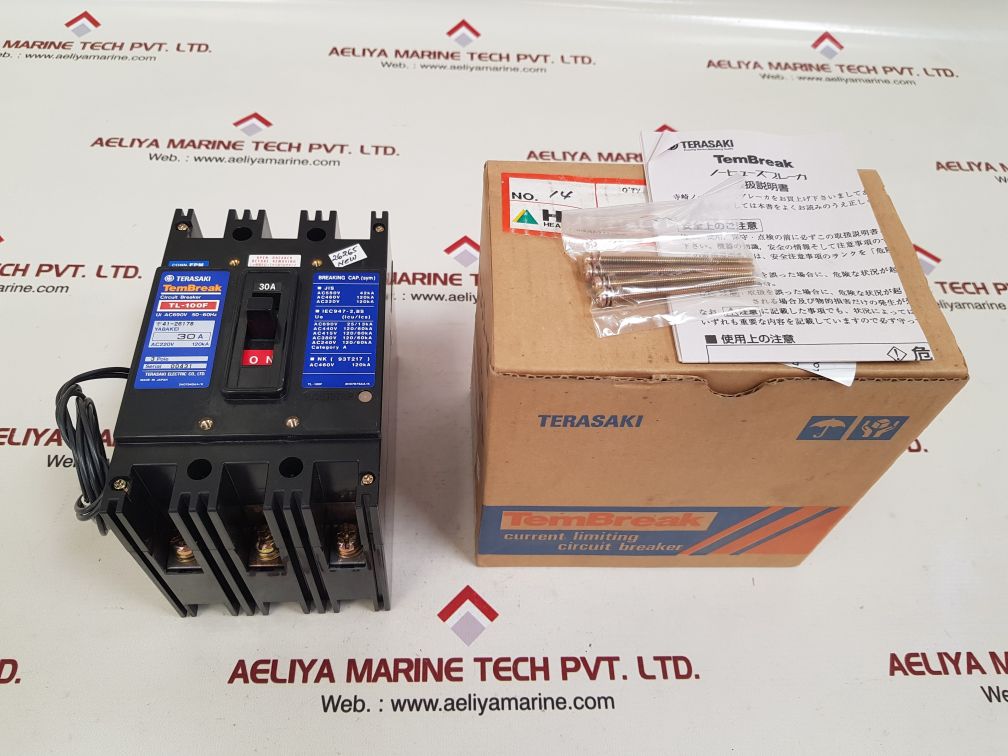

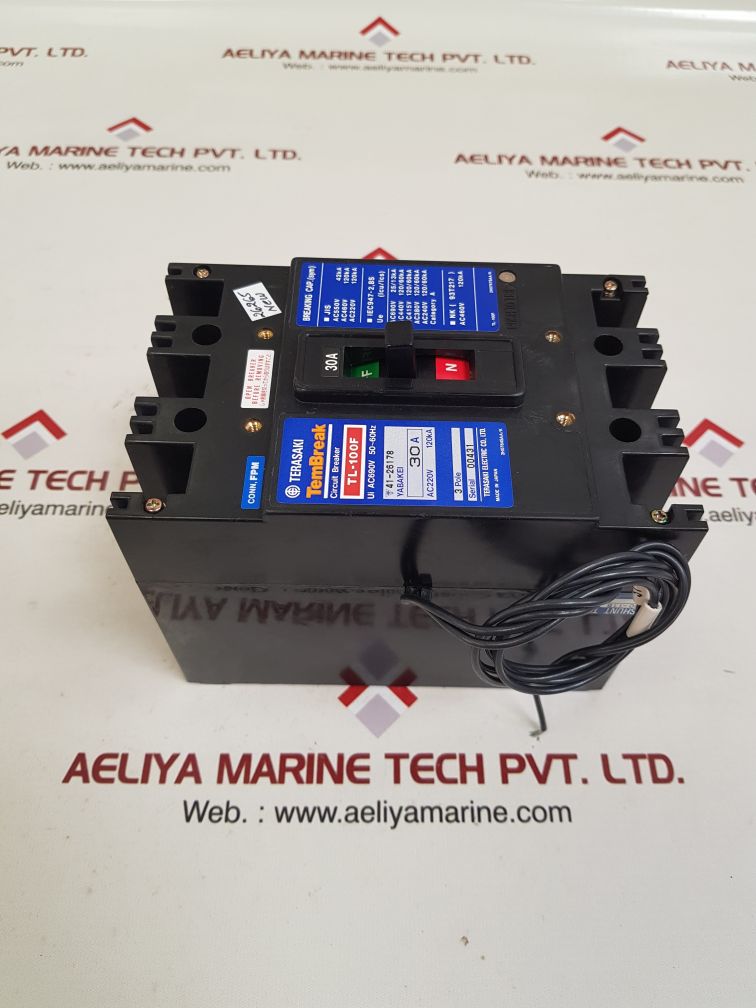

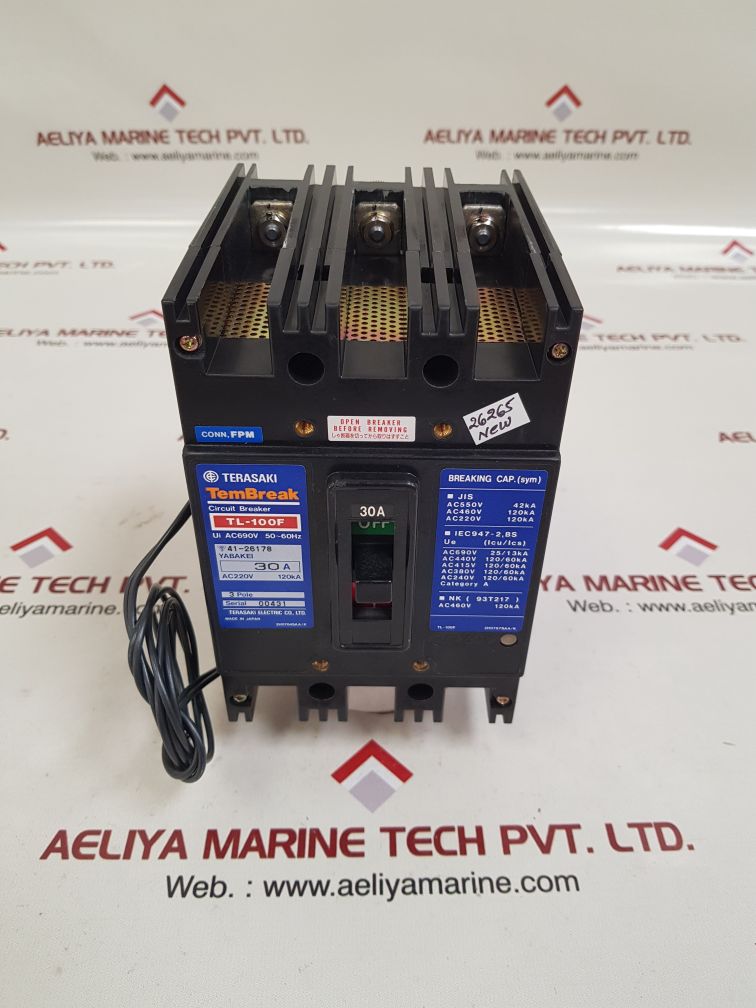

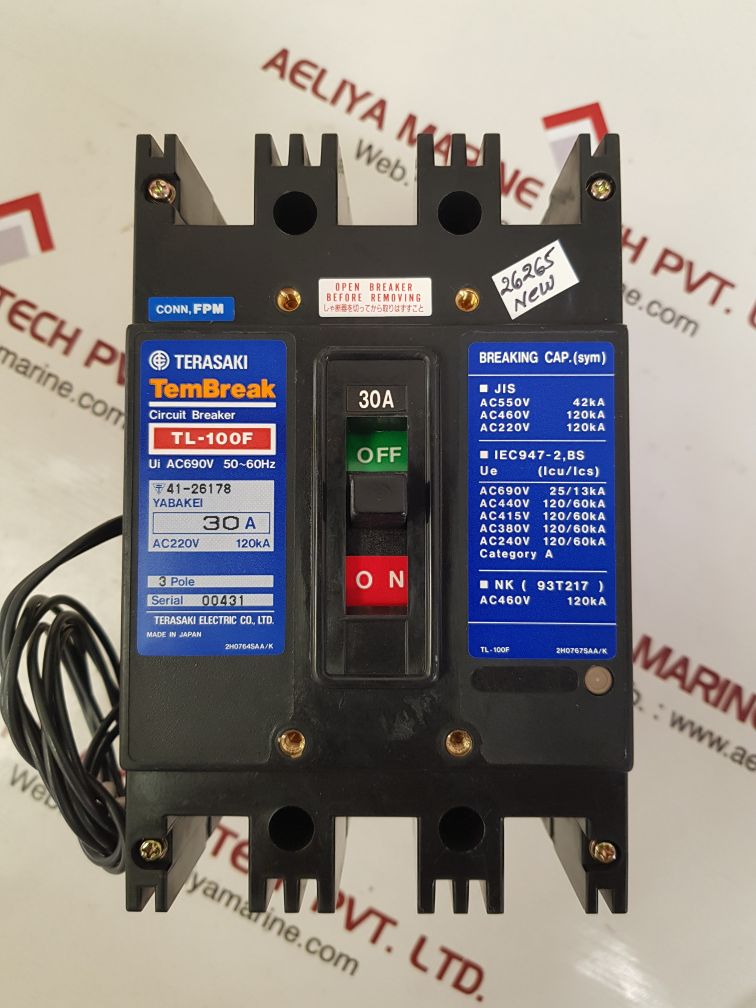

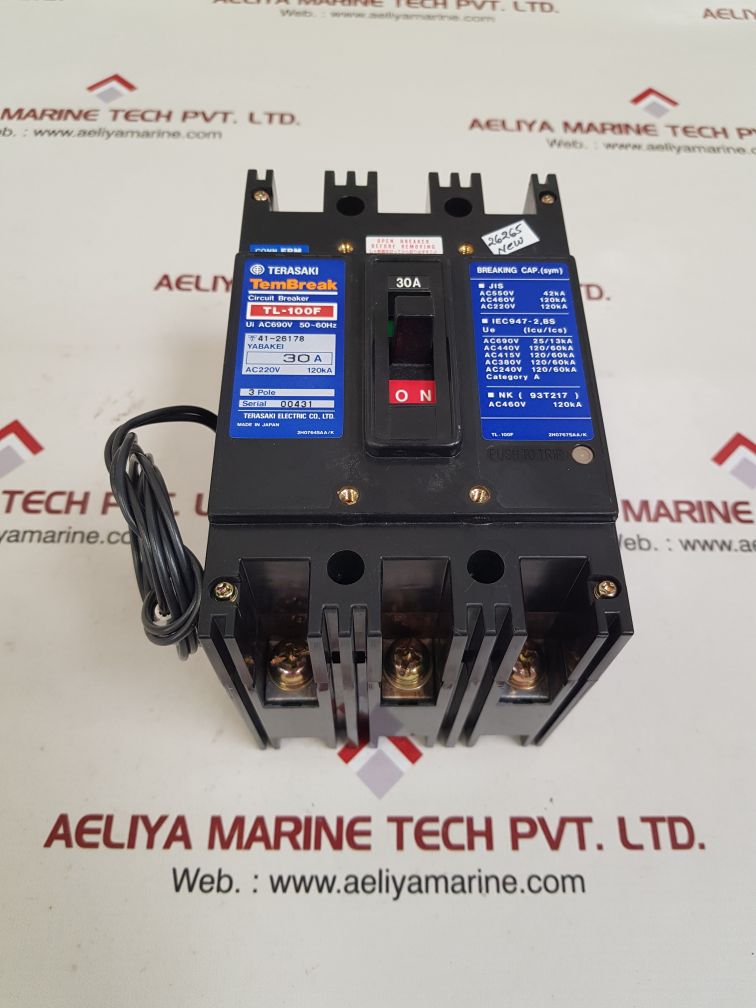

| Product Name | Terasaki TL-100F 3-Pole Circuit Breaker 690V AC 30A |
| Manufacturer | Terasaki Electric Co., Ltd. / Hyundai Heavy Industries Co., Ltd. |
| Series | TemBreak |
| Type | Current Limiting Circuit Breaker |
| Model | TL-100F |
| Rated Voltage | AC 690V 50~60Hz |
| Part Number | 41-26178 |
| Brand | Yabakei |
| Rated Current | 30A |
| Breaking Capacity | AC220V 120kA |
| Poles | 3 Pole |
| Related Models | 2HO764SAA/K, 2HO767SAA/K |
| Approval | NK (93T217), IEC 947 |

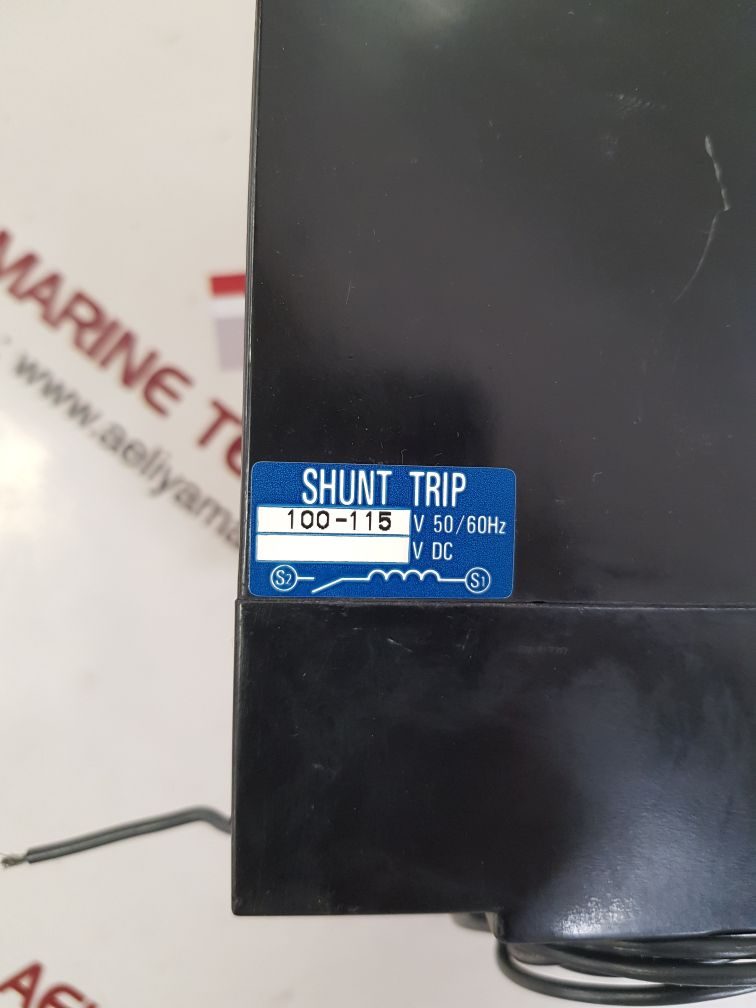

| Additional Feature | Shunt Trip (AC100-115V) |
| Equipment | Group Starter Panel |

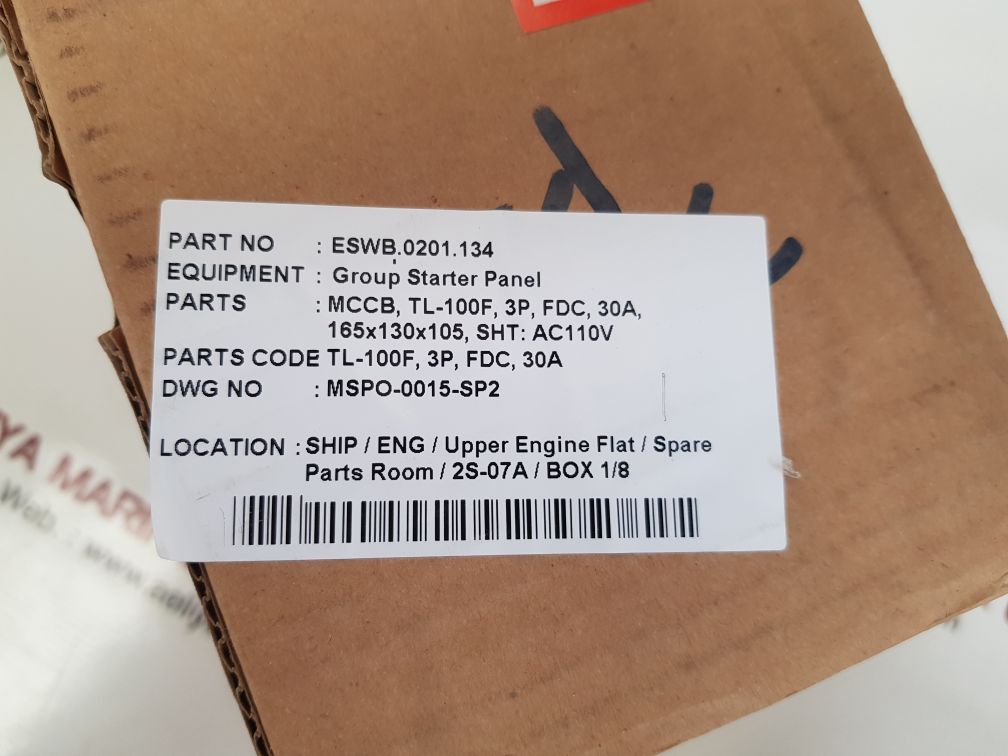

| Part Details | MCCB, TL-100F, 3P, FDC, 30A, 165x130x105, SHT: AC110V |
| Parts Code | TL-100F, 3P, FDC, 30A |
| Country of Origin | Japan |
| Weight | 3.200 kg |
Key Features of Terasaki TL-100F:
High Voltage Capacity: Rated at a maximum of 690V AC, ideal for high-power industrial applications.
Current Rating: 30A current capacity ensures the best protection for equipment connected.
3-Pole Design: Ideal for three-phase systems, ensuring safe and balanced power supply.
Compact and Durable: Optimized with space-saving size without sacrificing performance or reliability.
Compliance: Adheres to strict international standards such as IEC 947, ensuring reliability and safety.
Shunt Trip Facility: Equipped with optional accessories such as shunt trip for remote tripping applications.
Applications of Terasaki TL-100F:
Industrial Plants: Guards motors, machinery, and electrical panels against faults and overloads.
Marine Systems: Applicable to shipboard electrical systems where rugged, high-reliability breakers are needed.
Building Infrastructure: Guarantees secure power distribution in commercial buildings and high-rise buildings.
Renewable Energy Systems: Offers essential circuit protection in solar and wind energy systems.
Automation Panels: Often applied to starter panels and control cabinets demanding accurate fault isolation.
Why Choose Terasaki TL-100F?
Choosing Terasaki’s TL-100F means choosing a product backed by decades of engineering excellence. Terasaki Electric Co., Ltd., known for its high-quality circuit protection devices, has engineered the TL-100F to meet the highest standards of performance and safety. Its reliable operation helps minimize downtime, prevent costly equipment damage, and ensure operational continuity even in the harshest environments.
