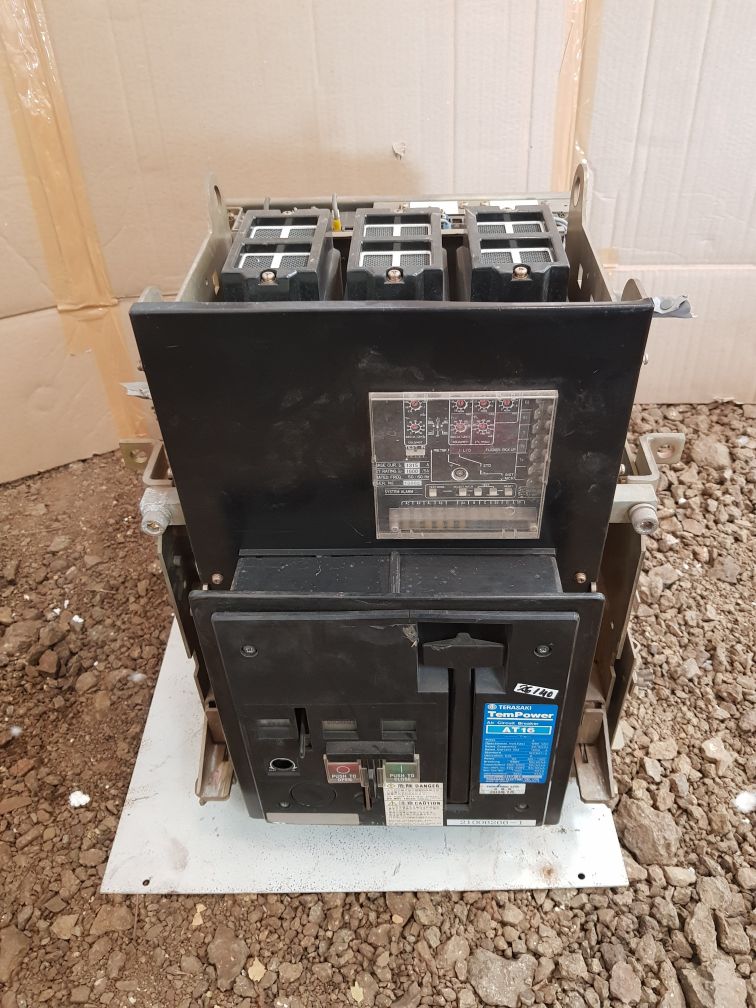

Terasaki tempower at16 air circuit breaker

Terasaki tempower at16 air circuit breaker

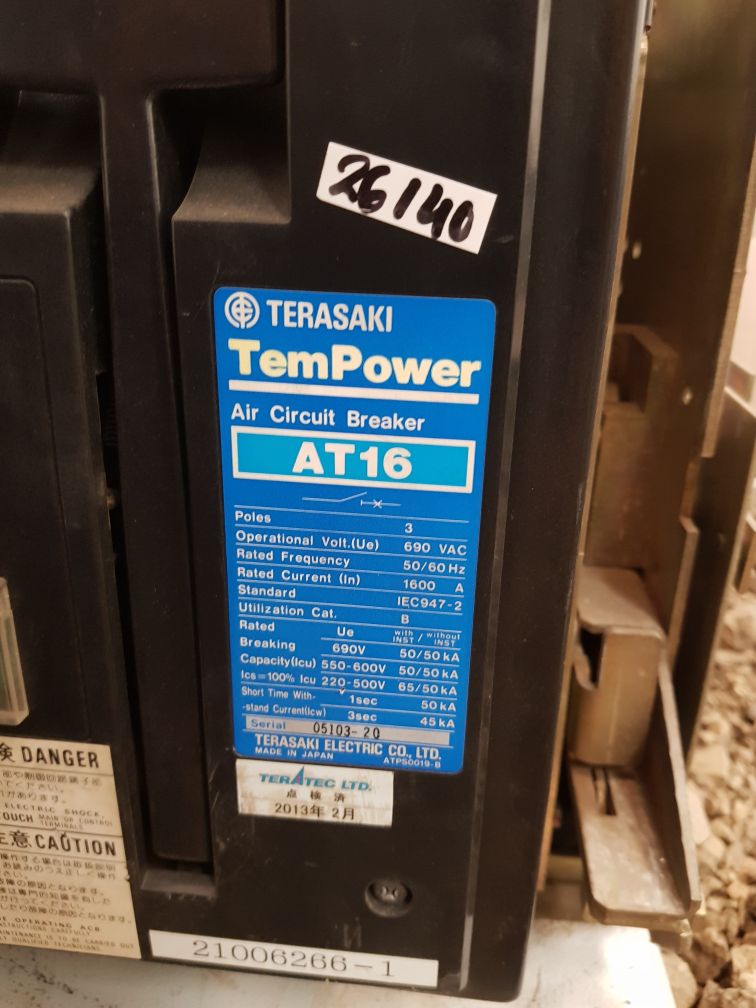

terasaki electric co., ltd.
teratec ltd.
tempower
air circuit breaker
at16
poles: 3
operational volt.(ue): 690 vac
rated frequency: 50/60hz
rated current (in): 1600 a
standard: iec947-2
utilization cat.: b
rated ue with / without
inst inst
breaking 690v 50/50ka
capacity
(icu) 550-600v 50/50ka
ics=100%
icu 220-500v 65/50ka
short time with- 1 sec 50ka
-stand current (icw) 3sec 45ka
atps0019-b
21006266-1

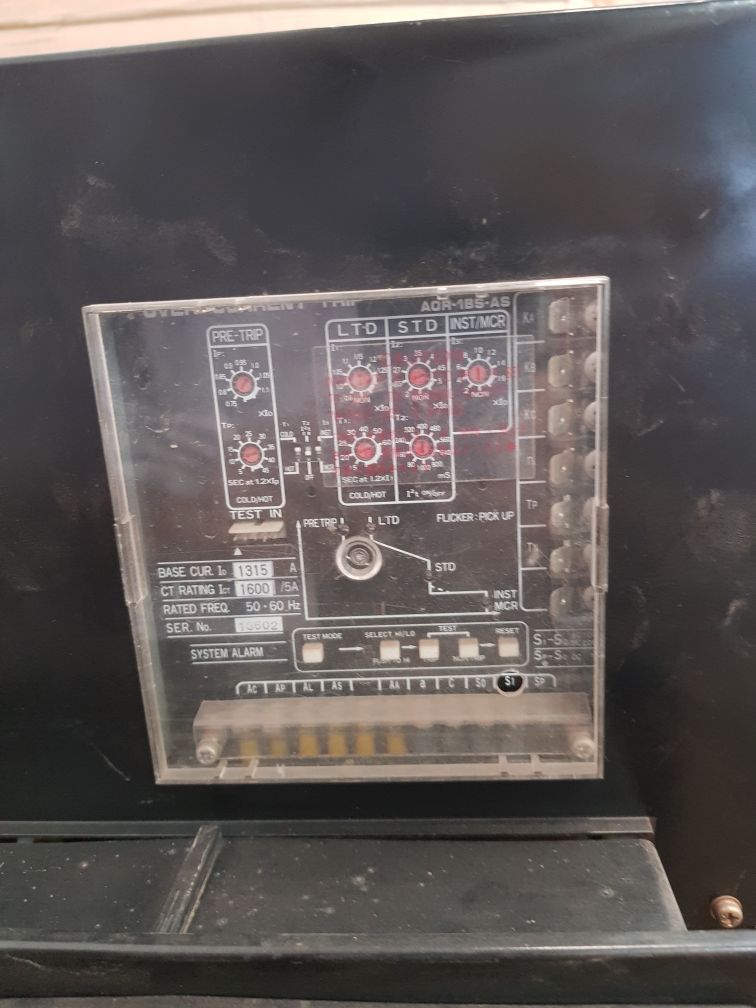

over current trip
aor-1bs-as
base cur. io: 1315 a
ct rating ict: 1600/5a
rated freq.: 50-60 hz
made in japan
