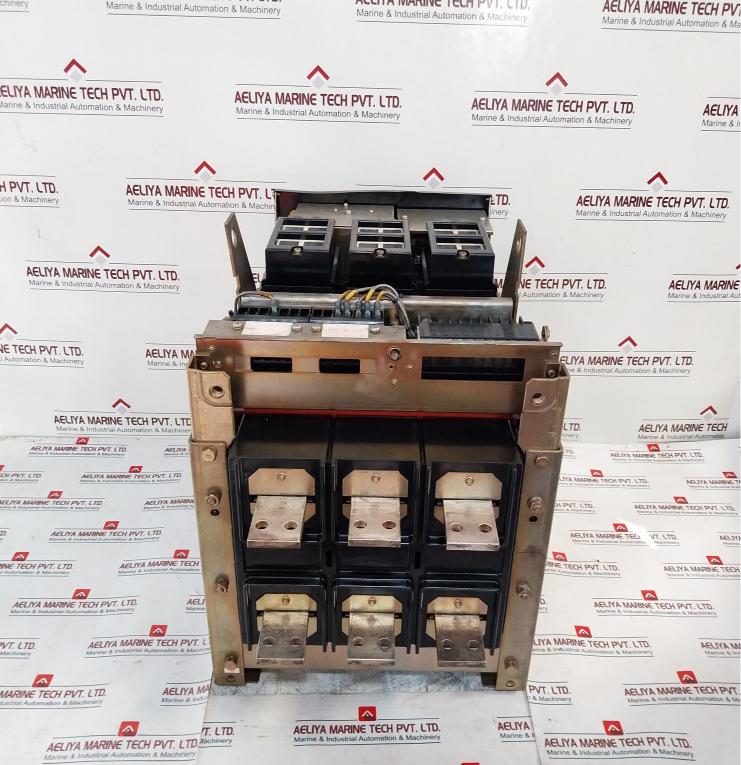

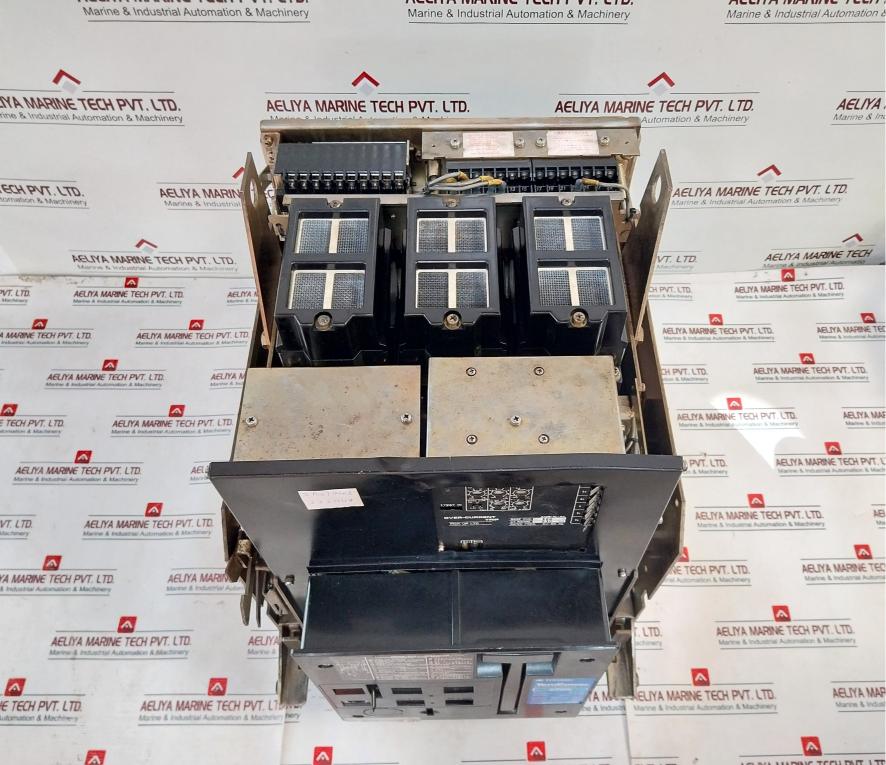

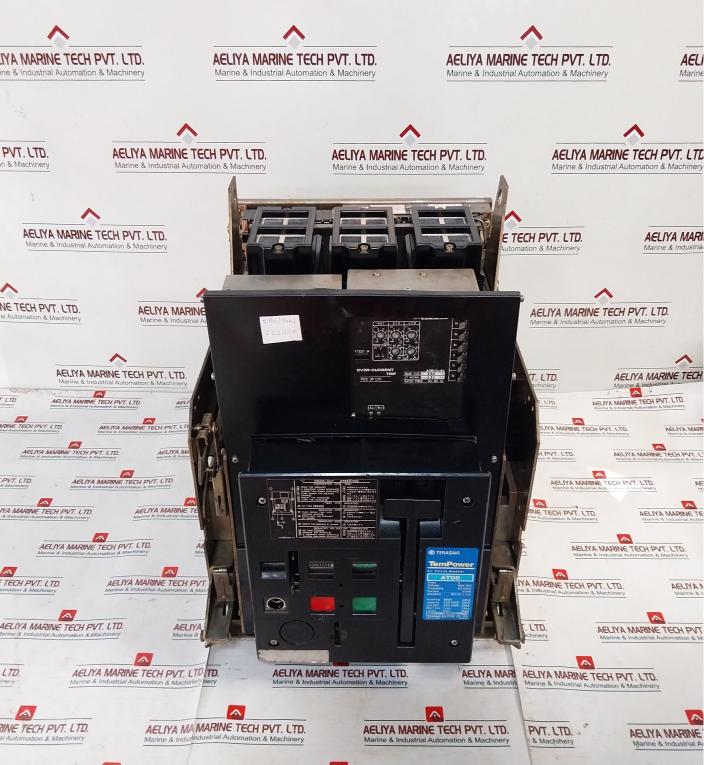

Terasaki Matsushita At06 Air Circuit Breaker

Terasaki Matsushita At06 Air Circuit Breaker
Terasaki Electric Co., Ltd.
Matsushita
Tempower
Air Circuit Breaker
At06
Poles: 3
Voltage: 660vac
Frequency: 50/60hz
Current: 630a
Standard: Iec157-1-p-2
Breaking: 660v 22ka
Capacity: 550-600v 30ka
(With Inst): 220-500v 35ka
Short Time Current:
1 Sec. 35ka
3sec. 30ka
Nqh9316a1
Uvt Trip Device
Type: Aut-1b D
Voltage: Ac100~120
Btus0001a1
K-561297-00
Auxiliary Sw.
Axt-1ab
10p 5a 5b
Rqu2312a1
Btds0004-a1
Over Current Trip
Aor-1l-al
Base Cur: Io: 500a
Ct Rating: Ict: 630/5a
Magnet Hold Trigger
Att-1
Ta-8472
Av1405
16a 380v Ac
10625
Auxiliary Sw.
Axt-1x
3a3b
Rqu2057a1
Accessories
Closing:
Motor Charging:
Ac 240v Dc
Ocr:
Over Current Trip:
Magnet Inst Trip:
L5 Ka
Tripping:
Under Voltage Trip:
Ac110v Dc
Shunt Trip:
Ac V Dc 24
Atps0005a2
Position Sw.
Alt-1pt
At Test
On: 61-62
64-65
Off: 61-63
64-66
Alt-2pd
At Isolated
On: 81-82
84-85
Off: 81-83
84-86
Ac 1500v At Terminals “22” To “28”
Ac 500v At Terminals “1” To “4”
Btas0010b1
Pqt9521a2
Made In Japan
Weight : 78 Kg
Ref No : 111447
