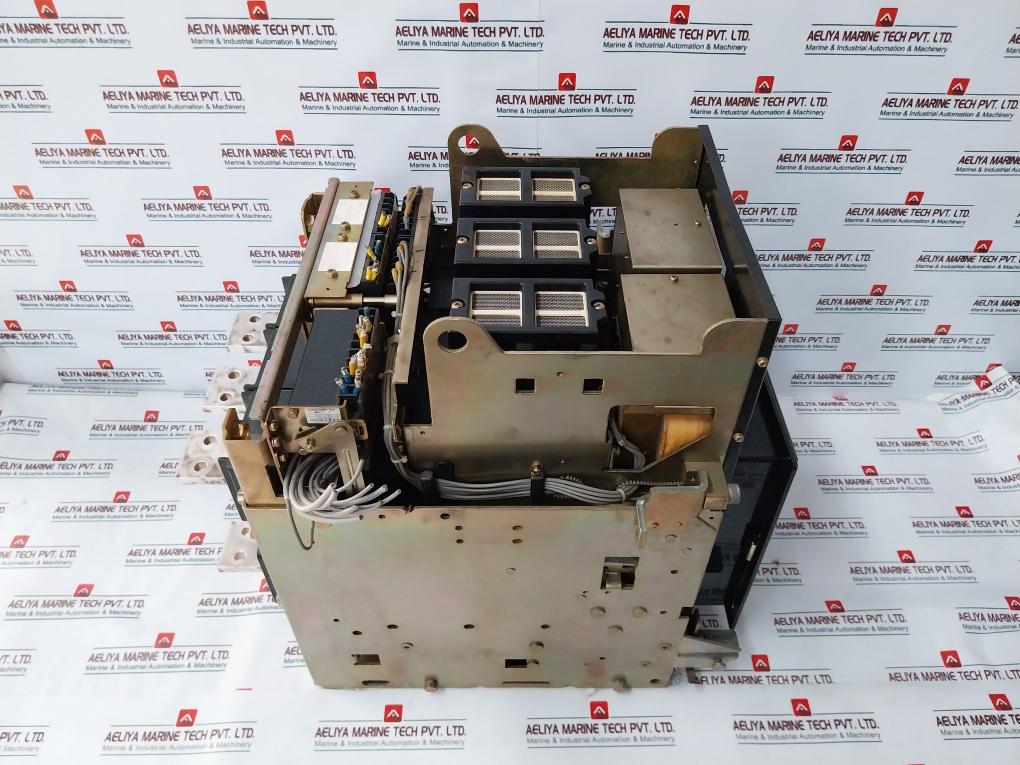

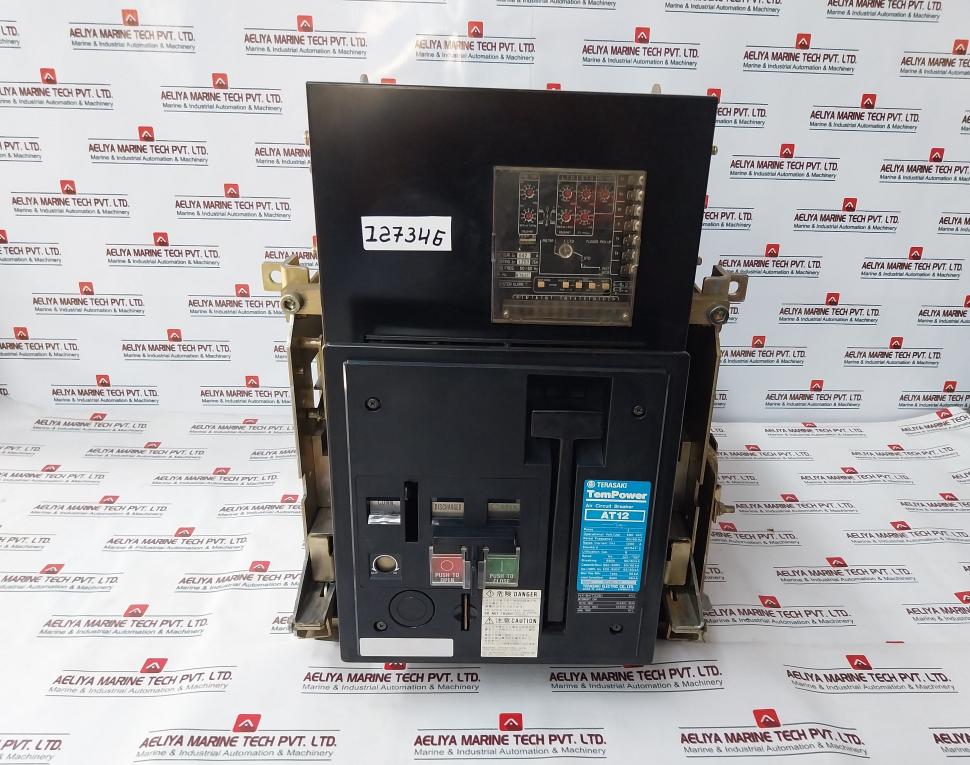

Terasaki Electric At12 Circuit Breaker 690vac

Terasaki Electric At12 Circuit Breaker 690vac
Terasaki Electric Co.,ltd
Tempower
Air Circuit Breaker
At12
Poles 3
Operational Volt (Ue): 690vac
Rated Frequency: 50/60hz
Rated Current (In): 1250a
Standard: Iec947-2
Utilization Cat: B
Ics=100% Icu
Short Time With: 1sec 50ka
Stand Current (Icw): 3sec 45ka
Atps0017-b
Nk (84t225)
With Inst: Ac480v 65ka
Without Inst: Ac480v 50ka
Amb Temp: 45°c
Btas0010-c
Over-current Trip
Aor-1bs-as
Base Cur Io: 642a
Ct Rating Ict: 1250/5a
Rated Freq: 50-60hz
Ac100~250v
Dc100~250v
Dc 24v
Magnet Hold Trigger
Att-1
Ta-8472-1-1
Auxiliary Sw
Axt-1c
2a-2b
Btxs0006-a
Av130502
16a380v Ac
70613
Ac110v
Ø0.32
1700t
At12 3p
Motor Charging (Ac110v)
Io=642a
Ict=1250a/5a
Under Volt Trip: (Ac110v)
Aux Sw 5a5b
N231192-001
97141-33
Current Transformer
Act-113b
1250a/5a
Auxiliary Sw
Axt-1ab
1op 5a 5b
Rqu2312a1
Made In Japan
Weight : 81 Kg
Ref No : 127346
