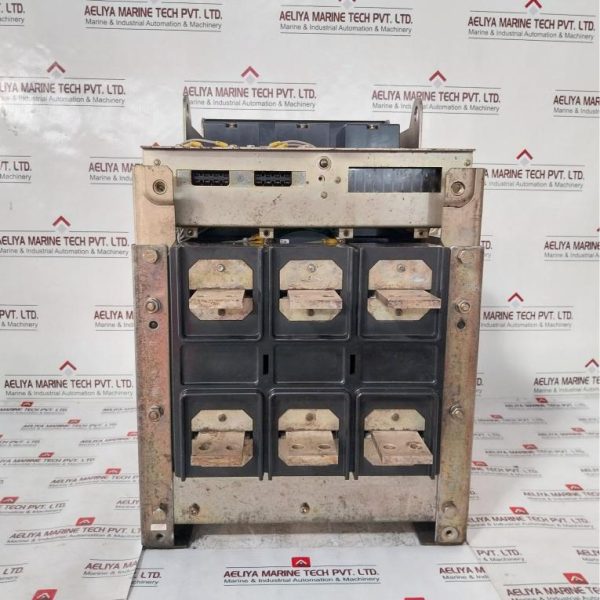

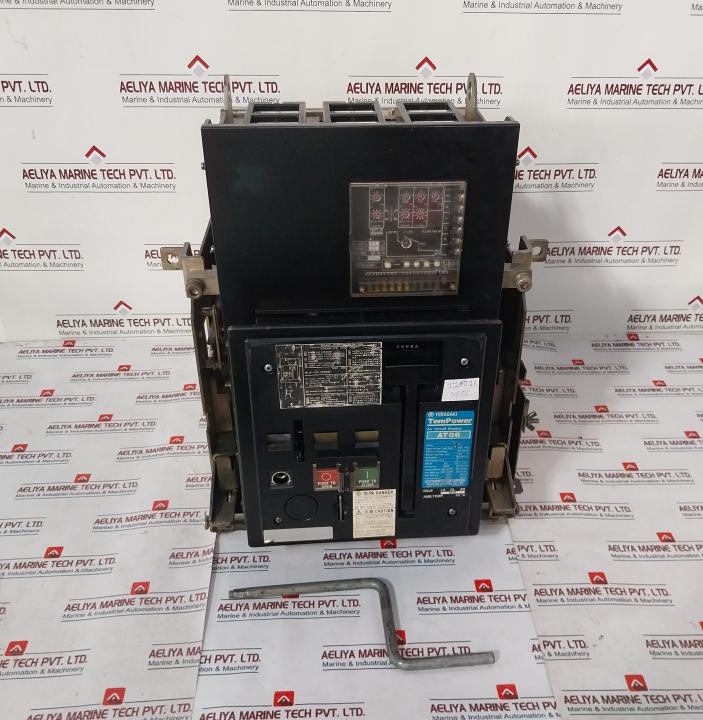

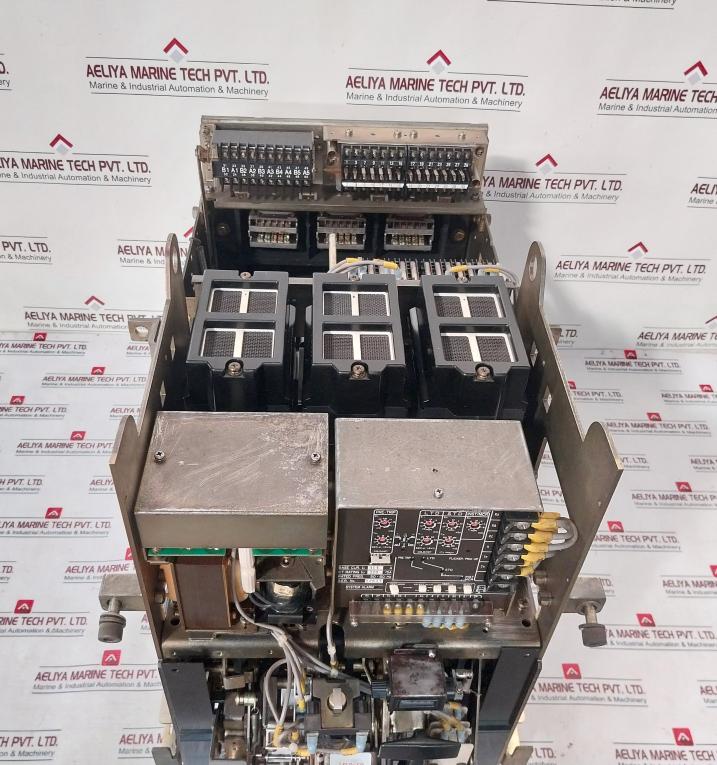

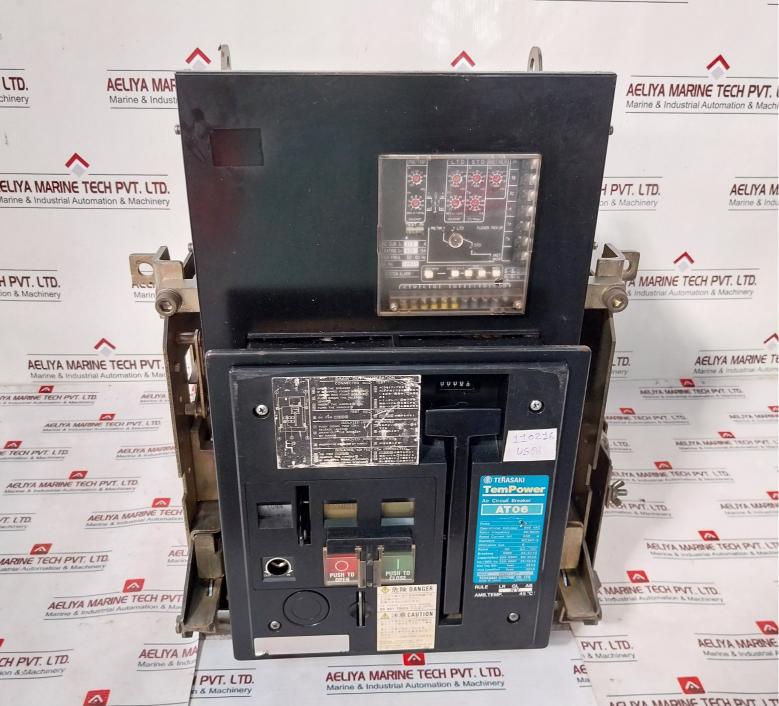

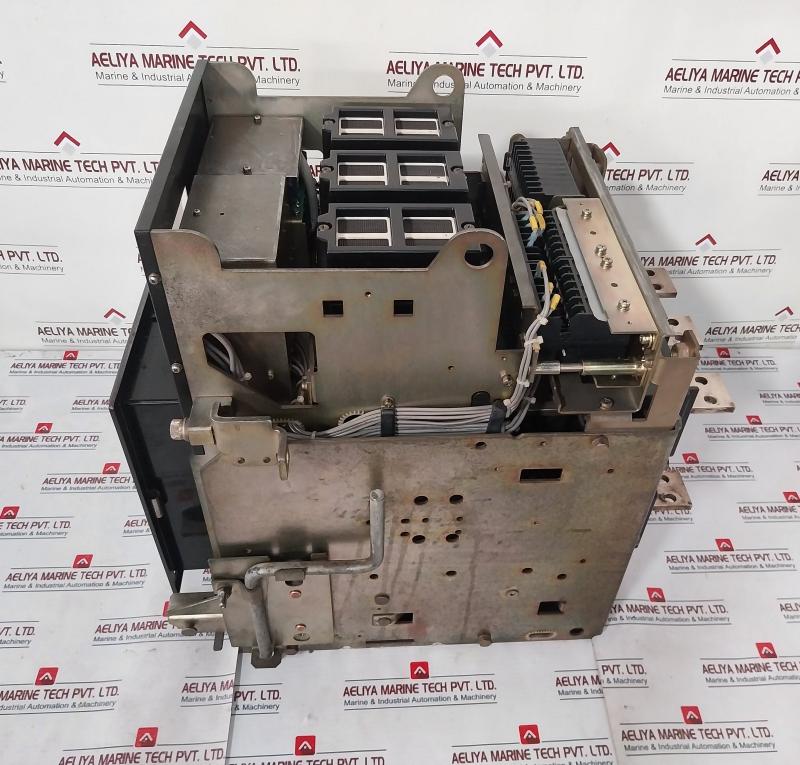

Terasaki Electric At06 Air Circuit Breaker 690 Vac

Terasaki Electric At06 Air Circuit Breaker 690 Vac
Terasaki Electric Co., Ltd.
Tempower
Air Circuit Breaker
At06
Poles: 3
Operational Volt.: 690 Vac
Rated Frequency: 50/60hz
Rated Current: 630a
Standard: Iec947-2
Utilization Cat. B
Ics=100% Icu
Short Time With-stand Current (Icw):
1 Sec 35ka
3 Sec 30ka
Atps0015-n
Amb. Temp. 45°c
Over-current Trip
Aor-1bs-as
Base Cur.: Io: 314a
Ct Rating: Ict: 320/5a
Rated Freq.: 50-60hz
Ac 100~250v
Dc 100~250v
Magnet Hold Trigger
Att-1
Auxiliary Sw.
Axt-1c
2a 2b
Btxs0006-a
Axt-1ab
10p 5a 5b
Rqu2312a1
Position Sw.
Alt-2pd
Alt-1pt
Accessories
Motor Charging: Ac 230v
Under Voltage Trip: Ac220v
05525870010
02143-44
Made In Japan
Weight : 78 Kg
Ref No : 110216
