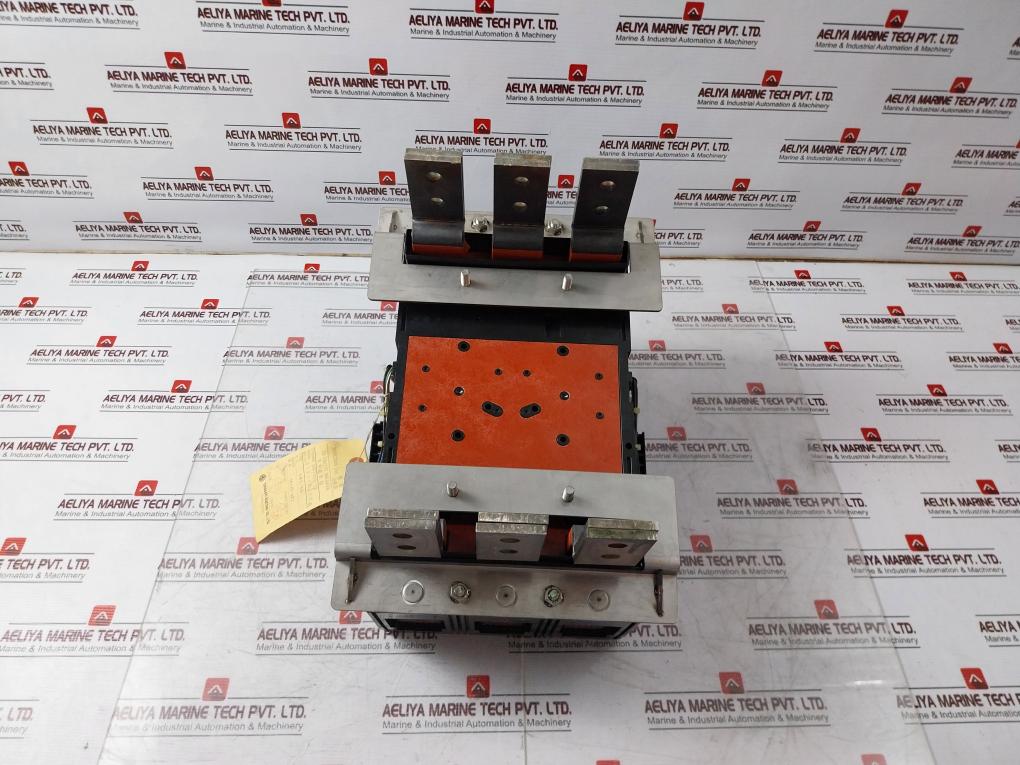

Terasaki Ame8b Air Circuit Breaker

Terasaki Ame8b Air Circuit Breaker
Terasaki Electric Co., Ltd.
Air Circuit Breaker
Type: Ame8b
Poles: 3
Rated Operational Volt.: Ac460v
Frequency: 50/60hz
Rated Cur. (In): 642a
Jis C 8372
Breaking Cap.: Ac 460v
With Inst: 30ka
Without Inst: 15ka
Nk (94t226)
1h0114saa/k
Ct Rated Cur. Ict: 800/0.05a
Rated Cur.: In: 642a
Long Time T1: 20 Sec
I1: 1.15 X In
At 1.2 X I1
Short Time T2: 0.12 Sec
I2: 2.5 X In
At I2 Or Higher
Instantaneous I3: 15 X In
Aux. Switch
Ac480v 1a
Ac250v 5a
Dc250v 0.3a
Dc125v 0.6a
Axb3
Axa3
Axc3
Al. Switch
Alb1
Ala1
Alc1
2a0548sab
Uvt Control Device
Ac 450v, 50/60hz
1a0321saa
3p
45°c
Made In Japan
Weight : 25.500 Kg
Ref No : 114061
