| Attribute | Value |
|---|---|

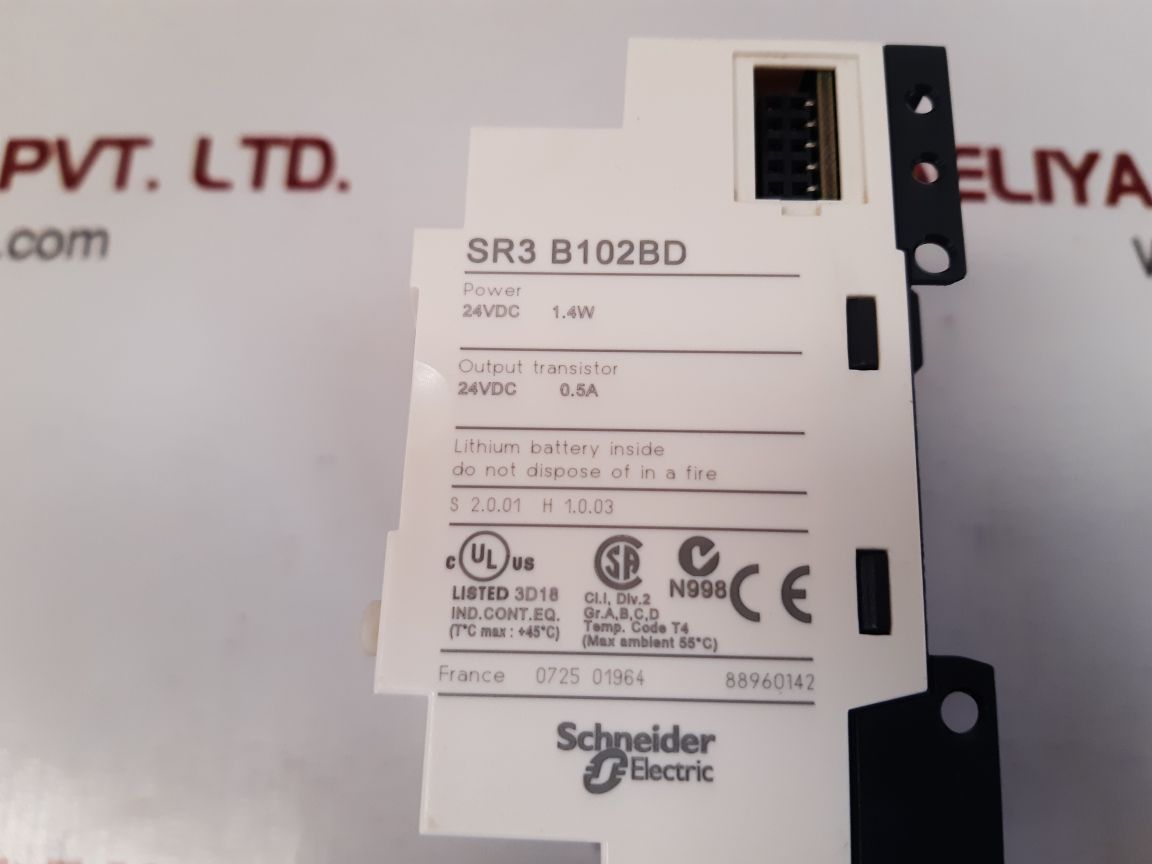

| Brand | Telemecanique / Schneider Electric |
| Model | SR3 B102BD |
| Power | 24VDC 1.4W |
| Output Transistor | 24 VDC 0.5A |
| Inputs | Analog or 24VDC |
| Software Version | S 2.0.01, H 1.0.03 |
| Classification | CL.I, Div. 2 |
| Temperature Code | T4 |
| Max Ambient Temperature | 55°C |
| Part Numbers | 0725 01964, 88960142 |

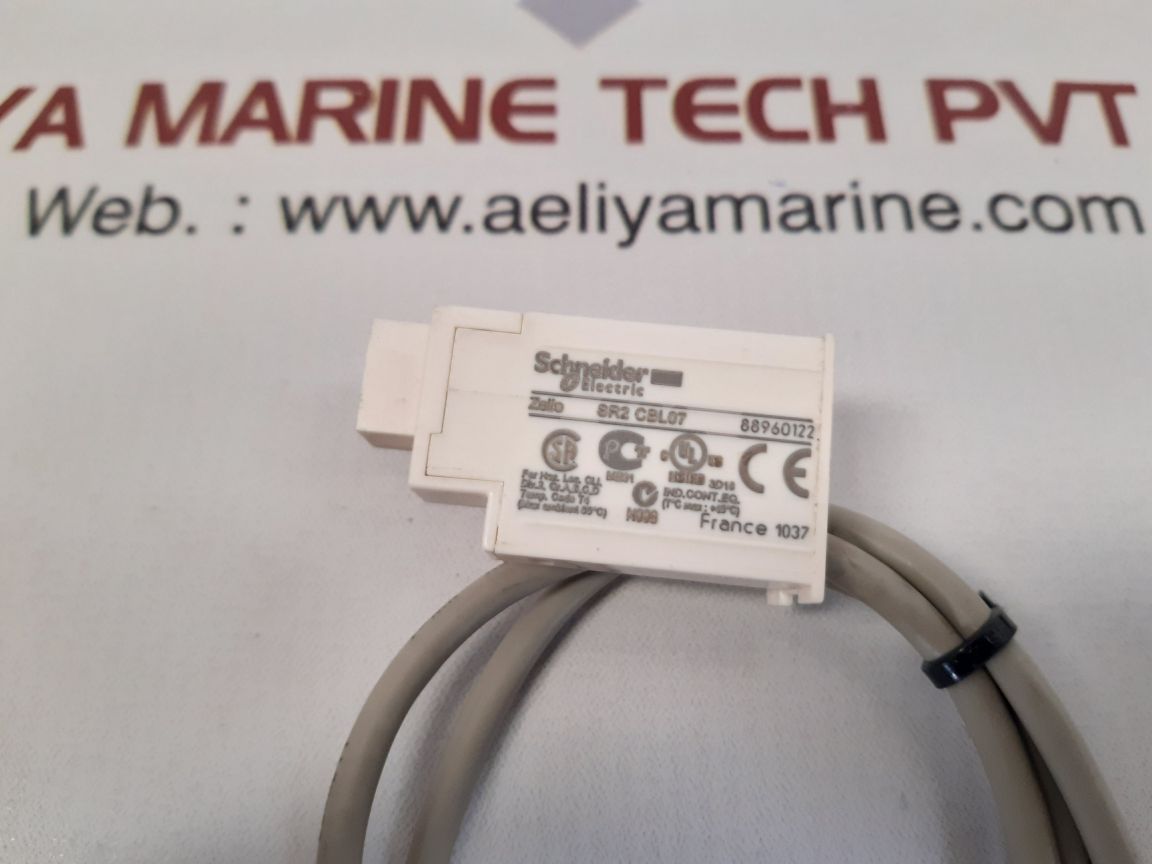

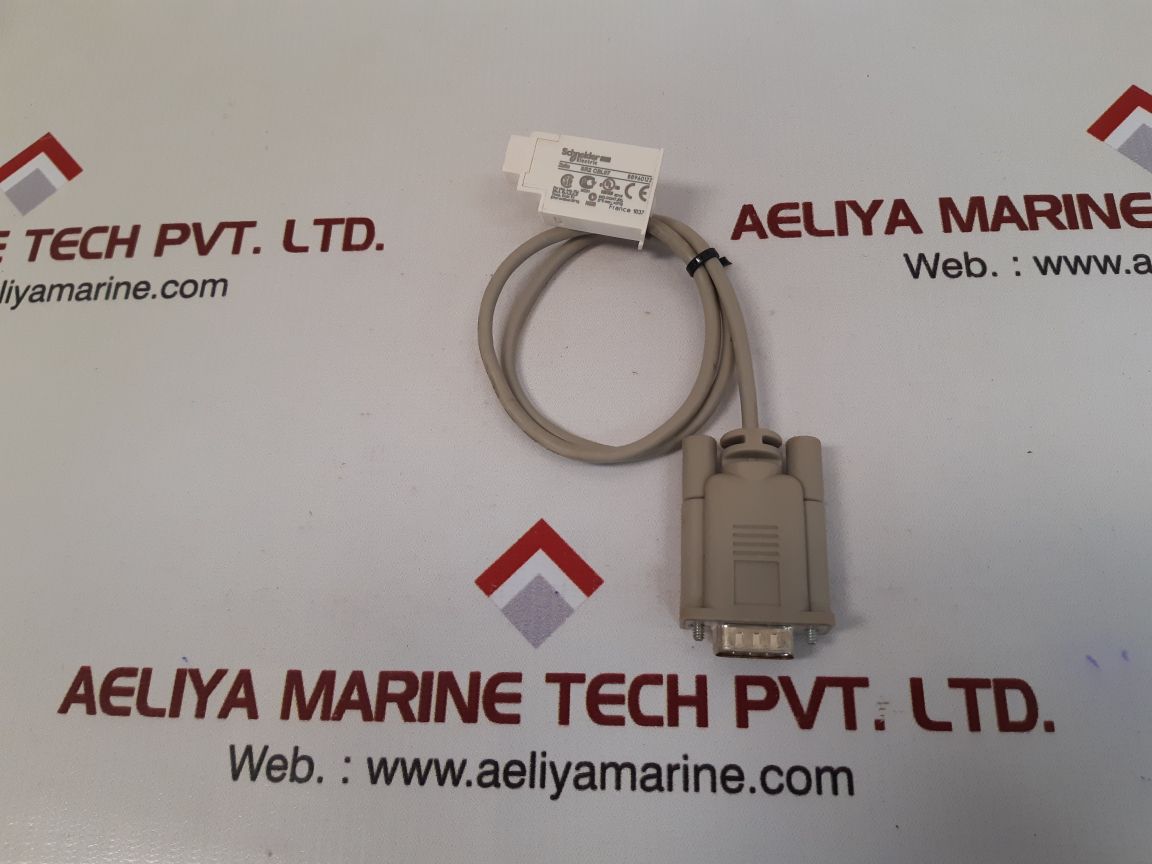

| Associated Cable | Zelio SR2 CBL07 |
| Cable Part Number | 88960122 |
| Country of Manufacture | France |
| Weight | 210 g |

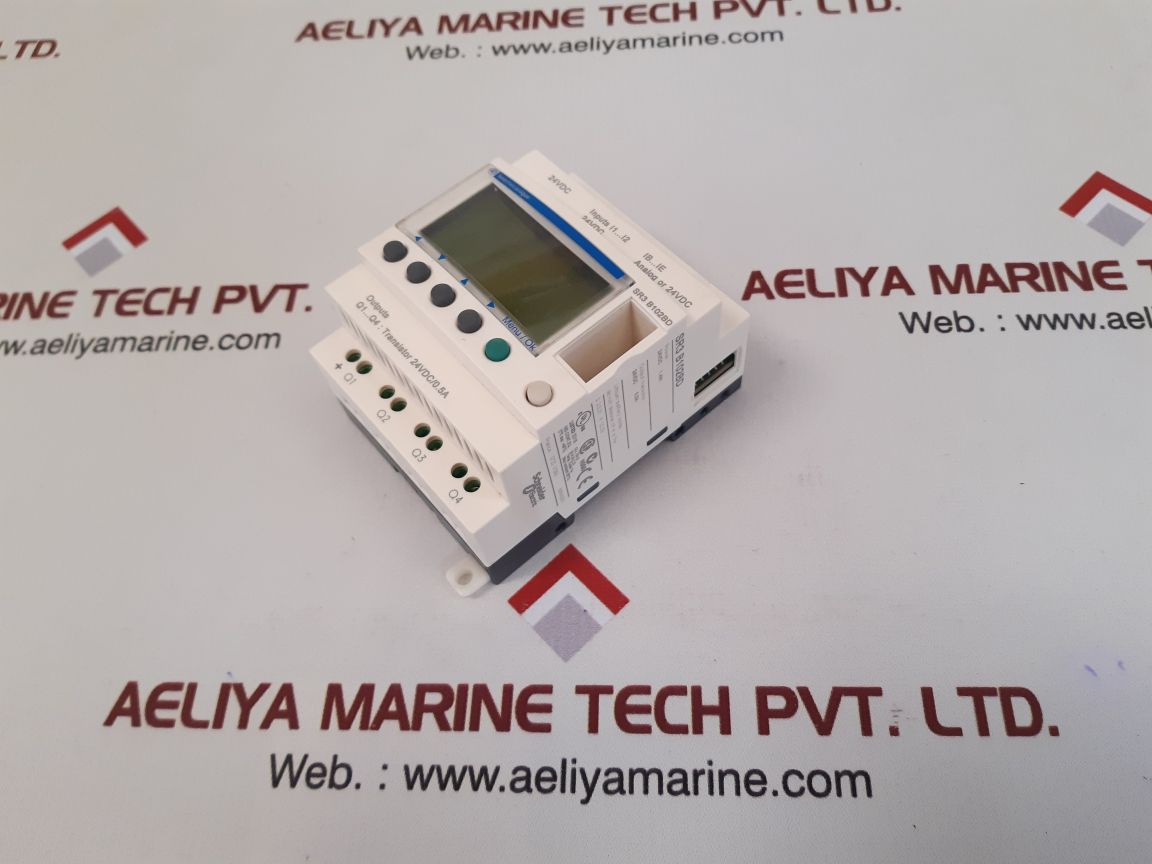

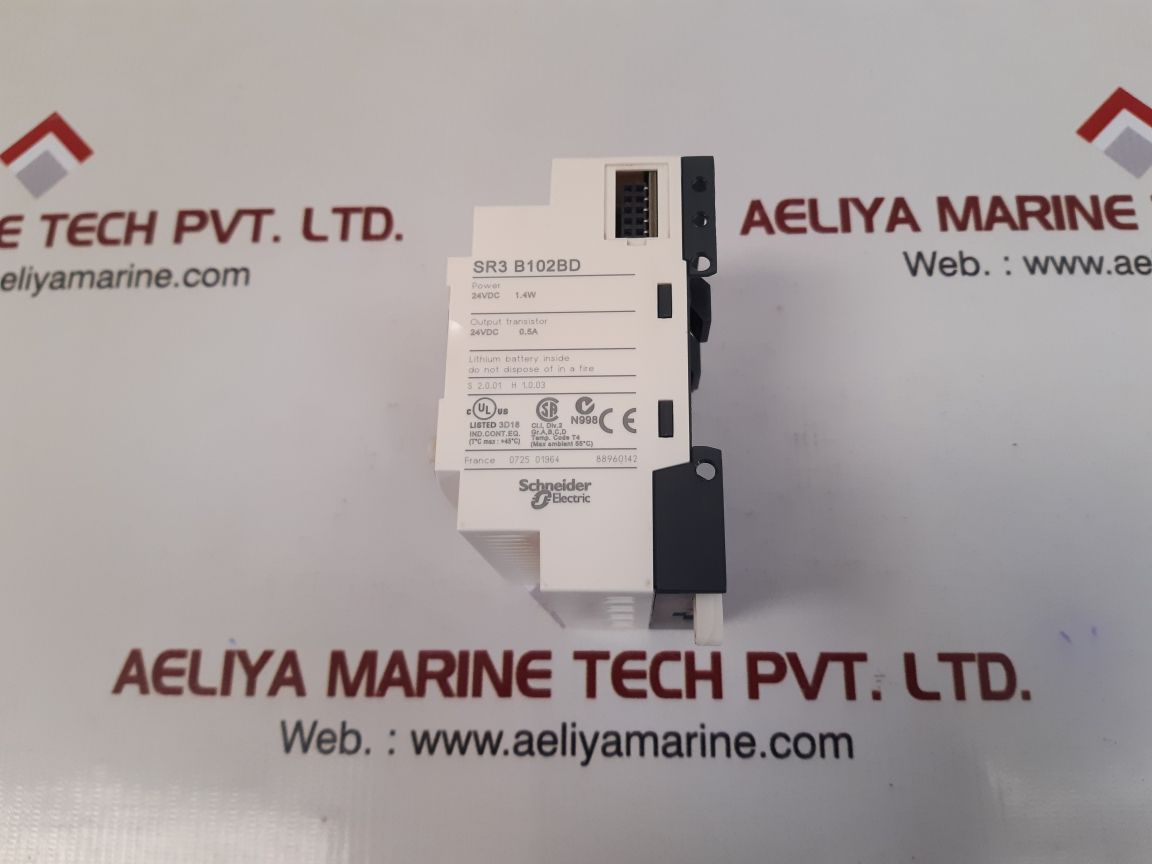

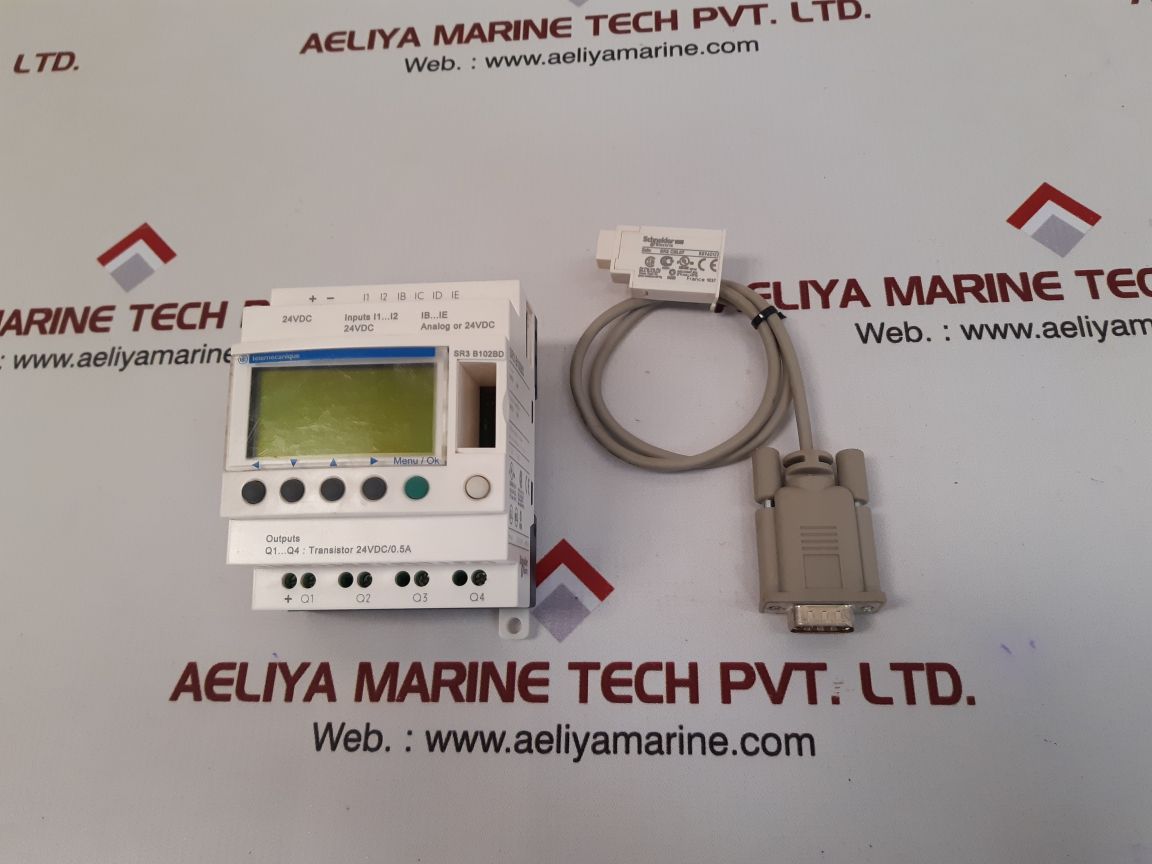

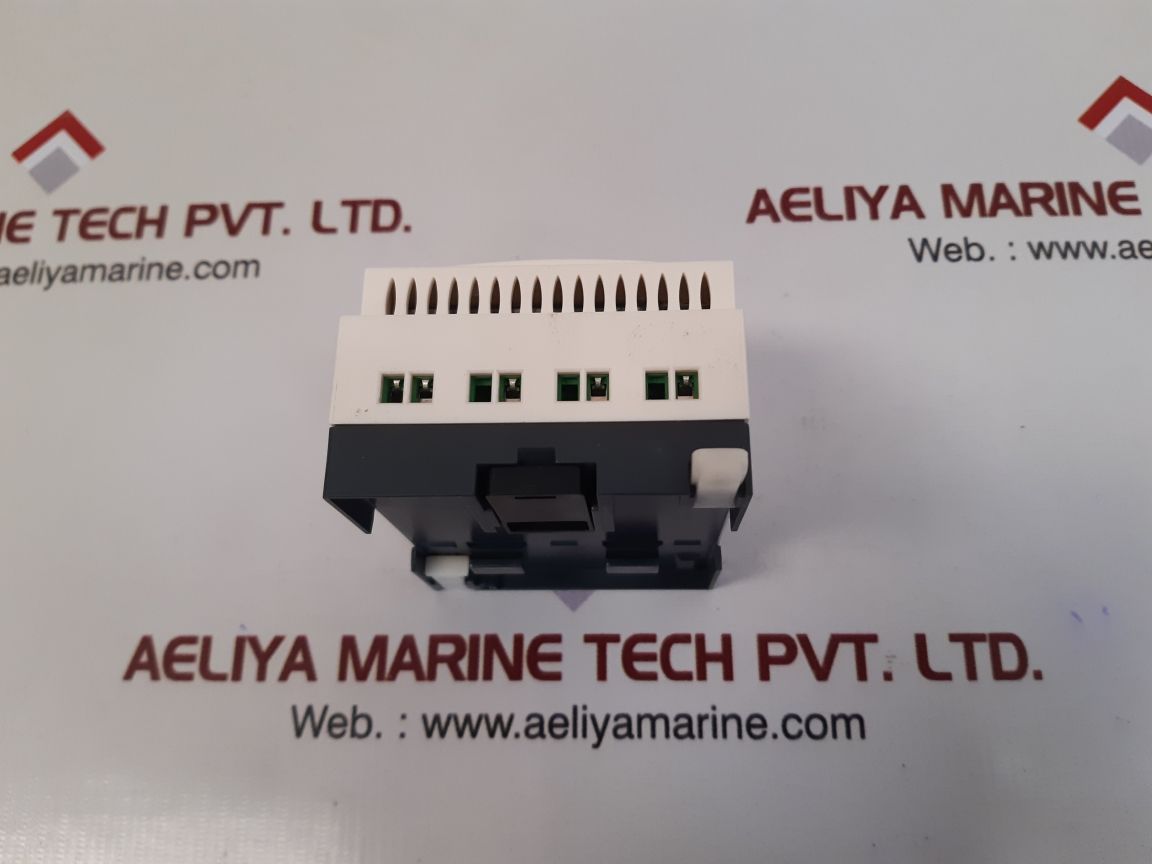

What is the Telemecanique/Schneider SR3 B102BD with SR2 CBL07 Cable Set?
The Telemecanique/Schneider SR3 B102BD is a programmable logic relay (also referred to as a Nano PLC) used to control small-scale machinery and straightforward control systems. With the addition of the SR2 CBL07 cable, it allows for rapid and easy programming using a PC.
This small device is from Schneider Electric’s Zelio Logic family and designed to simplify operations for industrial, marine, and building automation.

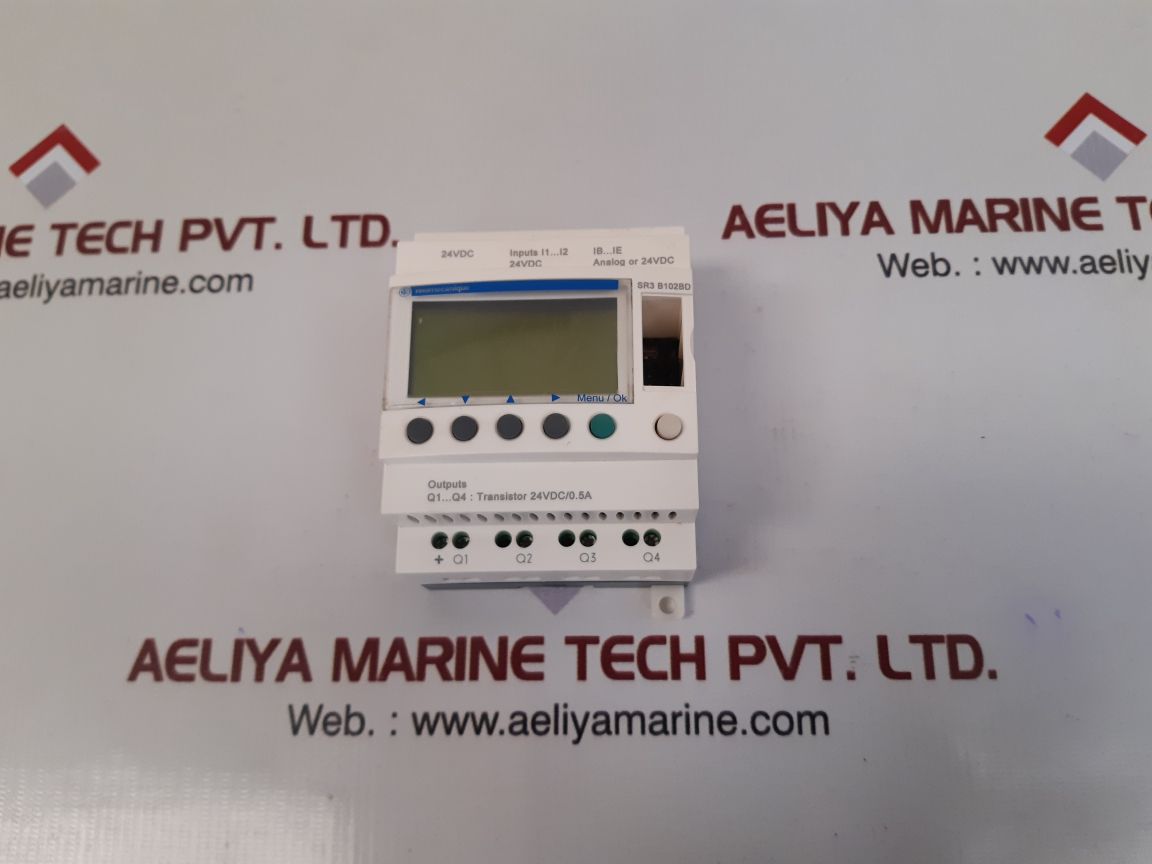

The SR3 B102BD is a 10 I/O (6 inputs and 4 outputs) DC transistor output logic relay operating on 24V DC, well-suited for quicker switching and longer lifespan.
Applications of Schneider SR3 B102BD Logic Relay
Schneider SR3 B102BD logic relay finds applications in various automation applications across different industries, including:
Industrial Automation
- Conveyor belt control
- Process machinery sequencing
- Simple manufacturing line automation
Marine Applications
- Bilge pump automation
- Fan control and engine room alarms
- Compact machinery control systems
Building Automation
- Lighting automation
- HVAC relay control
- Access control systems
OEM and Custom Machinery
- Perfect for small machinery manufacturers who require dependable and programmable automation with low footprint.
Why Use the SR3 B102BD with SR2 CBL07?
Programmable & Easy to Use: Easy ladder logic with Zelio Soft simplifies programming for technicians.
Quick Switching: Transistor outputs facilitate quicker operations with less wear than relays.
Cable Friendliness: Includes SR2 CBL07 cable for direct PC programming — reducing setup time.
No Data Loss: Embedded EEPROM preserves no data in case of power outages.
Flexible: Ideal for industries, ships, buildings, or any automation that does not require a full-size PLC.
Small & Rugged: Built to withstand small control panels and tough industrial conditions.
