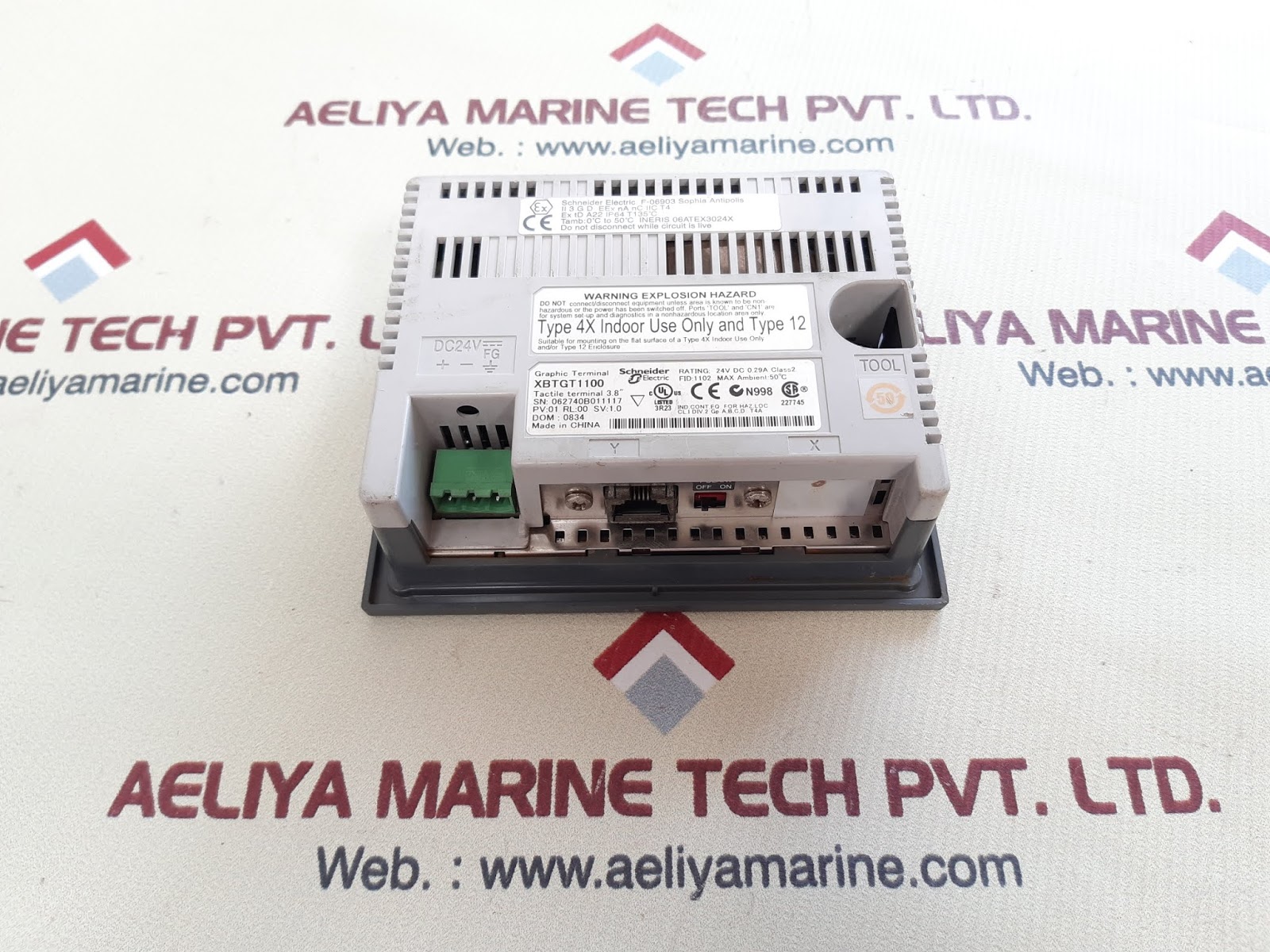

| Attribute | Value |
|---|---|
| Brand | Telemecanique / Schneider Electric |
| Model | XBTGT1100 |
| Series | Magelis |
| Manufacturer Location | F-06903 Sophia Antipolis |
| Explosion Protection | II 3 G D EEx na nc IIC T4 |
| IP Rating | EX TD A22 IP64 T135°C |
| Operating Temperature | 0°C to 50°C |
| ATEX Certification | INERIS 06ATEX3024X |
| Type | Graphic Terminal |
| Power Rating | 24V DC 0.29A Class 2 |
| Firmware | PV: 01 RL: 00 SV: 1.0 |
| Date of Manufacture | 0834 |
| Hazardous Location Rating | CL I DIV 2 GP A,B,C,D TA |
| Screen Type | Tactile Terminal 3.8″ |
| Weight | Approximately 300 grams |
| Country of Manufacture | Made in China |

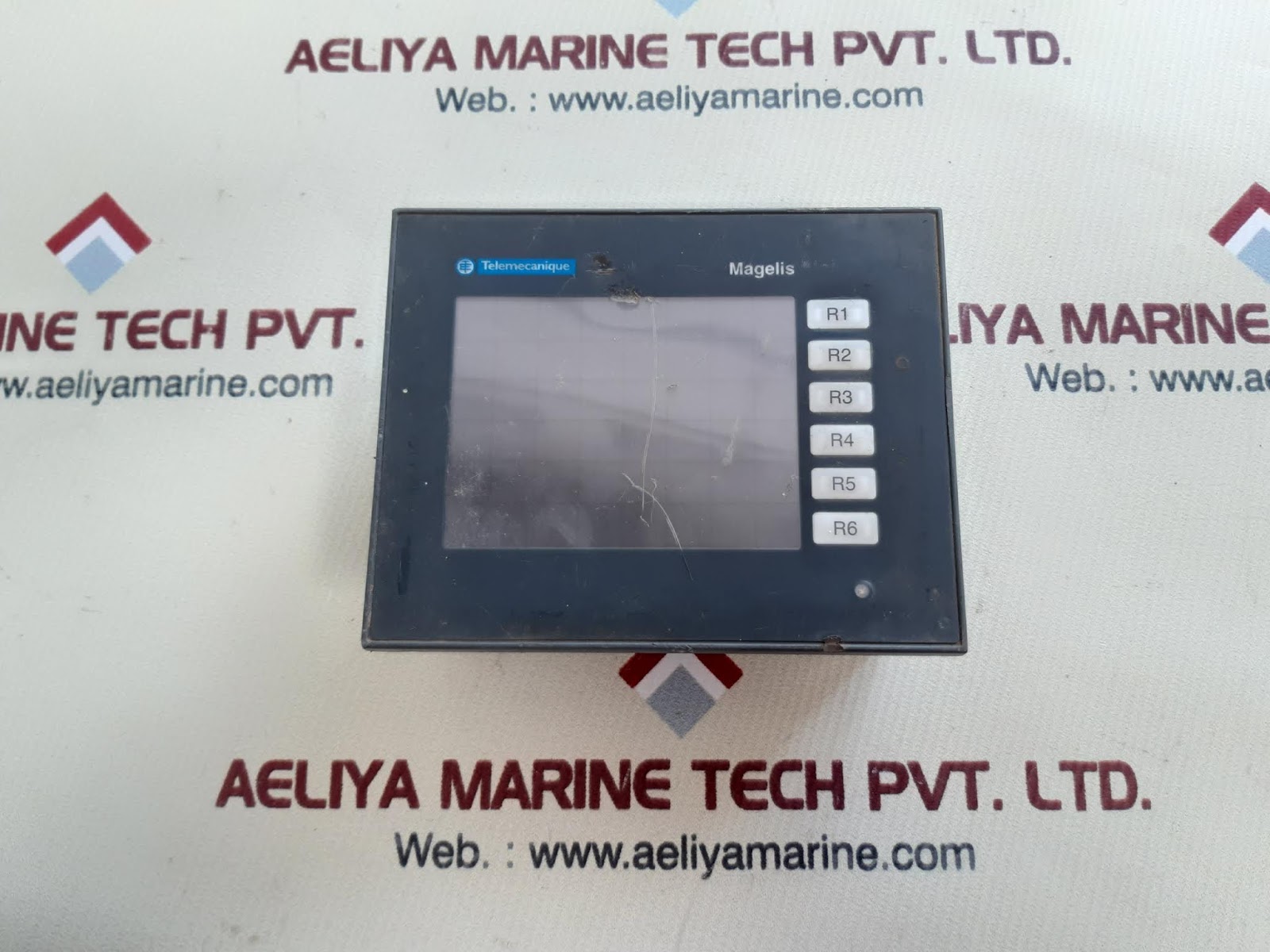

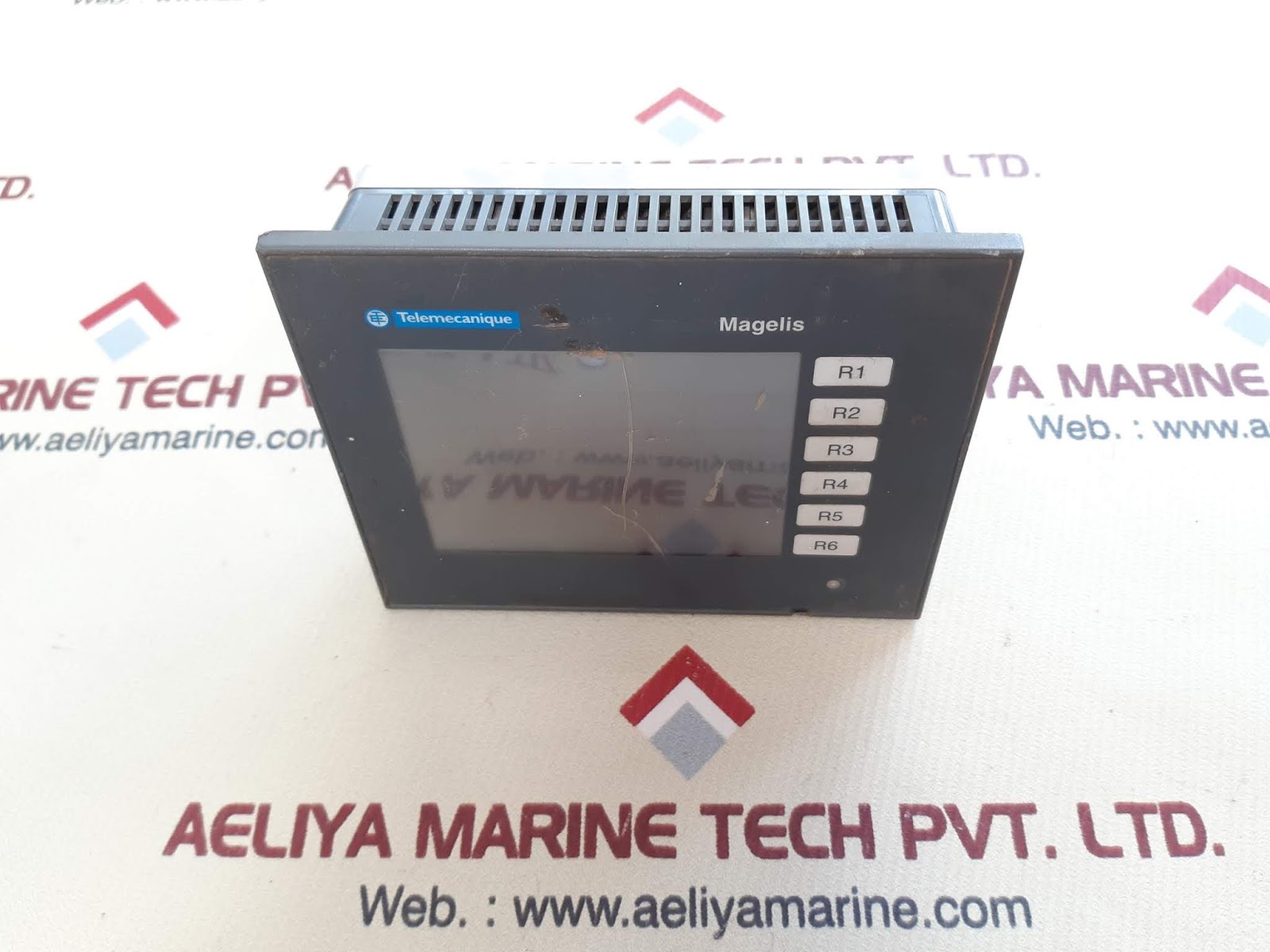

Overview of Telemecanique XBTGT1100
Schneider Electric XBTGT1100 is a member of the Magelis HMI family, specifically developed for better operator control and interaction with industrial equipment. It provides high-performance visualization, high-quality connectivity, and easy-to-use programming, making it a perfect choice for industrial automation systems.
Key Features:
Compact & Tough: Made to endure industrial conditions.
Touch Screen Interface: Offers a friendly user interface.
High Resolution Display: Provides clear visualization of process information.
Multiple Communication Ports: Supports serial and Ethernet communications.
Easy Integration: It is compatible with different PLCs and automation software.
Effective Data Logging & Management: Provides effective control and analysis of industrial processes.
Technical Specifications
For its compliance with industry needs, below are some of the essential technical specifications of the XBTGT1100:
Display Size: 5.7 inches
Resolution: 320 x 240 pixels (QVGA)
Display Type: 256-color STN LCD
Touchscreen Type: Resistive touchscreen
Processor: 32-bit RISC processor
Memory: 16 MB Flash / 32 MB RAM
Communication Ports: 1x RS232, 1x RS485, 1x Ethernet
Power Supply: 24V DC
Operating Temperature: 0°C to 50°C
Software Compatibility: Vijeo Designer software
Advantages of Using XBTGT1100
1. User-Friendly Interface
The touchscreen interface of the XBTGT1100 provides ease of use for operators to interact with machines. The high-resolution display provides smooth visibility of data and process control elements.
2. Reliable Performance
Built for use in industry, this HMI is stable and performs well under extreme conditions. Its rugged design gives it longer life and optimal performance in the long term.
3. Flawless Integration
With numerous communication ports, the device fits flawlessly with PLCs, SCADA, and other hardware used in industrial automation, so it is very versatile.
4. Improved Process Control
Operators are able to track real-time information, control processes, and troubleshoot system problems effectively through this HMI. This translates to enhanced productivity and minimized downtime.
5. Simple Configuration & Maintenance
Easy programming and configuration through Vijeo Designer software makes it simple for users to tailor the interface as per their industrial requirements.
Uses of XBTGT1100 Magelis HMI
The Schneider Electric XBTGT1100 finds application in several industries such as:
Manufacturing Facilities – Utilized for automation of machines and process control.
Food and Drink Industry – Used in batch processing and quality control.
Water Purification Plants – Used to monitor and control water purification processes.
Pharmaceutical Companies – Utilized for precise control in production lines.
Energy and Utilities – Used for monitoring energy consumption and smart grid applications.
