| Attribute | Value |
|---|---|

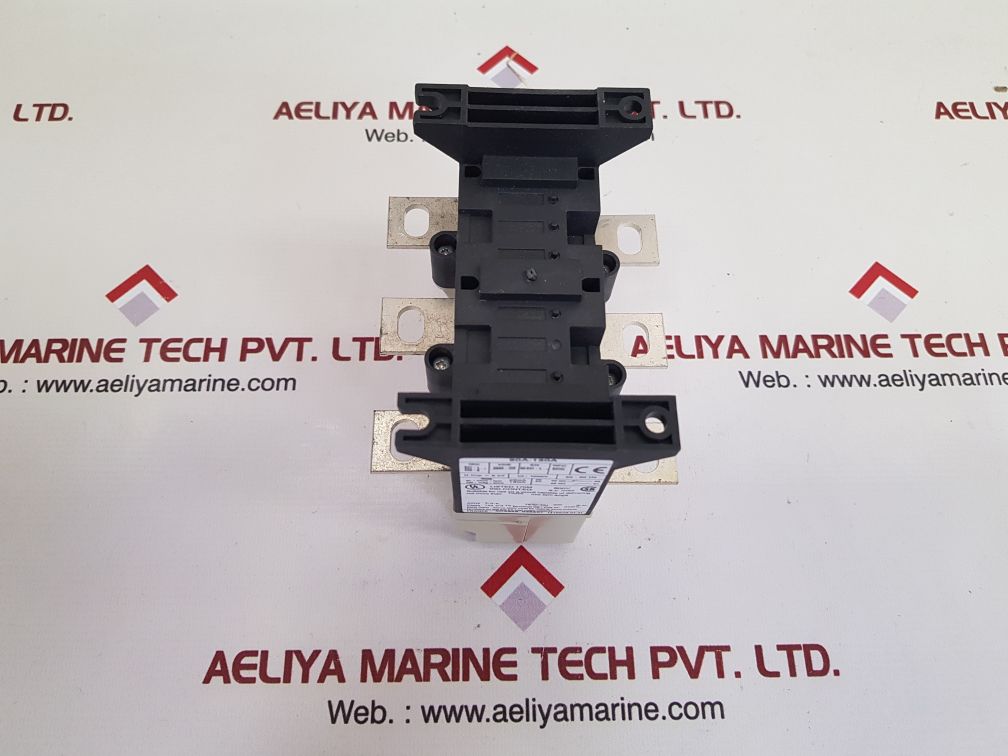

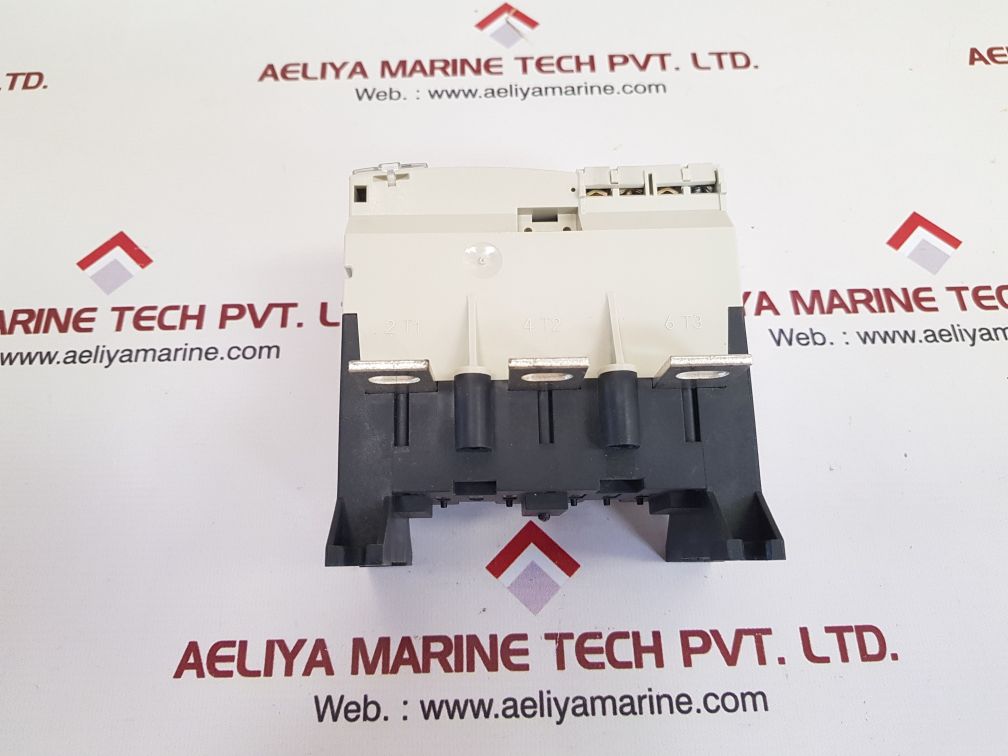

| Product Name | Telemecanique Lr9 F 5369 Class 10 Solid State Overload Relay 600V |
| Brand | Telemecanique |
| Model | Lr9 F 5369 |
| Function | Electronic Motor Protection |
| Class | Class 10 |

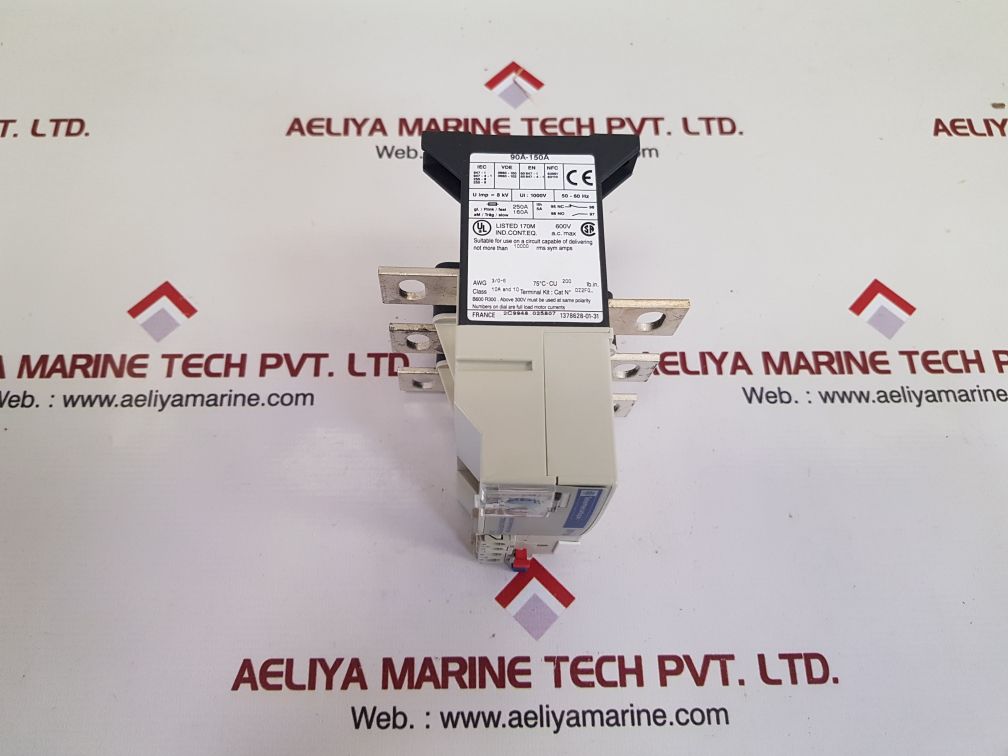

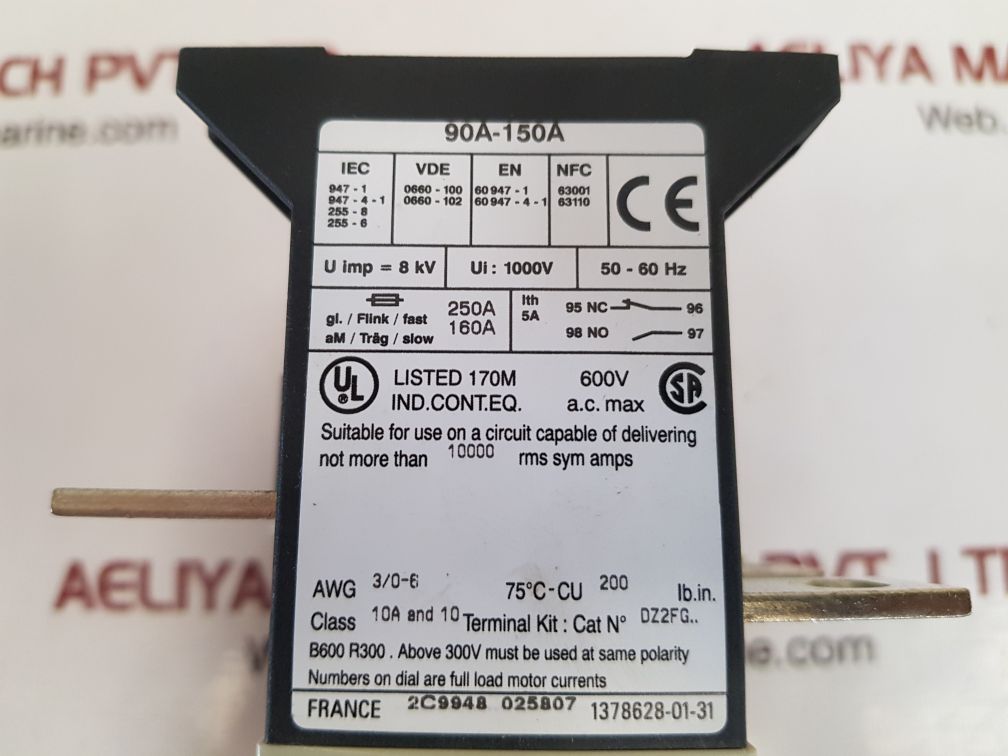

| Current Range | 90A – 150A |
| Impulse Withstand Voltage (Uimp) | 8 kV |
| Insulation Voltage (Ui) | 1000V |
| Frequency | 50-60Hz |
| Maximum Voltage | 600V A.C. Max. |
| Terminal Connection | AWG 3/0-6, 75°C CU, 200 Lb.In. |
| Terminal Kit | Cat N’ Dz2Fg.. |
| Contact Ratings | B600 R300 |
| Part Numbers | 1378628-01-31, 2C9948 025807, 056600, 03389110566000, W9 1378620 01 31 A05 |
| Type | Thermal Overload Relay |
| Country of Origin | France |
| Weight | 920 Gm |

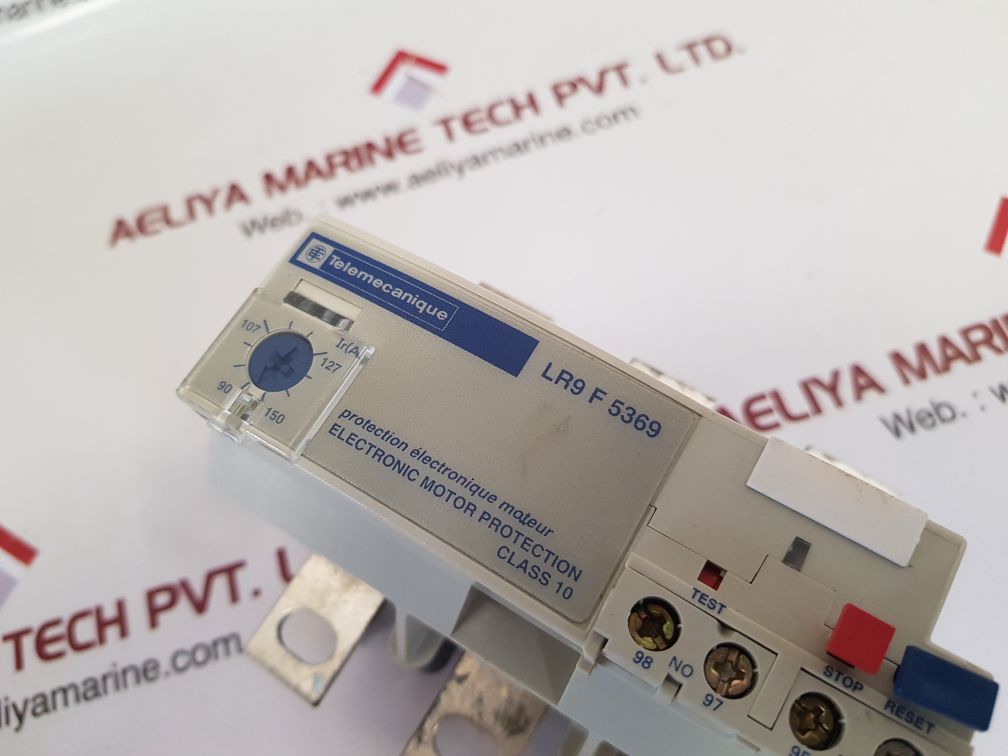

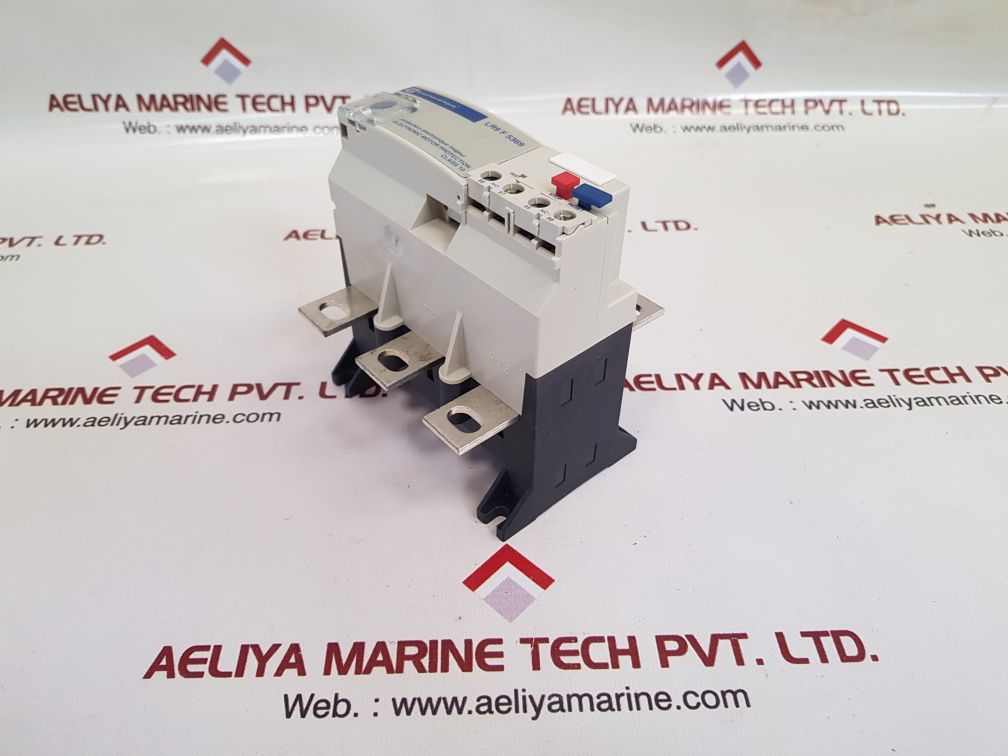

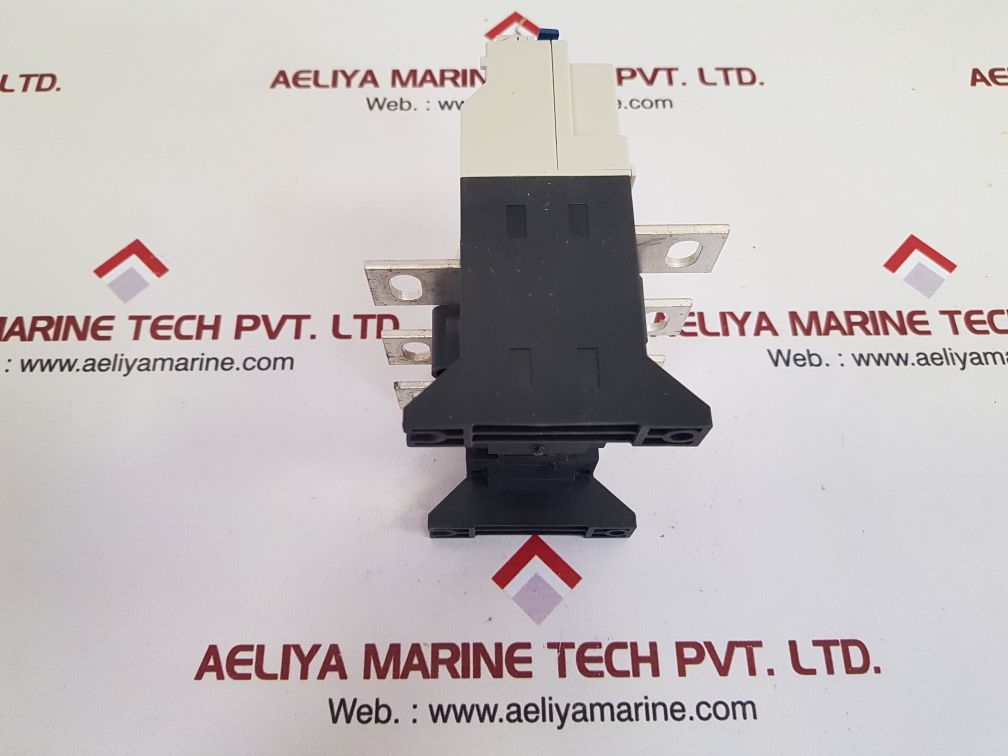

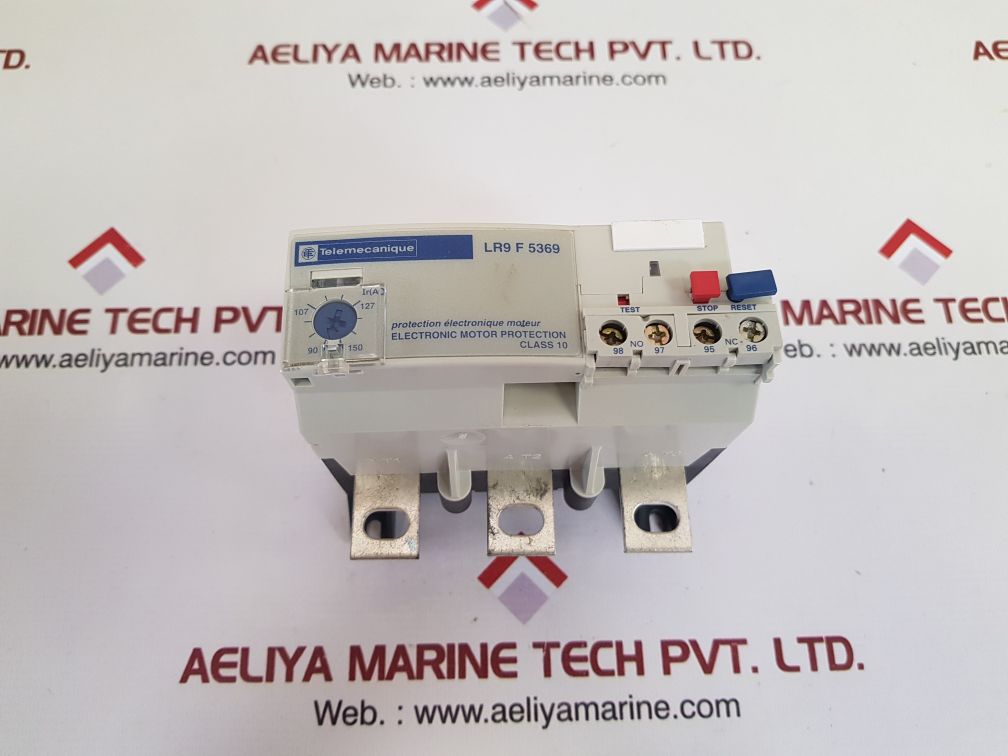

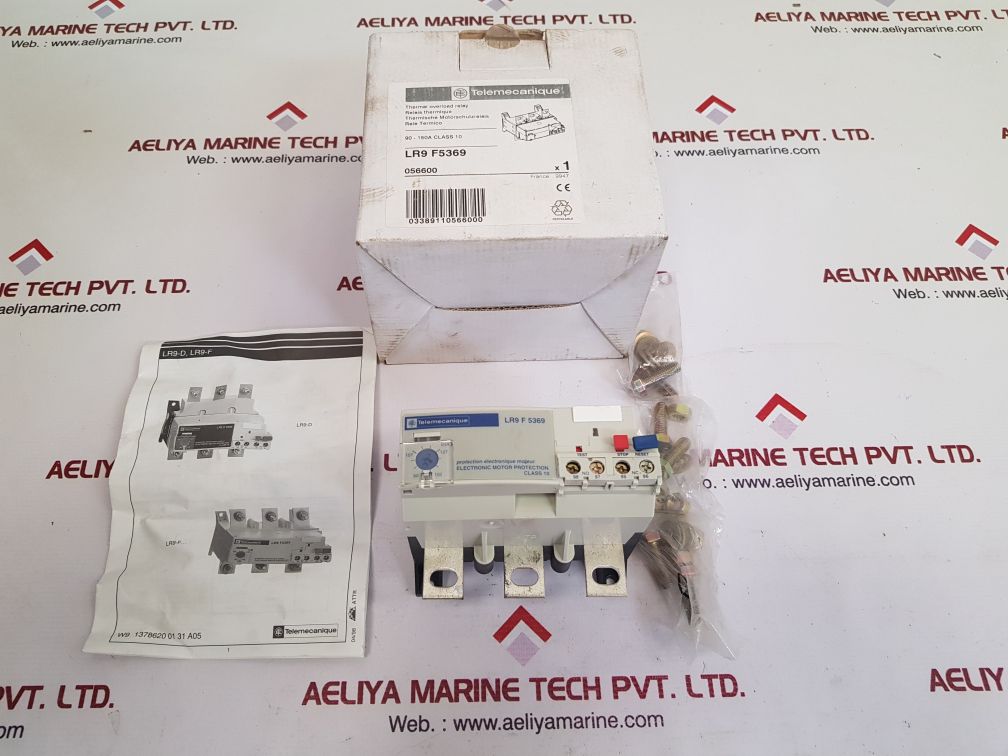

The Telemecanique LR9 F5369 solid state overload relay is a trusted option that provides precise protection for motors in the 90 to 150A class. Specially engineered for smooth integration and peak performance, it guarantees longevity and efficiency in harsh applications.
Features
Thermal Protection Range: Can be set between 90 to 150A to meet different motor sizes and operation needs.
Voltage Compatibility: Rated for up to 600V AC, catering to a wide variety of industrial applications.
Tripping Class: Class 10 for prompt response under overload conditions and reduced risk of damage.
Auxiliary Contacts: Incorporating 1 Normally Open (NO) and 1 Normally Closed (NC) contact to provide additional control and signaling flexibility.
Mounting Flexibility: For mounting directly on similar contactors to simplify installation routines.
Technical Specifications
Product Series: TeSys LRF
Model Number: LR9F5369
Rated Insulation Voltage (Ui): 1000V AC
Impulse Withstand Voltage (Uimp): 8 kV, providing resistance against voltage surges.
Control Circuit Current Rating: 5A, appropriate for typical control circuits.
Operating Frequency: Suitable for both 50 and 60 Hz systems.
Protection Degree: IP20, providing basic protection against solid foreign objects.
Dimensions: 115 mm (Width) x 96 mm (Height) x 123.5 mm (Depth)
Weight: Around 0.885 kg
Applications
The LR9 F5369 is perfect for:
- Industrial equipment with a need for steady motor protection.
- HVAC applications where motor reliability is a must.
- Pumping houses and water treatment plants.
- Conveyor belts in factories.
Benefits
Accuracy: Solid state technology provides precise detection and reaction to overloading conditions.
Reliability: Minimizes the chance of nuisance tripping, with continuous operations guaranteed.
Reliability: Withstands tough industrial environments, doubling the life expectancy of the relay and associated motors.
Interoperability: Works with Telemecanique’s LC1F115 to LC1F185 contactors, enabling simple system upgrade.
