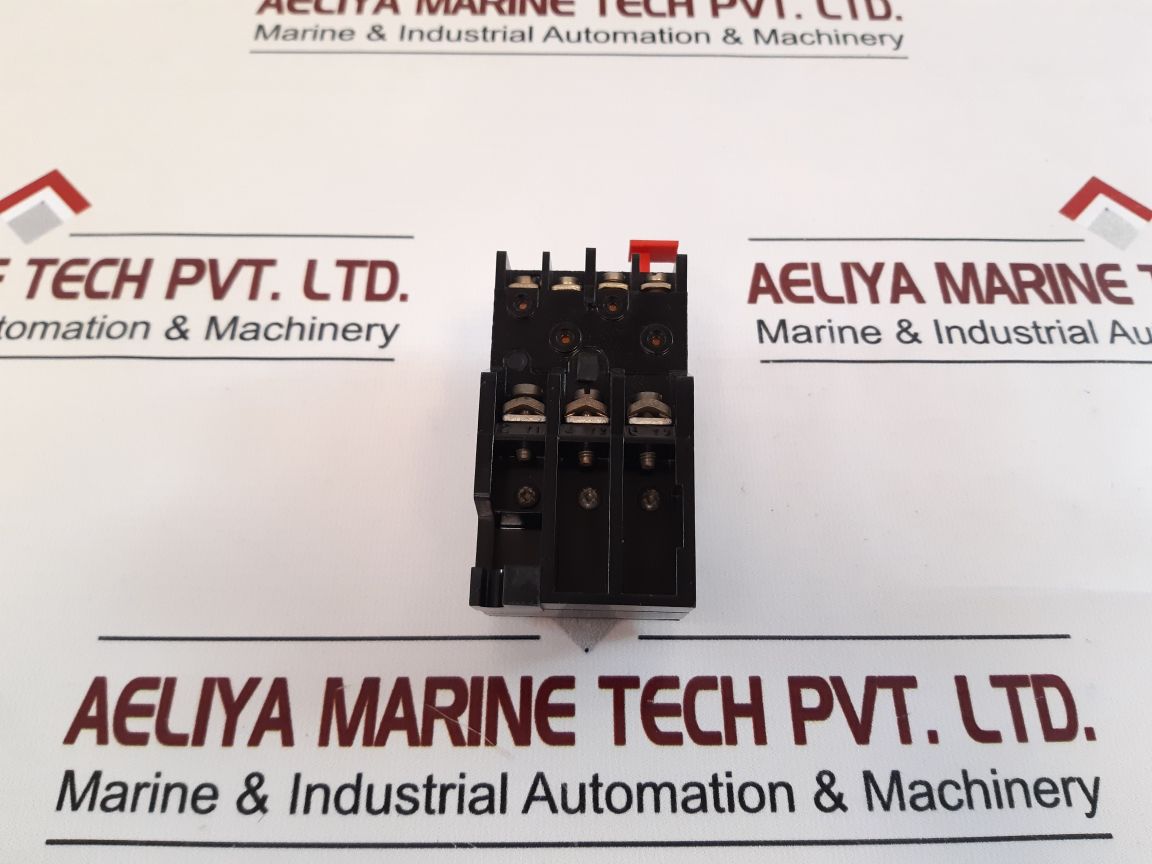

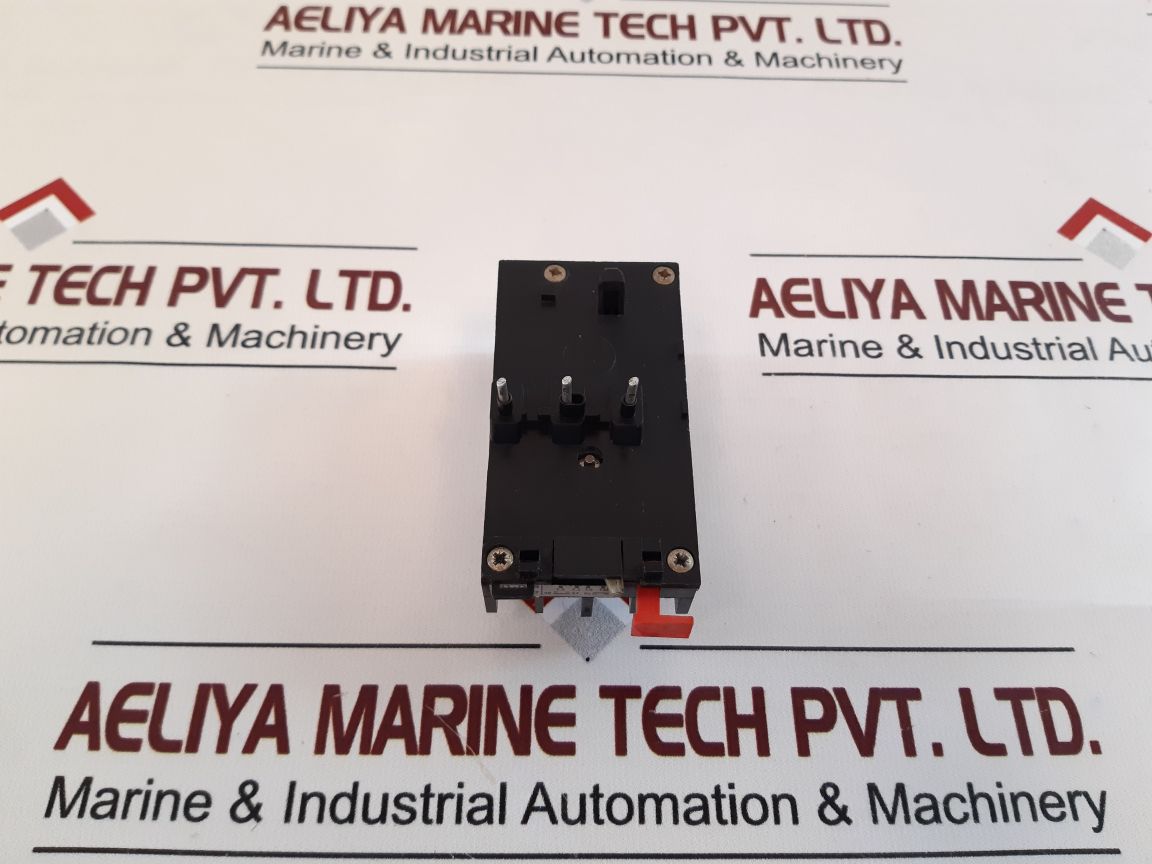

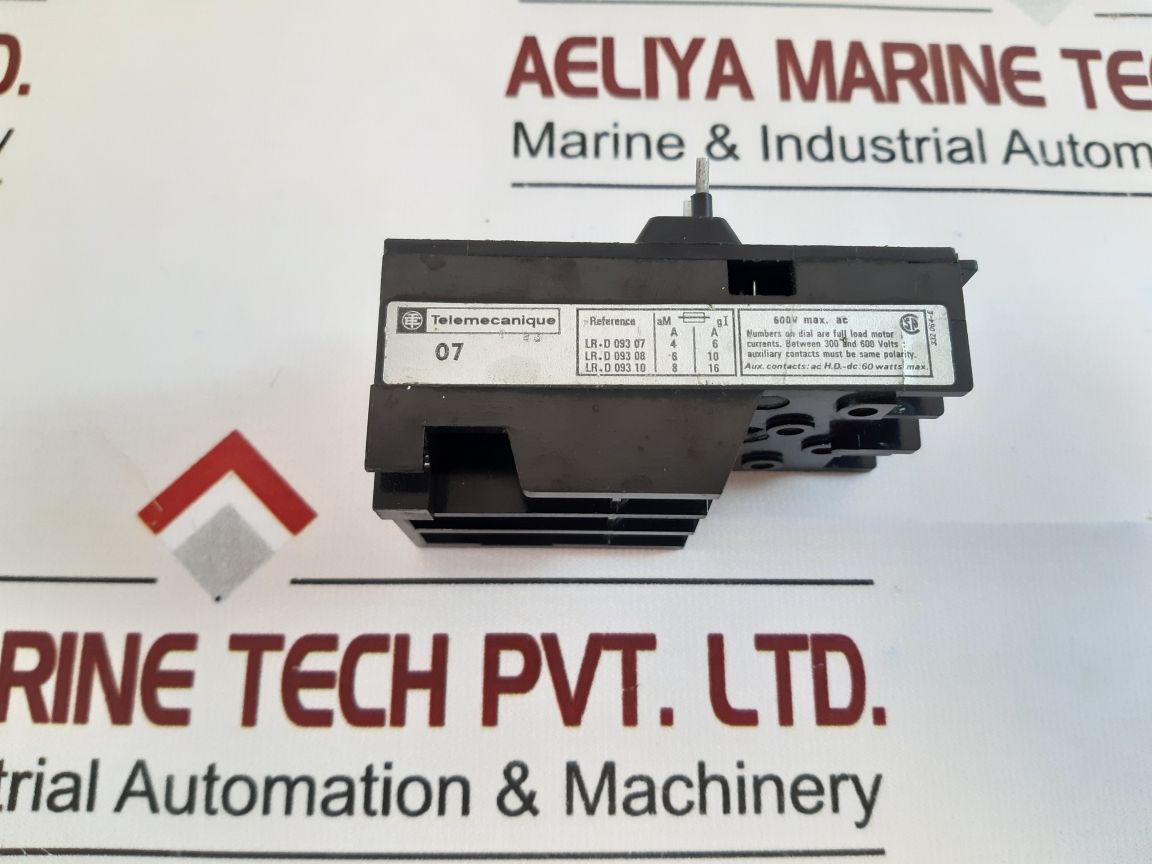

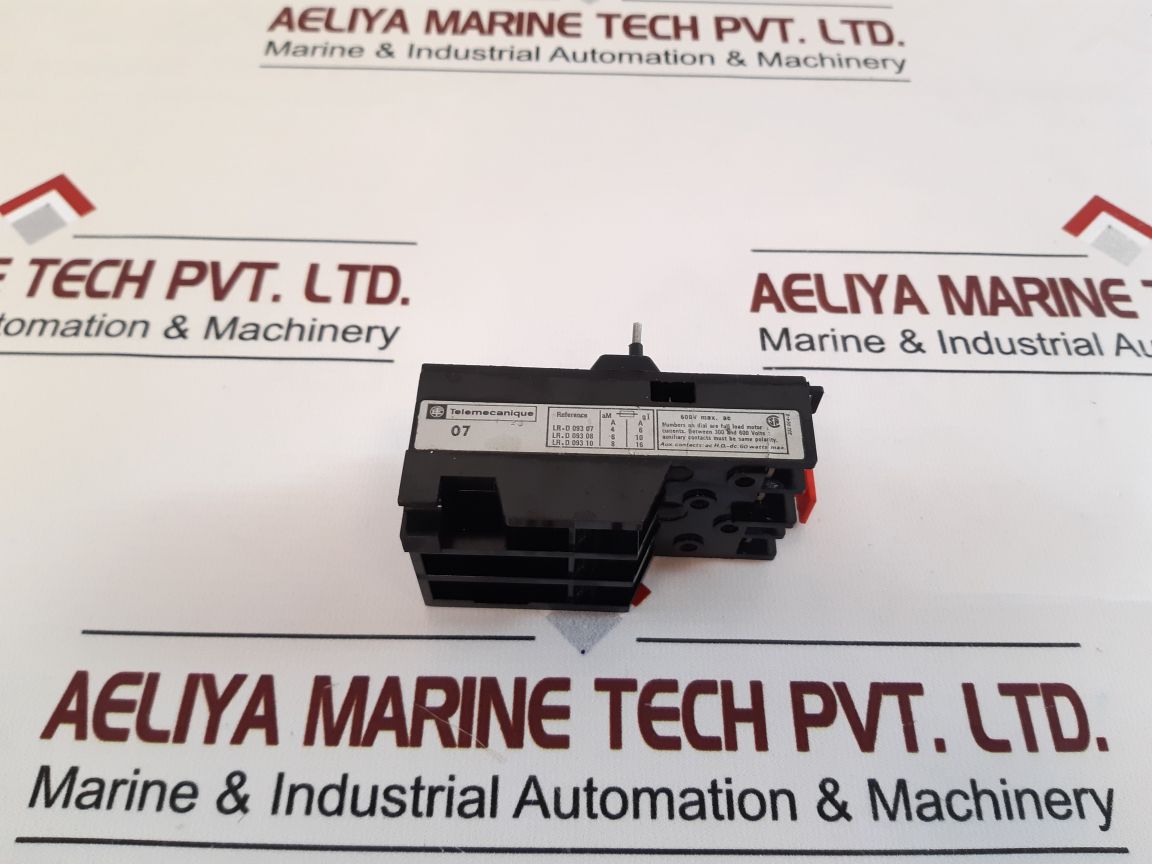

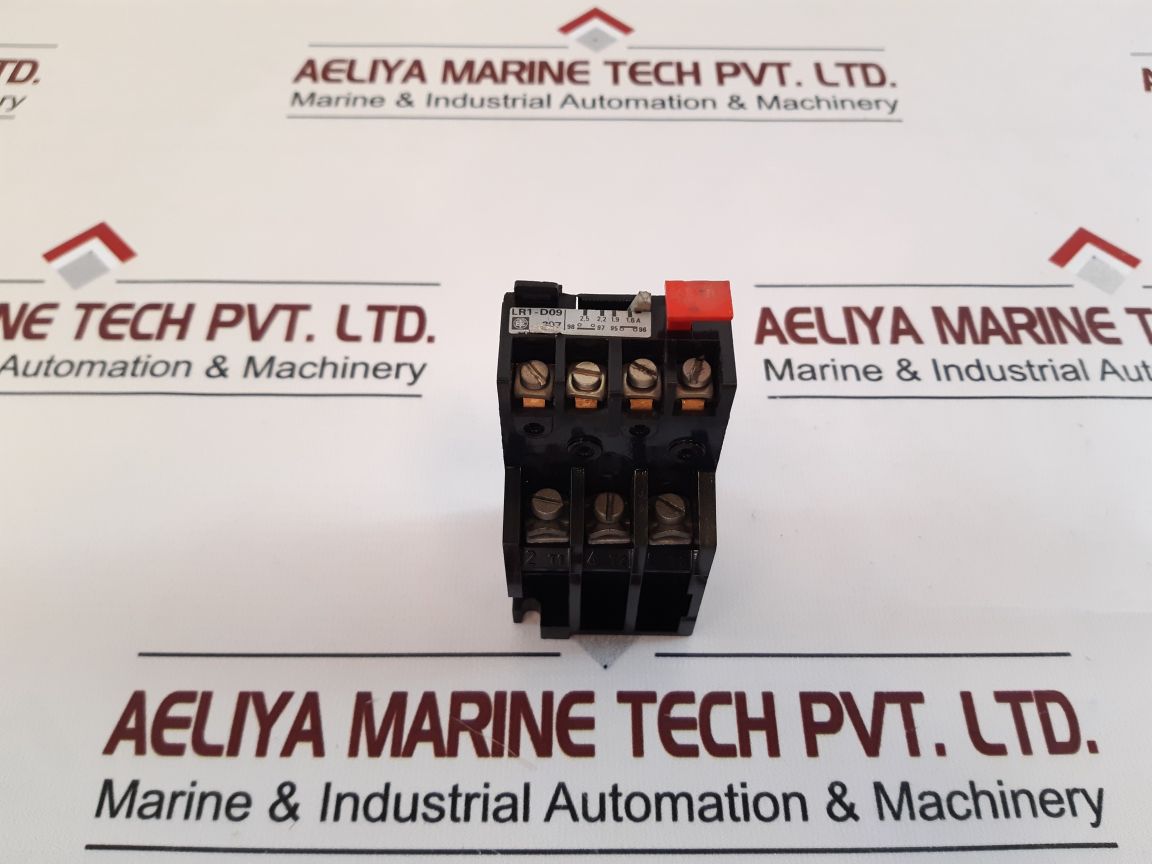

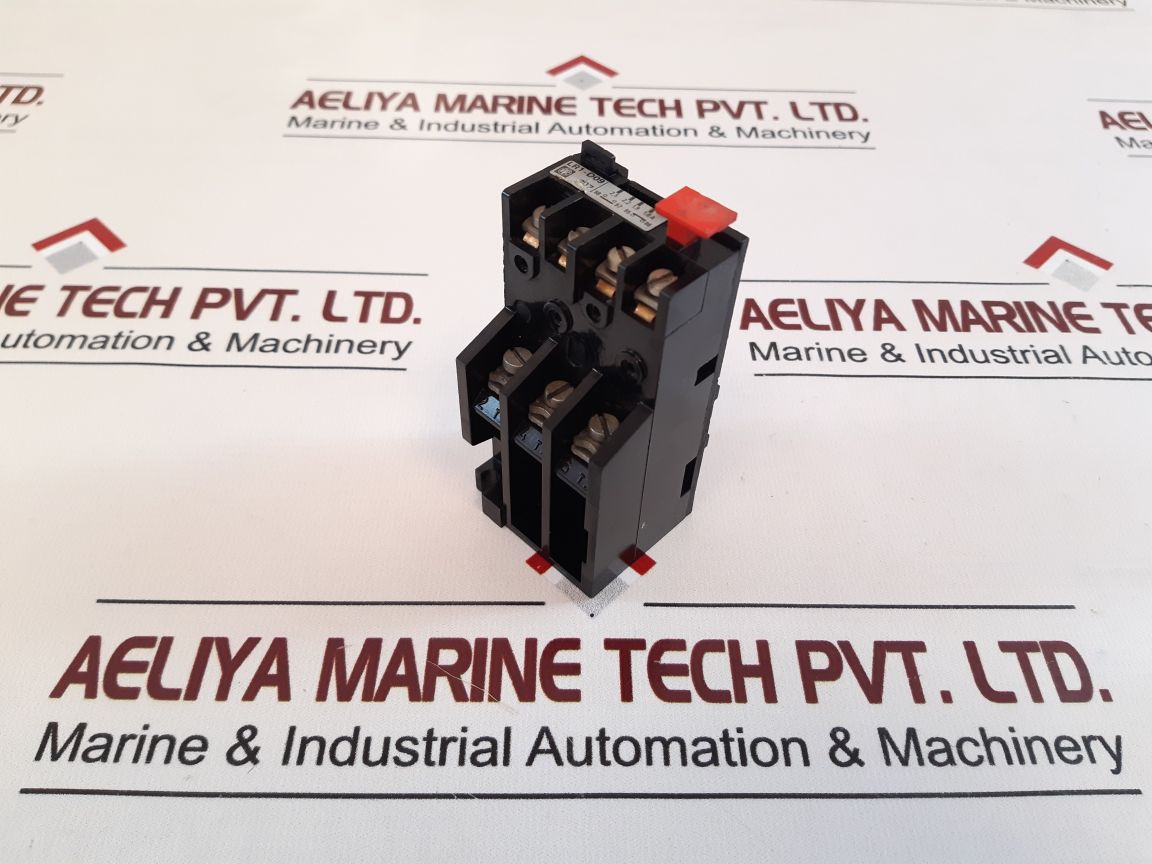

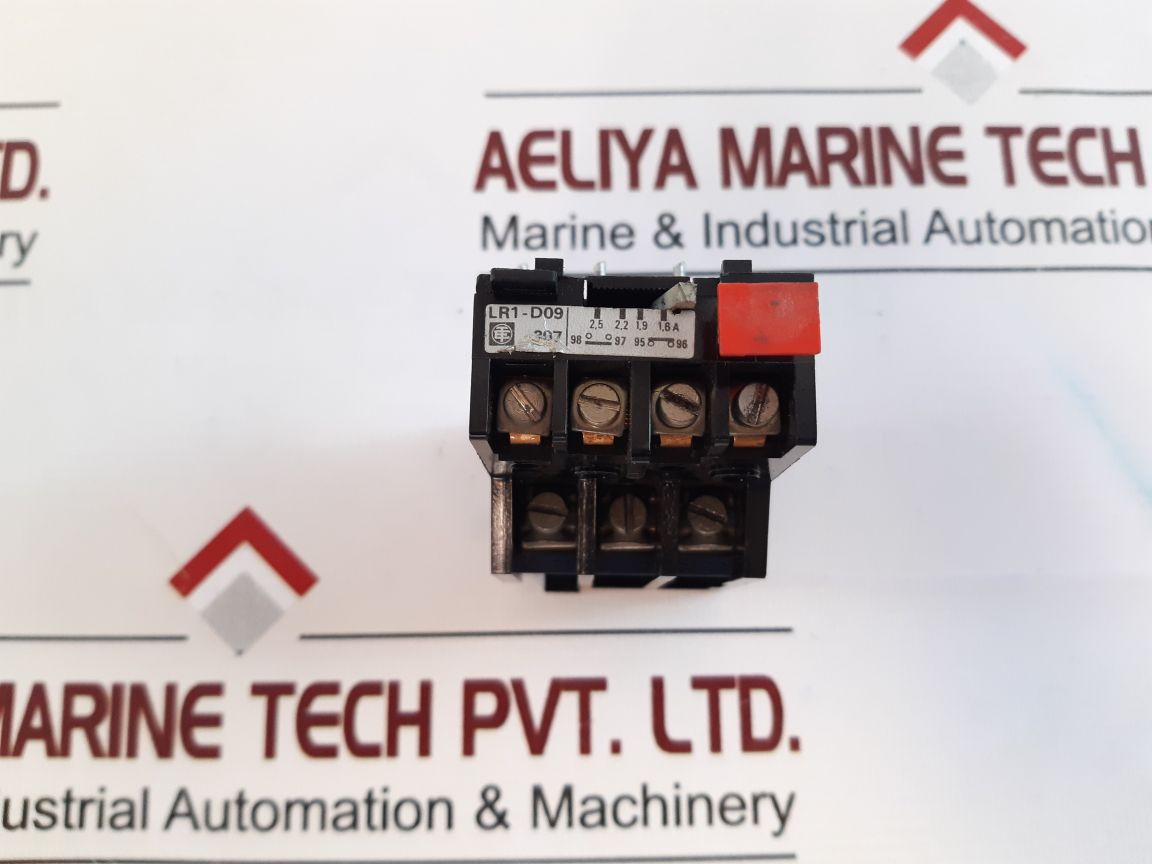

TELEMECANIQUE LR1-D09 307 OVERLOAD RELAY 600V
TELEMECANIQUE
LR1-D09 307
2.5-1.6A
600V MAX. AC
AUX. CONTACTS: AC- H.D.-DC: 60 WATTS MAX.
332 064-E
WEIGHT : 130 GM
CONDITION : USED 1 PCS
REF NO : 52676
Product Overview:
The TELEMECANIQUE LR1-D09 307 OVERLOAD RELAY 600V is a critical component in electrical systems, designed to provide reliable overload protection. Its precise operation and versatile features make it an indispensable choice for various applications, ensuring the safety and longevity of electrical equipment.
How It Works:
The LR1-D09 307 Overload Relay monitors the electrical current passing through a circuit. If the current exceeds the preset threshold, the relay triggers, opening the circuit and disconnecting the power supply. This action prevents damage to the equipment and enhances safety by avoiding overloads.
When to Use:
This product is essential whenever you need to protect electrical equipment from overcurrent conditions. It is commonly used in applications involving motors, pumps, and other electrical devices where overload protection is vital.
Where to Use:
The TELEMECANIQUE LR1-D09 307 OVERLOAD RELAY 600V is suitable for a wide range of settings, including industrial and commercial environments where precise overload protection is necessary to prevent equipment damage and downtime.
How to Use:
- Ensure the relay is appropriately rated for the current range of your equipment (2.5-1.6A in this case).
- Connect the overload relay in series with the electrical circuit you want to protect.
- Adjust the relay settings, if necessary, to match the desired overload trip current.
- In the event of an overload condition, the relay will automatically trip, cutting off power to the equipment.
- Reset the relay after addressing the overload condition to resume normal operation.
Key Features:
- Wide Current Range: Suitable for currents ranging from 2.5A to 1.6A, providing flexibility for different applications.
- High Voltage Rating: Handles voltages up to 600V AC, ensuring compatibility with various power systems.
- Auxiliary Contacts: Offers auxiliary AC-H.D.-DC contacts with a maximum rating of 60 watts for added functionality.
- Robust Construction: Designed for durability and reliability in demanding environments.
- Compact and Lightweight: Weighing only 130 grams, it is easy to handle and install.
- Used, Tested Reliability: Sold in used condition but guaranteed for reliable performance.
- Quick Reset: After an overload event, the relay can be reset swiftly for minimal downtime.
Benefits:
- Protects electrical equipment from overcurrent damage, extending their lifespan.
- Ensures safe and uninterrupted operation of motors, pumps, and other electrical devices.
- Versatile voltage and current ratings make it suitable for various applications.
- Compact and lightweight design simplifies installation and integration into existing systems.
- Offers auxiliary contacts for additional control and monitoring capabilities.
- Reliable performance, even in used condition, assures users of its dependability.
