| Attribute | Value |
|---|---|

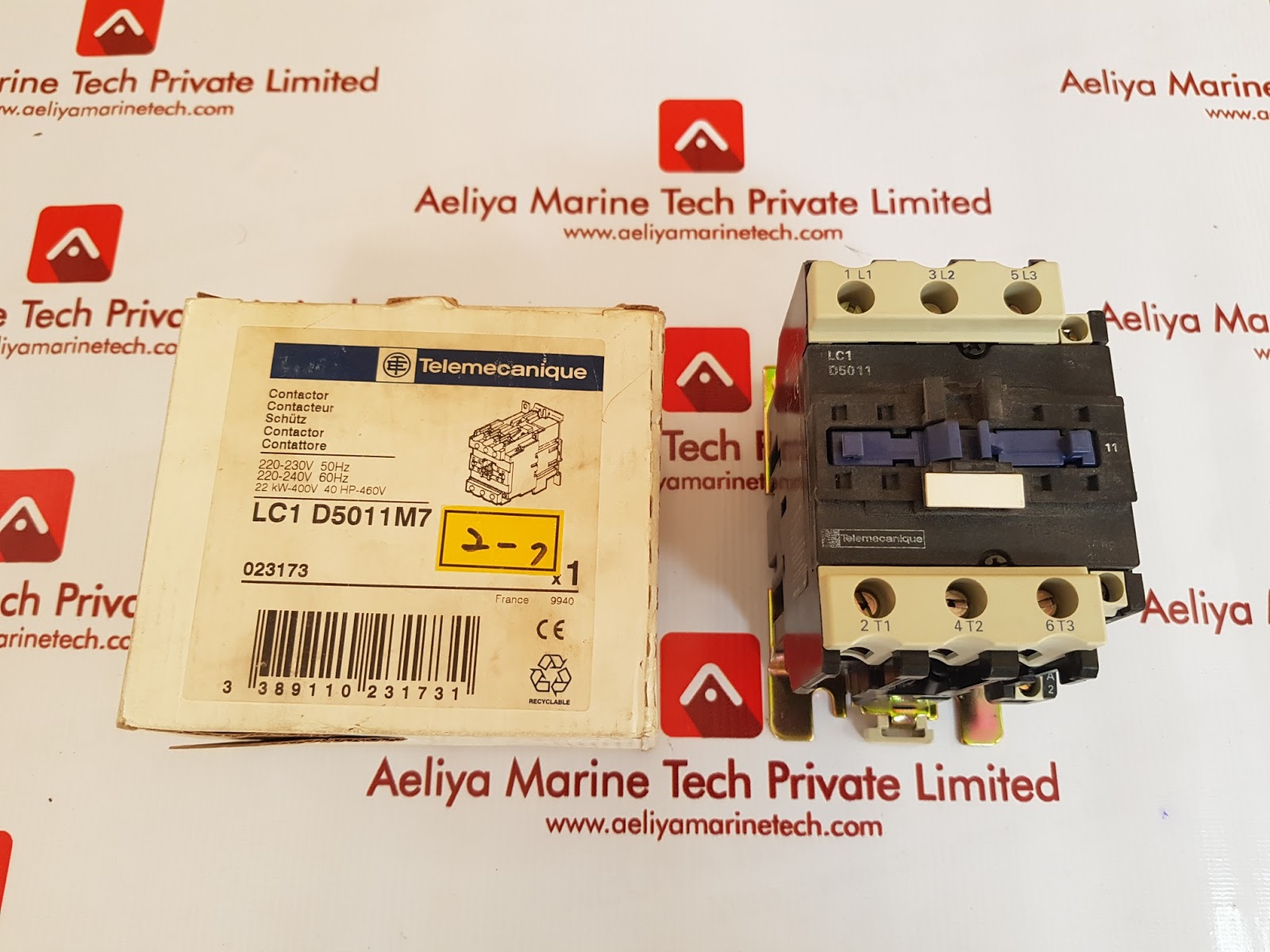

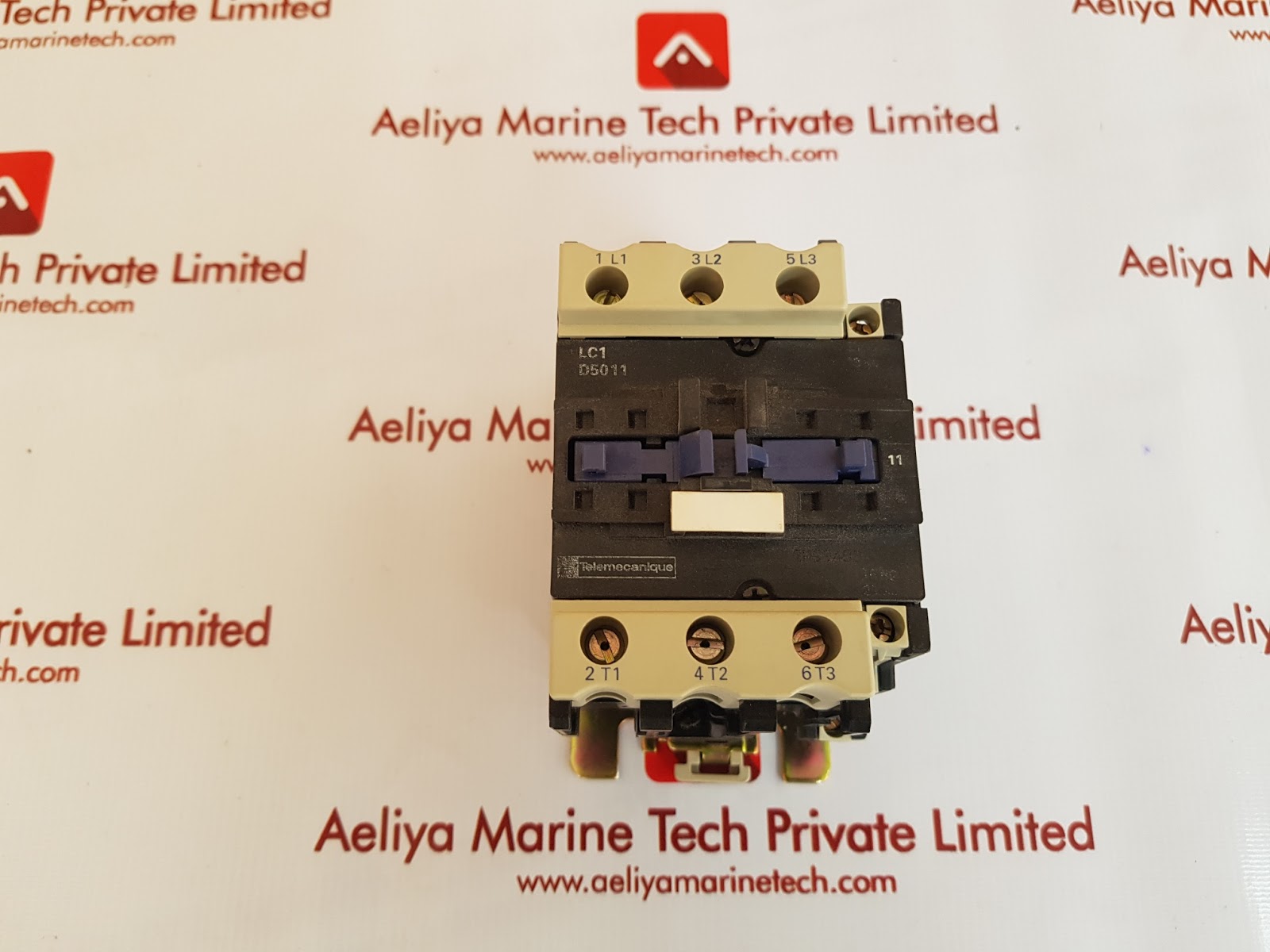

| Product Name | Telemecanique LC1 D5011M7 Contactor |
| Brand | Telemecanique |
| Model | LC1 D5011M7 |
| Part Number | 023173 |
| Barcode | 3 389110231731 |
| Type | Contactor |
| Coil Voltage | 220-230V 50Hz / 220-240V 60Hz |
| Power Rating | 22kW-400V / 40HP-460V |
| Series | LC1 D5011 |

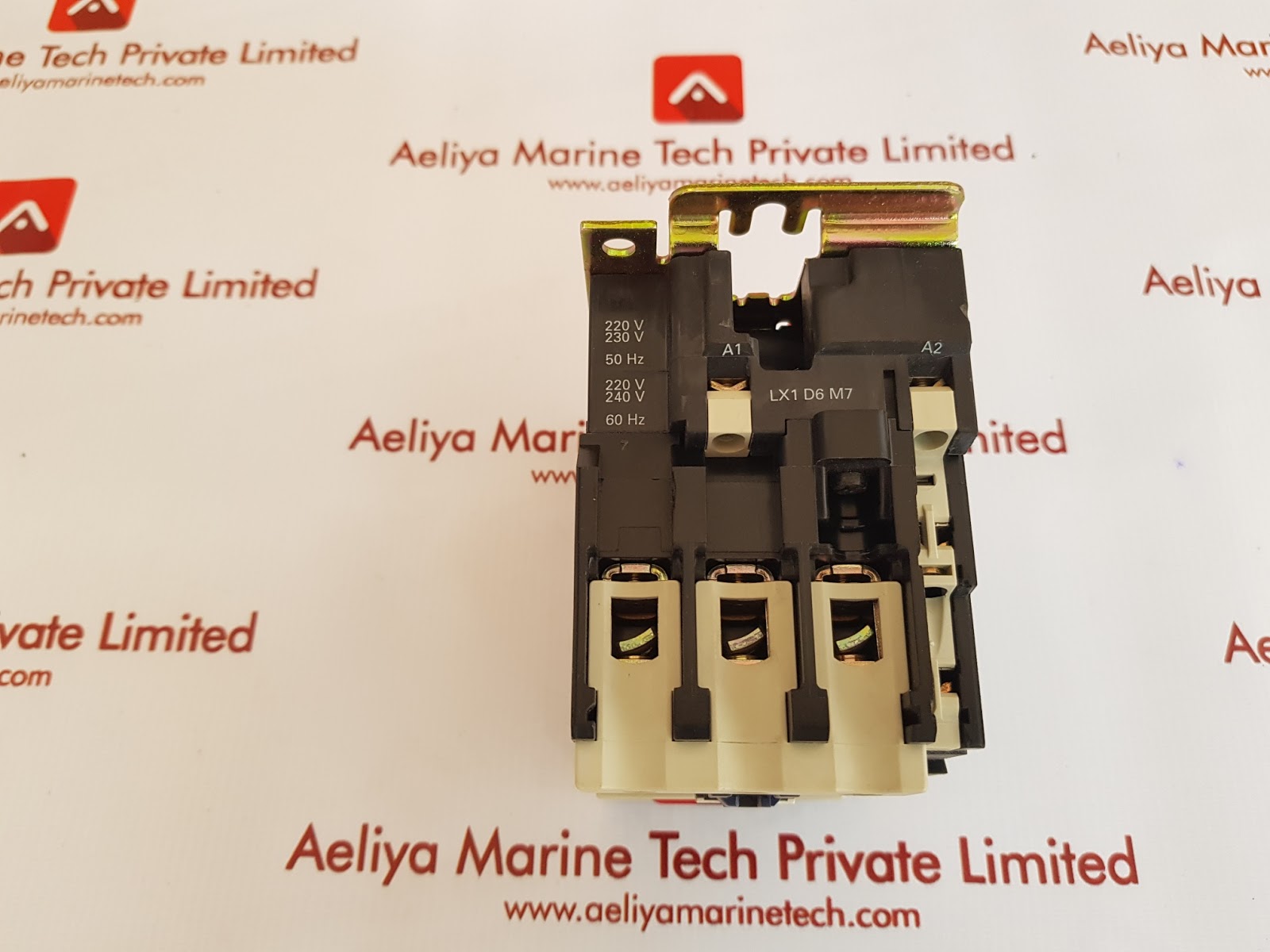

| Coil Reference | LX1 D6 M7 |
| Ith | 80A |
| Ui | 1000V |
| Uimp | 8kV |
| Max Voltage | 600V AC |
| Aux Contacts Rating | A600 P600 |
| Continuous Current | 70A |
| Wire Size | AWG 3-10 CU 75°C |
| Torque | 45 lb. in |
| Country of Origin | France |
| Weight | 1.390 kg |
What is the LC1 D5011M7 Contactor?
The LC1 D5011M7 is an electromagnetic contactor made by Telemecanique, a well-known company under Schneider Electric. The LC1 D5011M7 is part of the LC1-D series, which is highly dependable when it comes to controlling electric motors and other heavy loads. It’s designed to operate AC motors and provide safe switching in industrial and commercial settings.
Key Features
High Current Capability: Handles a continuous current of 70A, thus suitable for heavy-duty applications.
Universal Voltage Support: Supports 220–230V at 50Hz and 220–240V at 60Hz, keeping in line with world power standards.
Heavy-Duty Build: Designed for high mechanical performance and long service life, even in harsh industrial environments.
Auxiliary Contact Block: Features auxiliary contacts (A600/P600 rated) to manage control circuits efficiently.
Broad Range Compatibility: Supports motor ratings of up to 22kW at 400V and 40HP at 460V.
Applications
The LC1 D5011M7 contactor is suitable for application in multiple industries, including:
Manufacturing – Applied to control conveyor systems and motors in manufacturing plants.
Marine Engineering – Robust in shipboard electrical distribution systems.
Power Distribution Panels – Serves as an essential part in protection and switching.
HVAC Systems – Controls large equipment, fans, and compressors.
Automation Systems – Ideal for PLC-controlled applications requiring high current switching.
Why Select Telemecanique LC1 D5011M7?
Reputation & Reliability: Telemecanique enjoys a rich history of manufacturing reliable electrical products.
Global Availability: Conveniently available from industrial suppliers and service centers across the globe.
Ease of Installation: Easy mounting and terminal connections minimize installation time.
Service & Support: Supported by Schneider Electric’s worldwide network for maintenance and support.
