| Attribute | Value |
|---|---|

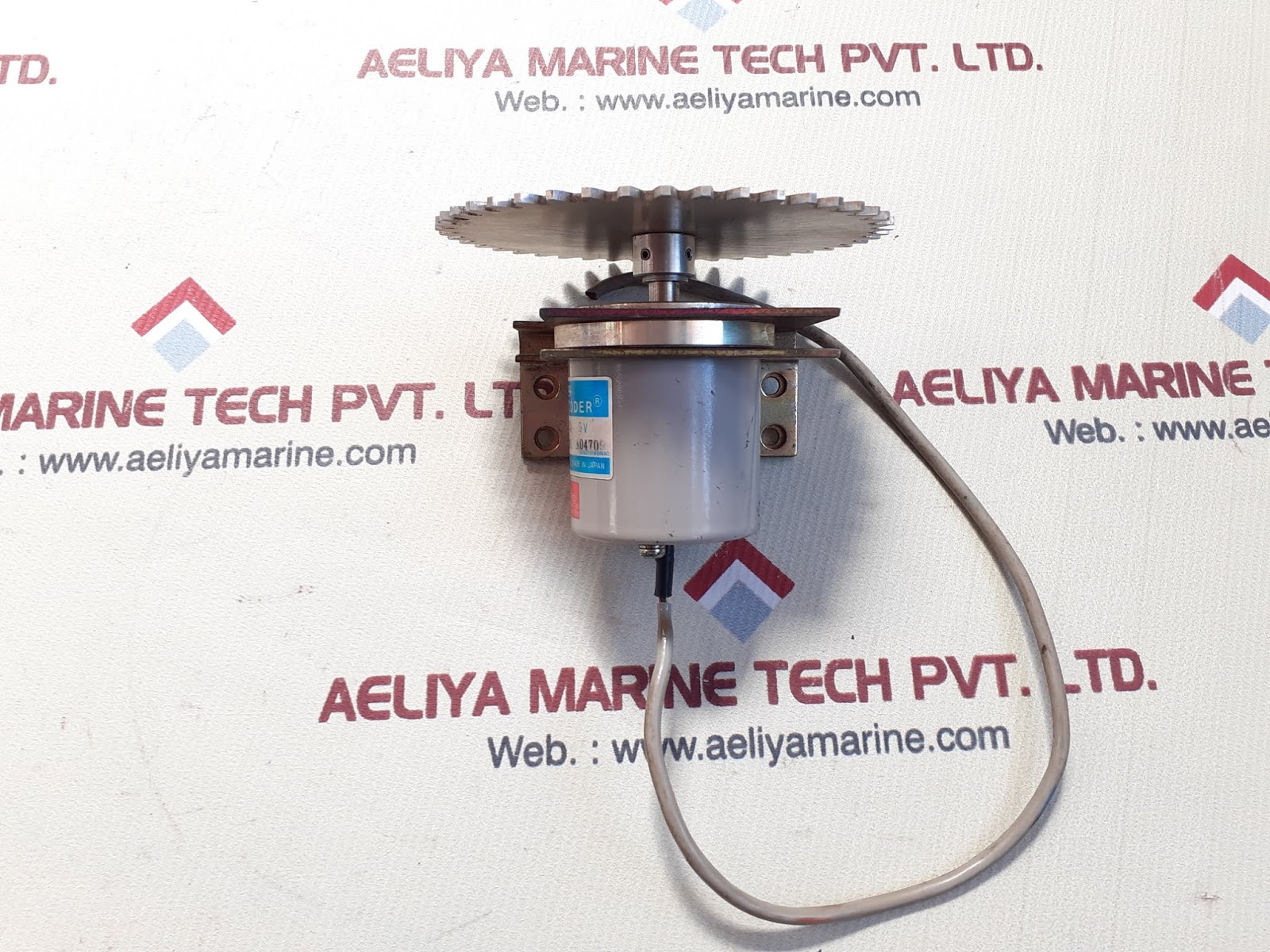

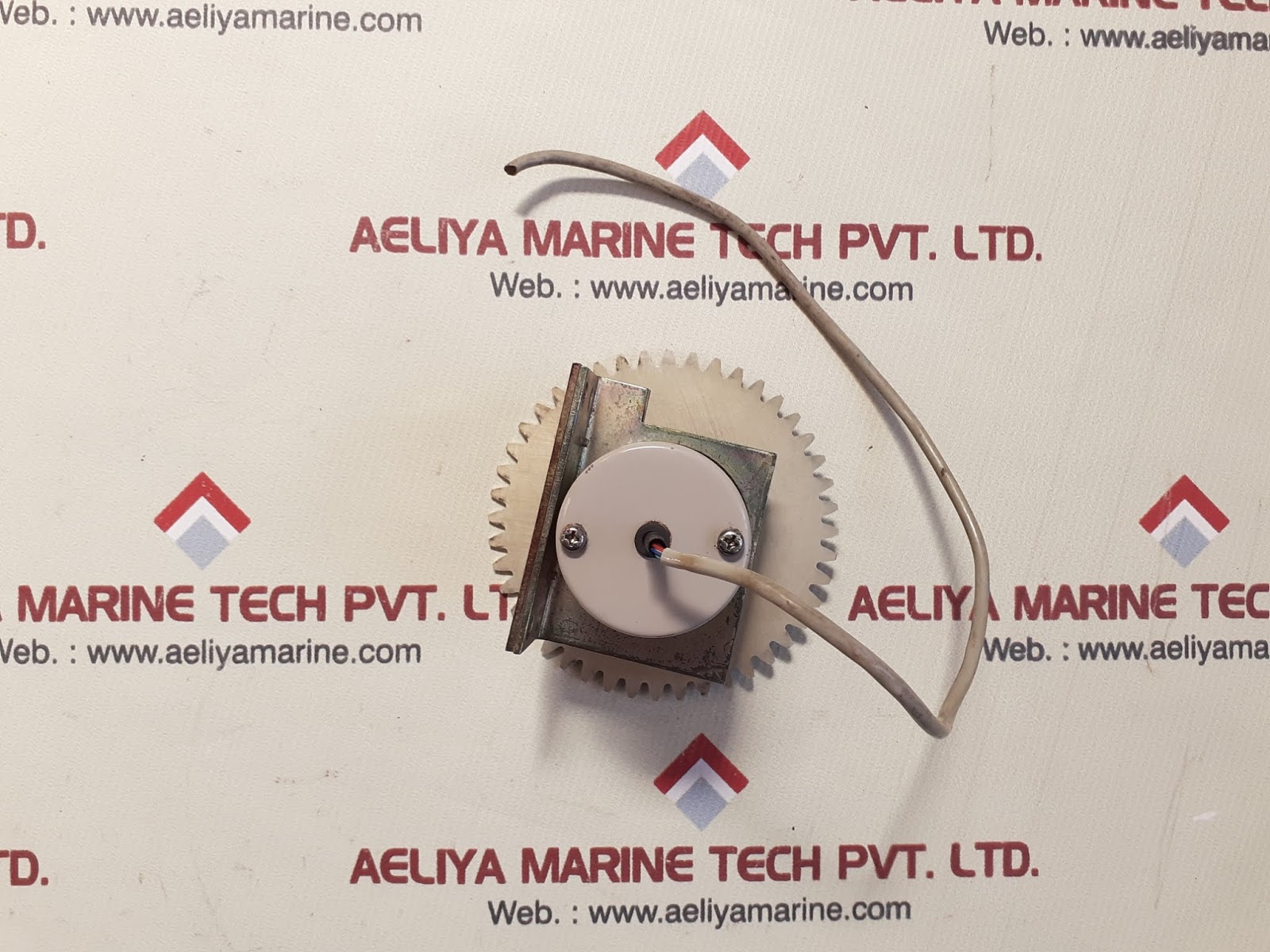

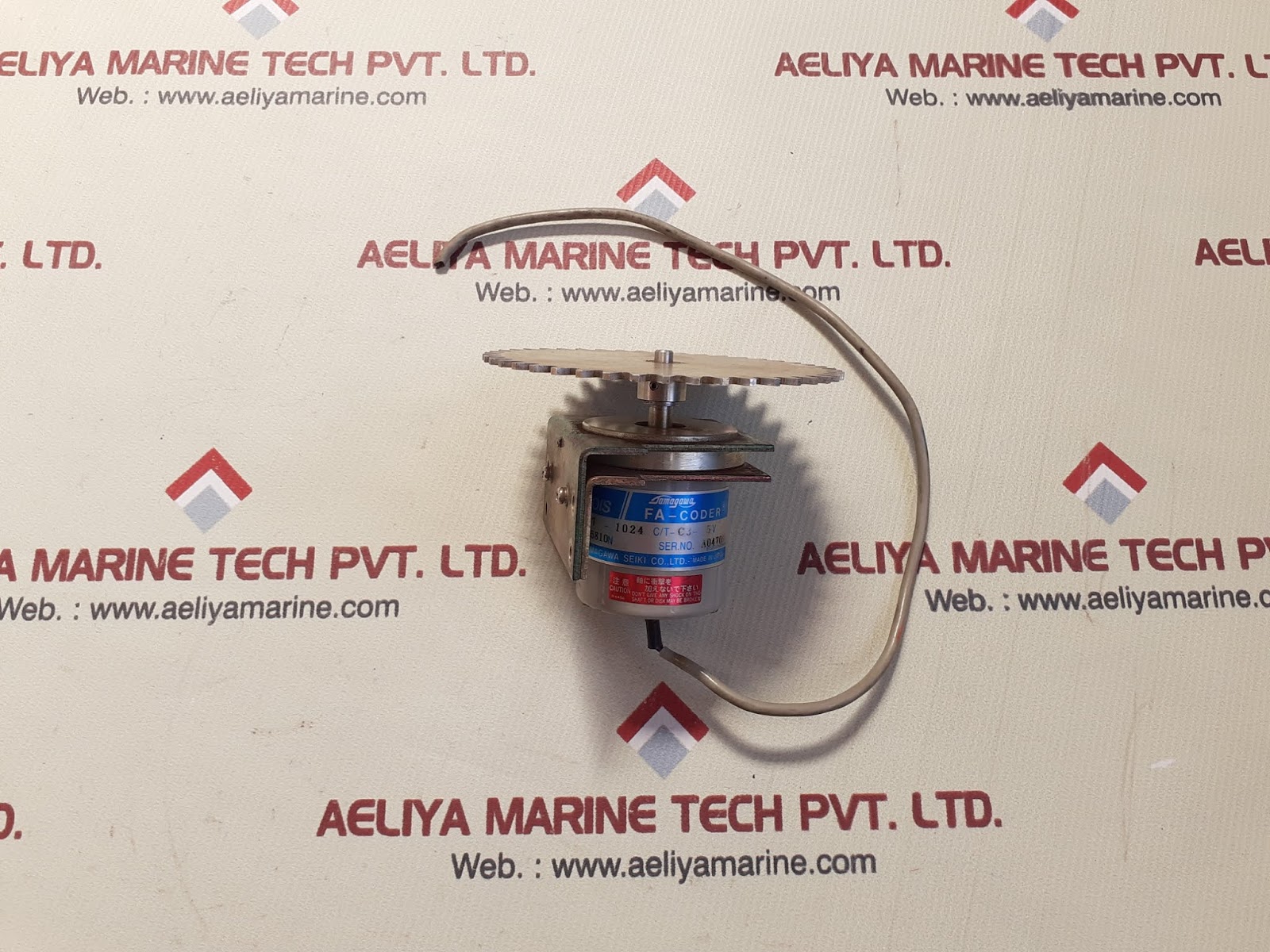

| Product Name | Tamagawa TS5810N FA-Coder |
| Manufacturer | Tamagawa Seiki Co., Ltd. |
| O/S | FA-Coder |
| Model | 57-1024 C/T-C3-5V |
| Series | TS5810N |
| Serial No. | A04709 |
| Part No. | 615001090N40 |
| Country of Origin | Made in Japan |
| Weight | 500 gm |
What is the Tamagawa TS5810N FA-Coder?
The Tamagawa TS5810N is a precision FA-Coder, which is basically an encoder to offer precise feedback in motion control applications. Encoders are utilized to monitor position, velocity, and direction of rotating equipment, allowing machines to run with pinpoint precision.
Tamagawa, an established Japanese company, has been ahead of its time in encoder technology, and the TS5810N model is one of their best-selling products.
Key Features
High Precision Feedback
Delivers extremely accurate position and speed information, enhancing control system performance.
Durability & Solid Construction
Designed to resist tough industrial conditions, such as vibrations, dust, and temperature fluctuations.
Compact & Lightweight Design
Perfect for use in applications where space is limited but precision is high.
High-Resolution Output
Delivers fine-resolution feedback, ideal for precision-based operations.
Easy Integration
Works with multiple motion control systems, making it flexible across industries.
Low Power Consumption
Made for energy efficiency, to help lower operation costs.
How Does the Tamagawa TS5810N FA-Coder Operate?
Encoders such as the Tamagawa TS5810N operate by translating mechanical motion into an electrical signal. This signal is read and interpreted by the control system of the machine to calculate position, speed, and direction.
The TS5810N FA-Coder generally employs an optical or magnetic sensing mechanism, which provides very accurate signal output even at high-speed operations.
Here’s a step-by-step explanation of how it works:
Rotation Detection – The shaft of the encoder rotates with the movement of the machine.
Signal Generation – A sensor within the encoder senses movement and provides pulses.
Data Transmission – The pulses are translated into digital signals and transmitted to the control system.
Control System Processing – The data is read by the system and modulates machine operations accordingly.
Applications of Tamagawa TS5810N FA-Coder
The TS5810N FA-Coder is employed in numerous industries that require precision and control. Some of the most common applications are:
1. Robotics & Automation
Employed in robotic arms to provide precise movement and positioning.
Improves the efficiency of automated equipment in assembly lines.
2. CNC Machines & Manufacturing
Provides accurate spindle positioning in CNC machines.
Assists in maintaining tight tolerances in high-precision machining operations.
3. Aerospace & Defense
Employed in aircraft control systems for accurate positioning feedback.
Supports missile guidance and navigation system stability.
4. Industrial Motors & Servo Systems
Gives motors in industrial automation speed and position feedback.
Supports keeping servo motors torques and powers efficient.
5. Medical Equipment
Utilized in high-precision medical products such as equipment used in robot surgeries.
Assists in effortless and controlled movement in diagnostic tools.
Benefits of Using Tamagawa TS5810N FA-Coder
Increased Accuracy – Decreases the error rate of motion control to increase efficiency.
Increased Productivity – Runs faster and more accurately.
Cost Effectiveness – Minimizes wear and tear, reducing maintenance expenses.
Longer Lifespan – Designed to be long-lasting, maintaining performance over time.
Smooth Compatibility – Compatible with different control systems and equipment.
