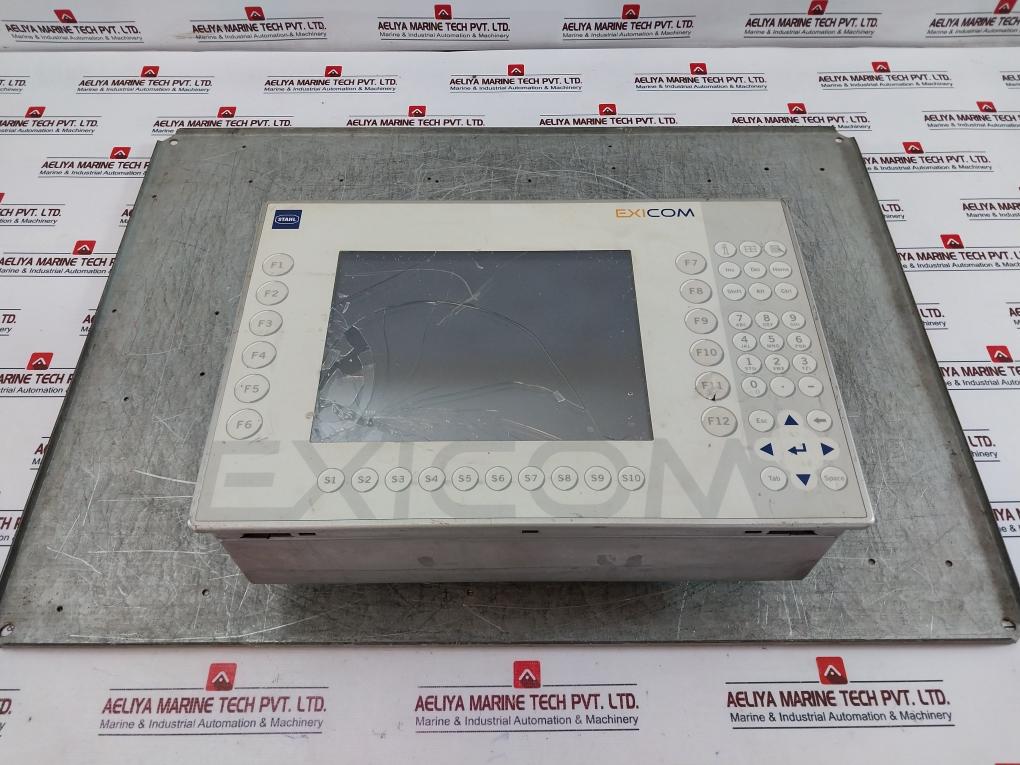

Stahl Et-406-a-tx-bt-r3-tft-128gbm-pes Panel Pc Operator Station

Stahl Et-406-a-tx-bt-r3-tft-128gbm-pes Panel Pc Operator Station
R. Stahl Hmi Systems Gmbh
Exicom
Typ/type: Et-406-a-tx-7309100000r-000000000000
Typ Hw./type Hw: Et-406-a-tx-bt-r3-tft-128gbm-pes
Artikel-nr.- Hw./ Article-no.- Hw.: 275534
Rev. Hw: 03.00.26
Artikel-nr.- Sw/ Article-no.- Sw.: 266029
Rev. Sw: 1.1.0
Iecex Tur 11.0006 X
Ex Db Eb Ia Ib Mb [ia Ib] Iic T4 Gb
Ex Ia Tb [ia Ib] Iiic T80°c Db Ip66
Tüv 11 Atex 7041 X
Ii 2 (2) G Ex Db Eb Ia Ib Mb [ia Ib] Iic T4 Gb
Ii 2 (2) D Ex Ia Tb [ia Ib] Iiic T80°c Db Ip66
-20°c (Front -30°c) Ta 50°c
-20°c (Front -30°c) Ta 55°c (Et-3xx)
Dc 24v/1,5a
Um=30vdc
Ex D E Ia Ib Mb [ia Ib] Iic T4 Gb
Ex Ia Tb [ia Ib] Iiic T80°c Db Ip66
-20 °c (Front -30 °c) Ta +55 °c
Ul-br 12.0265x
Et-**6-a-tx-*
Еаэс/ Eaeu Ru C-de.ha91.b.00085/19
1ex D E Ia Ib Mb [ia Ib] Iic T4 Gb X
Ex Ia Tb [ia Ib] Iiic T80°c Db
Минус 40 °c…+75 °c/minus 40°c…+75°c
Csa 12.2512677
Ex D E Ia Ib Mb [ia Ib] Iic T4 Gb, Type 4x, Ip66
Class Ii, Div 1, Groups E, F, G, T80°c;
Ex Ia Tb [ia Ib] Iiic T80°c Db, Ip66
Class I, Div. 2, Groups A, B, C, D
Class Ii, Div. 2, Groups F, G
Class Iii
Class I, Zone 2, Group Iic
Temperature Code T4
Enclosure Type 1
Enclosure Type 4 When Mounted In Suitable Typ 4x Enclosure
Et-/mt-3xx: -20°c Ta 55°c
Et-/mt-4xx/-5xx: -20°c Ta 50°c
Germany
Weight : 14.330 Kg
Ref No : 141705
