| Attribute | Value |
|---|---|
| Brand | Stahl |
| Model | IS1 |
| Type | DIM 16 |
| Part Number | 9470/22-16-11 |
| Code | 0102 |

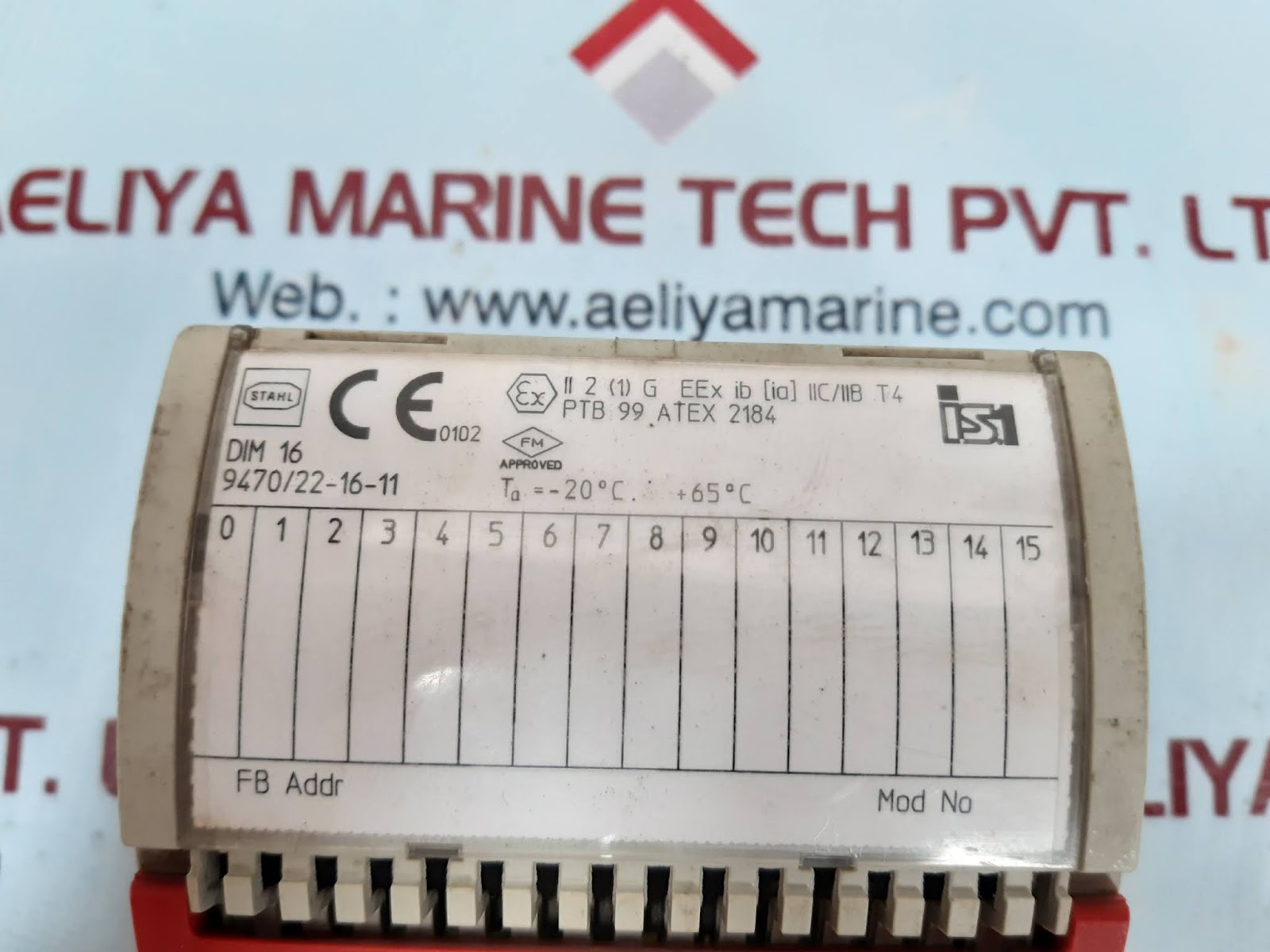

| Certification | II 2 (1) G EEx ib (ia) IIC/IIB T4 |
| ATEX Approval | PTB 99 ATEX 2184 |
| Temperature Range | TA= -20ºC to +65ºC |
| Manufacturer | R. Stahl Germany |
| Weight | 350 gm |

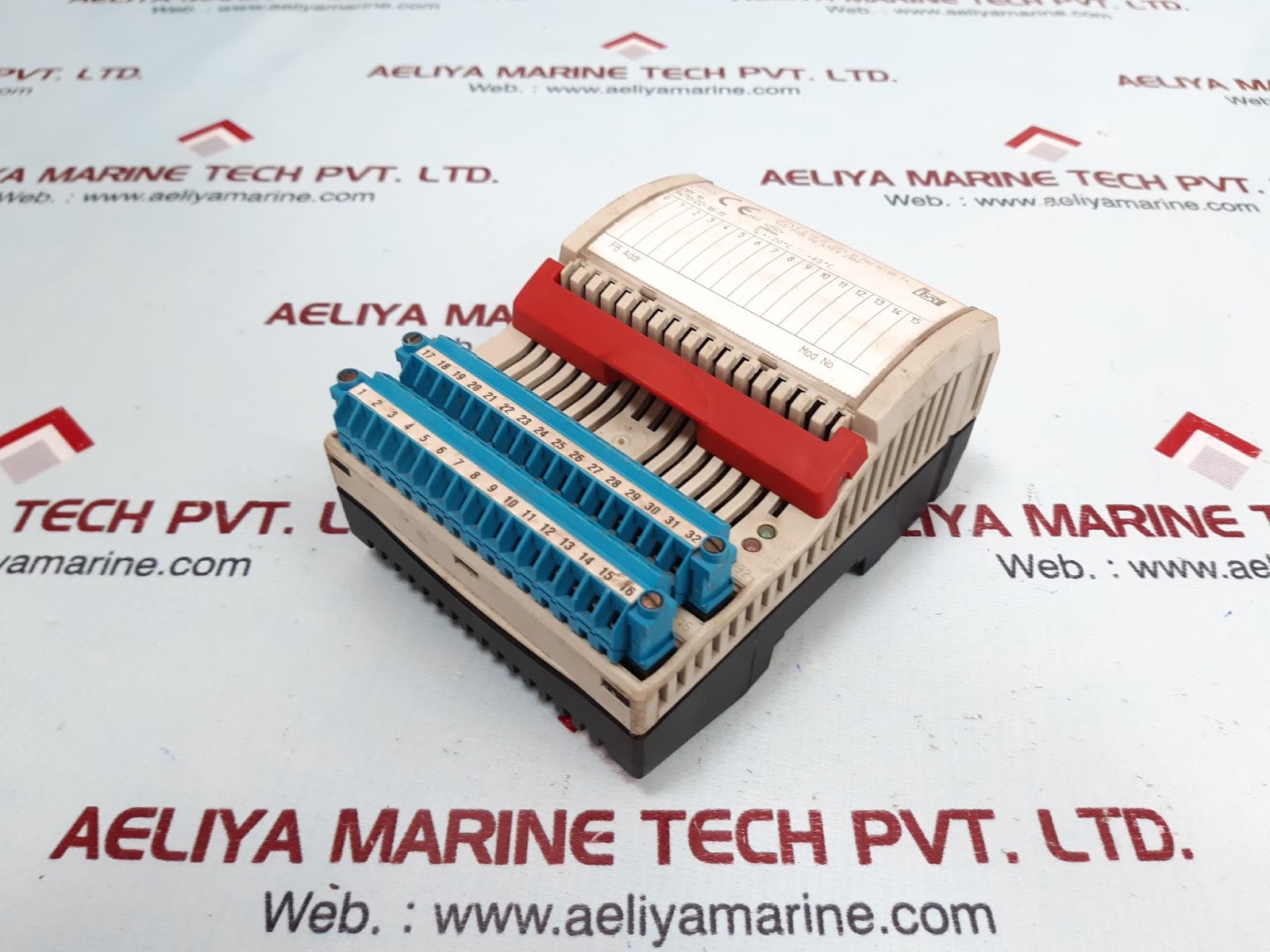

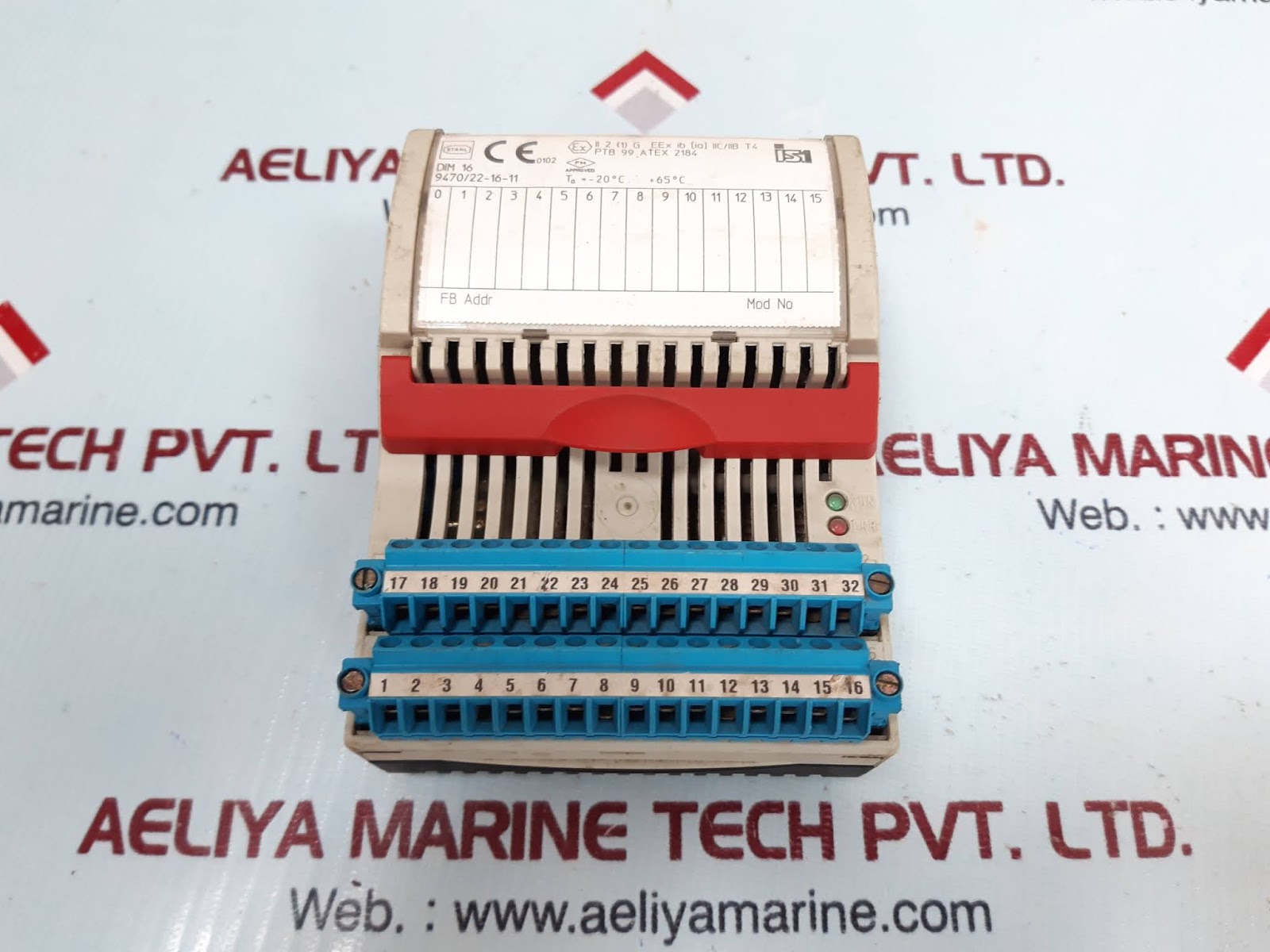

What is STAHL 9470/22-16-11 DIM 16 Digital Input Module?
STAHL 9470/22-16-11 is a digital input module of 16 channels to be used in the acquisition of signals within industrial control systems. It is designed for applications within hazardous locations for compliance with intrinsically safe (Ex i) specifications.
With its compact size and high-tech functionality, this module is ideal for monitoring sensor, switch, or other field device input signals in Zone 1 and Zone 2 hazardous areas.
Main Features
16 Digital Inputs – Supports direct connection of up to 16 input signals.
Intrinsically Safe (Ex i) – Approvals for operation in hazardous zones.
Reliable Transmission of Data – Guarantees reliable signal acquisition.
Compact and Rugged Design – Designed for industrial use.
Simple Integration – Supports standard control systems.
LED Status Indicators – Offers real-time diagnostics.
These characteristics make it a perfect solution for industries where secure and effective data acquisition is needed.
Applications of STAHL 9470/22-16-11 DIM 16
The module is commonly utilized in industries where safety and automation are paramount. Some of the typical applications are:
1. Oil & Gas Industry
- Monitoring sensors in onshore and offshore plants.
- Guaranteeing safe operation in explosive environments.
2. Chemical Processing Plants
- Regulating and monitoring chemical reactions.
- Avoiding dangerous failures by acquiring signals in real-time.
3. Power Plants
- Monitoring input signals in power generation.
- Increasing efficiency in high-risk environments.
4. Manufacturing & Automation
- Guaranteeing smooth running of assembly lines.
- Integration with SCADA and PLC systems.
Advantages of Using the STAHL 9470/22-16-11 Digital Input Module
✔ Increased Safety – Built for hazardous environments, minimizing risks of explosions and malfunctions.
✔ High Reliability – Precise signal processing reduces errors in high-stakes operations.
✔ Seamless Integration – Supports today’s industrial control systems.
✔ Space-Saving Design – Modular and compact for convenient installation.
✔ Low Maintenance – Robust against tough conditions, less downtime.
