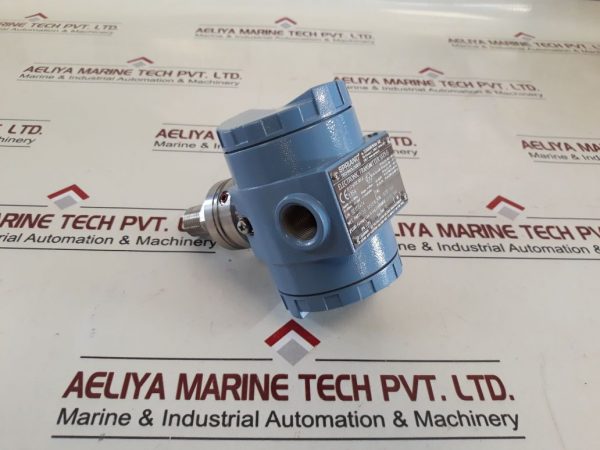

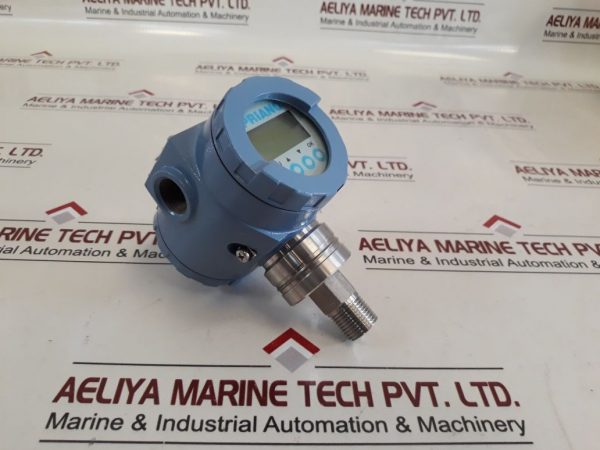

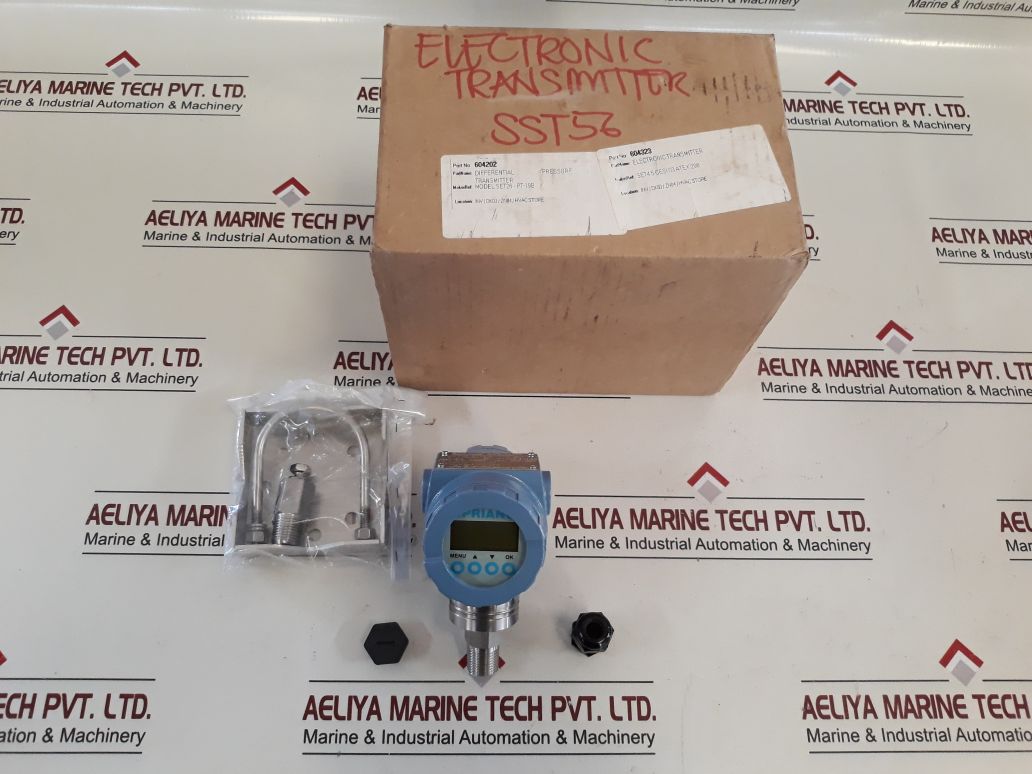

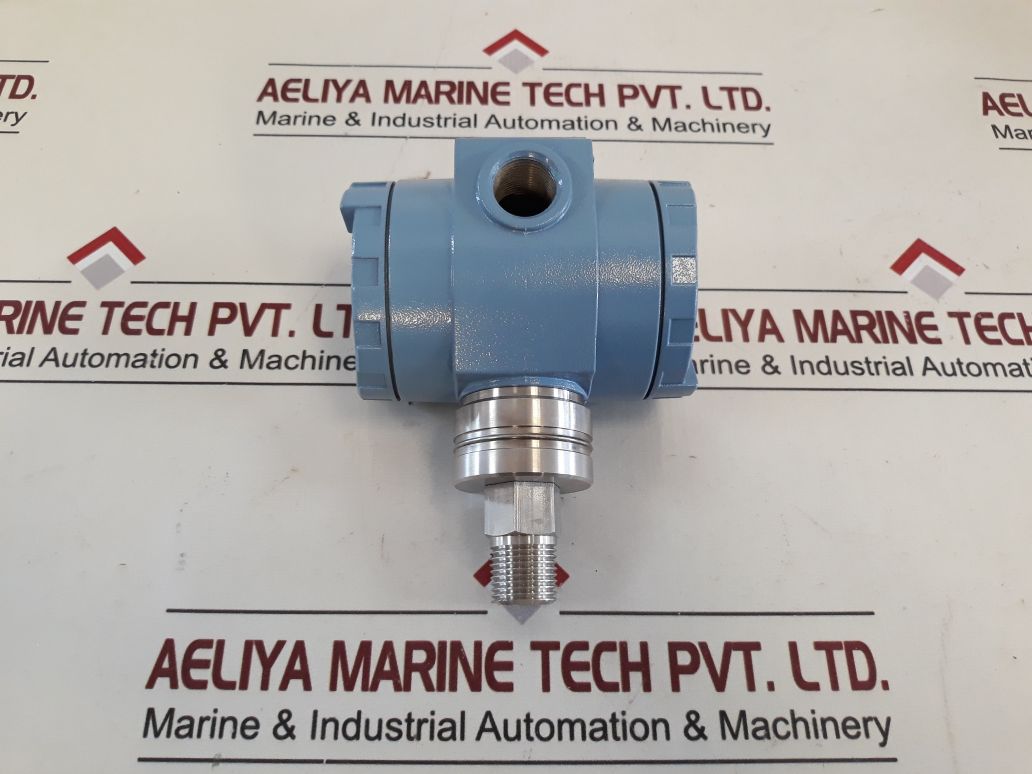

SPRIANO SST5 6 DIFFERENTIAL PRESSURE TRANSMITTER 0/30 BAR

SPRIANO SST5 6 DIFFERENTIAL PRESSURE TRANSMITTER 0/30 BAR

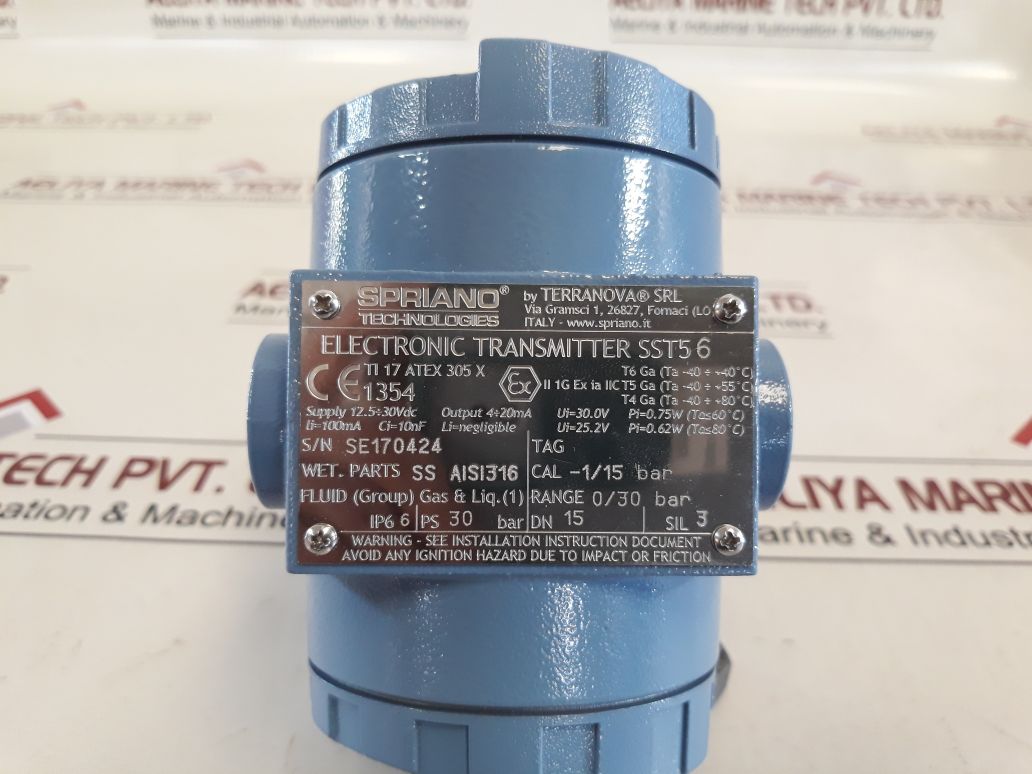

SPRIANO TECHNOLOGIES BY TERRANOVA SRL
ELECTRONIC TRANSMITTER SST5 6
TI 17 ATEX 305 X
SUPPLY: 12.5÷30VDC
OUTPUT: 4÷20MA
LI= 100MA
CI= 10NF
LI=NEGLIGIBLE
II 1 G EX IA IIC
T6 GA (TA -40 ÷ +40°C)
T5 GA (TA -40 ÷ +55°C)
T4 GA (TA -40 ÷ +80°C)
UI= 30.0V PI= 0.75W (TA 60°C)
UI= 25.2V PI= 0.62W (TA 80°C)
WET. PARTS SS AISI316
CAL- 1/15 BAR
RANGE: 0/30 BAR
IP66 PS 30 BAR
DN15 SIL3
PART NO: 604202/604323
PART NAME: DIFFERENTIAL PRESSURE TRANSMITTER
MAKER REF: MODEL SET26-PT-19B/SET 45 CESI 03 ATEX 208
ITALY
WEIGHT : 1.900 KG

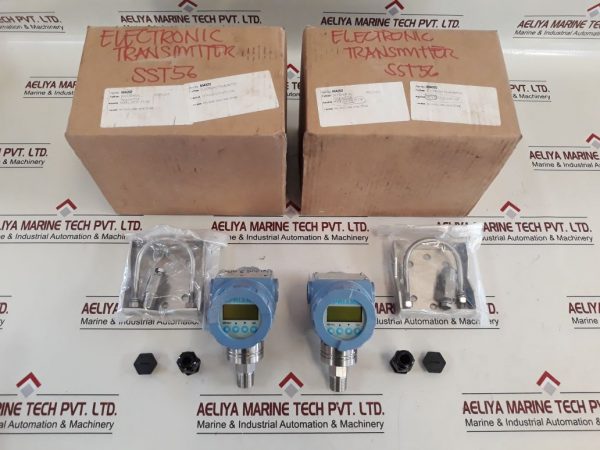

CONDITION : NEW 2 PCS
REF NO : 50402
