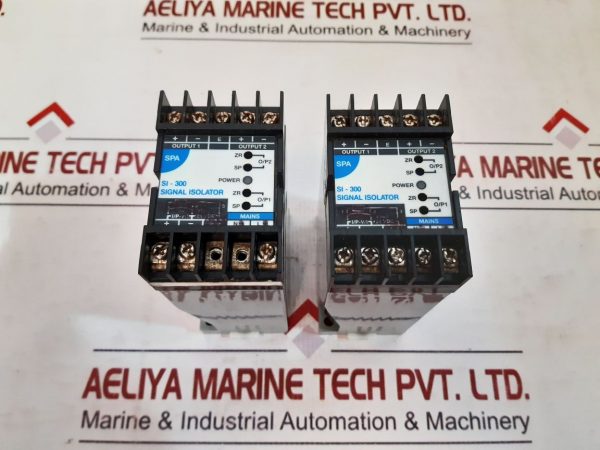

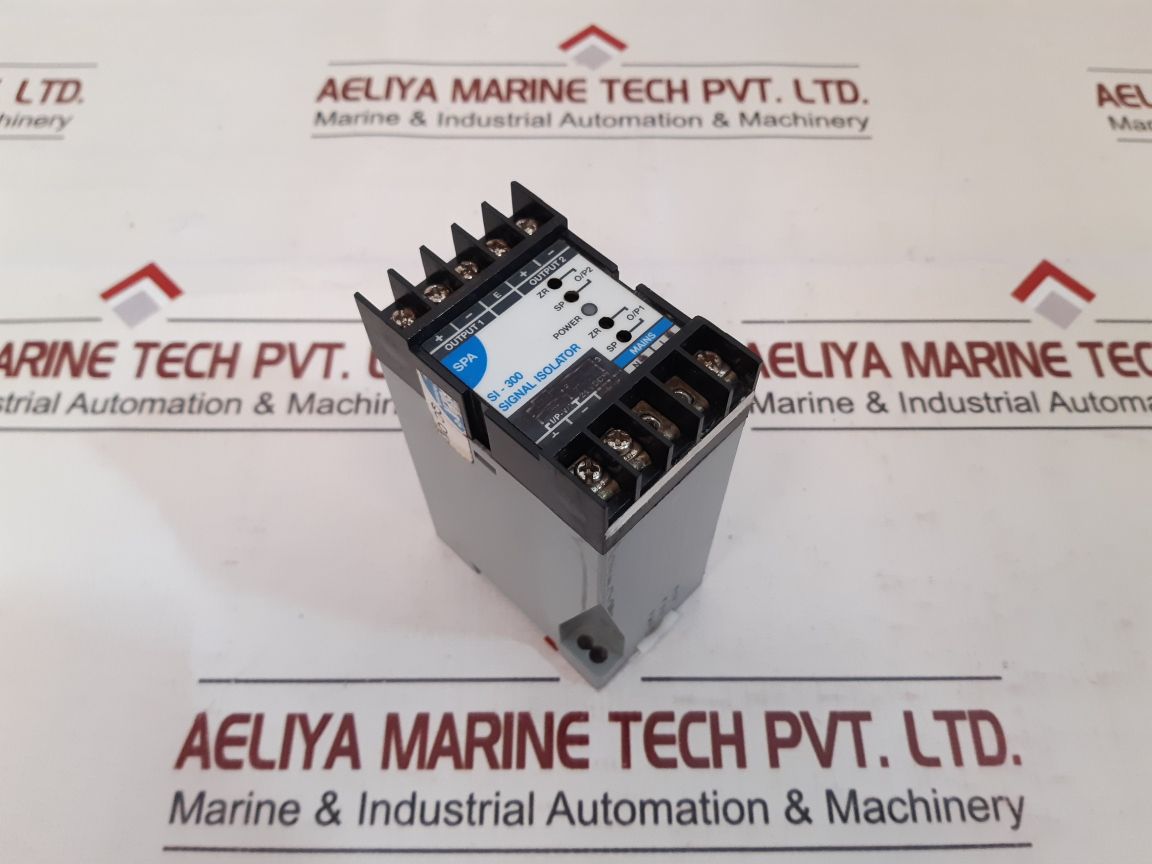

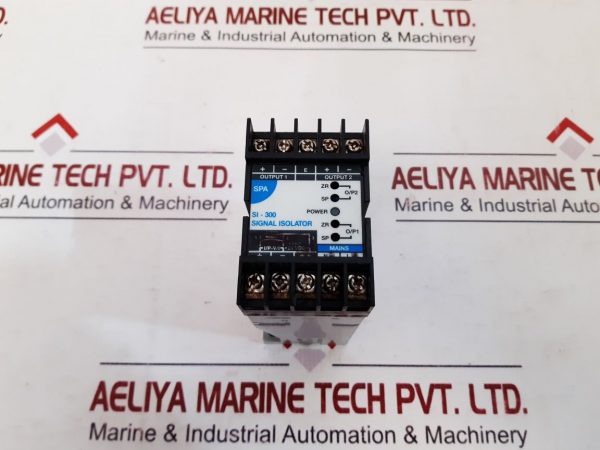

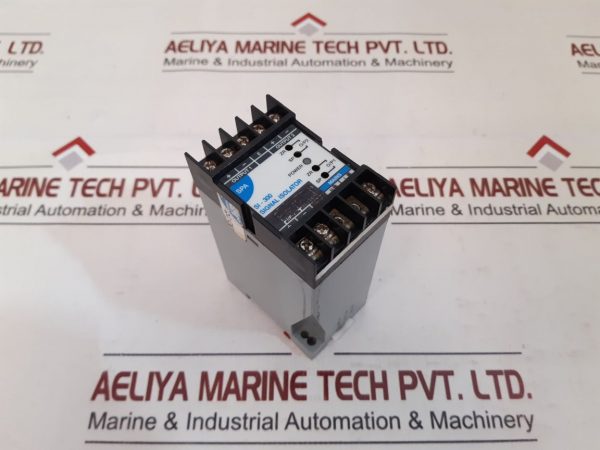

SPA INSTRUMENTS SI-300 SIGNAL ISOLATOR
SPA INSTRUMENTS
ELECTROCOM
SIGNAL ISOLATOR
SI-300

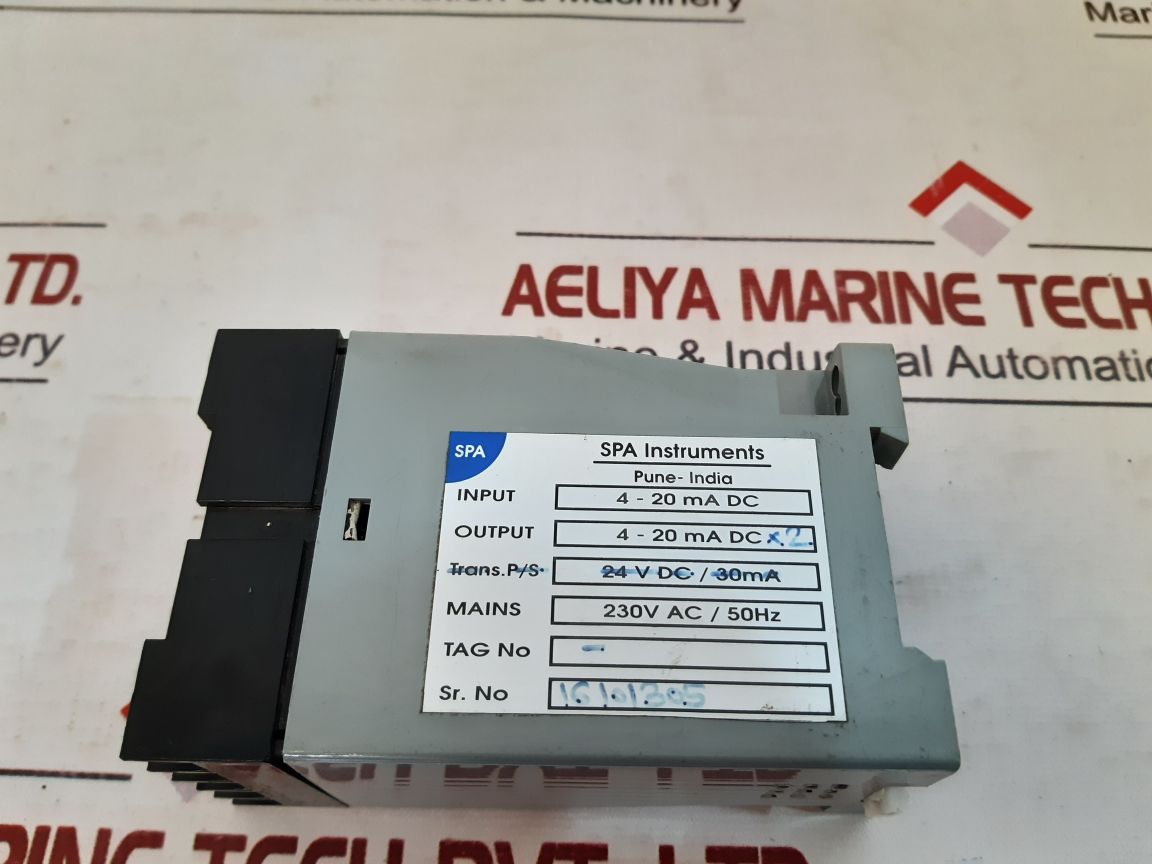

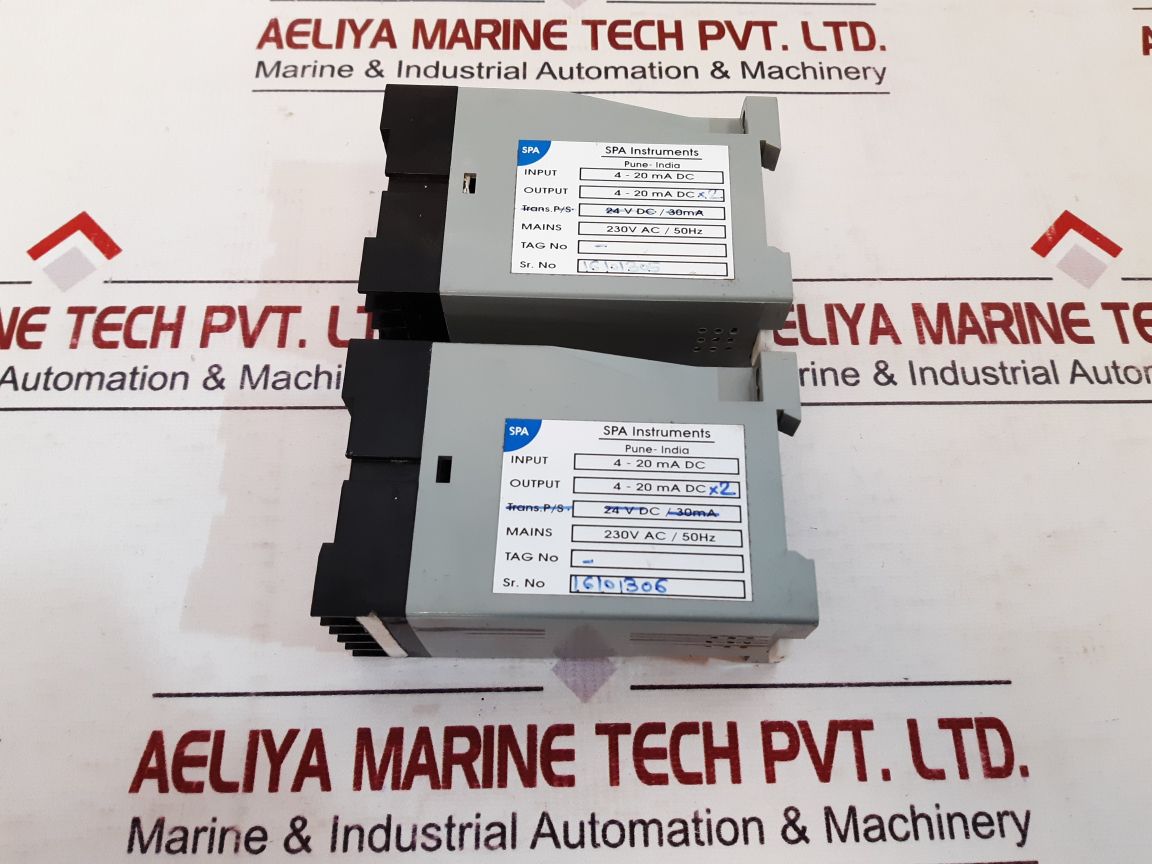

INPUT: 4-20 MA DC
OUTPUT: 4-20 MA DC X 2
MAINS: 230V AC/50HZ
EC-7045
INDIA
WEIGHT: 290 GM
REF NO(SP) : 42017
How it Works: The SPA INSTRUMENTS SI-300 Signal Isolator operates by electrically isolating and conditioning an input signal (4-20 mA DC) and providing two identical output signals (4-20 mA DC each). It ensures that the output signals remain unaffected by fluctuations or noise in the input signal. This isolation and conditioning process helps maintain the integrity of the signal, making it suitable for transmission over longer distances or in noisy environments.
When to Use: This product should be used when precise signal isolation and conditioning are required to ensure the accurate and reliable transmission of electrical signals. It is particularly valuable in applications where electrical noise, signal interference, or long-distance signal transmission could compromise the quality and accuracy of the signal.
Where to Use: The SPA INSTRUMENTS SI-300 Signal Isolator finds application in various industrial settings, including manufacturing, process control, automation, and instrumentation. It is suitable for use in scenarios where signal isolation, conditioning, and transmission are critical for operational efficiency and safety.
How to Use:
- Ensure that the SI-300 Signal Isolator is compatible with the type of input signal (4-20 mA DC) you need to isolate and condition.
- Connect the input signal to the SI-300’s input terminals.
- Connect the output terminals to the devices or systems that require the conditioned signal.
- Provide the SI-300 with the mains power supply of 230V AC at 50Hz.
- The SI-300 will electrically isolate and condition the input signal and provide two identical, noise-free output signals.
- Monitor and adjust the output signals as necessary to suit your specific application requirements.
Key Features:
- Precise signal isolation and conditioning for accurate data transmission.
- Dual output signals for redundancy and versatility.
- Wide input voltage range (4-20 mA) for compatibility.
- Reliable operation with mains power supply.
- Compact and lightweight design for easy installation.
Benefits:
- Ensures signal integrity and reliability in noisy environments.
- Redundant output signals for added safety and redundancy.
- Compatible with various sensors and instrumentation.
- Suitable for a wide range of industrial applications.
- Simplifies signal conditioning and transmission for improved data accuracy.
